MBSS Site Summary for: ATKI-107-X-2009

Site Photos

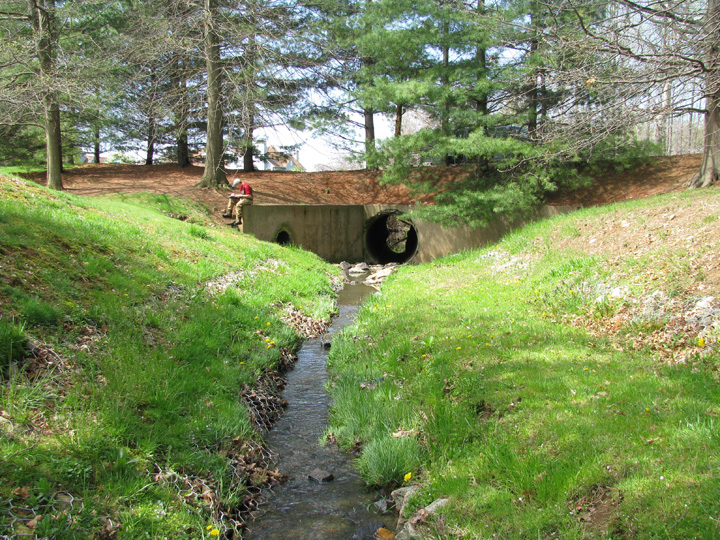

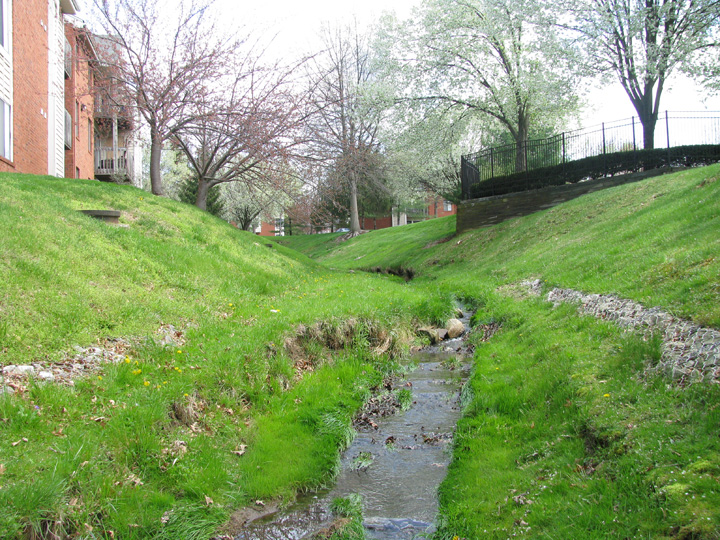

Field photo showing stream conditions at site ATKI-107-X-2009-1 (Opens in a new window) Field photo showing stream conditions at site ATKI-107-X-2009-2 (Opens in a new window)

Located on UT Atkisson Reservoir (Wheel Creek) in the Atkisson Reservoir watershed, 8-digit code: 02130703.
This stream was visited in the spring on 4/21/2009 and again in the summer on 7/8/2009.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 1.7 / 5.0
Benthic IBI Poor - 2.3 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 50 acres A highly channelized urban stream with concrete banks. An example of a highly channelized urban stream.
Urban Land Use 60.8 %
Agricultural Land Use 8.8 %
Forested Land Use 30.4 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 3/20 (Poor)
Epifaunal Substrate 3/20 (Poor)
Velocity/Depth Diversity 6/20 (Marginal)
Pool Quality
Pool Extent = 34 meters 		6/20 (Marginal)
Riffle Quality
Riffle Extent = 41 meters 		6/20 (Marginal)
Shading 25 %
Embeddedness 70 %
The embeddedness, a measure of silt on the stream bottom, was 70%. This is relatively high, and may exclude some biota.


Stream Water Quality:
Water temperature 17.5 ° C
Dissolved oxygen (DO) 9.1 mg/L
pH (lab) 7.11
Conductivity 534 µmho/cm
Alkalinity
(acid neutralizing capacity) 		1443.2 µeq/L
Dissolved organic carbon (DOC) 3.3342 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 1 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Creek Chub 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
American Bullfrog

Crayfish:
Cambarus diogenes

Exotic Plants:
No Exotic Plants Observed


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Hydropsyche Net-Spinning Caddisfly 41
Cheumatopsyche Net-Spinning Caddisfly 28
Cricotopus Non-Biting Midges 4
Orthocladius Non-Biting Midges 3
Thienemannimyia Group Non-Biting Midges 2
Lumbriculidae Worm 2
Argia Narrow-Winged Damselfly 2
Physa Air-Breathing Freshwater Snail 2
Tubificidae Aquatic Worm 2
Hydropsychidae Common Netspinner Caddisfly 1
Antocha Crane Fly 1
Tipula Crane Fly 1
Tipulidae Cranefly 1
Dicrotendipes Non-Biting Midges 1
Hemerodromia Tiny Fly 1
Polypedilum Non-Biting Midges 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
