MBSS Site Summary for: ATKI-217-R-2004

Site Photos

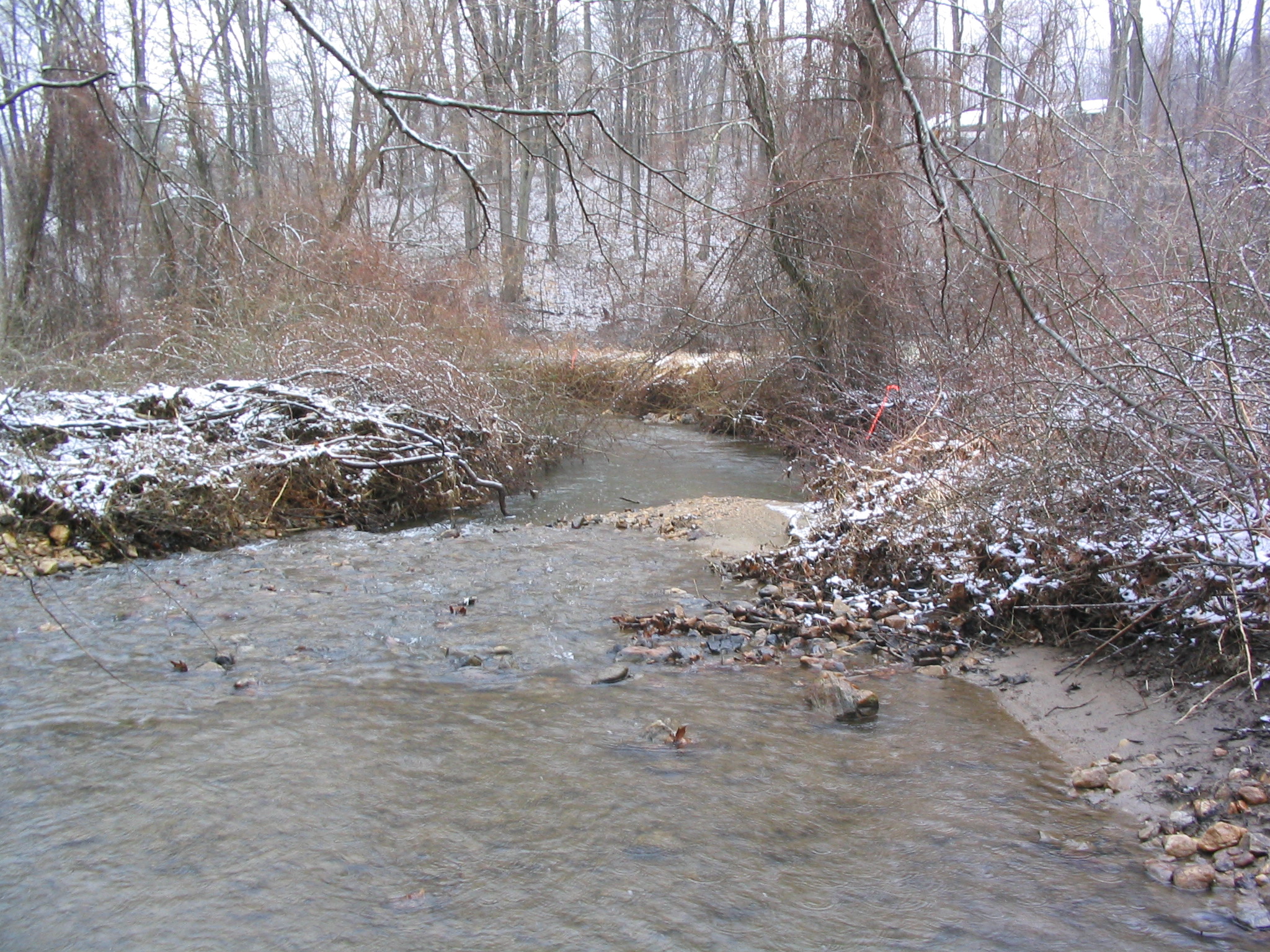

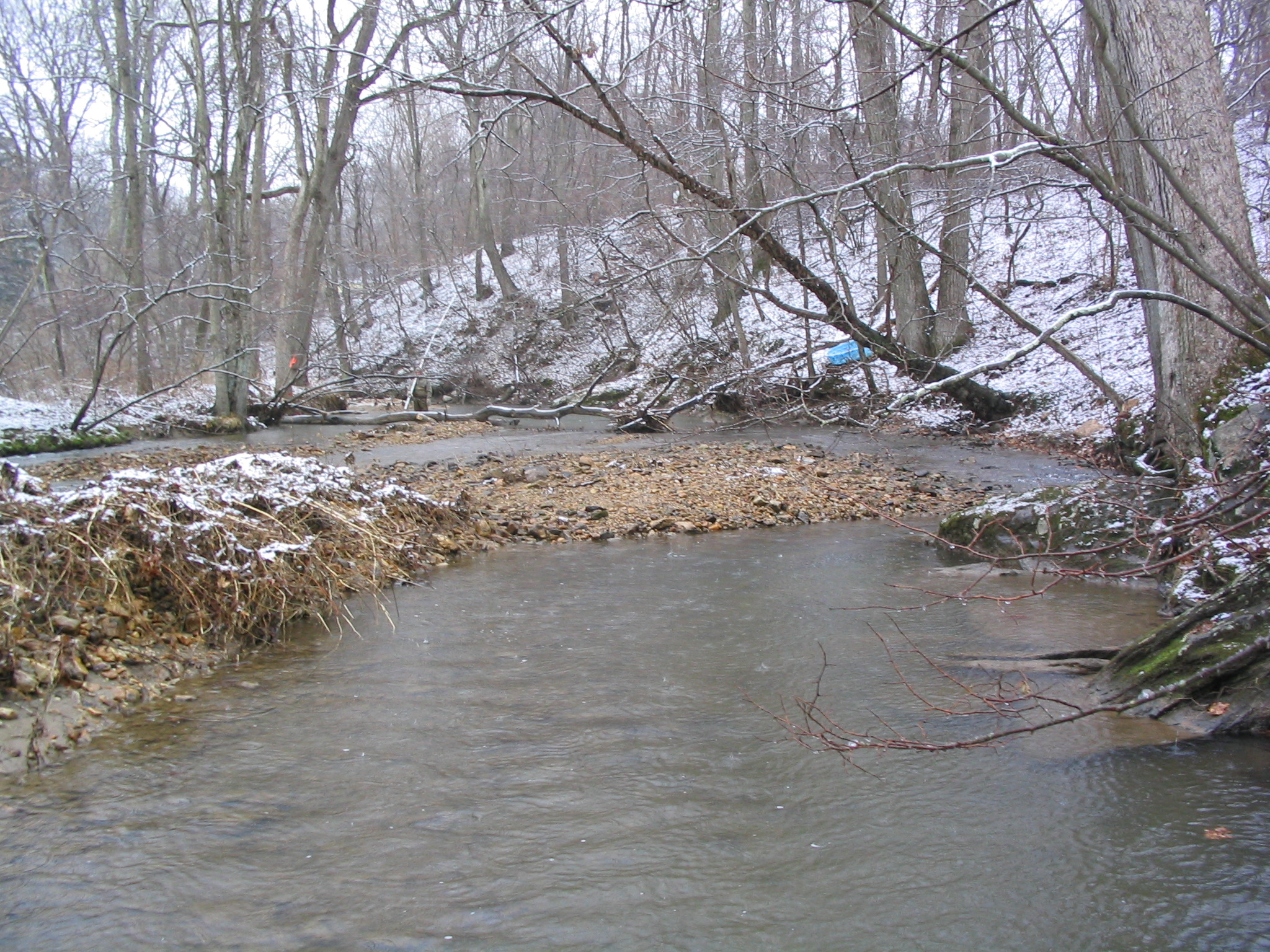

Field photo showing stream conditions at site ATKI-217-R-2004-5 (Opens in a new window) Field photo showing stream conditions at site ATKI-217-R-2004-6 (Opens in a new window)

Located on EAST BR WINTERS RUN in the Atkisson Reservoir watershed, 8-digit code: 02130703.
This stream was visited in the spring on 3/16/2004 and again in the summer on 7/20/2004.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 4.7 / 5.0
Benthic IBI Poor - 2.3 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 4,638 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 4 %
Agricultural Land Use 60 %
Forested Land Use 36 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 18/20 (Optimal)
Epifaunal Substrate 18/20 (Optimal)
Velocity/Depth Diversity 17/20 (Optimal)
Pool Quality
Pool Extent = 34 meters 		17/20 (Optimal)
Riffle Quality
Riffle Extent = 60 meters 		18/20 (Optimal)
Shading 85 %
Embeddedness 10 %
Several measures of instream habitat were considered 'Optimal' at this location.


Stream Water Quality:
Water temperature 18.5 ° C
Dissolved oxygen (DO) 8.1 mg/L
pH (lab) 7.32
Conductivity 151 µmho/cm
Alkalinity
(acid neutralizing capacity) 		327.5 µeq/L
Dissolved organic carbon (DOC) 0.8 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 13 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blue Ridge Sculpin 773
Rosyside Dace 77
Blacknose Dace 49
Longnose Dace 47
Bluntnose Minnow 31
Creek Chub 25
White Sucker 18
Common Shiner 9
Fallfish 6
Cutlip Minnow 2
Smallmouth Bass 2
Least Brook Lamprey 1
Tessellated Darter 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
American Bullfrog
Eastern American Toad

Crayfish:
No crayfish noted.

Exotic Plants:
Japanese Honeysuckle
Japanese Stiltgrass
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Orthocladius Non-Biting Midges 113
Prosimulium Black Fly 13
Diamesa Bloodworm 5
Leuctra  Rolled-Winged Stonefly 4
Perlodidae Perlodid Stonefly 4
Prostoia Spring Stonefly 4
Tvetenia Non-Biting Midges 3
Parametriocnemus Non-Biting Midges 3
Nemouridae Nemourid Stonefly 2
Stegopterna Black Fly 2
Tipula Crane Fly 2
Stenonema Flatheaded Mayfly 1
Eurylophella Mayfly 1
Stilocladius Midge 1
Baetis Blue-Winged Olive Mayfly 1
Antocha Crane Fly 1
Cheumatopsyche Net-Spinning Caddisfly 1
Hydropsyche Net-Spinning Caddisfly 1
Paraphaenocladius Non-Biting Midges 1
Rheocricotopus Non-Biting Midges 1
Sympotthastia Non-Biting Midges 1
Isoperla Stripetail Stonefly 1
Hemerodromia Tiny Fly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
