MBSS Site Summary for: BRIG-103-R-2009

Site Photos

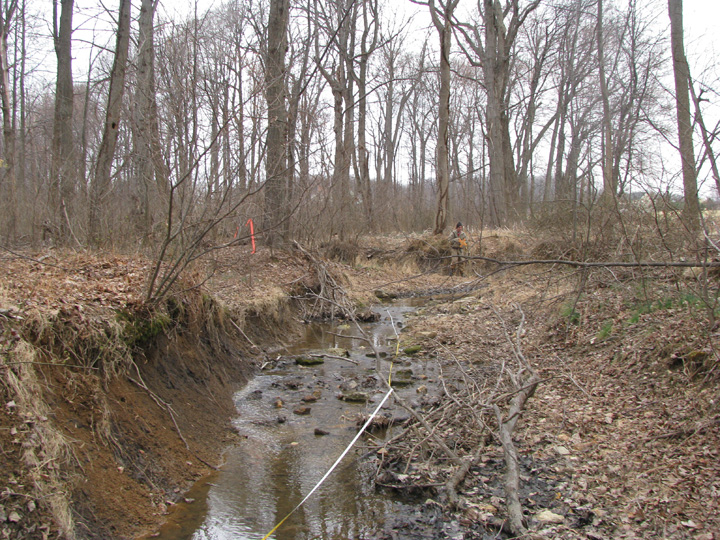

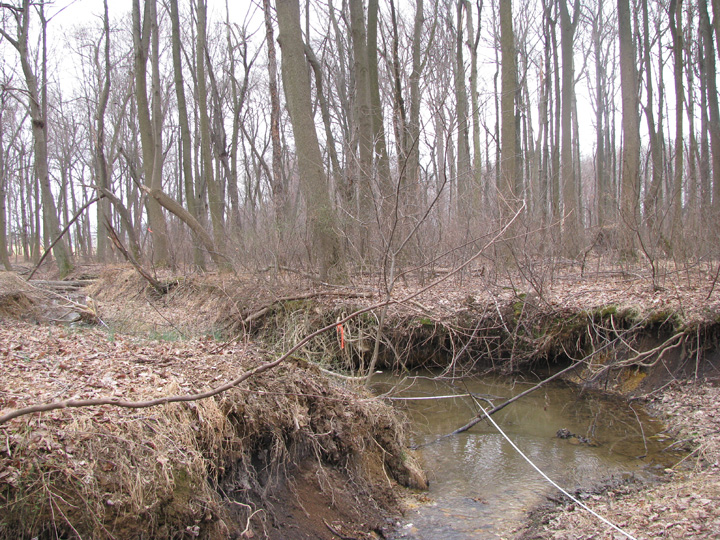

Field photo showing stream conditions at site BRIG-103-R-2009-1 (Opens in a new window) Field photo showing stream conditions at site BRIG-103-R-2009-2 (Opens in a new window)

Located on UT Cabin Branch in the Brighton Dam watershed, 8-digit code: 02131108.
This stream was visited in the spring on 3/10/2009 and again in the summer on 6/12/2009.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Fair - 3.0 / 5.0
Benthic IBI Good - 4.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)

Catchment area 243 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 0 %
Agricultural Land Use 81.3 %
Forested Land Use 18.7 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat

Instream Habitat 10/20 (Marginal)
Epifaunal Substrate 11/20 (Suboptimal)
Velocity/Depth Diversity 8/20 (Marginal)
Pool Quality
Pool Extent = 46 meters
8/20 (Marginal)
Riffle Quality
Riffle Extent = 29 meters
11/20 (Suboptimal)
Shading 85 %
Embeddedness 40 %


Stream Water Quality:

Water temperature 15 ° C
Dissolved oxygen (DO) 9 mg/L
pH (lab) 6.7
Conductivity 178 µmho/cm
Alkalinity
(acid neutralizing capacity)
195.2 µeq/L
Dissolved organic carbon (DOC) 0.767 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health.
Close-up of a mayfly indicator species.

Fish Survey Results:

The following 6 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 130
Rosyside Dace 67
Creek Chub 8
White Sucker 2
Longnose Dace 1
Tessellated Darter 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:

Eastern American Toad
Eastern Red-Backed Salamander
Northern Dusky Salamander
Northern Green Frog
Northern Red Salamander
Northern Two-Lined Salamander

Crayfish:

Cambarus bartonii bartonii
Orconectes virilis

Exotic Plants:

Garlic Mustard
Japanese Barberry
Japanese Honeysuckle
Japanese Stiltgrass
Mile-A-Minute
Multiflora Rose


Benthic Macroinvertebrates:

Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Eurylophella Mayfly 13
Orthocladius Non-Biting Midges 12
Ephemerella Sulphur Mayfly 8
Acerpenna Tiny Blue-Winged Olive Mayflies 8
Thienemannimyia Group Non-Biting Midges 7
Diplectrona Net-Spinning Caddisfly 5
Dicranota Hairy-Eyed Cranefly 5
Leptophlebia Pronggilled Mayfly 4
Parametriocnemus Non-Biting Midges 4
Corynoneura Non-Biting Midges 4
Baetidae Small Minnow Mayfly 4
Amphinemura Spring Stonefly 2
Brillia Non-Biting Midges 2
Maccaffertium March Brown And Cahill Mayfly 2
Pseudolimnophila Crane Fly 2
Bezzia Biting Midge 2
Heteroplectron Caddisfly 2
Ameletus Combmouthed Minnow Mayfly 2
Perlidae Common Stonefly 1
Antocha Crane Fly 1
Gomphidae Clubtail Dragonfly 1
Ceratopogon Biting Midge 1
Culicoides 1
Paralauterborniella 1
Rhyacophila Free-Living Caddisfly 1
Hydropsyche Net-Spinning Caddisfly 1
Dolophilodes Medium Evening Sedge Caddisfly 1
Lype Net Tube Caddisfly 1
Lumbriculidae Worm 1
Eccoptura Yellow Stone Stonefly 1
Micropsectra Non-Biting Midges 1
Potthastia Non-Biting Midges 1
Oulimnius Riffle Beetle 1
Zavrelimyia Non-Biting Midges 1
Pisidiidae Pill Clam 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
