MBSS Site Summary for: BROA-101-R-2003

Site Photos

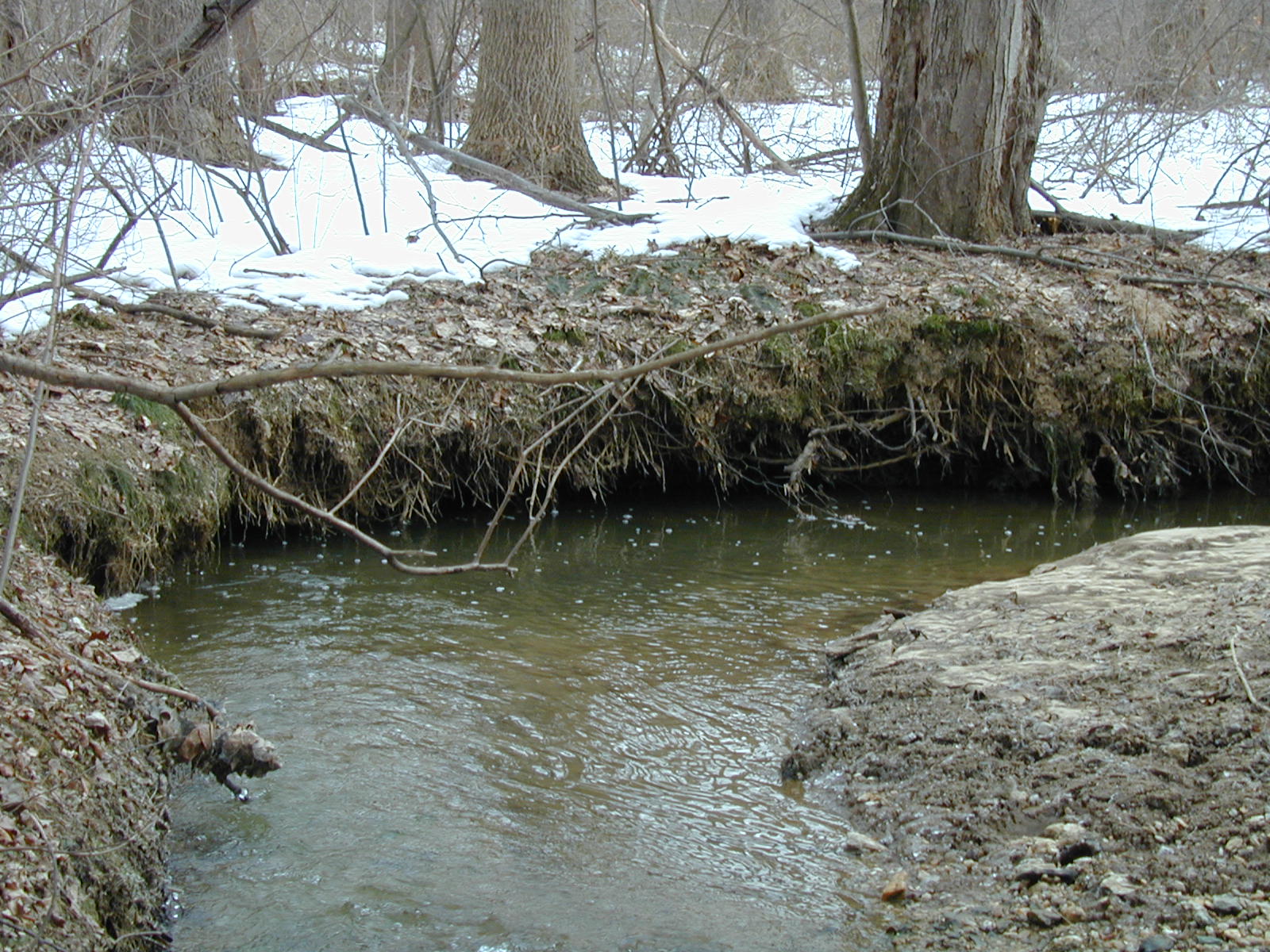

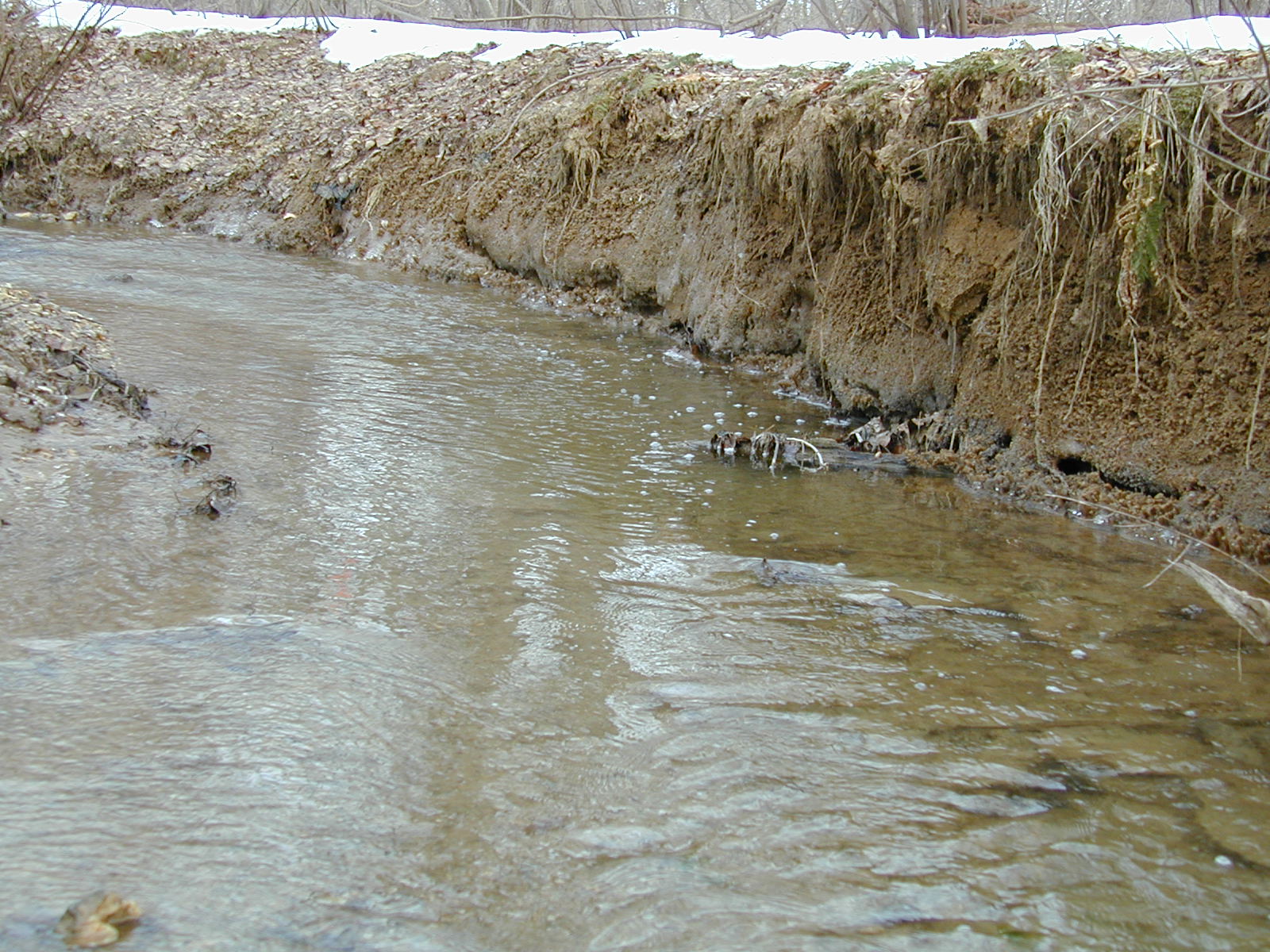

Field photo showing stream conditions at site BROA-101-R-2003-840 (Opens in a new window) Field photo showing stream conditions at site BROA-101-R-2003-841 (Opens in a new window) Field photo showing stream conditions at site BROA-101-R-2003-842 (Opens in a new window) Field photo showing stream conditions at site BROA-101-R-2003-659 (Opens in a new window) Field photo showing stream conditions at site BROA-101-R-2003-660 (Opens in a new window)

Located on DEEP CR in the Broad Creek watershed, 8-digit code: 02120205.
This stream was visited in the spring on 3/11/2003 and again in the summer on 6/10/2003.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 1.3 / 5.0
Benthic IBI Poor - 2.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 624 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 3 %
Agricultural Land Use 52 %
Forested Land Use 42 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 12/20 (Suboptimal)
Epifaunal Substrate 11/20 (Suboptimal)
Velocity/Depth Diversity 8/20 (Marginal)
Pool Quality
Pool Extent = 38 meters 		10/20 (Marginal)
Riffle Quality
Riffle Extent = 42 meters 		12/20 (Suboptimal)
Shading 95 %
Embeddedness 50 %


Stream Water Quality:
Water temperature 18.1 ° C
Dissolved oxygen (DO) 8.1 mg/L
pH (lab) 6.63
Conductivity 123 µmho/cm
Alkalinity
(acid neutralizing capacity) 		160.1 µeq/L
Dissolved organic carbon (DOC) 1.2 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 4 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Creek Chub 9
Blacknose Dace 8
Bluegill 3
Rosyside Dace 3
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Eastern Painted Turtle
Northern Red Salamander
Northern Two-Lined Salamander

Crayfish:
No crayfish noted.

Exotic Plants:
Japanese Honeysuckle
Japanese Stiltgrass
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Naididae Aquatic Worm 45
Parametriocnemus Non-Biting Midges 16
Micropsectra Non-Biting Midges 10
Probezzia Biting Midges 8
Orthocladius Non-Biting Midges 5
Microtendipes Non-Biting Midges 4
Chironomus Non-Biting Midges 4
Prosimulium Black Fly 3
Thienemannimyia group Non-Biting Midges 3
Pisidiidae Pill Clam 2
Paraphaenocladius Non-Biting Midges 2
Eukiefferiella Non-Biting Midges 2
Natarsia Non-Biting Midges 1
Gomphidae Clubtail Dragonfly 1
Pseudolimnophila Crane Fly 1
Orthocladiinae Midge 1
Polypedilum Non-Biting Midges 1
Sialis Alderfly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
