MBSS Site Summary for: BROA-107-R-2003

Site Photos

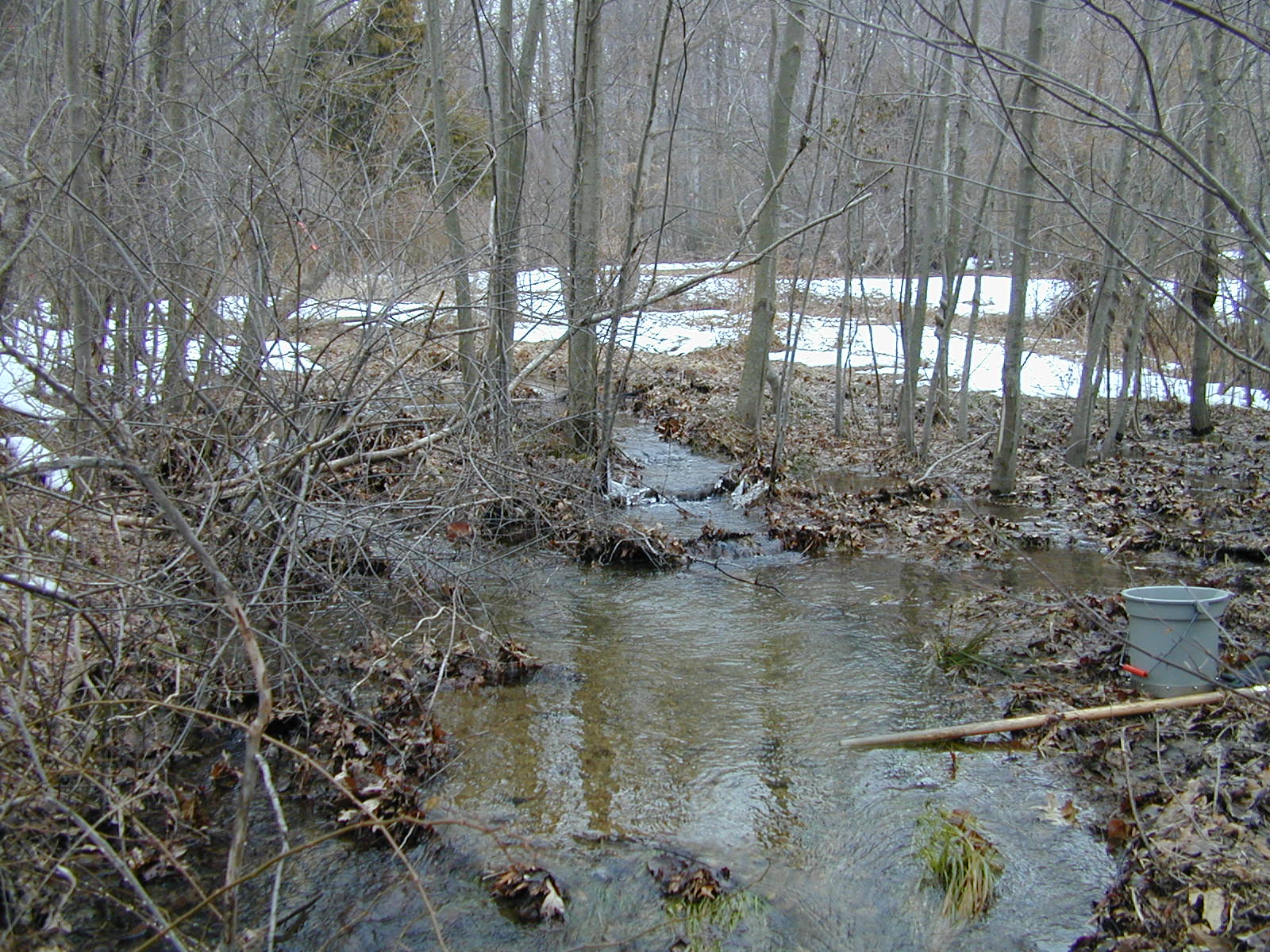

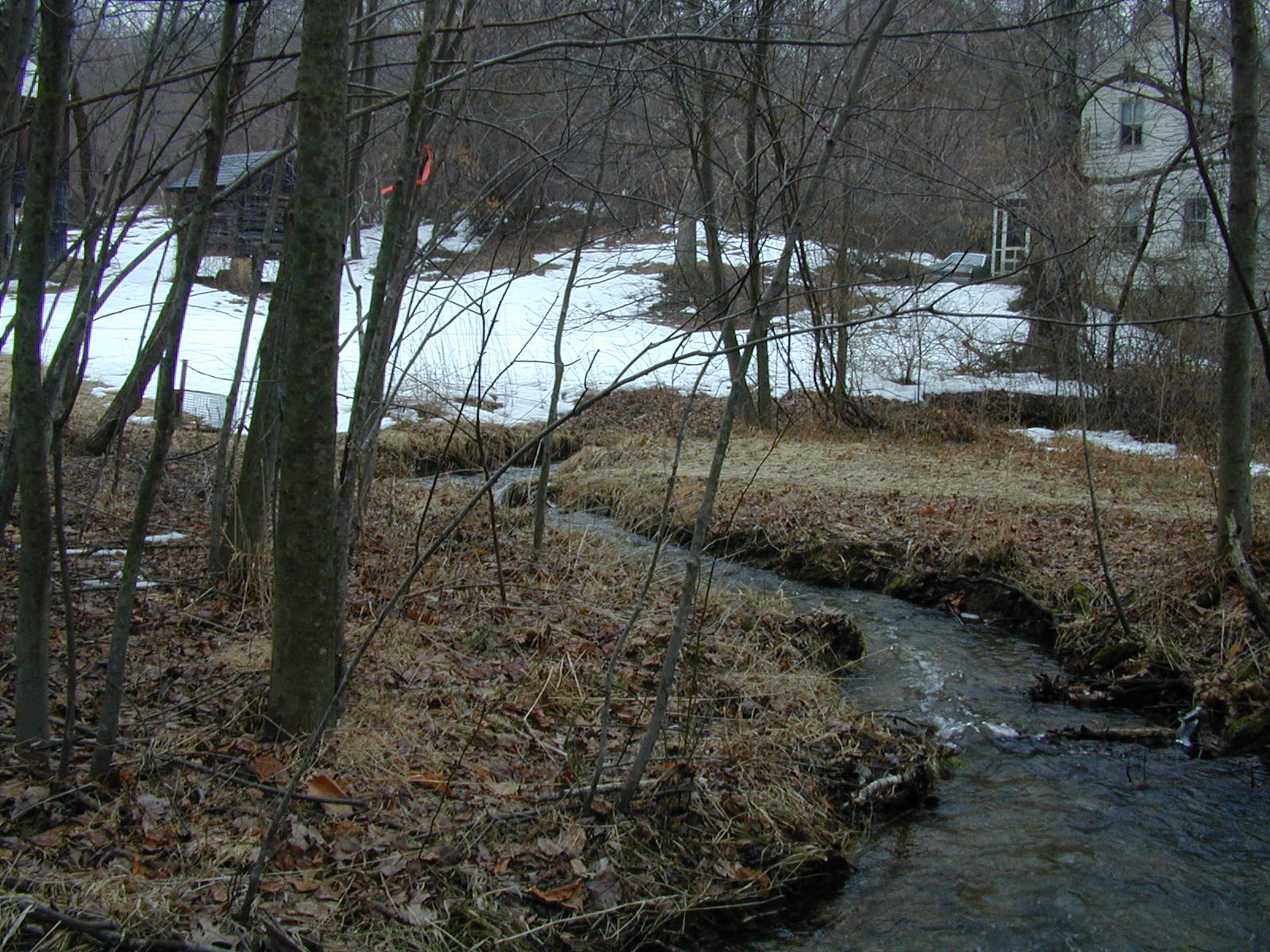

Field photo showing stream conditions at site BROA-107-R-2003-663 (Opens in a new window) Field photo showing stream conditions at site BROA-107-R-2003-664 (Opens in a new window)

Located on BROAD CR UT5 in the Broad Creek watershed, 8-digit code: 02120205.
This stream was visited in the spring on 3/11/2003 and again in the summer on 6/11/2003.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 2.0 / 5.0
Benthic IBI Fair - 3.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 167 acres A stream flowing through a densely forested area. An example of a forested stream.
Urban Land Use 4 %
Agricultural Land Use 41 %
Forested Land Use 52 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 15/20 (Suboptimal)
Epifaunal Substrate 14/20 (Suboptimal)
Velocity/Depth Diversity 9/20 (Marginal)
Pool Quality
Pool Extent = 24 meters 		9/20 (Marginal)
Riffle Quality
Riffle Extent = 75 meters 		16/20 (Optimal)
Shading 94 %
Embeddedness 6 %


Stream Water Quality:
Water temperature 13.9 ° C
Dissolved oxygen (DO) 9.3 mg/L
pH (lab) 6.49
Conductivity 144 µmho/cm
Alkalinity
(acid neutralizing capacity) 		72.6 µeq/L
Dissolved organic carbon (DOC) 1 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 2 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Creek Chub 18
Blacknose Dace 9
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Two-Lined Salamander
Pickerel Frog

Crayfish:
No crayfish noted.

Exotic Plants:
Japanese Honeysuckle
Japanese Stiltgrass
Mile-A-Minute
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Prosimulium Black Fly 48
Parametriocnemus Non-Biting Midges 18
Amphinemura Spring Stonefly 15
Nemouridae Nemourid Stonefly 12
Ameletus Combmouthed Minnow Mayfly 12
Stegopterna Black Fly 8
Diamesa Bloodworm 1
Simuliidae Black Fly 1
Tipula Crane Fly 1
Ephemerellidae Spiny Crawler Mayfly 1
Lumbriculidae Worm 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
