MBSS Site Summary for: BROA-116-R-2003

Site Photos

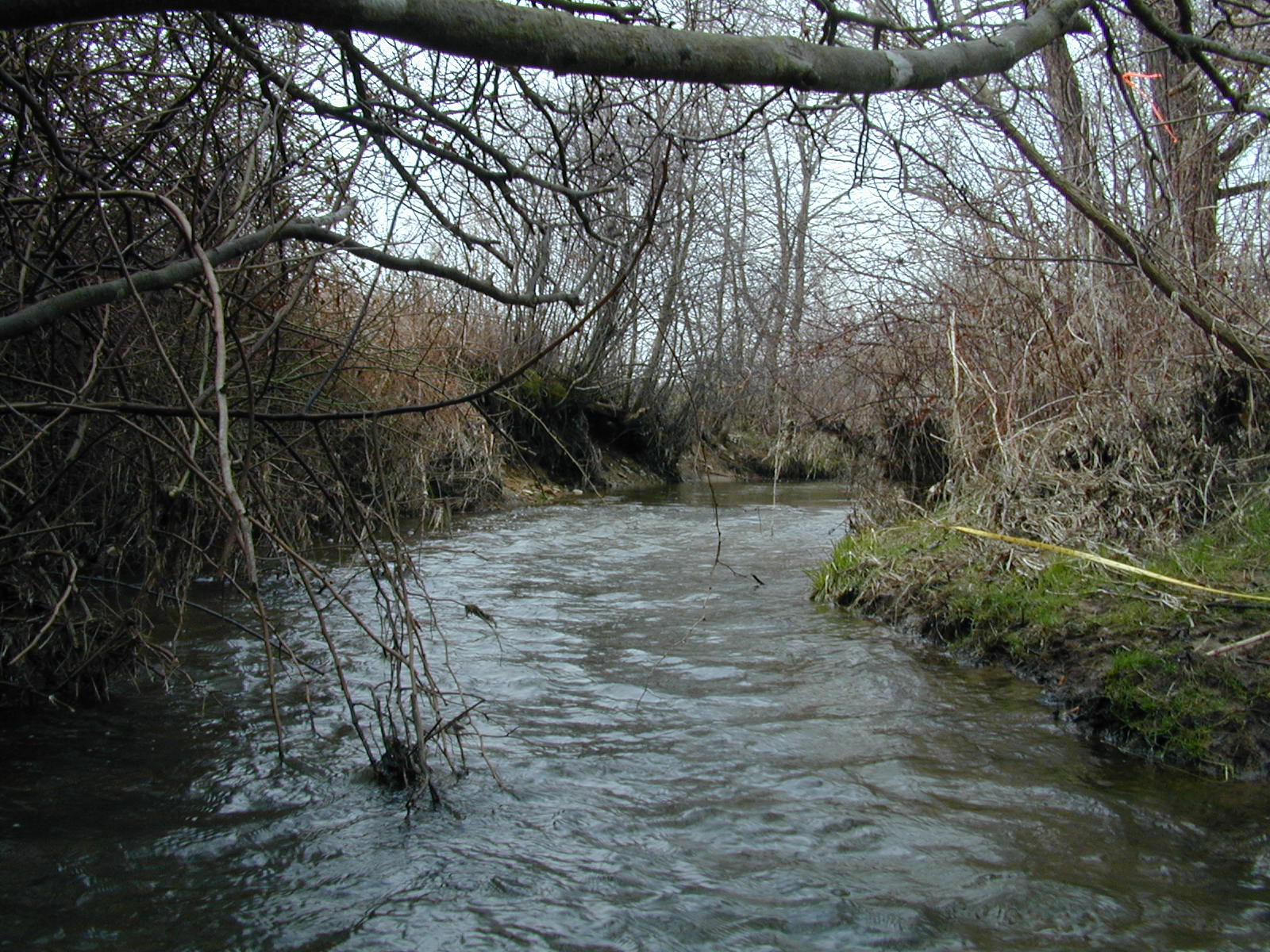

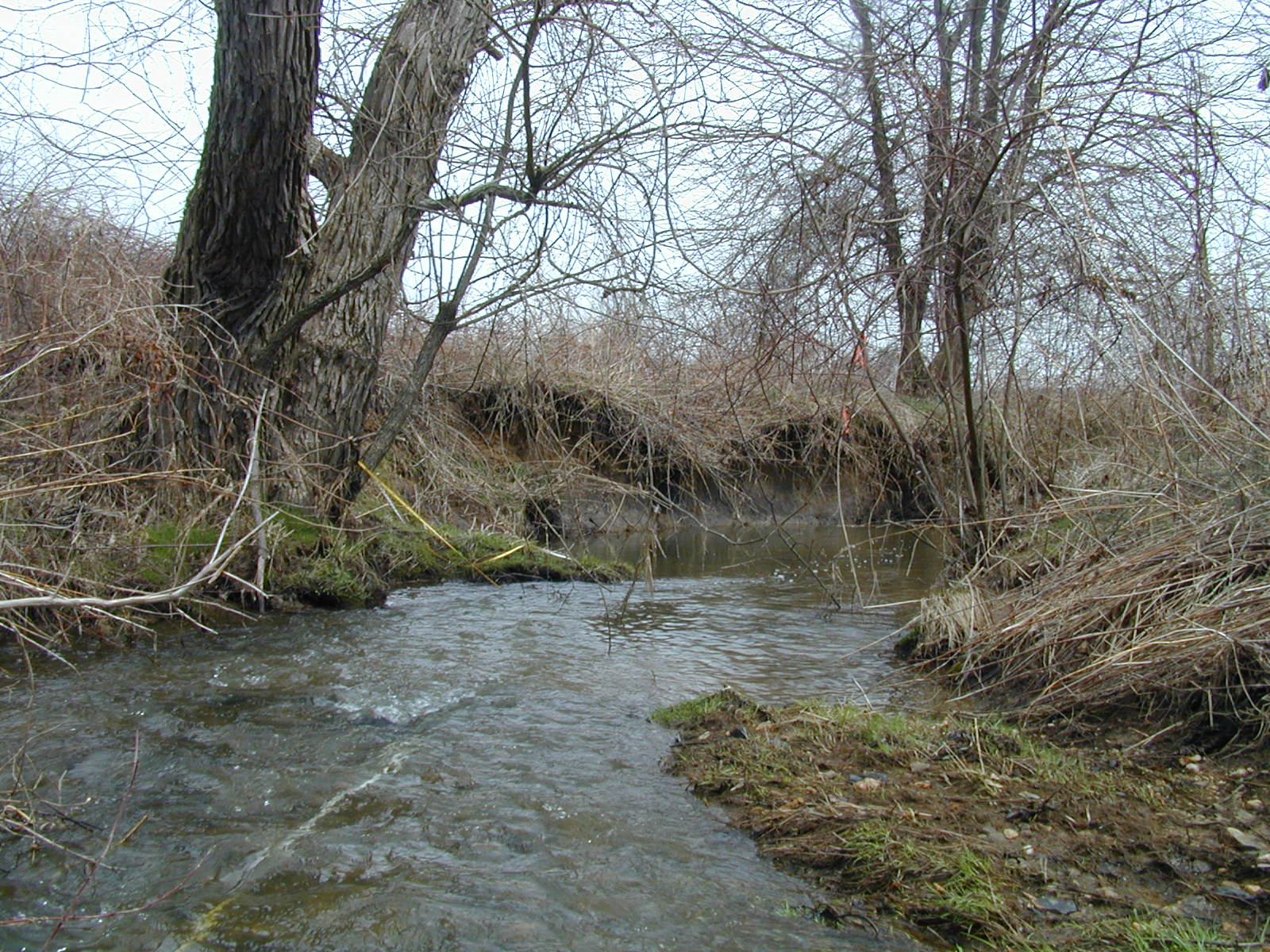

Field photo showing stream conditions at site BROA-116-R-2003-740 (Opens in a new window) Field photo showing stream conditions at site BROA-116-R-2003-741 (Opens in a new window) Field photo showing stream conditions at site BROA-116-R-2003-843 (Opens in a new window)

Located on BROAD CR in the Broad Creek watershed, 8-digit code: 02120205.
This stream was visited in the spring on 4/1/2003 and again in the summer on 6/11/2003.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 4.0 / 5.0
Benthic IBI Poor - 2.7 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 1,920 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 1 %
Agricultural Land Use 76 %
Forested Land Use 22 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 17/20 (Optimal)
Epifaunal Substrate 16/20 (Optimal)
Velocity/Depth Diversity 17/20 (Optimal)
Pool Quality
Pool Extent = 35 meters 		16/20 (Optimal)
Riffle Quality
Riffle Extent = 50 meters 		16/20 (Optimal)
Shading 88 %
Embeddedness 20 %
Several measures of instream habitat were considered 'Optimal' at this location.


Stream Water Quality:
Water temperature 19.2 ° C
Dissolved oxygen (DO) 8.9 mg/L
pH (lab) 7.08
Conductivity 158 µmho/cm
Alkalinity
(acid neutralizing capacity) 		284.3 µeq/L
Dissolved organic carbon (DOC) 0.9 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 14 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Rosyside Dace 93
Bluntnose Minnow 88
Creek Chub 62
Blacknose Dace 34
White Sucker 29
Common Shiner 17
Tessellated Darter 10
Cutlip Minnow 6
Central Stoneroller 5
Northern Hogsucker 5
Margined Madtom 4
Fallfish 1
Green Sunfish 1
Spottail Shiner 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Red Salamander
Northern Two-Lined Salamander

Crayfish:
No crayfish noted.

Exotic Plants:
Canada Thistle
Japanese Honeysuckle
Japanese Stiltgrass
Mile-A-Minute
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Chimarra Fingernet Caddisfly 25
Psephenus Water Penny 24
Stenelmis Beetle 18
Orthocladius Non-Biting Midges 10
Cheumatopsyche Net-Spinning Caddisfly 7
Parametriocnemus Non-Biting Midges 5
Polypedilum Non-Biting Midges 5
Conchapelopia Non-Biting Midges 3
Microtendipes Non-Biting Midges 2
Hydropsyche Net-Spinning Caddisfly 2
Goera 2
Neophylax Caddisfly 2
Hydrobaenus Midge 2
Thienemannimyia group Non-Biting Midges 2
Optioservus Riffle Beetle 1
Stenonema Flatheaded Mayfly 1
Chelifera Aquatic Dance Fly 1
Probezzia Biting Midges 1
Simulium Black Fly 1
Rheocricotopus Non-Biting Midges 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
