MBSS Site Summary for: BROA-221-R-2023

Site Photos

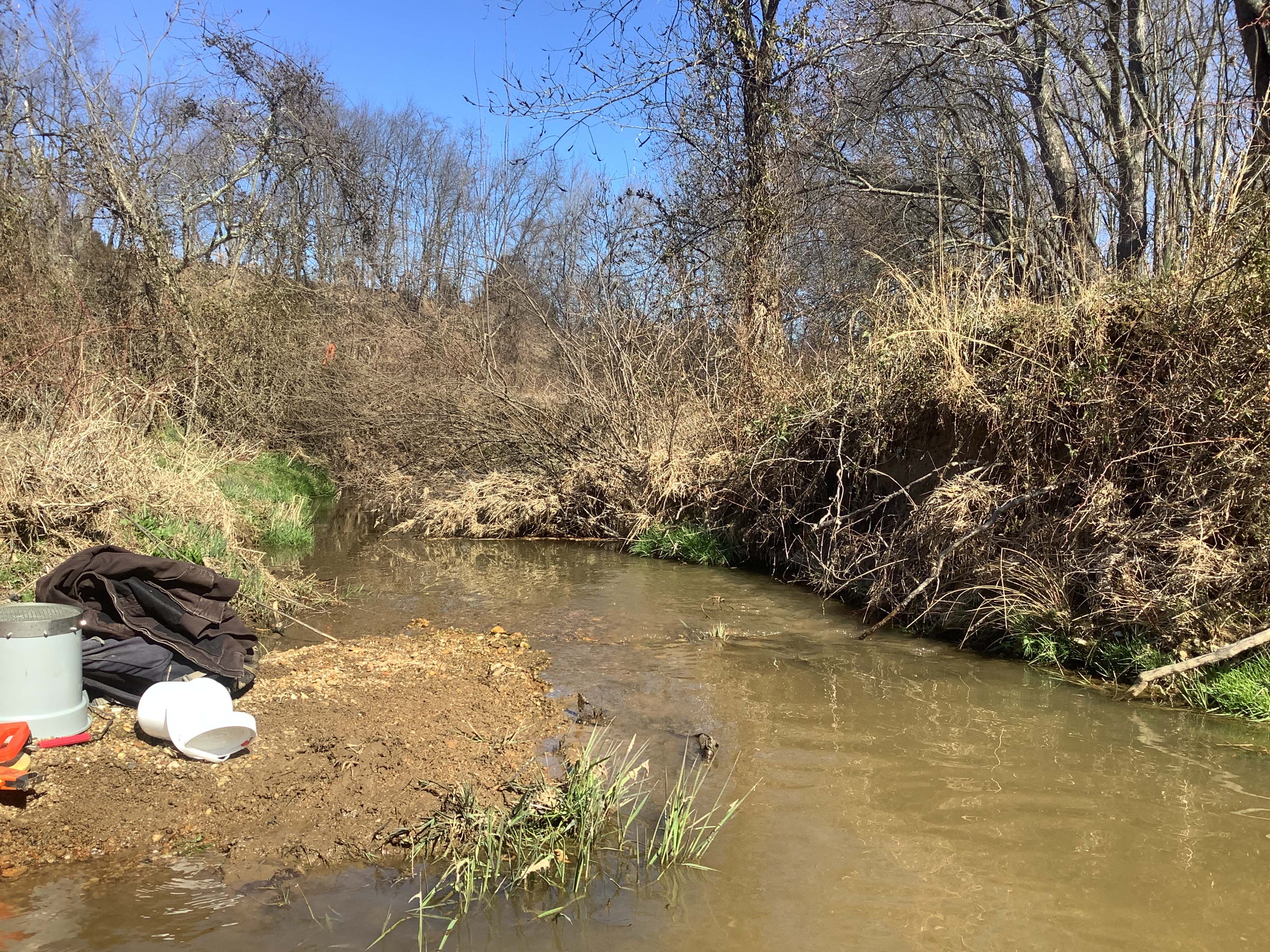

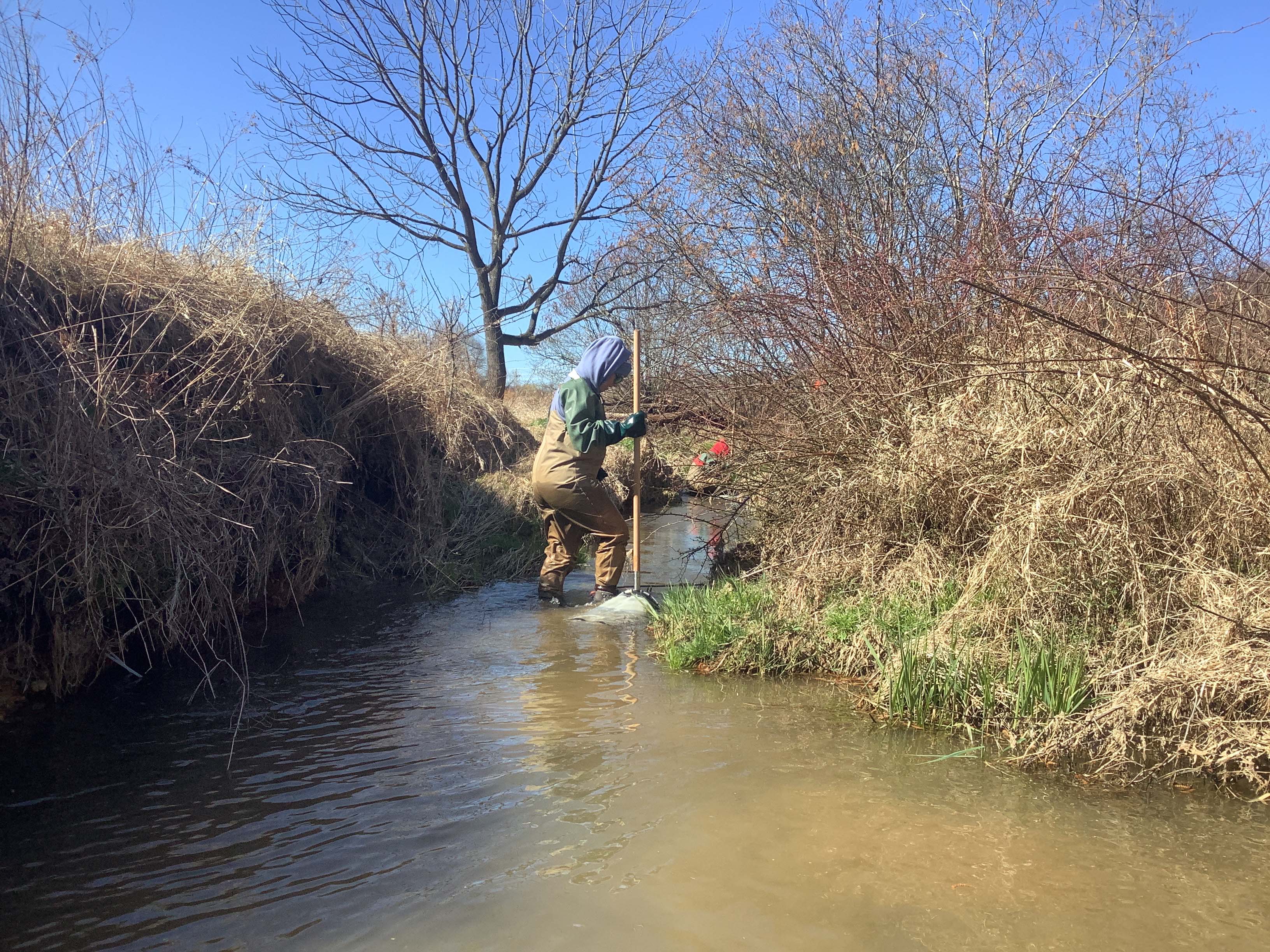

Field photo showing stream conditions at site BROA-221-R-2023_Midpoint_facing_downstream (Opens in a new window) Field photo showing stream conditions at site BROA-221-R-2023_Midpoint_facing_upstream (Opens in a new window)

Located on JACKS HOLE in the Broad Creek watershed, 8-digit code: 02120205.
This stream was visited in the spring on 3/15/2023 and again in the summer on 7/20/2023.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 4.3 / 5.0
Benthic IBI Fair - 3.7 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area No data available Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 15.5 %
Agricultural Land Use 63.4 %
Forested Land Use 19.8 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 18/20 (Optimal)
Epifaunal Substrate 16/20 (Optimal)
Velocity/Depth Diversity 14/20 (Suboptimal)
Pool Quality
Pool Extent = 33 meters 		15/20 (Suboptimal)
Riffle Quality
Riffle Extent = 42 meters 		16/20 (Optimal)
Shading 30 %
Embeddedness 50 %
Several measures of instream habitat were considered 'Optimal' at this location.


Stream Water Quality:
Water temperature 18.9 ° C
Dissolved oxygen (DO) 8.81 mg/L
pH (lab) 7.08
Alkalinity
(acid neutralizing capacity) 		248.3 µeq/L
Dissolved organic carbon (DOC) 0.815 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 15 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 139
Rosyside Dace 118
Brown Trout 70
White Sucker 44
Creek Chub 38
Northern Hogsucker 15
Tessellated Darter 14
Longnose Dace 13
Largemouth Bass 10
Cutlip Minnow 6
Common Shiner 4
Spotfin Shiner 4
River Chub 3
Central Stoneroller 2
Fallfish 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Green Frog
Northern Two-Lined Salamander

Crayfish:
Faxonius virilis

Exotic Plants:
Autumn Olive
Callery/Bradford Pear
Japanese Honeysuckle
Japanese Stiltgrass
Mile-A-Minute
Multiflora Rose
Oriental Bittersweet
Shrub Honeysuckle


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
POLYPEDILUM Non-Biting Midges 17
DIAMESA Bloodworm 12
ORTHOCLADIUS Non-Biting Midges 10
BAETIS Blue-Winged Olive Mayfly 9
TVETENIA Non-Biting Midges 8
SYMPOTTHASTIA Non-Biting Midges 7
CHIMARRA Fingernet Caddisfly 6
ANTOCHA Crane Fly 4
CHEUMATOPSYCHE Net-Spinning Caddisfly 4
EPHEMERELLA Sulphur Mayfly 4
PARAMETRIOCNEMUS Non-Biting Midges 3
DIPHETOR Mayfly 3
TELOGANOPSIS Mayfly 3
HYDROPSYCHE Net-Spinning Caddisfly 3
CRICOTOPUS Non-Biting Midges 2
STENELMIS Beetle 2
CERATOPOGON/CULICOIDES/STILOBEZZIA 2
OPTIOSERVUS Riffle Beetle 2
OULIMNIUS Riffle Beetle 1
AMPHINEMURA Spring Stonefly 1
ACENTRELLA Tiny Blue-Winged Olive Mayflies 1
THIENEMANNIMYIA GROUP Non-Biting Midges 1
RHEOTANYTARSUS Non-Biting Midges 1
NEOLEPTOPHLEBIA 1
LEUCTRA  Rolled-Winged Stonefly 1
STYGOBROMUS Amphipod 1
NAIDIDAE Aquatic Worm 1
PROSIMULIUM Black Fly 1
SIMULIUM Black Fly 1
PARALEPTOPHLEBIA Blue Quill Mayfly 1
EUKIEFFERIELLA Non-Biting Midges 1
PARAKIEFFERIELLA European Non-Biting Midge 1
STENONEMA Flatheaded Mayfly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
