MBSS Site Summary for: BROA-306-R-2003

Site Photos

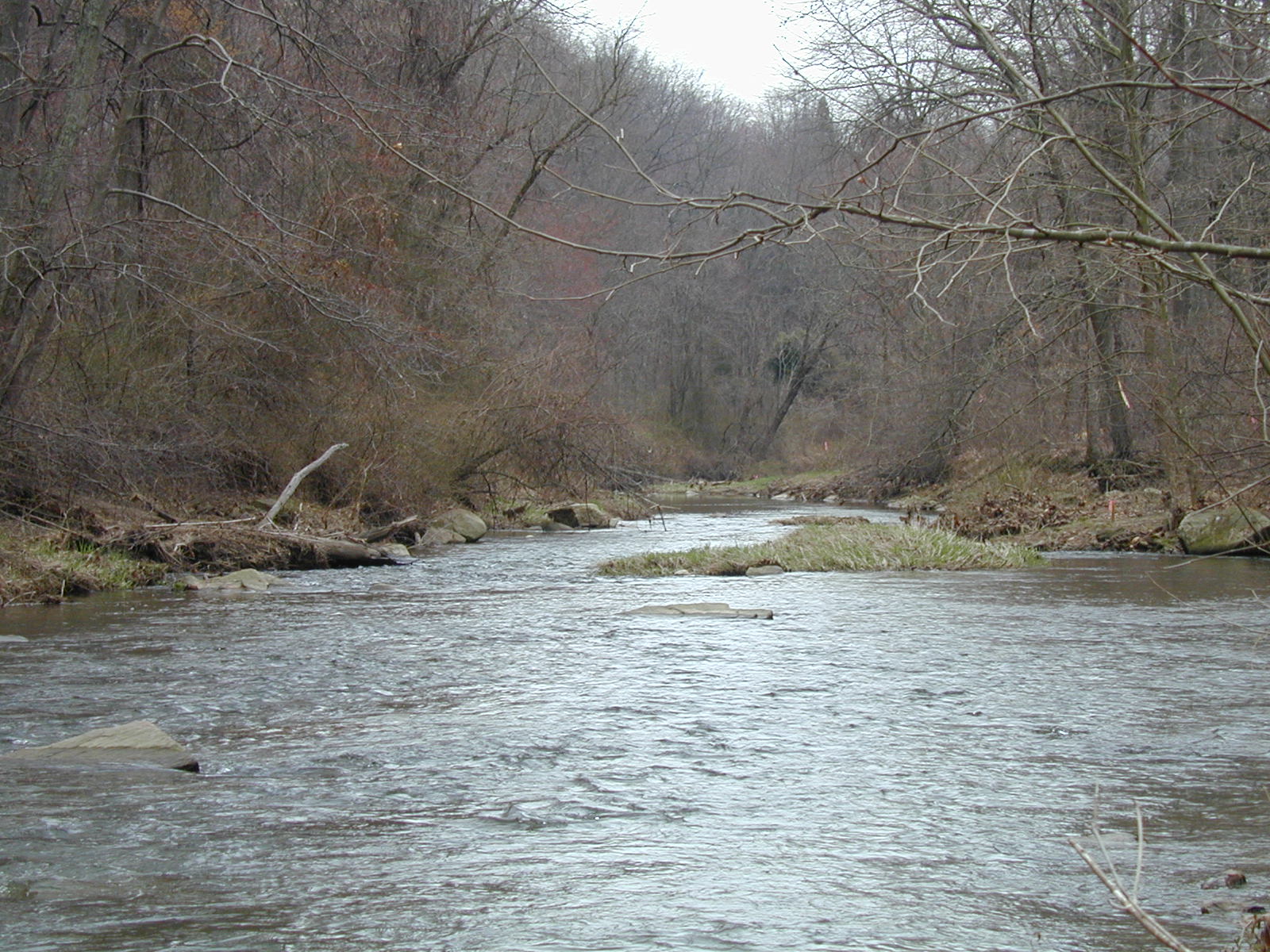

Field photo showing stream conditions at site BROA-306-R-2003-337 (Opens in a new window) Field photo showing stream conditions at site BROA-306-R-2003-339 (Opens in a new window)

Located on BROAD CR in the Broad Creek watershed, 8-digit code: 02120205.
This stream was visited in the spring on 4/1/2003 and again in the summer on 7/28/2003.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 4.3 / 5.0
Benthic IBI Good - 4.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 9,803 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 2 %
Agricultural Land Use 75 %
Forested Land Use 22 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 16/20 (Optimal)
Epifaunal Substrate 17/20 (Optimal)
Velocity/Depth Diversity 16/20 (Optimal)
Pool Quality
Pool Extent = 40 meters 		13/20 (Suboptimal)
Riffle Quality
Riffle Extent = 75 meters 		18/20 (Optimal)
Shading 92 %
Embeddedness 10 %
Several measures of instream habitat were considered 'Optimal' at this location.


Stream Water Quality:
Water temperature 20 ° C
Dissolved oxygen (DO) 8.2 mg/L
pH (lab) 7.13
Conductivity 165 µmho/cm
Alkalinity
(acid neutralizing capacity) 		294.5 µeq/L
Dissolved organic carbon (DOC) 1.3 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 19 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Bluntnose Minnow 339
Central Stoneroller 202
Common Shiner 128
Margined Madtom 53
Cutlip Minnow 49
River Chub 46
Blacknose Dace 37
Longnose Dace 31
Tessellated Darter 16
White Sucker 14
Smallmouth Bass 12
Redbreast Sunfish 9
Northern Hogsucker 7
Rock Bass 5
Green Sunfish 4
Bluegill 2
Creek Chub 2
Fallfish 1
Pumpkinseed 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Eastern American Toad
Northern Green Frog
Northern Two-Lined Salamander
Pickerel Frog

Crayfish:
No crayfish noted.

Exotic Plants:
Japanese Honeysuckle
Japanese Stiltgrass
Mile-A-Minute
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Stenonema Flatheaded Mayfly 23
Isonychia Slate Drake Mayfly 14
Cricotopus Non-Biting Midges 9
Polypedilum Non-Biting Midges 8
Tanytarsus Non-Biting Midges 8
Hemerodromia Tiny Fly 7
Cheumatopsyche Net-Spinning Caddisfly 6
Stenacron Mayfly 4
Simulium Black Fly 4
Antocha Crane Fly 4
Diamesa Bloodworm 3
Heptageniidae Flathead Mayfly 3
Orthocladiinae Midge 3
Optioservus Riffle Beetle 2
Ephemerella Sulphur Mayfly 2
Thienemanniella Non-Biting Midges 2
Eukiefferiella Non-Biting Midges 2
Orthocladius Non-Biting Midges 2
Parametriocnemus Non-Biting Midges 2
Naididae Aquatic Worm 2
Chimarra Fingernet Caddisfly 2
Philopotamidae Fingernet Caddisfly 1
Tipulidae Cranefly 1
Prosimulium Black Fly 1
Spirosperma Aquatic Oligochaete Worm 1
Epeorus Mayfly 1
Nigronia Megaloptera (Dark Fishfly) 1
Hydropsyche Net-Spinning Caddisfly 1
Corynoneura Non-Biting Midges 1
Diamesinae Non-Biting Midges 1
Thienemannimyia group Non-Biting Midges 1
Prostoia Spring Stonefly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
