MBSS Site Summary for: BROA-319-R-2003

Site Photos

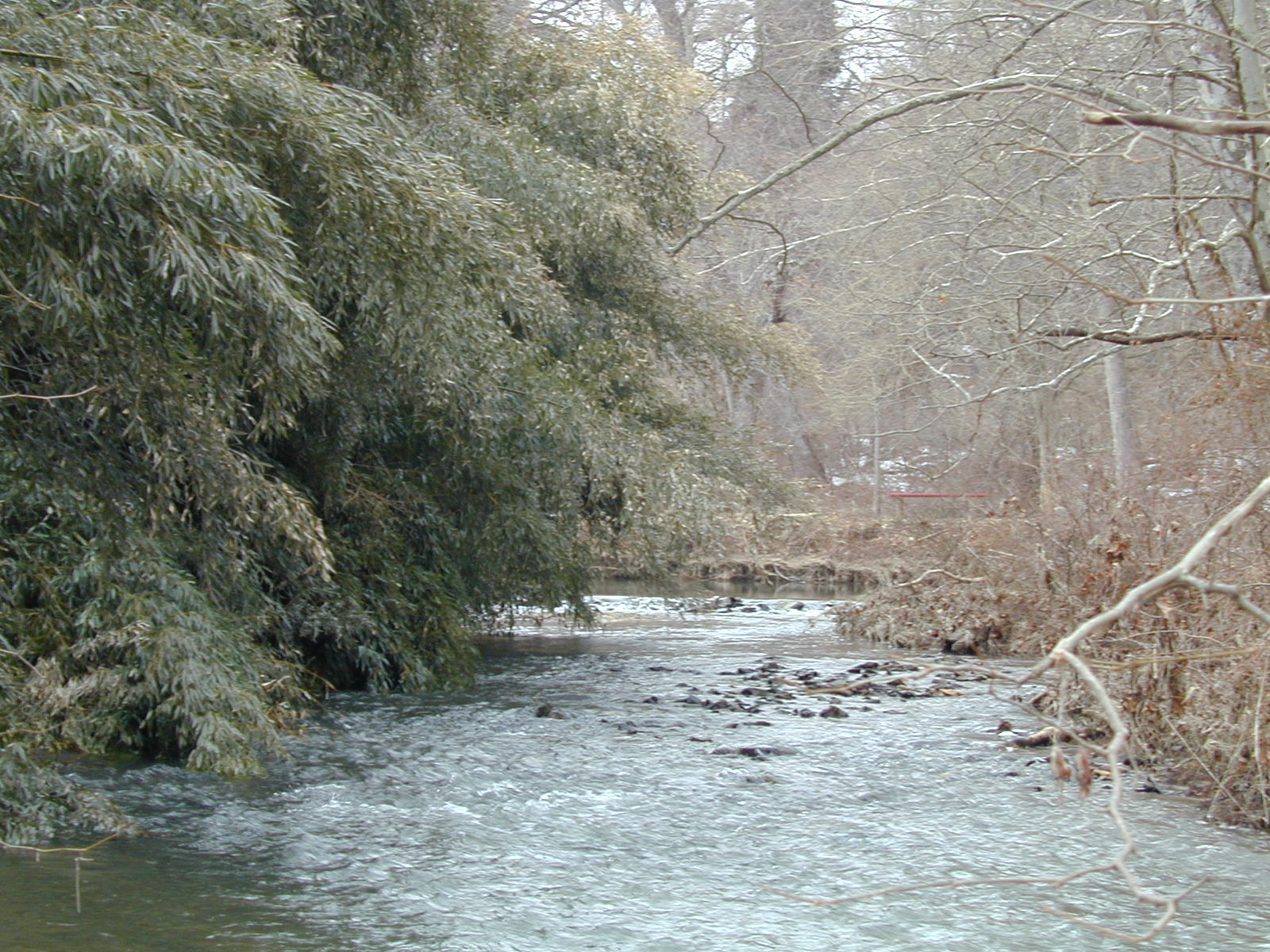

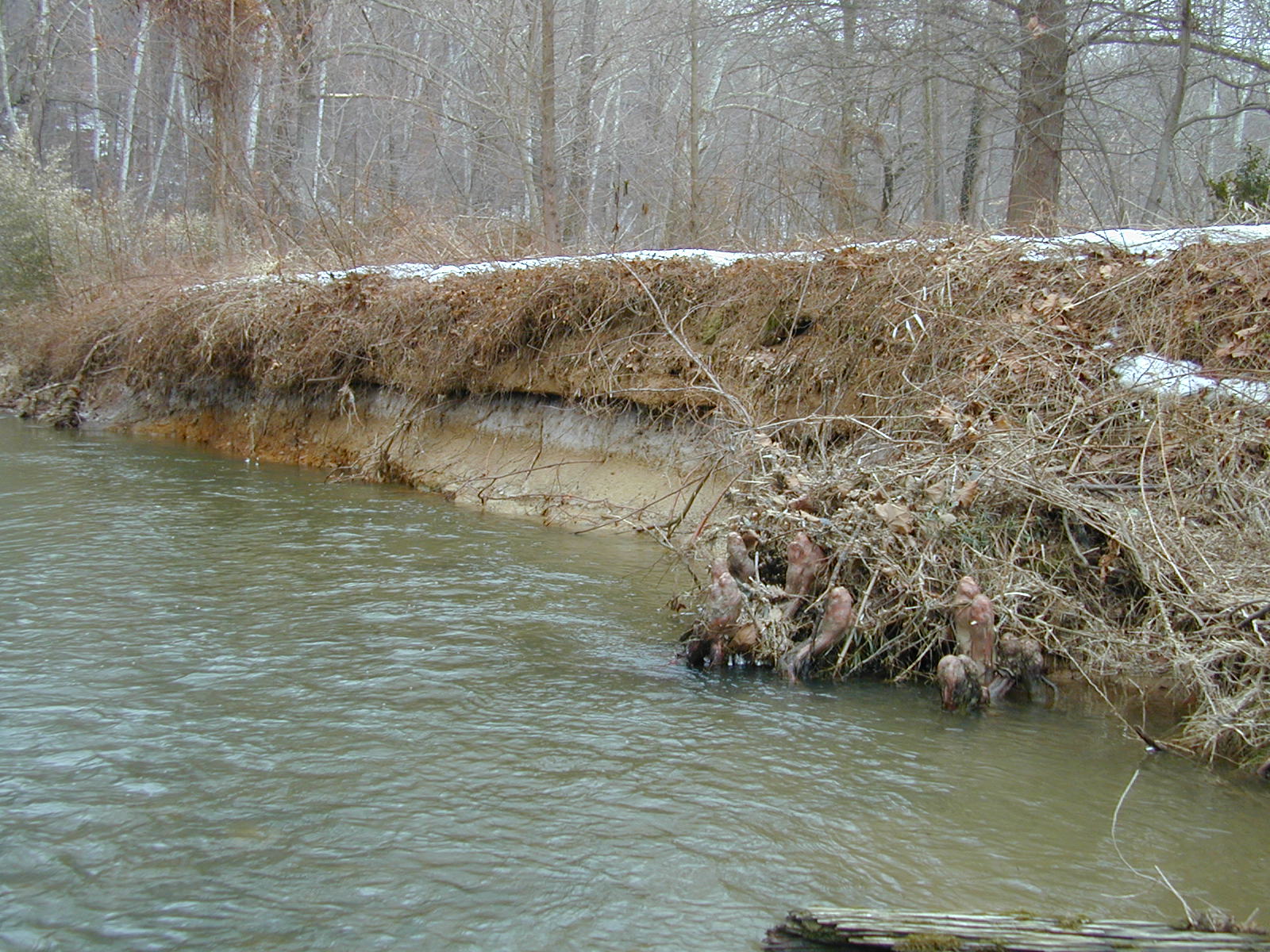

Field photo showing stream conditions at site BROA-319-R-2003-669 (Opens in a new window) Field photo showing stream conditions at site BROA-319-R-2003-670 (Opens in a new window)

Located on BROAD CR in the Broad Creek watershed, 8-digit code: 02120205.
This stream was visited in the spring on 3/11/2003 and again in the summer on 7/28/2003.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Fair - 3.7 / 5.0
Benthic IBI Good - 4.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 9,186 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 2 %
Agricultural Land Use 76 %
Forested Land Use 21 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 15/20 (Suboptimal)
Epifaunal Substrate 16/20 (Optimal)
Velocity/Depth Diversity 15/20 (Suboptimal)
Pool Quality
Pool Extent = 32 meters 		17/20 (Optimal)
Riffle Quality
Riffle Extent = 50 meters 		16/20 (Optimal)
Shading 87 %
Embeddedness 11 %
Several measures of instream habitat were considered 'Optimal' at this location.


Stream Water Quality:
Water temperature 21.1 ° C
Dissolved oxygen (DO) 8.5 mg/L
pH (lab) 6.97
Conductivity 167 µmho/cm
Alkalinity
(acid neutralizing capacity) 		263 µeq/L
Dissolved organic carbon (DOC) 1.3 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 19 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Bluntnose Minnow 120
Common Shiner 89
Central Stoneroller 71
Longnose Dace 50
Blacknose Dace 38
Creek Chub 20
Northern Hogsucker 19
River Chub 19
Fallfish 16
White Sucker 16
Margined Madtom 12
Cutlip Minnow 10
Tessellated Darter 8
Spottail Shiner 7
Rosyside Dace 5
Rock Bass 4
Redbreast Sunfish 3
Smallmouth Bass 3
Rosyface Shiner 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Eastern Box Turtle
Fowler's Toad
Northern Green Frog
Northern Two-Lined Salamander

Crayfish:
No crayfish noted.

Exotic Plants:
Bamboo
Japanese Honeysuckle
Japanese Stiltgrass
Mile-A-Minute
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Orthocladius Non-Biting Midges 21
Prosimulium Black Fly 18
Cheumatopsyche Net-Spinning Caddisfly 10
Parametriocnemus Non-Biting Midges 9
Micropsectra Non-Biting Midges 6
Strophopteryx Early Brown Stonefly 6
Diamesa Bloodworm 5
Chimarra Fingernet Caddisfly 4
Diamesinae Non-Biting Midges 4
Paraphaenocladius Non-Biting Midges 4
Antocha Crane Fly 3
Hydrobaenus Midge 3
Stenonema Flatheaded Mayfly 3
Prostoia Spring Stonefly 2
Oemopteryx Stonefly 2
Isonychia Slate Drake Mayfly 2
Allocapnia Small Winter Stonefly 1
Ephemerella Sulphur Mayfly 1
Taeniopteryx Winter Stonefly 1
Rheosmittia Non-Biting Midges 1
Thienemannimyia group Non-Biting Midges 1
Planariidae Flatworm 1
Rhyacophila Free-Living Caddisfly 1
Ephemera Mayfly 1
Neophylax Caddisfly 1
Hydropsychidae Common Netspinner Caddisfly 1
Orthocladiinae Midge 1
Nemouridae Nemourid Stonefly 1
Hydropsyche Net-Spinning Caddisfly 1
Eukiefferiella Non-Biting Midges 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
