MBSS Site Summary for: BYNU-112-R-2004

Site Photos

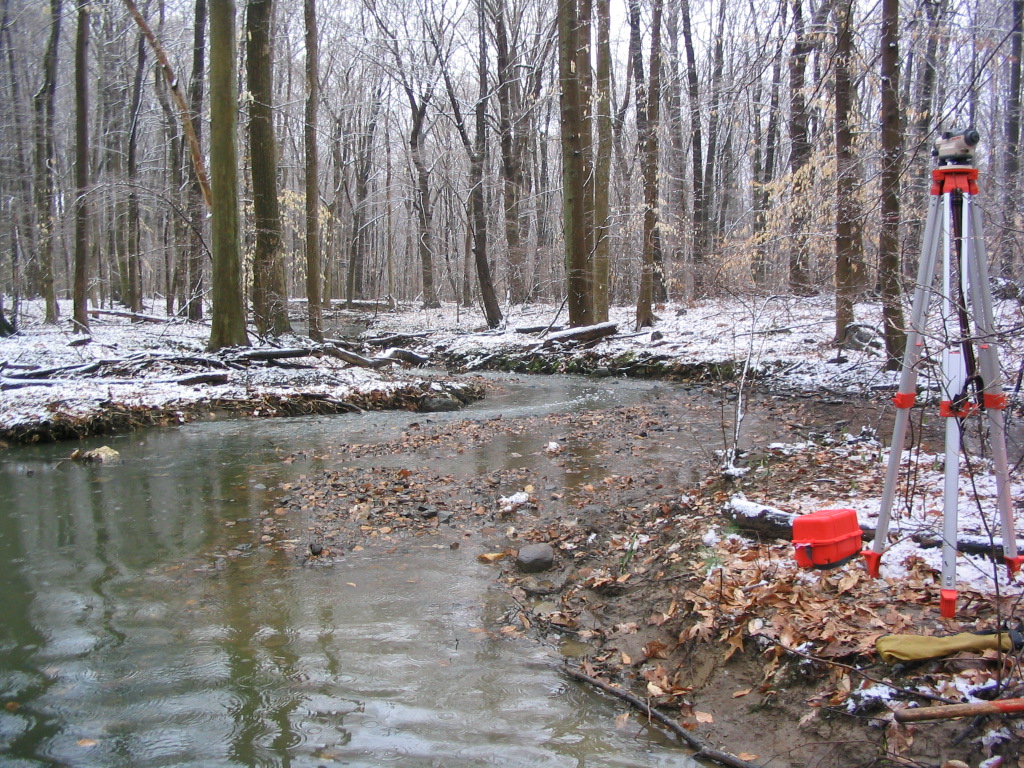

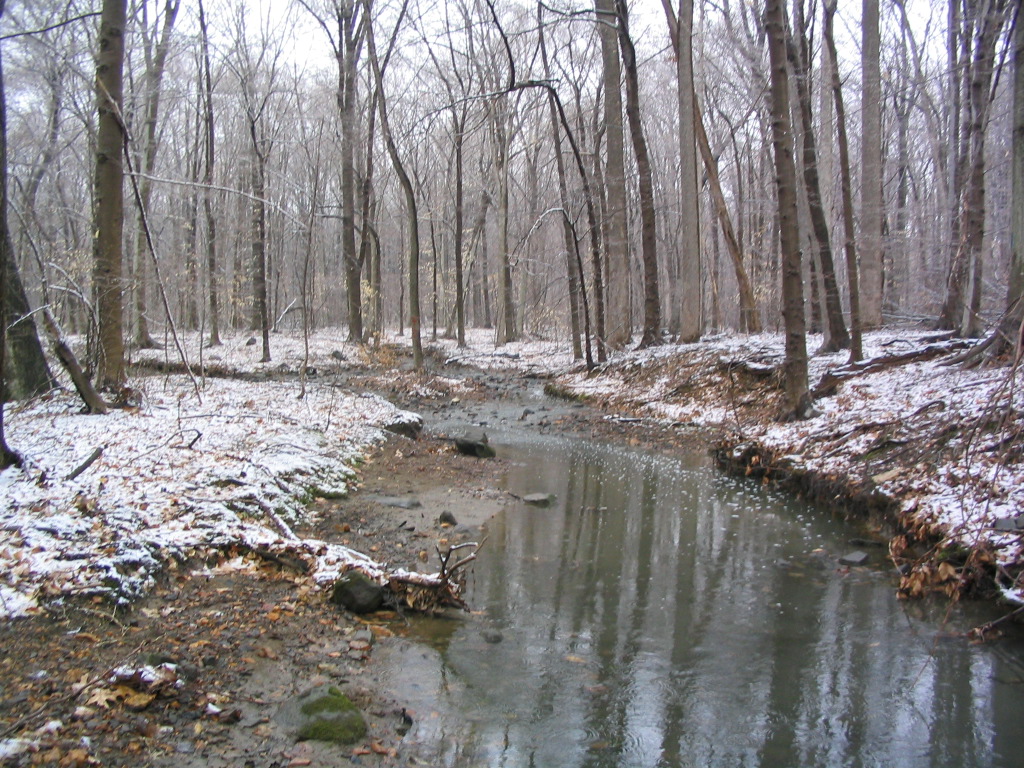

Field photo showing stream conditions at site BYNU-112-R-2004-7 (Opens in a new window) Field photo showing stream conditions at site BYNU-112-R-2004-8 (Opens in a new window)

Located on BYNUM RUN UT 1 in the Bynum Run watershed, 8-digit code: 02130704.
This stream was visited in the spring on 3/16/2004 and again in the summer on 6/21/2004.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 4.0 / 5.0
Benthic IBI Poor - 1.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 202 acres A highly channelized urban stream with concrete banks. An example of a highly channelized urban stream.
Urban Land Use 30 %
Agricultural Land Use 21 %
Forested Land Use 47 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 14/20 (Suboptimal)
Epifaunal Substrate 14/20 (Suboptimal)
Velocity/Depth Diversity 9/20 (Marginal)
Pool Quality
Pool Extent = 45 meters 		9/20 (Marginal)
Riffle Quality
Riffle Extent = 30 meters 		10/20 (Marginal)
Shading 95 %
Embeddedness 20 %


Stream Water Quality:
Water temperature 18.6 ° C
Dissolved oxygen (DO) 8.9 mg/L
pH (lab) 7.21
Conductivity 566 µmho/cm
Alkalinity
(acid neutralizing capacity) 		1158 µeq/L
Dissolved organic carbon (DOC) 5.9 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 8 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 98
Blue Ridge Sculpin 32
Creek Chub 25
Rosyside Dace 25
American Eel 6
Tessellated Darter 4
Green Sunfish 2
White Sucker 2
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
American Bullfrog
Eastern American Toad
Fowler's Toad
Northern Green Frog
Northern Two-Lined Salamander
Pickerel Frog

Crayfish:
No crayfish noted.

Exotic Plants:
Japanese Stiltgrass


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Orthocladius Non-Biting Midges 90
Parametriocnemus Non-Biting Midges 11
Diamesa Bloodworm 9
Cheumatopsyche Net-Spinning Caddisfly 8
Chelifera Aquatic Dance Fly 8
Tanypodinae Non-Biting Midges 6
Diplectrona Net-Spinning Caddisfly 5
Trissopelopia Non-Biting Midges 4
Thienemannimyia group Non-Biting Midges 3
Antocha Crane Fly 1
Tipula Crane Fly 1
Orthocladiinae Midge 1
Zavrelimyia Non-Biting Midges 1
Eccoptura Yellow Stone Stonefly 1
Natarsia Non-Biting Midges 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
