MBSS Site Summary for: BYNU-306-R-2016

Site Photos

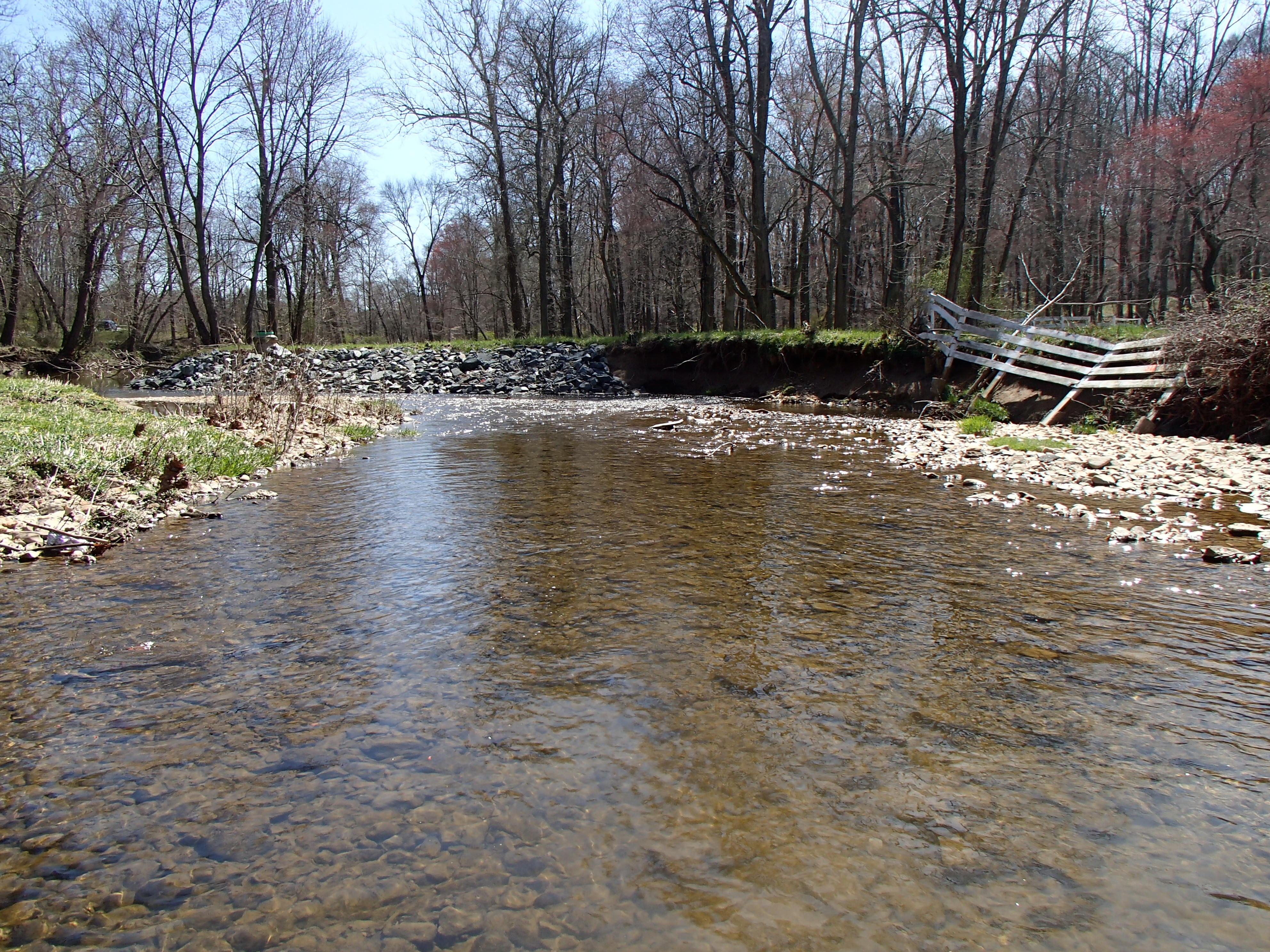

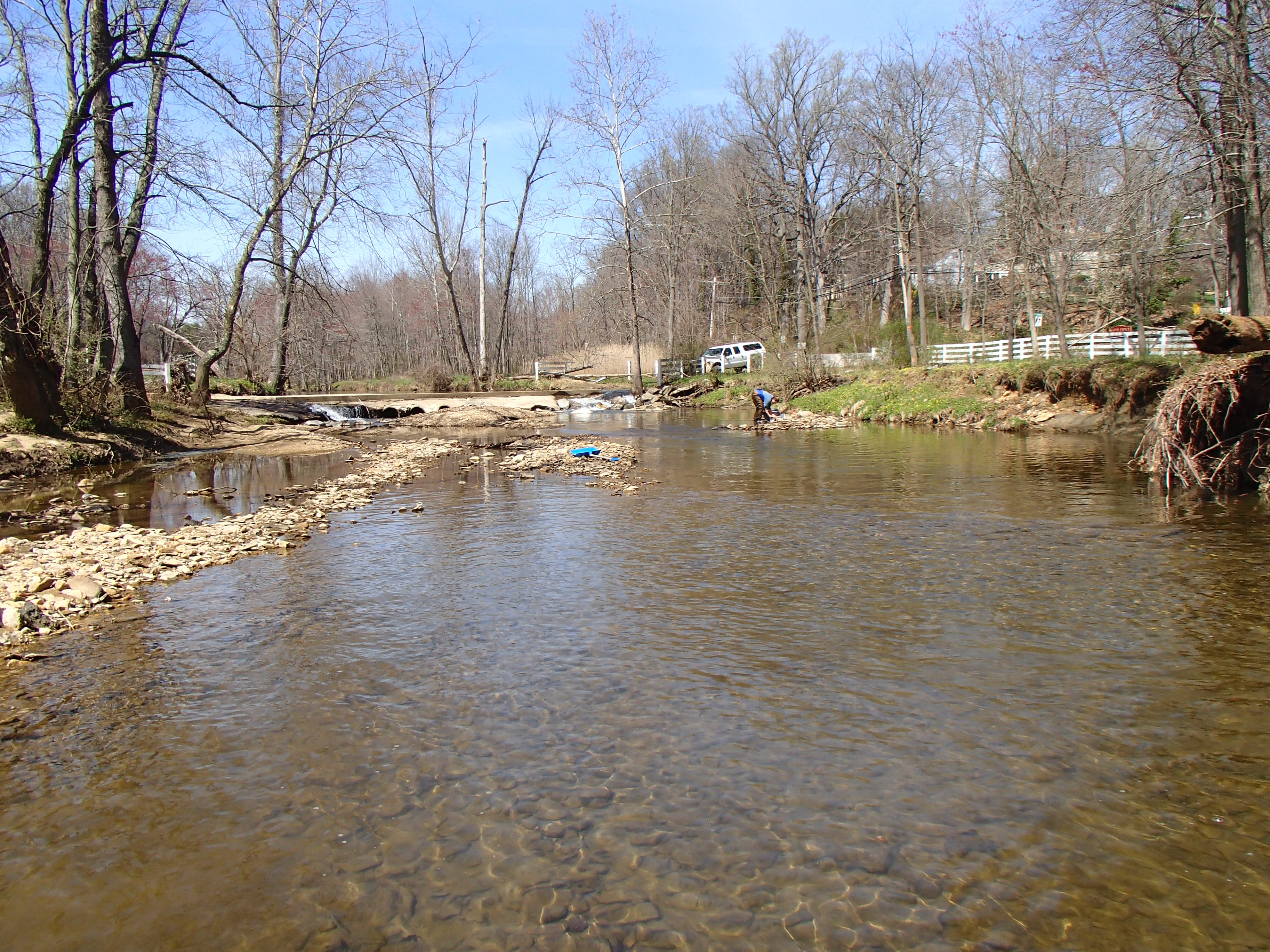

Field photo showing stream conditions at site BYNU-306-R-2016_midpoint downstream (Opens in a new window) Field photo showing stream conditions at site BYNU-306-R-2016_midpoint upstream (Opens in a new window)

Located on Bynum Run in the Bynum Run watershed, 8-digit code: 02130704.
This stream was visited in the spring on 3/30/2016 and again in the summer on 8/5/2016.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 5.0 / 5.0
Benthic IBI Poor - 1.7 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 6,903 acres A highly channelized urban stream with concrete banks. An example of a highly channelized urban stream.
Urban Land Use 72.8 %
Agricultural Land Use 5.1 %
Forested Land Use 20.5 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 7/20 (Marginal)
Epifaunal Substrate 8/20 (Marginal)
Velocity/Depth Diversity 12/20 (Suboptimal)
Pool Quality
Pool Extent = 100 meters 		11/20 (Suboptimal)
Riffle Quality
Riffle Extent = 40 meters 		7/20 (Marginal)
Shading 15 %
Embeddedness 30 %


Stream Water Quality:
pH (lab) 7.74
Alkalinity
(acid neutralizing capacity) 		1013 µeq/L
Dissolved organic carbon (DOC) 1.6646 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 18 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blue Ridge Sculpin 873
White Sucker 614
Tessellated Darter 566
Longnose Dace 431
Swallowtail Shiner 135
Northern Hogsucker 127
Creek Chub 111
Blacknose Dace 95
River Chub 85
Rosyside Dace 72
American Eel 57
Margined Madtom 53
Smallmouth Bass 52
Cutlip Minnow 23
Bluegill 8
Redbreast Sunfish 8
Common Shiner 6
Largemouth Bass 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Water Snake
Red-Eared Slider

Crayfish:
No crayfish noted.

Exotic Plants:
Common Reed (Phragmites)
Japanese Honeysuckle
Japanese Stiltgrass
Mile-A-Minute
Multiflora Rose
Oriental Bittersweet


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Orthocladius Non-Biting Midges 16
Hydrobaenus Midge 15
Cricotopus Non-Biting Midges 14
Thienemannimyia Group Non-Biting Midges 10
Tanytarsus Non-Biting Midges 9
Orthocladiinae Midge 9
Diamesa Bloodworm 7
Cladotanytarsus Non-Biting Midge 7
Microtendipes Non-Biting Midges 7
Polypedilum Non-Biting Midges 4
Cheumatopsyche Net-Spinning Caddisfly 4
Hydropsyche Net-Spinning Caddisfly 2
Chironomini Non-Biting Midge 2
Sympotthastia Non-Biting Midges 2
Diamesinae Non-Biting Midges 2
Dicrotendipes Non-Biting Midges 1
Tanytarsini Non-Biting Midges 1
Simulium Black Fly 1
Antocha Crane Fly 1
Argia Narrow-Winged Damselfly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
