MBSS Site Summary for: CASS-101-R-2008

Site Photos

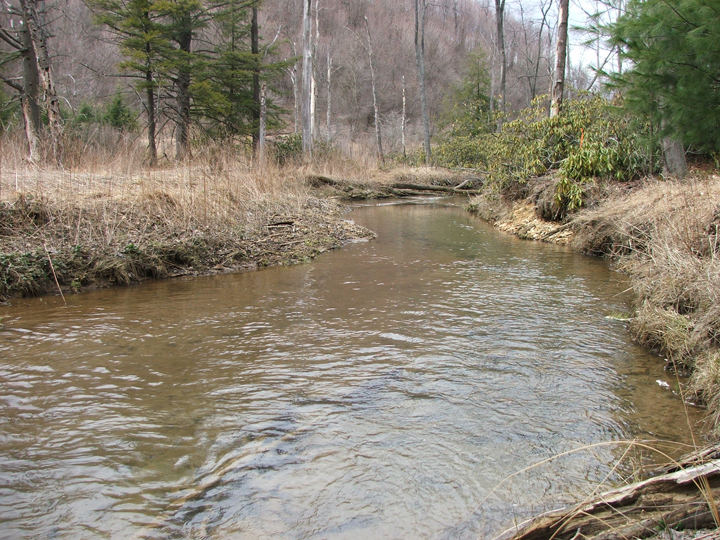

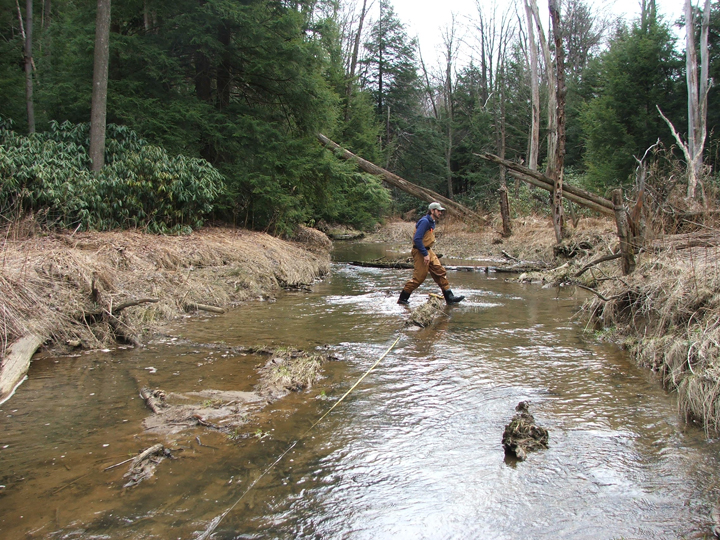

Field photo showing stream conditions at site CASS-101-R-2008-1 (Opens in a new window) Field photo showing stream conditions at site CASS-101-R-2008-2 (Opens in a new window)

Located on SOUTH BRANCH CASSELMAN RIVER in the Casselman River watershed, 8-digit code: 05020204.
This stream was visited in the spring on 3/31/2008 and again in the summer on 6/25/2008.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 1.5 / 5.0
Benthic IBI Fair - 3.8 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)

Catchment area 1,932 acres A stream flowing through a densely forested area. An example of a forested stream.
Urban Land Use 1.7 %
Agricultural Land Use 27 %
Forested Land Use 68.8 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat

Instream Habitat 17/20 (Optimal)
Epifaunal Substrate 11/20 (Suboptimal)
Velocity/Depth Diversity 12/20 (Suboptimal)
Pool Quality
Pool Extent = 74 meters
11/20 (Suboptimal)
Riffle Quality
Riffle Extent = 15 meters
12/20 (Suboptimal)
Shading 55 %
Embeddedness 40 %


Stream Water Quality:

Water temperature 12.7 ° C
Dissolved oxygen (DO) 10.8 mg/L
pH (lab) 6.85
Conductivity 132 µmho/cm
Alkalinity
(acid neutralizing capacity)
111.4 µeq/L
Dissolved organic carbon (DOC) 0.8398 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health.
Close-up of a mayfly indicator species.

Fish Survey Results:

The following 3 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Creek Chub 671
White Sucker 148
Blacknose Dace 112
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:

American Bullfrog
Northern Dusky Salamander

Crayfish:

Cambarus carinirostris

Exotic Plants:

Garlic Mustard
Multiflora Rose


Benthic Macroinvertebrates:

Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Leptophlebiidae Pronggilled Mayfly 12
Leuctridae Rolledwinged Stonefly 9
Leuctra  Rolled-Winged Stonefly 8
Heleniella European Non-Biting Midge 8
Pisidiidae Pill Clam 7
Cheumatopsyche Net-Spinning Caddisfly 6
Parachaetocladius Non-Biting Midge 6
Diamesinae Non-Biting Midges 5
Amphinemura Spring Stonefly 5
Micropsectra Non-Biting Midges 4
Eurylophella Mayfly 3
Stenacron Mayfly 3
Nigronia Megaloptera (Dark Fishfly) 2
Epoicocladius 2
Prosimulium Black Fly 2
Hexatoma Crane Fly 2
Natarsia Non-Biting Midges 2
Parametriocnemus Non-Biting Midges 2
Maccaffertium March Brown And Cahill Mayfly 2
Ephemera Mayfly 2
Elmidae Riffle Beetle 2
Ephemerella Sulphur Mayfly 2
Promoresia Riffle Beetle 1
Dubiraphia Riffle Beetle 1
Cultus 1
Polypedilum Non-Biting Midges 1
Tanytarsini Non-Biting Midges 1
Thienemannimyia Group Non-Biting Midges 1
Trissopelopia Non-Biting Midges 1
Zavrelimyia Non-Biting Midges 1
Chrysops Deerfly 1
Neophylax Caddisfly 1
Stempellina 1
Bezzia Biting Midge 1
Nemouridae Nemourid Stonefly 1
Parakiefferiella European Non-Biting Midge 1
Chimarra Fingernet Caddisfly 1
Chloroperlidae Green Stonefly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
