MBSS Site Summary for: CASS-104-R-2000

Site Photos

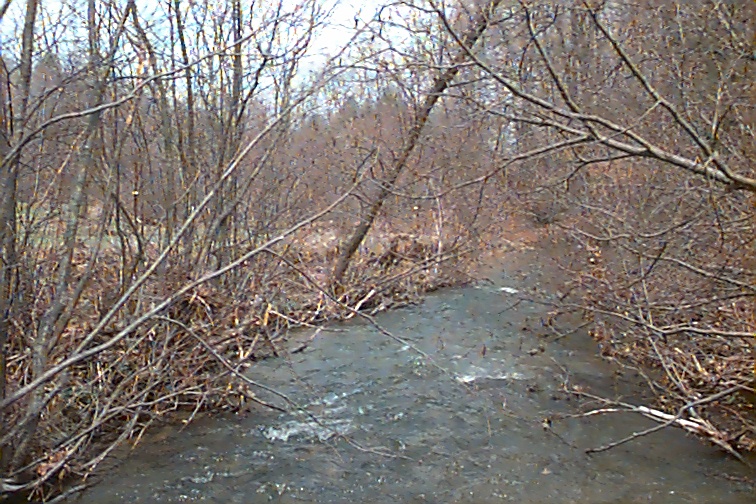

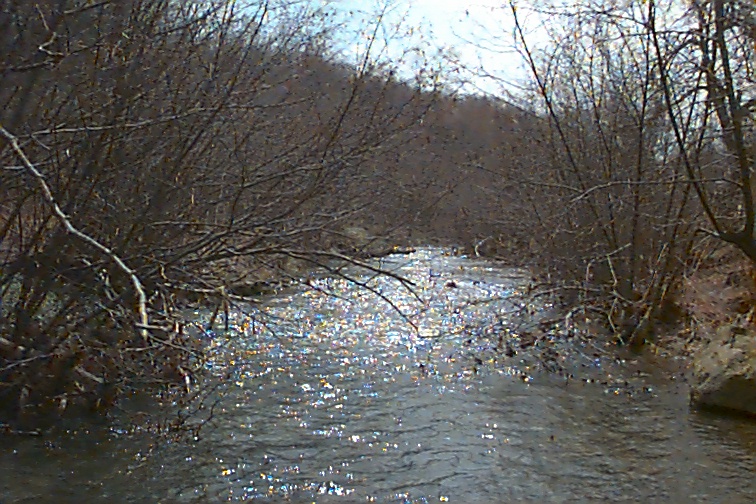

Field photo showing stream conditions at site CASS-104-R-2000-01 (Opens in a new window) Field photo showing stream conditions at site CASS-104-R-2000-02 (Opens in a new window)

Located on SOUTH BR CASSELMAN R in the Casselman River watershed, 8-digit code: 05020204.
This stream was visited in the spring on 4/6/2000 and again in the summer on 7/27/2000.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Fair - 3.5 / 5.0
Benthic IBI Good - 4.8 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 5,018 acres A stream flowing through a densely forested area. An example of a forested stream.
Urban Land Use 0 %
Agricultural Land Use 21.4 %
Forested Land Use 78.3 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 17/20 (Optimal)
Epifaunal Substrate 17/20 (Optimal)
Velocity/Depth Diversity 10/20 (Marginal)
Pool Quality
Pool Extent = 40 meters 		10/20 (Marginal)
Riffle Quality
Riffle Extent = 40 meters 		13/20 (Suboptimal)
Shading 75 %
Embeddedness 15 %


Stream Water Quality:
Water temperature 15.9 ° C
Dissolved oxygen (DO) 8.6 mg/L
pH (lab) 7.02
Conductivity 150 µmho/cm
Alkalinity
(acid neutralizing capacity) 		130.4 µeq/L
Dissolved organic carbon (DOC) 1.4 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 4 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Creek Chub 120
Blacknose Dace 53
White Sucker 8
Pumpkinseed 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Eastern Snapping Turtle

Crayfish:
Cambaridae

Exotic Plants:
No exotic plants noted.


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Paraleptophlebia Blue Quill Mayfly 20
Ephemerella Sulphur Mayfly 11
Leuctridae Rolledwinged Stonefly 10
Epeorus Mayfly 9
Chloroperlidae Green Stonefly 9
Simulium Black Fly 7
Baetidae Small Minnow Mayfly 5
Amphinemura Spring Stonefly 4
Micropsectra Non-Biting Midges 4
Perlodidae Perlodid Stonefly 4
Isoperla Stripetail Stonefly 3
Hexatoma Crane Fly 3
Cinygmula Dark Red Quill Mayfly 3
Serratella Mayfly 3
Hydropsyche Net-Spinning Caddisfly 2
Stenonema Flatheaded Mayfly 2
Parametriocnemus Non-Biting Midges 2
Oulimnius Riffle Beetle 2
Polycentropus Tube Maker Caddisfly 1
Optioservus Riffle Beetle 1
Microtendipes Non-Biting Midges 1
Pteronarcys Giant Stonefly 1
Heleniella European Non-Biting Midge 1
Probezzia Biting Midges 1
Neophylax Caddisfly 1
Antocha Crane Fly 1
Clinotanypus Non-Biting Midge 1
Diamesinae Non-Biting Midges 1
Dicranota Hairy-Eyed Cranefly 1
Dolophilodes Medium Evening Sedge Caddisfly 1
Nigronia Megaloptera (Dark Fishfly) 1
Diplectrona Net-Spinning Caddisfly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
