MBSS Site Summary for: CASS-105-D-2012

Site Photos

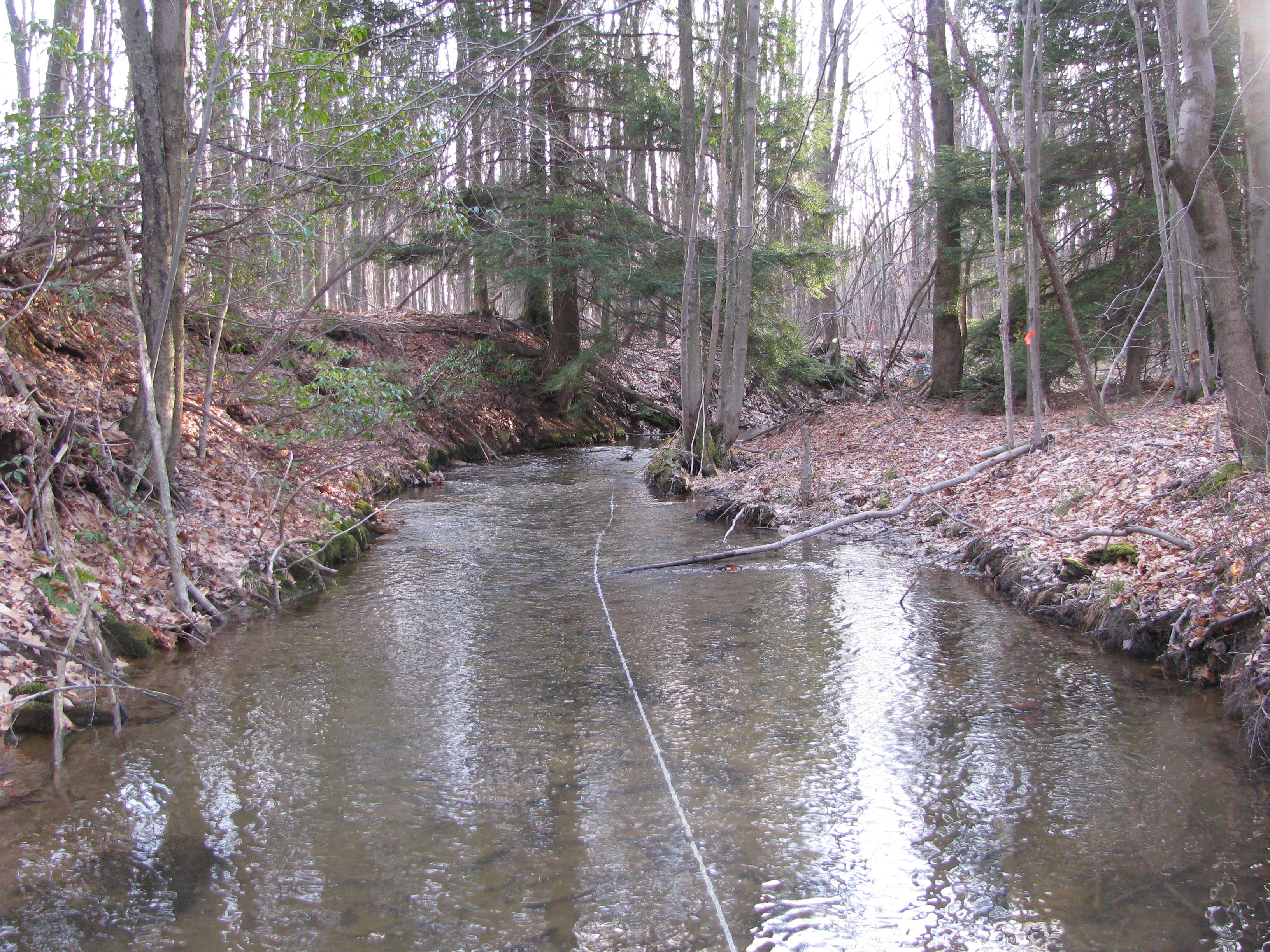

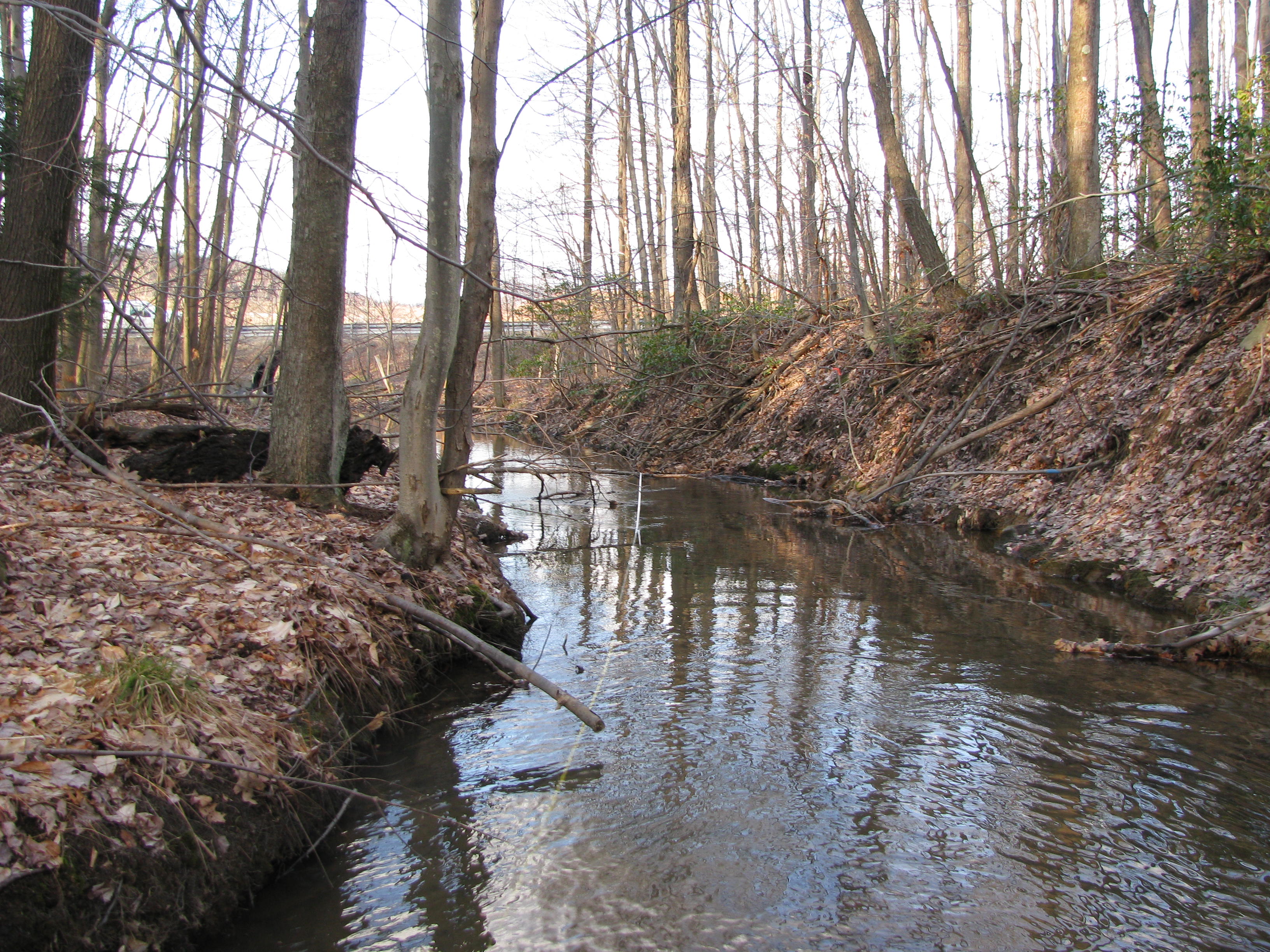

Field photo showing stream conditions at site CASS-105-D-2012-1 (Opens in a new window) Field photo showing stream conditions at site CASS-105-D-2012-2 (Opens in a new window)

Located on MEADOW RUN in the Casselman River watershed, 8-digit code: 05020204.
This stream was visited in the spring on 3/13/2012 and again in the summer on 6/18/2012.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 2.0 / 5.0
Benthic IBI Fair - 3.8 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 1,166 acres A stream flowing through a densely forested area. An example of a forested stream.
Urban Land Use 3.3 %
Agricultural Land Use 16.7 %
Forested Land Use 70 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 9/20 (Marginal)
Epifaunal Substrate 11/20 (Suboptimal)
Velocity/Depth Diversity 7/20 (Marginal)
Pool Quality
Pool Extent = 58 meters 		6/20 (Marginal)
Riffle Quality
Riffle Extent = 20 meters 		12/20 (Suboptimal)
Shading 80 %
Embeddedness 40 %


Stream Water Quality:
pH (lab) 6.84
Alkalinity
(acid neutralizing capacity) 		89.3 µeq/L
Dissolved organic carbon (DOC) 1.9173 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 3 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Creek Chub 52
Blacknose Dace 26
White Sucker 6
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Eastern Gartersnake

Crayfish:
Cambarus carinirostris

Exotic Plants:
Japanese Stiltgrass
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Maccaffertium March Brown And Cahill Mayfly 18
Parametriocnemus Non-Biting Midges 16
Thienemannimyia Group Non-Biting Midges 16
Zavrelimyia Non-Biting Midges 8
Amphinemura Spring Stonefly 8
Stenacron Mayfly 7
Nigronia Megaloptera (Dark Fishfly) 6
Ephemera Mayfly 4
LEPTOPHLEBIIDAE Pronggilled Mayfly 4
Trissopelopia Non-Biting Midges 4
Clioperla Green-Winged Stonefly 3
Eurylophella Mayfly 3
Cheumatopsyche Net-Spinning Caddisfly 2
Clinocera Aquatic Dance Fly 2
Ceratopogon Biting Midge 1
Prosimulium Black Fly 1
Hexatoma Crane Fly 1
Pseudolimnophila Crane Fly 1
TIPULIDAE Cranefly 1
Chrysops Deerfly 1
Rhyacophila Free-Living Caddisfly 1
Diplocladius Non-Biting Midges 1
Nanocladius Non-Biting Midges 1
Epeorus Mayfly 1
Tvetenia Non-Biting Midges 1
Rheocricotopus Non-Biting Midges 1
Tanytarsus Non-Biting Midges 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
