MBSS Site Summary for: CASS-105-R-2008

Site Photos

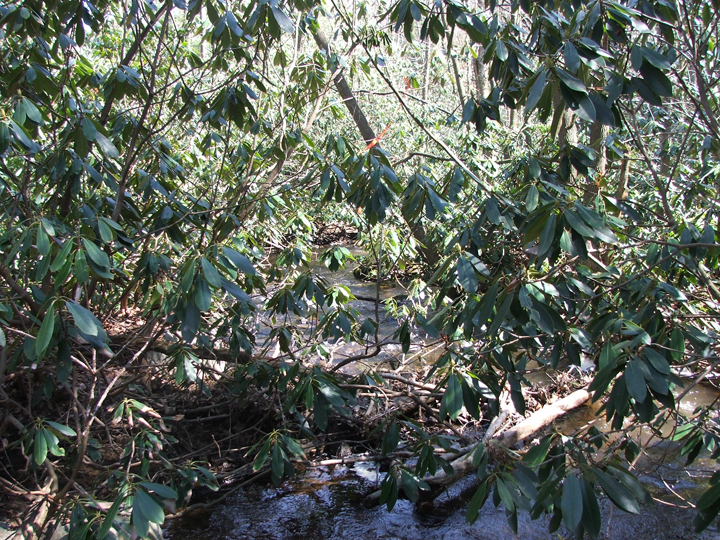

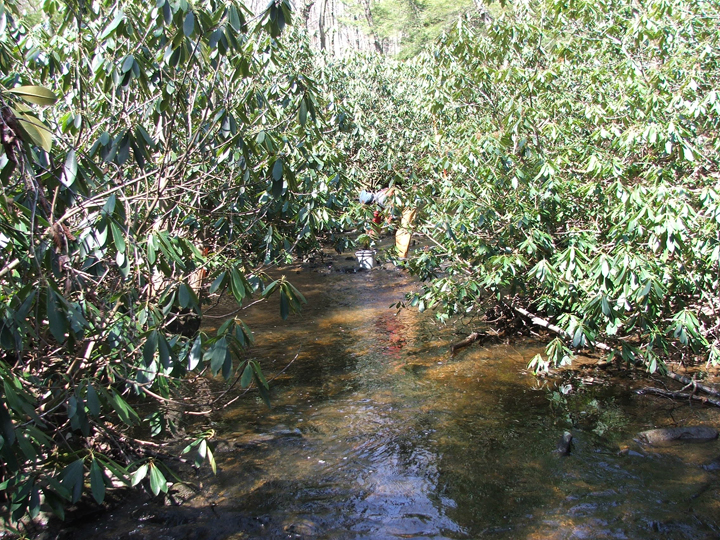

Field photo showing stream conditions at site CASS-105-R-2008-1 (Opens in a new window) Field photo showing stream conditions at site CASS-105-R-2008-2 (Opens in a new window)

Located on RED RUN in the Casselman River watershed, 8-digit code: 05020204.
This stream was visited in the spring on 4/2/2008 and again in the summer on 6/25/2008.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Fair - 3.5 / 5.0
Benthic IBI Fair - 3.3 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 2,060 acres A highly channelized urban stream with concrete banks. An example of a highly channelized urban stream.
Urban Land Use 8.4 %
Agricultural Land Use 3.9 %
Forested Land Use 86.2 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 20/20 (Optimal)
Epifaunal Substrate 19/20 (Optimal)
Velocity/Depth Diversity 12/20 (Suboptimal)
Pool Quality
Pool Extent = 49 meters 		16/20 (Optimal)
Riffle Quality
Riffle Extent = 32 meters 		17/20 (Optimal)
Shading 95 %
Embeddedness 0 %
Several measures of instream habitat were considered 'Optimal' at this location.


Stream Water Quality:
Water temperature 19 ° C
Dissolved oxygen (DO) 8.6 mg/L
pH (lab) 6.92
Conductivity 168 µmho/cm
Alkalinity
(acid neutralizing capacity) 		104.7 µeq/L
Dissolved organic carbon (DOC) 2.7988 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 5 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 39
Creek Chub 6
Chain Pickerel 4
Longnose Dace 3
Yellow Bullhead 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Two-Lined Salamander

Crayfish:
No crayfish noted.

Exotic Plants:
Garlic Mustard


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Prosimulium Black Fly 44
Tanytarsus Non-Biting Midges 22
Parametriocnemus Non-Biting Midges 9
Leptophlebiidae Pronggilled Mayfly 5
Leuctridae Rolledwinged Stonefly 5
Tvetenia Non-Biting Midges 3
Hexatoma Crane Fly 3
Acroneuria Golden Stoneflies 2
Diplectrona Net-Spinning Caddisfly 2
Anchytarsus Beetle 2
Stenelmis Beetle 2
Orthocladius Non-Biting Midges 2
Thienemanniella Non-Biting Midges 2
Amphinemura Spring Stonefly 2
Ephemerella Sulphur Mayfly 2
Zavrelimyia Non-Biting Midges 1
Perlodidae Perlodid Stonefly 1
Promoresia Riffle Beetle 1
Micrasema 1
Molanna 1
Leuctra  Rolled-Winged Stonefly 1
Stegopterna Black Fly 1
Baetis Blue-Winged Olive Mayfly 1
Gomphidae Clubtail Dragonfly 1
Stylogomphus Clubtail Dragonfly 1
Eukiefferiella Non-Biting Midges 1
Chloroperlidae Green Stonefly 1
Muscidae Fly 1
Rhyacophila Free-Living Caddisfly 1
Pteronarcys Giant Stonefly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
