MBSS Site Summary for: CASS-107-H-2010

Site Photos

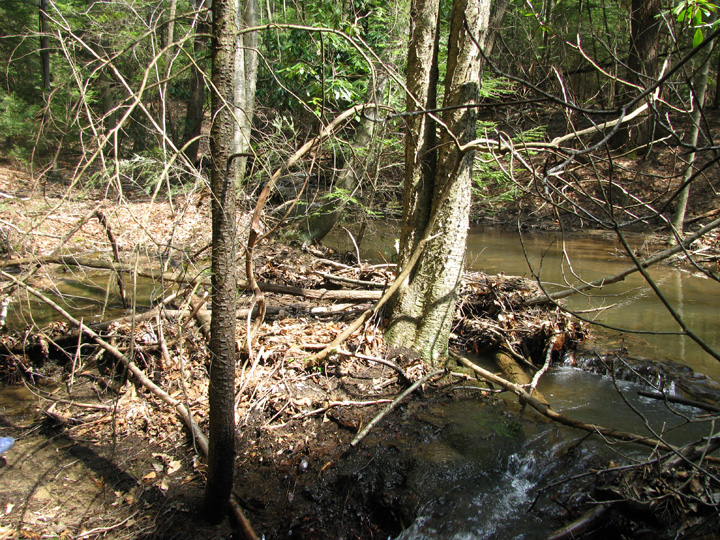

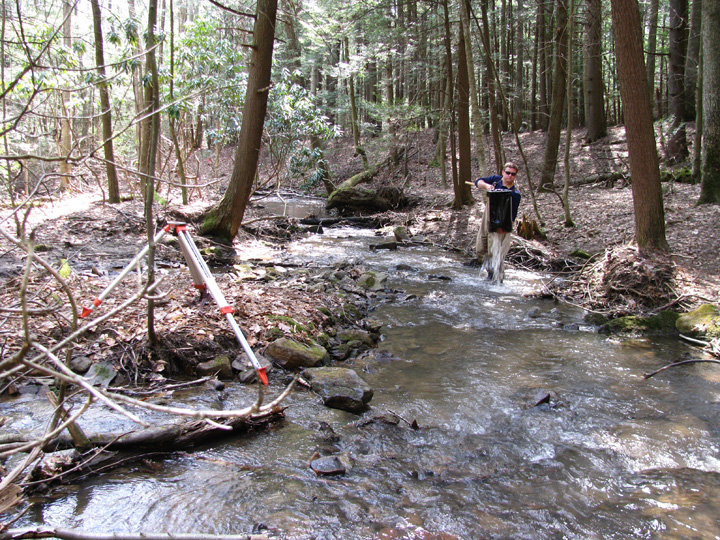

Field photo showing stream conditions at site CASS-107-H-2010-1 (Opens in a new window) Field photo showing stream conditions at site CASS-107-H-2010-2 (Opens in a new window)

Located on UT to Casselman River in the Casselman River watershed, 8-digit code: 05020204.
This stream was visited in the spring on 4/5/2010 and again in the summer on 6/15/2010.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI N R
Benthic IBI N R

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 541 acres A highly channelized urban stream with concrete banks. An example of a highly channelized urban stream.
Urban Land Use 5.7 %
Agricultural Land Use 4.6 %
Forested Land Use 89.7 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 17/20 (Optimal)
Epifaunal Substrate 17/20 (Optimal)
Velocity/Depth Diversity 13/20 (Suboptimal)
Pool Quality
Pool Extent = 35 meters 		14/20 (Suboptimal)
Riffle Quality
Riffle Extent = 48 meters 		16/20 (Optimal)
Shading 95 %
Embeddedness 20 %
Several measures of instream habitat were considered 'Optimal' at this location.


Stream Water Quality:
pH (lab) 5.635
Alkalinity
(acid neutralizing capacity) 		5.54 µeq/L
Dissolved organic carbon (DOC) 0.9294 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
Fish data is unavailable or no fish observed.

Amphibians and Reptiles:
Northern Slimy Salamander
Northern Two-Lined Salamander

Crayfish:
Cambarus carinirostris

Exotic Plants:
No exotic plants noted.


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Benthic data unavailable.
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
