MBSS Site Summary for: CASS-109-R-2000

Site Photos

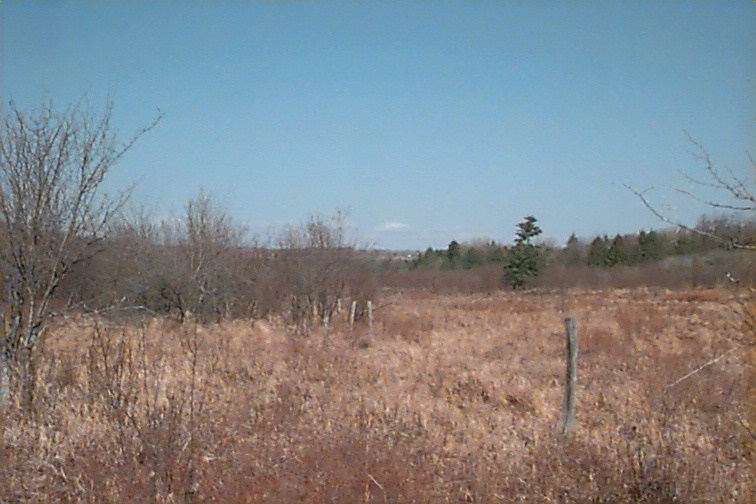

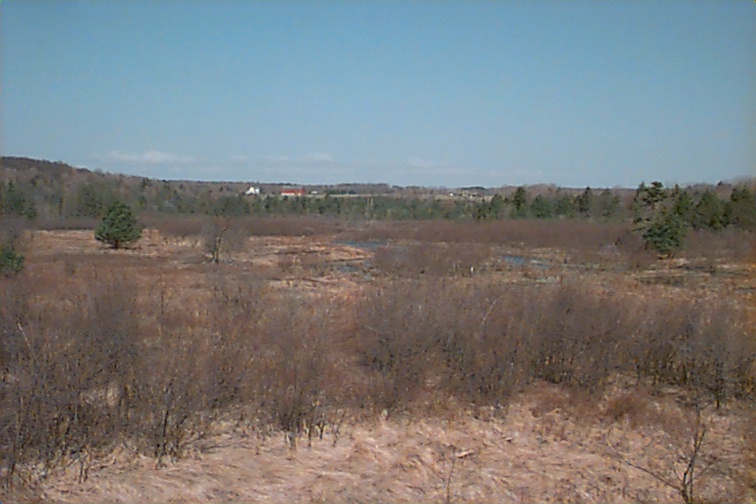

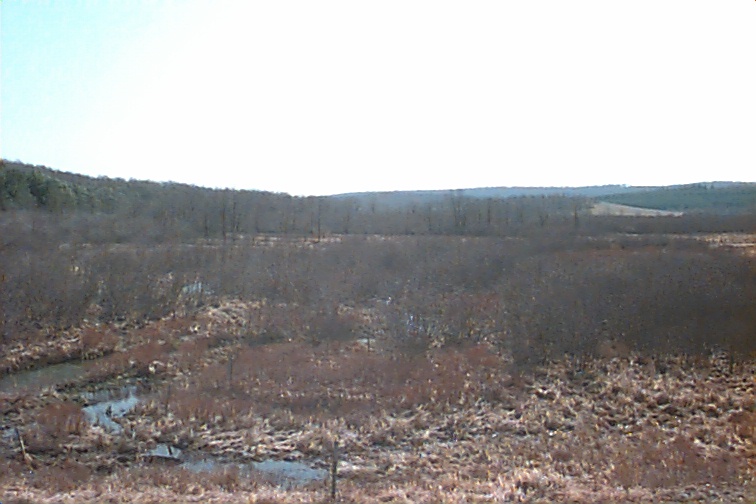

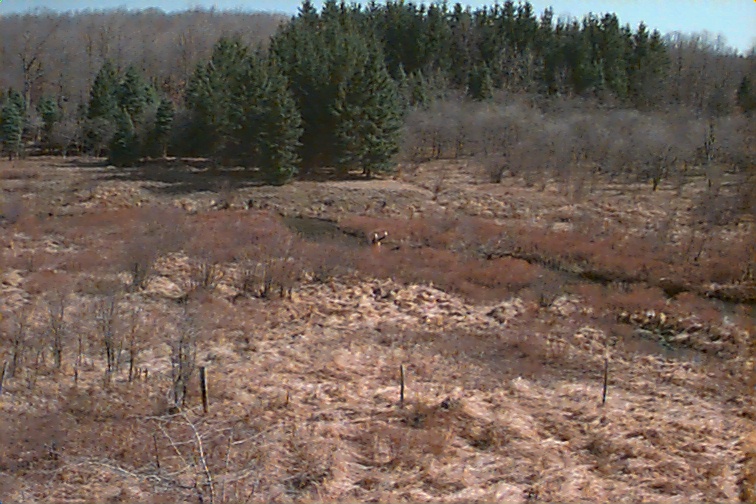

Field photo showing stream conditions at site CASS-109-R-2000-01 (Opens in a new window) Field photo showing stream conditions at site CASS-109-R-2000-02 (Opens in a new window) Field photo showing stream conditions at site CASS-109-R-2000-03 (Opens in a new window) Field photo showing stream conditions at site CASS-109-R-2000-04 (Opens in a new window)

Located on NORTH BR CASSELMAN R in the Casselman River watershed, 8-digit code: 05020204.
This stream was visited in the spring on 4/6/2000 and again in the summer on 7/26/2000.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 2.5 / 5.0
Benthic IBI Poor - 2.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 2,570 acres A stream flowing through a densely forested area. An example of a forested stream.
Urban Land Use 0.1 %
Agricultural Land Use 10.1 %
Forested Land Use 88.7 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 18/20 (Optimal)
Epifaunal Substrate 13/20 (Suboptimal)
Velocity/Depth Diversity 6/20 (Marginal)
Pool Quality
Pool Extent = 75 meters 		18/20 (Optimal)
Riffle Quality
Riffle Extent = 0 meters 		0/20 (Poor)
Shading 20 %
Embeddedness 40 %


Stream Water Quality:
Water temperature 17.2 ° C
Dissolved oxygen (DO) 6 mg/L
pH (lab) 5.7
Conductivity 80 µmho/cm
Alkalinity
(acid neutralizing capacity) 		14.5 µeq/L
Dissolved organic carbon (DOC) 1.8 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 9 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Pumpkinseed 32
Brown Bullhead 26
Rock Bass 25
Creek Chub 20
Golden Shiner 17
Bluegill 11
White Sucker 11
Blacknose Dace 8
Common Shiner 3
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Green Frog
Northern Spring Peeper

Crayfish:
No crayfish noted.

Exotic Plants:
No exotic plants noted.


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Conchapelopia Non-Biting Midges 30
Hyalella Amphipod 24
Centroptilum Small Minnow Mayfly 17
Micropsectra Non-Biting Midges 10
Platycentropus 9
Corynoneura Non-Biting Midges 7
Tanytarsus Non-Biting Midges 6
Apsectrotanypus Non-Biting Midges 4
Triaenodes Long-Horned Caddisfly 2
Cricotopus/Orthocladius Midge 2
Coenagrionidae Narrowwinged Damselfly 1
Argia Narrow-Winged Damselfly 1
Clinotanypus Non-Biting Midge 1
Chrysops Deerfly 1
Heterotrissocladius European Non-Biting Midge 1
Oecetis Long-Horned Caddisfly 1
Cladopelma 1
Endochironomus 1
Cryptochironomus Non-Biting Midges 1
Nanocladius Non-Biting Midges 1
Polycentropus Tube Maker Caddisfly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
