MBSS Site Summary for: CASS-120-R-2023

Site Photos

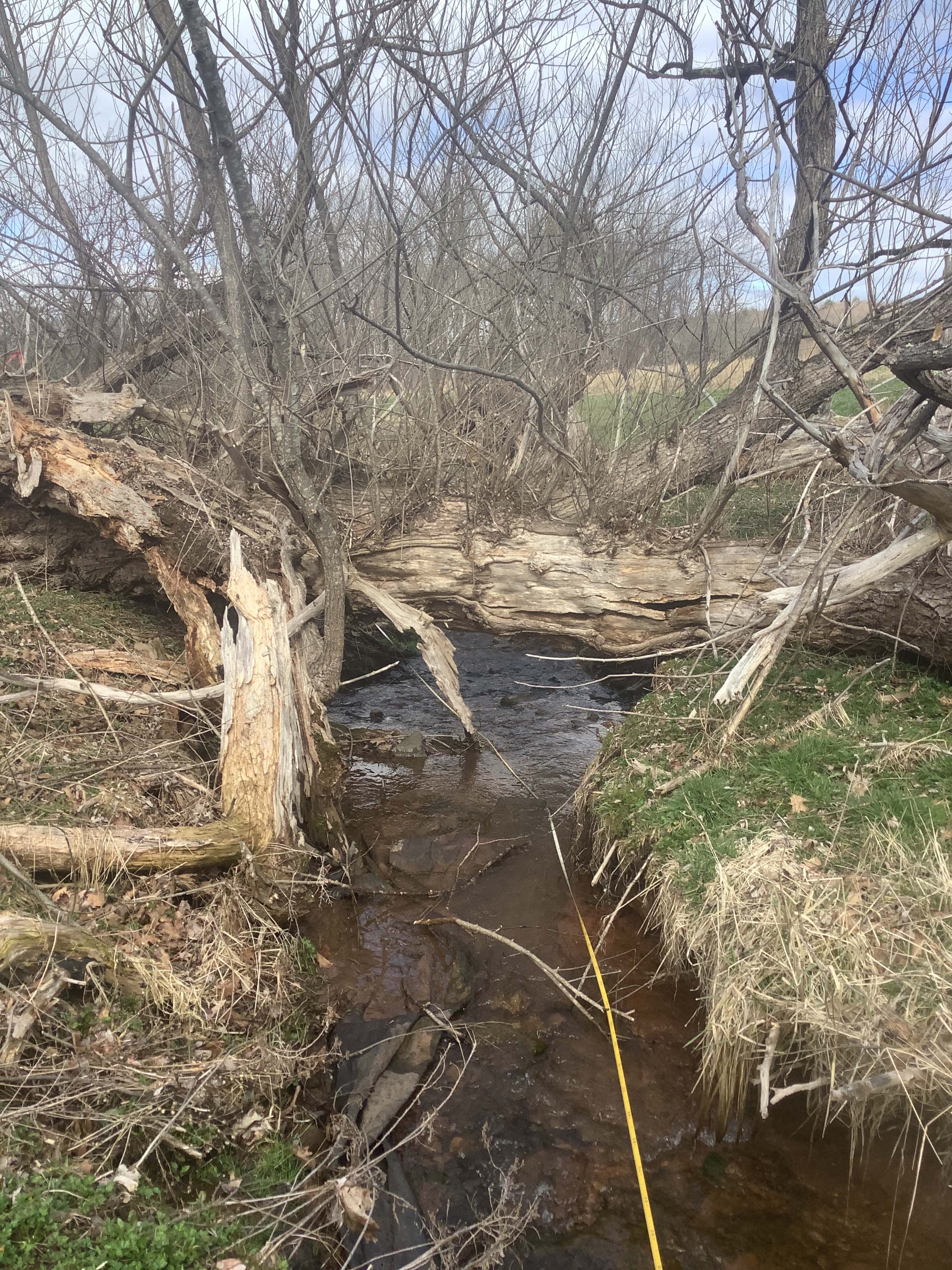

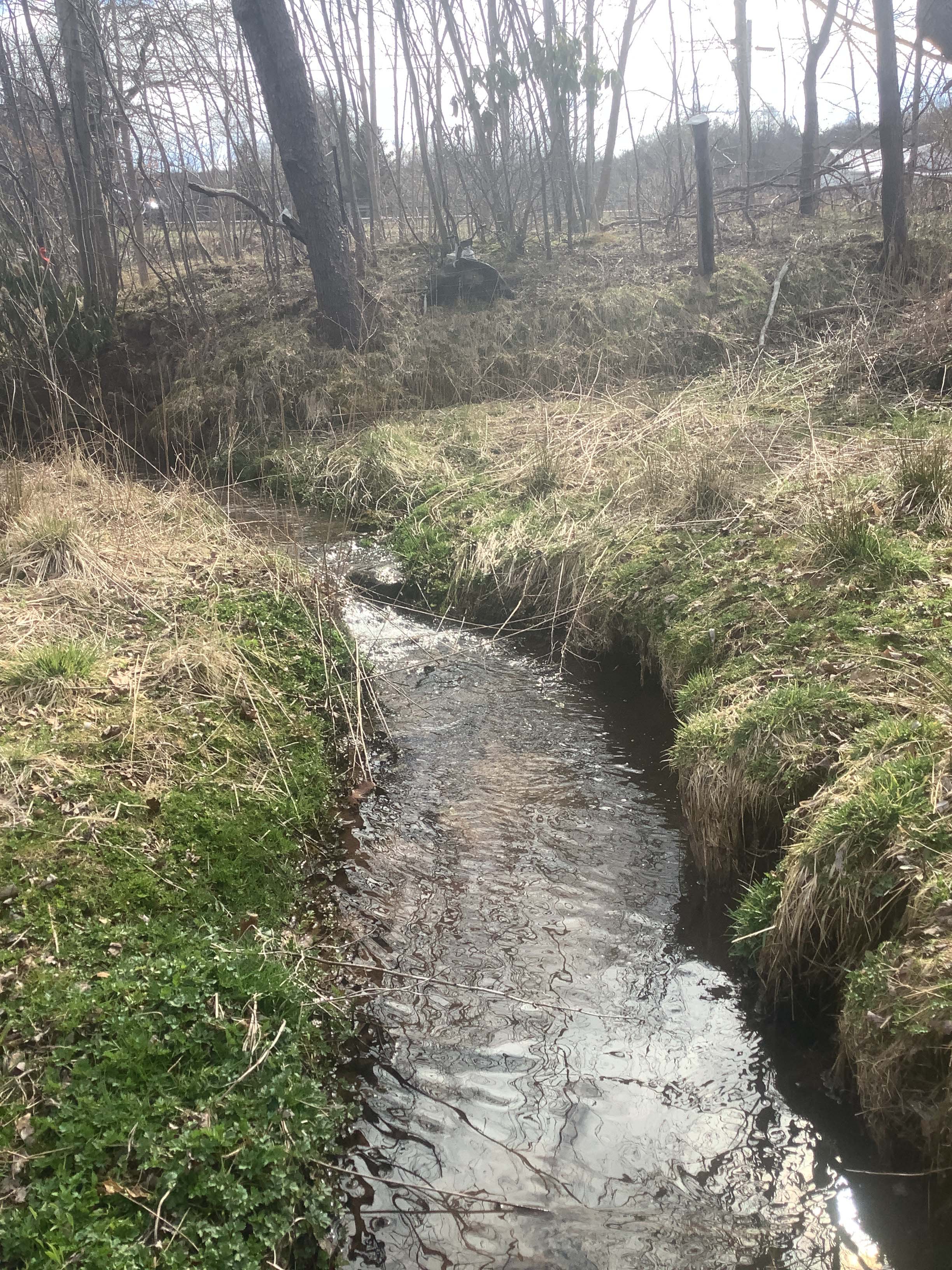

Field photo showing stream conditions at site CASS-120-R-2023_Midpoint_facing_downstream_ (Opens in a new window) Field photo showing stream conditions at site CASS-120-R-2023_Midpoint_facing_upstream_ (Opens in a new window)

Located on PINEY CREEK in the Casselman River watershed, 8-digit code: 05020204.
This stream was visited in the spring on 4/4/2023 and again in the summer on 8/2/2023.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Fair - 3.0 / 5.0
Benthic IBI Poor - 1.5 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area No data available A stream flowing through a densely forested area. An example of a forested stream.
Urban Land Use 15.9 %
Agricultural Land Use 16.9 %
Forested Land Use 64.3 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 7/20 (Marginal)
Epifaunal Substrate 11/20 (Suboptimal)
Velocity/Depth Diversity 6/20 (Marginal)
Pool Quality
Pool Extent = 12 meters 		6/20 (Marginal)
Riffle Quality
Riffle Extent = 63 meters 		9/20 (Marginal)
Shading 55 %
Embeddedness 50 %


Stream Water Quality:
Water temperature 18.2 ° C
Dissolved oxygen (DO) 7.59 mg/L
pH (lab) 6.68
Alkalinity
(acid neutralizing capacity) 		162 µeq/L
Dissolved organic carbon (DOC) 1.11 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 3 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 62
Pumpkinseed 2
Mottled Sculpin 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Green Frog
Northern Two-Lined Salamander

Crayfish:
Cambarus bartonii

Exotic Plants:
Canada Thistle
Japanese Stiltgrass
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
DIAMESA Bloodworm 74
CRICOTOPUS Non-Biting Midges 9
LUMBRICULIDAE Worm 6
EUKIEFFERIELLA Non-Biting Midges 4
ORTHOCLADIUS Non-Biting Midges 4
DICRANOTA Hairy-Eyed Cranefly 4
TIPULA Crane Fly 3
NAIDIDAE Aquatic Worm 2
PSEUDOLIMNOPHILA Crane Fly 2
CAMBARUS 1
DIPLOCLADIUS Non-Biting Midges 1
PARATANYTARSUS Non-Biting Midges 1
POLYPEDILUM Non-Biting Midges 1
THIENEMANNIMYIA GROUP Non-Biting Midges 1
TRISSOPELOPIA Non-Biting Midges 1
EPHEMERELLA Sulphur Mayfly 1
PROSIMULIUM Black Fly 1
BAETIS Blue-Winged Olive Mayfly 1
ORTHOCLADIINAE Midge 1
CHAETOCLADIUS Non-Biting Midges 1
CORYNONEURA Non-Biting Midges 1
NATARSIA Non-Biting Midges 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
