MBSS Site Summary for: CATO-115-R-2009

Site Photos

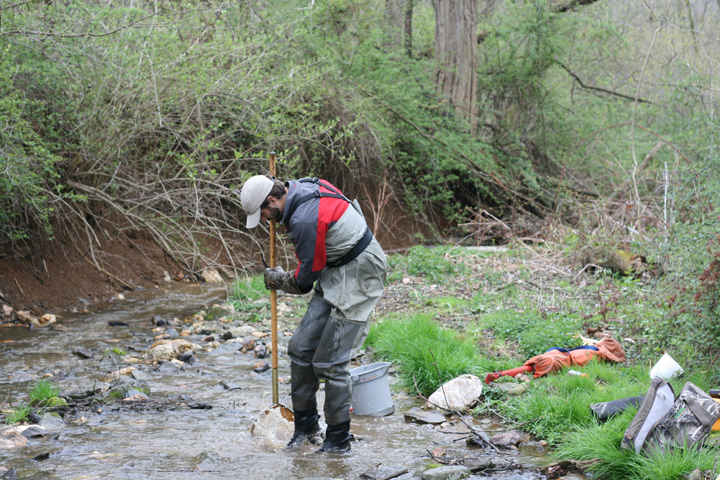

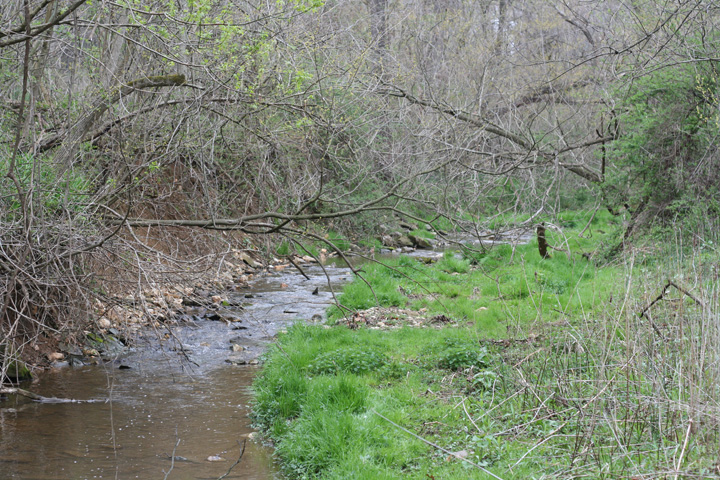

Field photo showing stream conditions at site CATO-115-R-2009-1 (Opens in a new window) Field photo showing stream conditions at site CATO-115-R-2009-2 (Opens in a new window)

Located on Lewis Mill Run in the Catoctin Creek watershed, 8-digit code: 02140305.
This stream was visited in the spring on 4/14/2009 and again in the summer on 6/29/2009.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Fair - 3.3 / 5.0
Benthic IBI Good - 4.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)

Catchment area 1,107 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 6 %
Agricultural Land Use 76.9 %
Forested Land Use 17 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat

Instream Habitat 9/20 (Marginal)
Epifaunal Substrate 12/20 (Suboptimal)
Velocity/Depth Diversity 10/20 (Marginal)
Pool Quality
Pool Extent = 53 meters
7/20 (Marginal)
Riffle Quality
Riffle Extent = 32 meters
12/20 (Suboptimal)
Shading 80 %
Embeddedness 35 %


Stream Water Quality:

Water temperature 17.2 ° C
Dissolved oxygen (DO) 10.2 mg/L
pH (lab) 7.77
Conductivity 280 µmho/cm
Alkalinity
(acid neutralizing capacity)
1069 µeq/L
Dissolved organic carbon (DOC) 0.5621 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health.
Close-up of a mayfly indicator species.

Fish Survey Results:

The following 8 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 614
Fantail Darter 56
Rosyside Dace 29
Longnose Dace 21
Central Stoneroller 2
Creek Chub 2
Greenside Darter 1
Rainbow Darter 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:

Northern Green Frog
Northern Two-Lined Salamander
Pickerel Frog

Crayfish:

Cambarus bartonii bartonii
Orconectes virilis

Exotic Plants:

Garlic Mustard
Japanese Honeysuckle
Japanese Stiltgrass
Multiflora Rose
Shrub Honeysuckle
Wineberry


Benthic Macroinvertebrates:

Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Ephemerella Sulphur Mayfly 25
Rheocricotopus Non-Biting Midges 14
Cheumatopsyche Net-Spinning Caddisfly 12
Micropsectra Non-Biting Midges 9
Maccaffertium March Brown And Cahill Mayfly 9
Diphetor Mayfly 8
Polypedilum Non-Biting Midges 8
Amphinemura Spring Stonefly 7
Thienemannimyia Group Non-Biting Midges 4
Cricotopus Non-Biting Midges 4
Trissopelopia Non-Biting Midges 3
Leptophlebiidae Pronggilled Mayfly 3
Tanytarsus Non-Biting Midges 3
Optioservus Riffle Beetle 2
Rhyacophila Free-Living Caddisfly 2
Orthocladius Non-Biting Midges 2
Parametriocnemus Non-Biting Midges 2
Eurylophella Mayfly 2
Orthocladiinae Midge 2
Naididae Aquatic Worm 2
Stenelmis Beetle 1
Baetis Blue-Winged Olive Mayfly 1
Neophylax Caddisfly 1
Dugesiidae Flatworm 1
Microtendipes Non-Biting Midges 1
Zavrelimyia Non-Biting Midges 1
Rheotanytarsus Non-Biting Midges 1
Stempellinella Non-Biting Midges 1
Tanypodinae Non-Biting Midges 1
Polycentropus Tube Maker Caddisfly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
