MBSS Site Summary for: DEER-110-H-2010

Site Photos

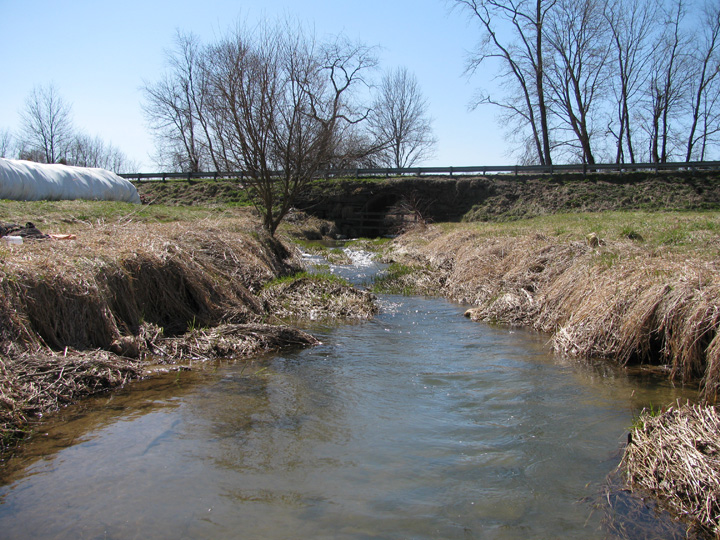

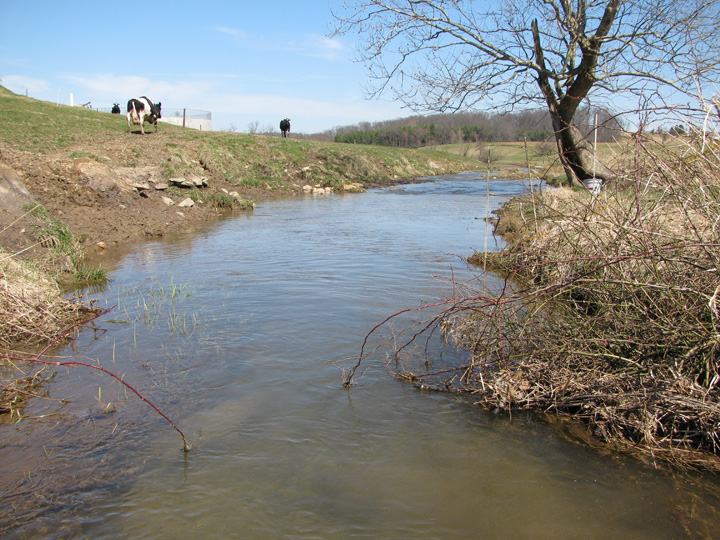

Field photo showing stream conditions at site DEER-110-H-2010-1 (Opens in a new window) Field photo showing stream conditions at site DEER-110-H-2010-2 (Opens in a new window)

Located on Cattail Branch in the Deer Creek watershed, 8-digit code: 02120202.
This stream was visited in the spring on 3/18/2010 and again in the summer on 6/2/2010.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI N R
Benthic IBI N R

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 1,397 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 2.4 %
Agricultural Land Use 59 %
Forested Land Use 38 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 14/20 (Suboptimal)
Epifaunal Substrate 8/20 (Marginal)
Velocity/Depth Diversity 13/20 (Suboptimal)
Pool Quality
Pool Extent = meters 		11/20 (Suboptimal)
Riffle Quality 13/20 (Suboptimal)
Shading 10 %
Embeddedness 30 %


Stream Water Quality:
pH (lab) 6.865
Alkalinity
(acid neutralizing capacity) 		226.6 µeq/L
Dissolved organic carbon (DOC) 0.7716 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
Fish data is unavailable or no fish observed.

Amphibians and Reptiles:
Northern Two-Lined Salamander

Crayfish:
Orconectes limosus

Exotic Plants:
No exotic plants noted.


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Benthic data unavailable.
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
