MBSS Site Summary for: DOUB-103-R-2002

Site Photos

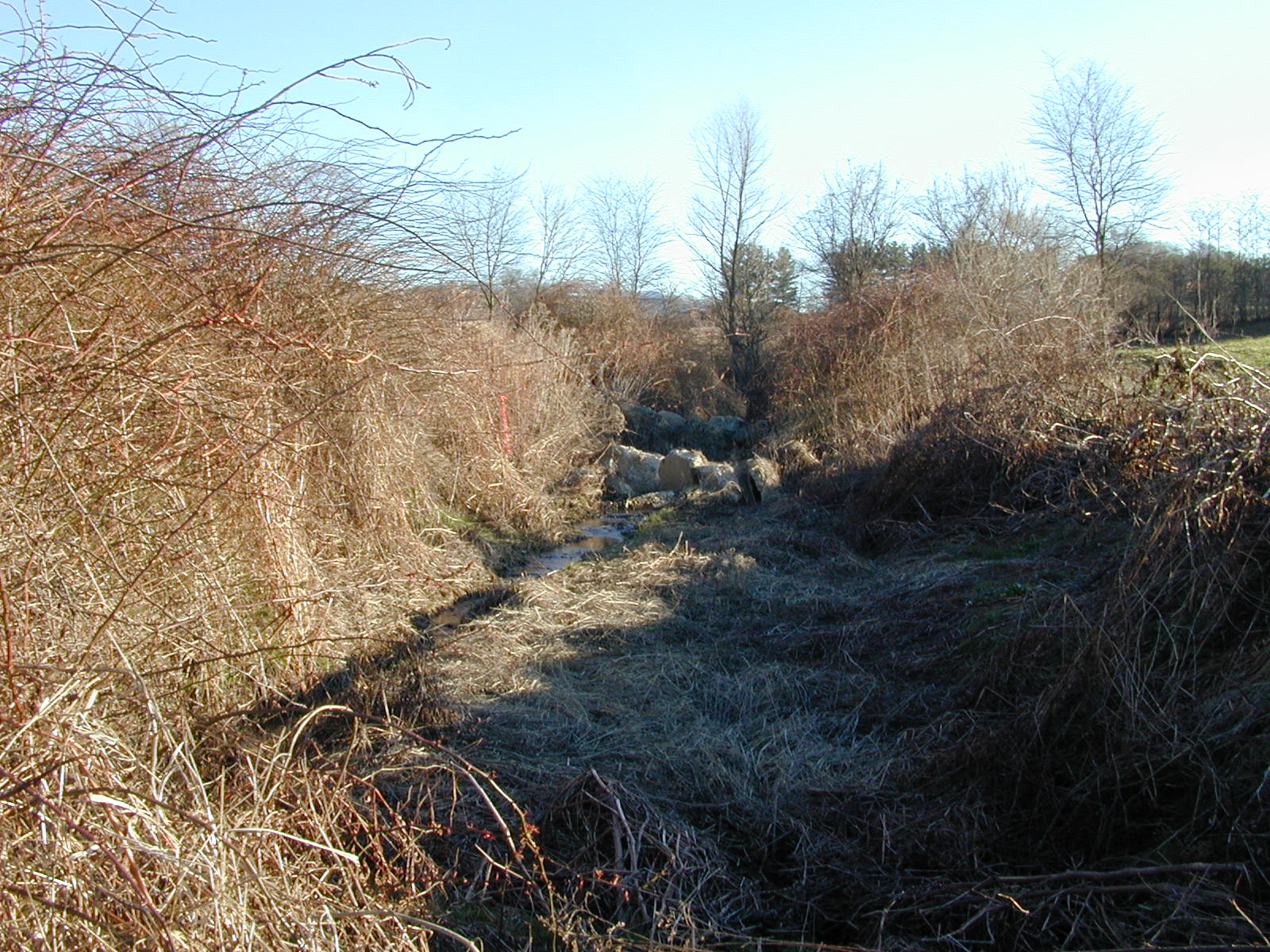

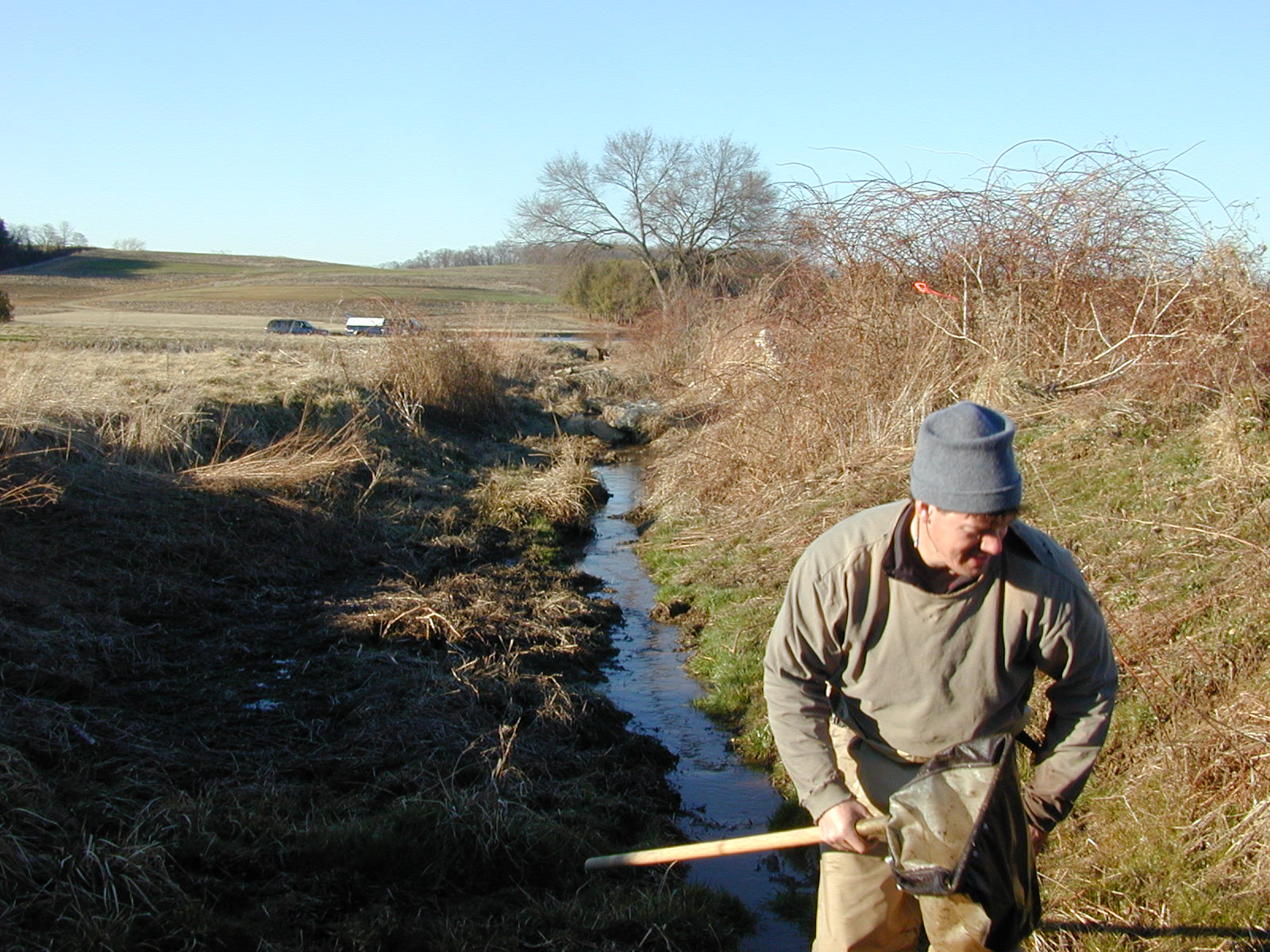

Field photo showing stream conditions at site DOUB-103-R-2002-1 (Opens in a new window) Field photo showing stream conditions at site DOUB-103-R-2002-2 (Opens in a new window)

Located on BIG PIPE CR UT 7 in the Double Pipe Creek watershed, 8-digit code: 02140304.
This stream was visited in the spring on 3/5/2002 and again in the summer on 7/10/2002.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 1.0 / 5.0
Benthic IBI Poor - 1.8 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 168 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 1 %
Agricultural Land Use 91 %
Forested Land Use 9 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 2/20 (Poor)
Epifaunal Substrate 2/20 (Poor)
Velocity/Depth Diversity 2/20 (Poor)
Pool Quality
Pool Extent = 3 meters 		2/20 (Poor)
Riffle Quality
Riffle Extent = 72 meters 		7/20 (Marginal)
Shading 95 %
Embeddedness 100 %
The embeddedness, a measure of silt on the stream bottom, was 100%. This is very high, and may adversely affect biotic communities.
Several measures of instream habitat were considered 'Poor' at this location.


Stream Water Quality:
Water temperature 18.8 ° C
Dissolved oxygen (DO) 6.9 mg/L
pH (lab) 7.57
Conductivity 190 µmho/cm
Alkalinity
(acid neutralizing capacity) 		1024 µeq/L
Dissolved organic carbon (DOC) 1.9 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 1 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
No Fish Observed 0
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Red Salamander
Northern Two-Lined Salamander
Queen Snake

Crayfish:
No crayfish noted.

Exotic Plants:
Canada Thistle
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Orthocladius Non-Biting Midges 43
Parametriocnemus Non-Biting Midges 17
Micropsectra Non-Biting Midges 11
Conchapelopia Non-Biting Midges 9
Pisidiidae Pill Clam 9
Diamesa Bloodworm 6
Parakiefferiella European Non-Biting Midge 4
Cura Flatworm 4
Chaetocladius Non-Biting Midges 3
Tvetenia Non-Biting Midges 3
Thienemanniella Non-Biting Midges 2
Thienemannimyia group Non-Biting Midges 2
Simulium Black Fly 2
Brillia Non-Biting Midges 1
Pseudolimnophila Crane Fly 1
Heterotrissocladius European Non-Biting Midge 1
Stygobromus Amphipod 1
Naididae Aquatic Worm 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
