MBSS Site Summary for: DOUB-116-R-2002

Site Photos

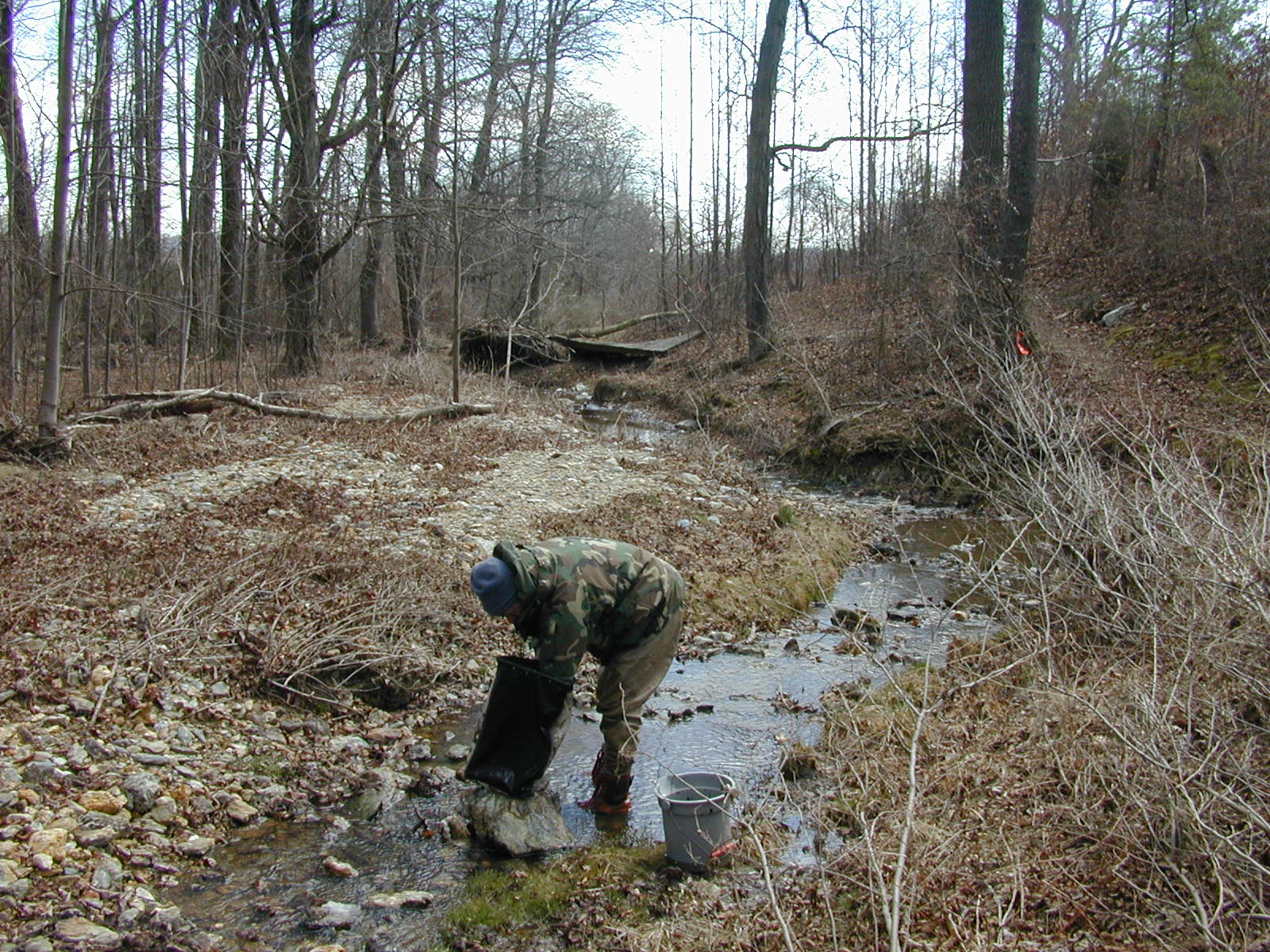

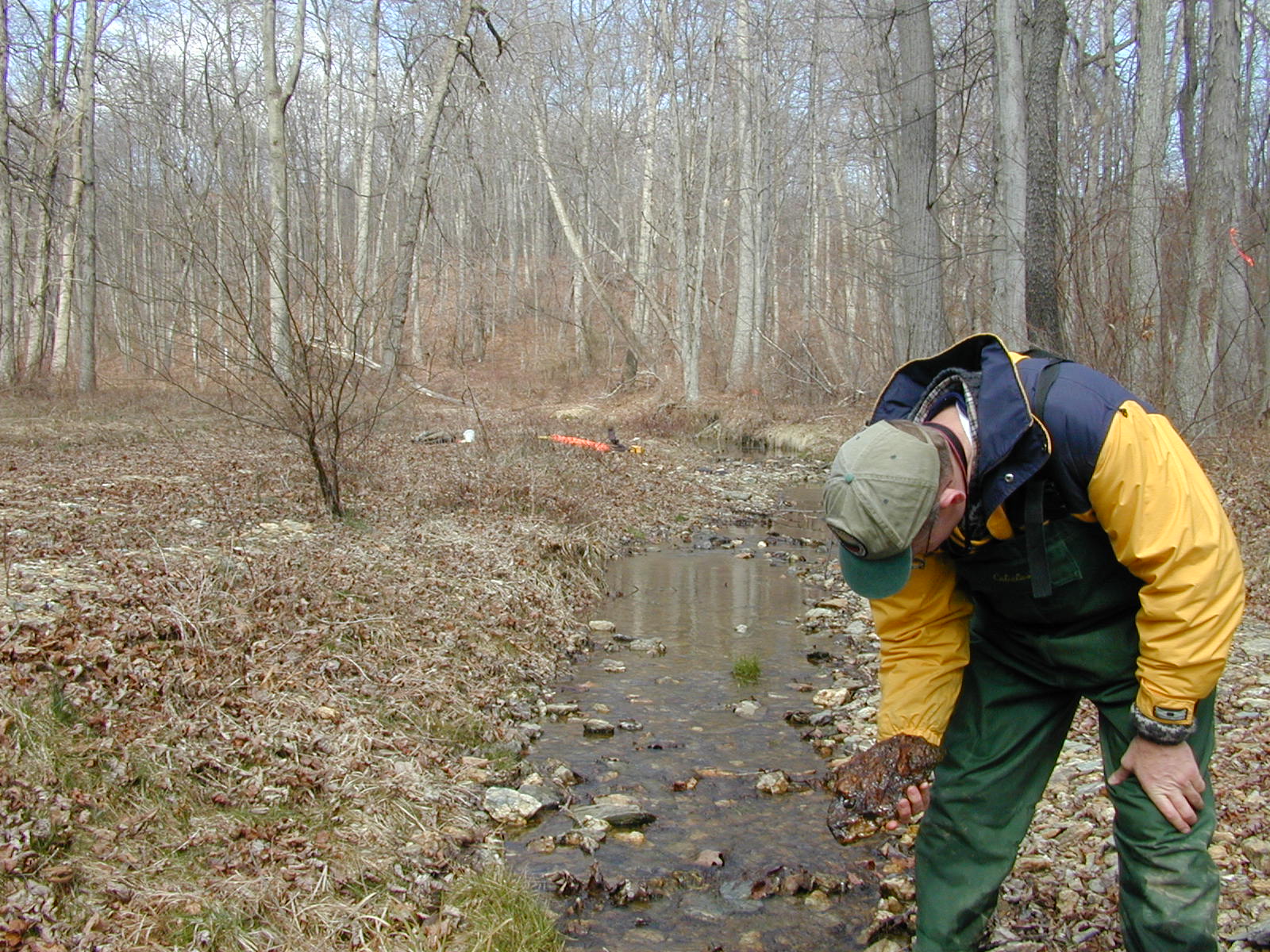

Field photo showing stream conditions at site DOUB-116-R-2002-1 (Opens in a new window) Field photo showing stream conditions at site DOUB-116-R-2002-2 (Opens in a new window) Field photo showing stream conditions at site DOUB-116-R-2002-3 (Opens in a new window)

Located on BIG PIPE CR UT 5 in the Double Pipe Creek watershed, 8-digit code: 02140304.
This stream was visited in the spring on 3/5/2002 and again in the summer on 7/10/2002.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 4.0 / 5.0
Benthic IBI Fair - 3.5 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 546 acres A stream flowing through a densely forested area. An example of a forested stream.
Urban Land Use 0 %
Agricultural Land Use 45 %
Forested Land Use 54 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 15/20 (Suboptimal)
Epifaunal Substrate 16/20 (Optimal)
Velocity/Depth Diversity 12/20 (Suboptimal)
Pool Quality
Pool Extent = 43 meters 		11/20 (Suboptimal)
Riffle Quality
Riffle Extent = 32 meters 		11/20 (Suboptimal)
Shading 90 %
Embeddedness 20 %


Stream Water Quality:
Water temperature 18.4 ° C
Dissolved oxygen (DO) 7.5 mg/L
pH (lab) 7.2
Conductivity 120 µmho/cm
Alkalinity
(acid neutralizing capacity) 		517.7 µeq/L
Dissolved organic carbon (DOC) 1 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 6 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 441
Blue Ridge Sculpin 208
Fantail Darter 24
Creek Chub 8
Rosyside Dace 8
Longnose Dace 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Two-Lined Salamander

Crayfish:
No crayfish noted.

Exotic Plants:
Japanese Honeysuckle
Japanese Stiltgrass
Mile-A-Minute
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Orthocladius Non-Biting Midges 20
Leptophlebiidae Pronggilled Mayfly 12
Parametriocnemus Non-Biting Midges 11
Sympotthastia Non-Biting Midges 11
Baetidae Small Minnow Mayfly 10
Prostoia Spring Stonefly 10
Thienemanniella Non-Biting Midges 7
Tvetenia Non-Biting Midges 6
Micropsectra Non-Biting Midges 4
Cheumatopsyche Net-Spinning Caddisfly 4
Prosimulium Black Fly 3
Diamesa Bloodworm 3
Neophylax Caddisfly 3
Trissopelopia Non-Biting Midges 3
Corynoneura Non-Biting Midges 2
Hydropsyche Net-Spinning Caddisfly 2
Stenonema Flatheaded Mayfly 2
Dolophilodes Medium Evening Sedge Caddisfly 2
Ephemerella Sulphur Mayfly 2
Capniidae Small Winter Stonefly 2
Taeniopteryx Winter Stonefly 1
Perlodidae Perlodid Stonefly 1
Tallaperla Roach-Like Stonefly 1
Chelifera Aquatic Dance Fly 1
Diplectrona Net-Spinning Caddisfly 1
Rhyacophila Free-Living Caddisfly 1
Dicranota Hairy-Eyed Cranefly 1
Epeorus Mayfly 1
Conchapelopia Non-Biting Midges 1
Rheosmittia Non-Biting Midges 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
