MBSS Site Summary for: DOUB-197-B-2012

Site Photos

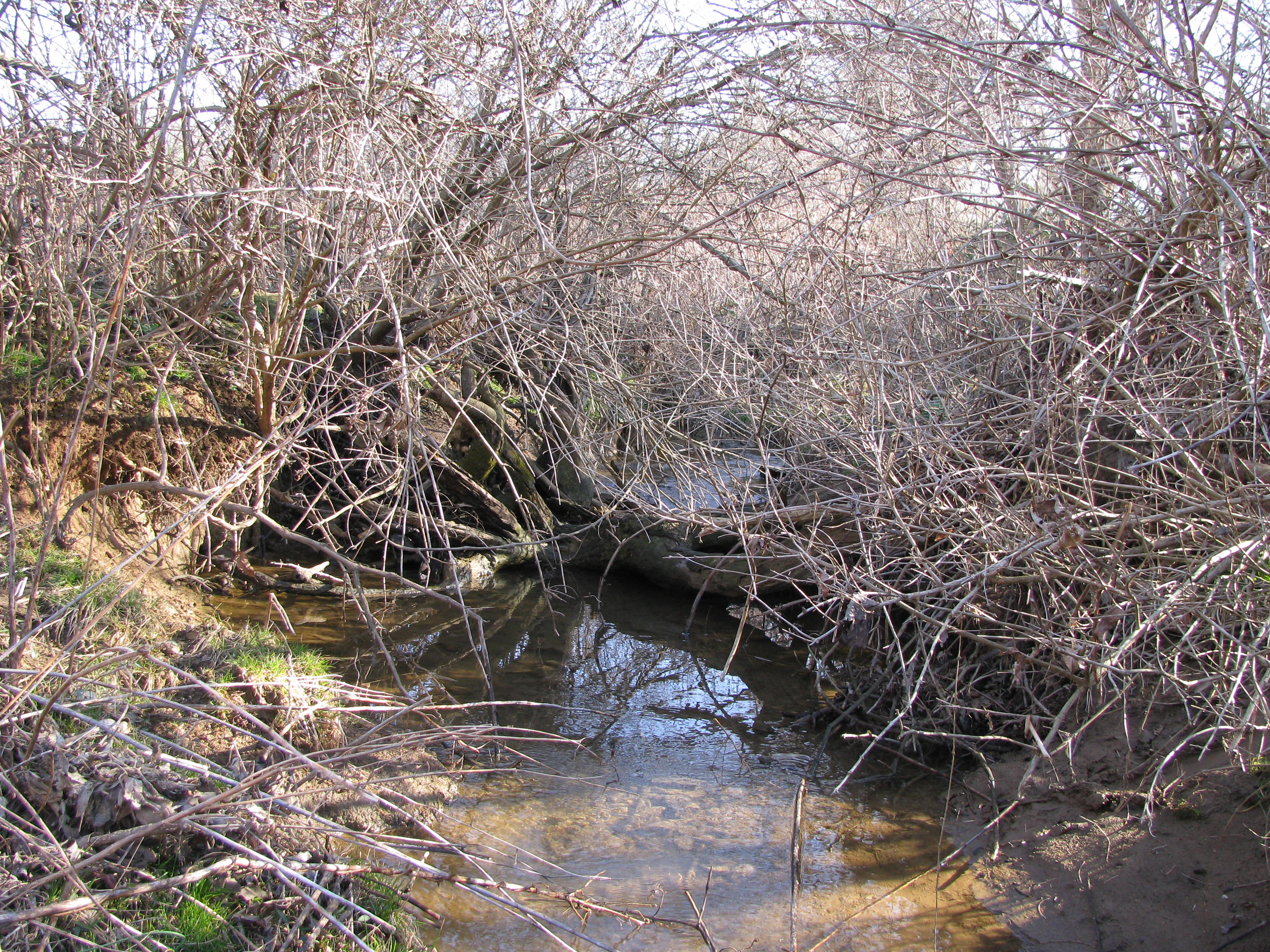

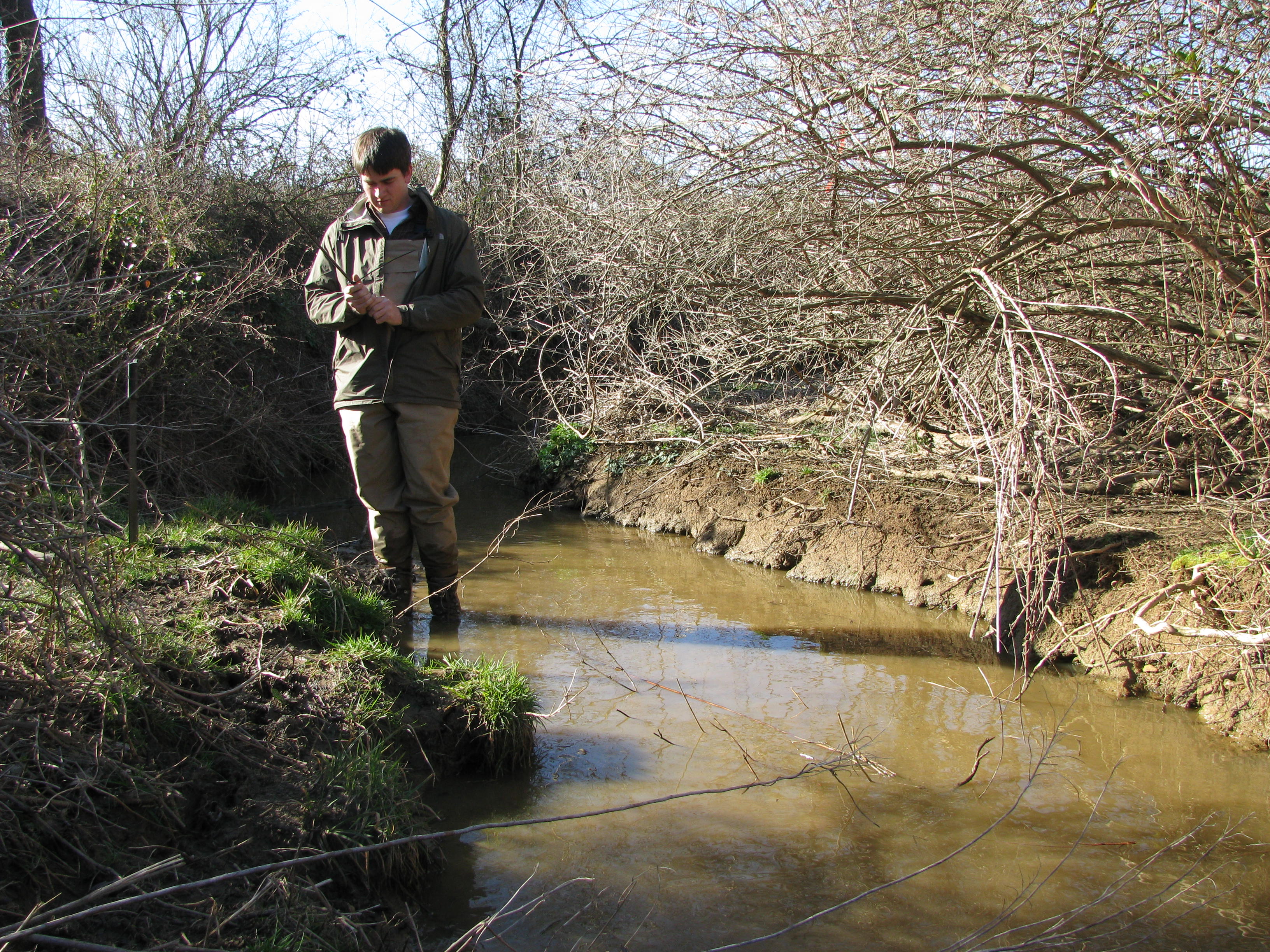

Field photo showing stream conditions at site DOUB-197-B-2012-1 (Opens in a new window) Field photo showing stream conditions at site DOUB-197-B-2012-2 (Opens in a new window)

Located on COPPS BRANCH in the Double Pipe Creek watershed, 8-digit code: 02140304.
This stream was visited in the spring on 3/7/2012 and again in the summer on 6/4/2012.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Fair - 3.3 / 5.0
Benthic IBI Poor - 2.3 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 501 acres A highly channelized urban stream with concrete banks. An example of a highly channelized urban stream.
Urban Land Use 52 %
Agricultural Land Use 21.9 %
Forested Land Use 24 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 12/20 (Suboptimal)
Epifaunal Substrate 11/20 (Suboptimal)
Velocity/Depth Diversity 8/20 (Marginal)
Pool Quality
Pool Extent = 50 meters 		7/20 (Marginal)
Riffle Quality
Riffle Extent = 31 meters 		12/20 (Suboptimal)
Shading 45 %
Embeddedness 40 %


Stream Water Quality:
pH (lab) 8.06
Alkalinity
(acid neutralizing capacity) 		3294.2 µeq/L
Dissolved organic carbon (DOC) 0.2999 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 7 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 116
Green Sunfish 44
Bluegill 22
Fantail Darter 17
Creek Chub 2
Bluntnose Minnow 1
Potomac Sculpin 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Two-Lined Salamander

Crayfish:
Cambarus bartonii bartonii
Orconectes virilis

Exotic Plants:
Garlic Mustard
Japanese Honeysuckle
Mile-A-Minute
Multiflora Rose
Oriental Bittersweet
Privet
Shrub Honeysuckle


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Orthocladius Non-Biting Midges 34
Orthocladiinae Midge 13
Polypedilum Non-Biting Midges 11
Stempellinella Non-Biting Midges 10
Diamesa Bloodworm 10
Optioservus Riffle Beetle 10
Tvetenia Non-Biting Midges 7
Cheumatopsyche Net-Spinning Caddisfly 6
Gammarus Amphipod 6
CERATOPOGONIDAE Biting Midge 5
Dubiraphia Riffle Beetle 5
Cricotopus Non-Biting Midges 3
Thienemannimyia Group Non-Biting Midges 3
Parametriocnemus Non-Biting Midges 3
Paratanytarsus Non-Biting Midges 3
Tanytarsus Non-Biting Midges 2
Rheotanytarsus Non-Biting Midges 2
Pseudolimnophila Crane Fly 2
Paratendipes European Non-Biting Midge 2
GORDIIDAE Horsehair Worm 1
Diplectrona Net-Spinning Caddisfly 1
Hydropsyche Net-Spinning Caddisfly 1
Brillia Non-Biting Midges 1
Simulium Black Fly 1
PISIDIIDAE Pill Clam 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
