MBSS Site Summary for: DOUB-214-R-2002

Site Photos

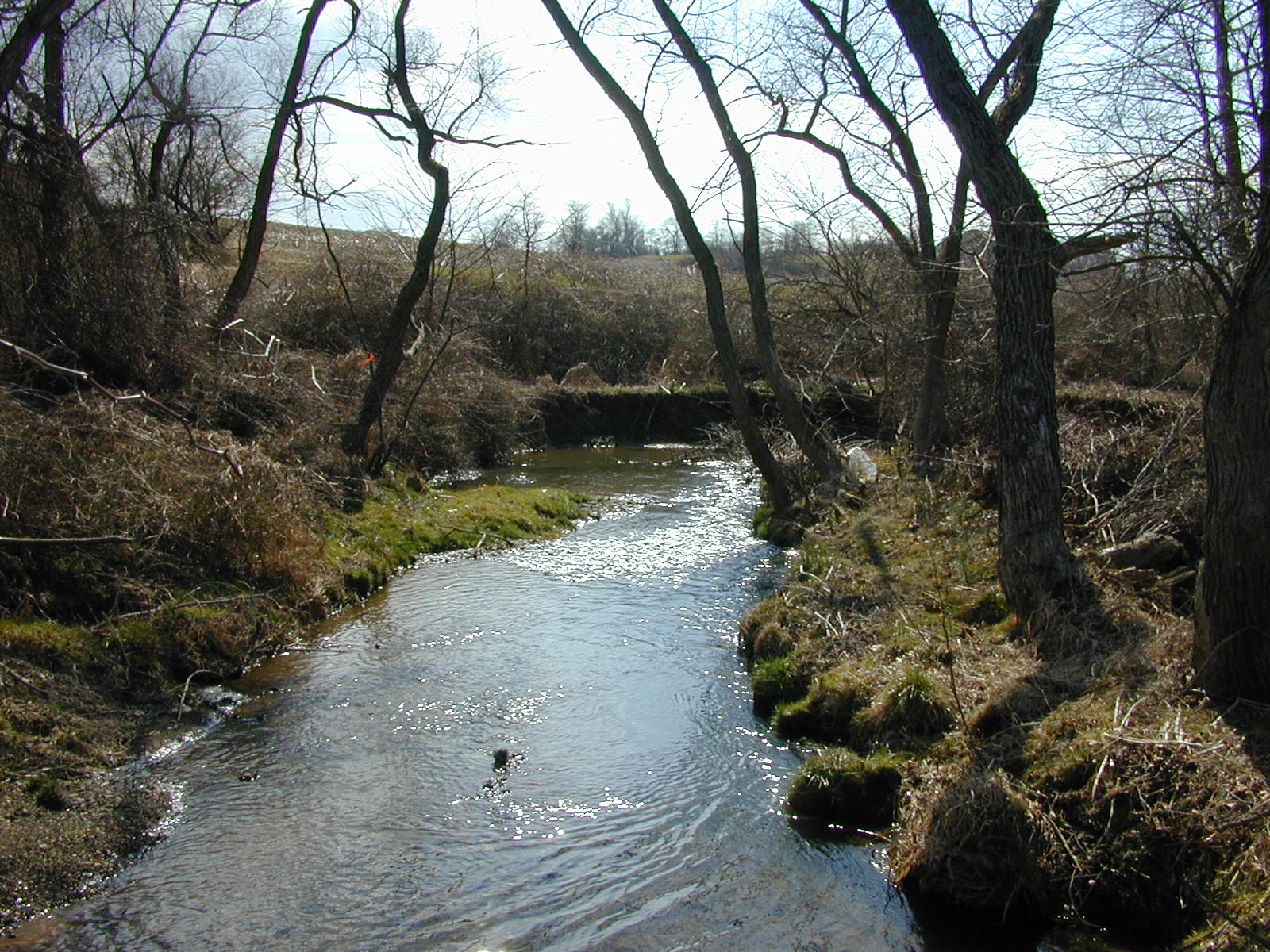

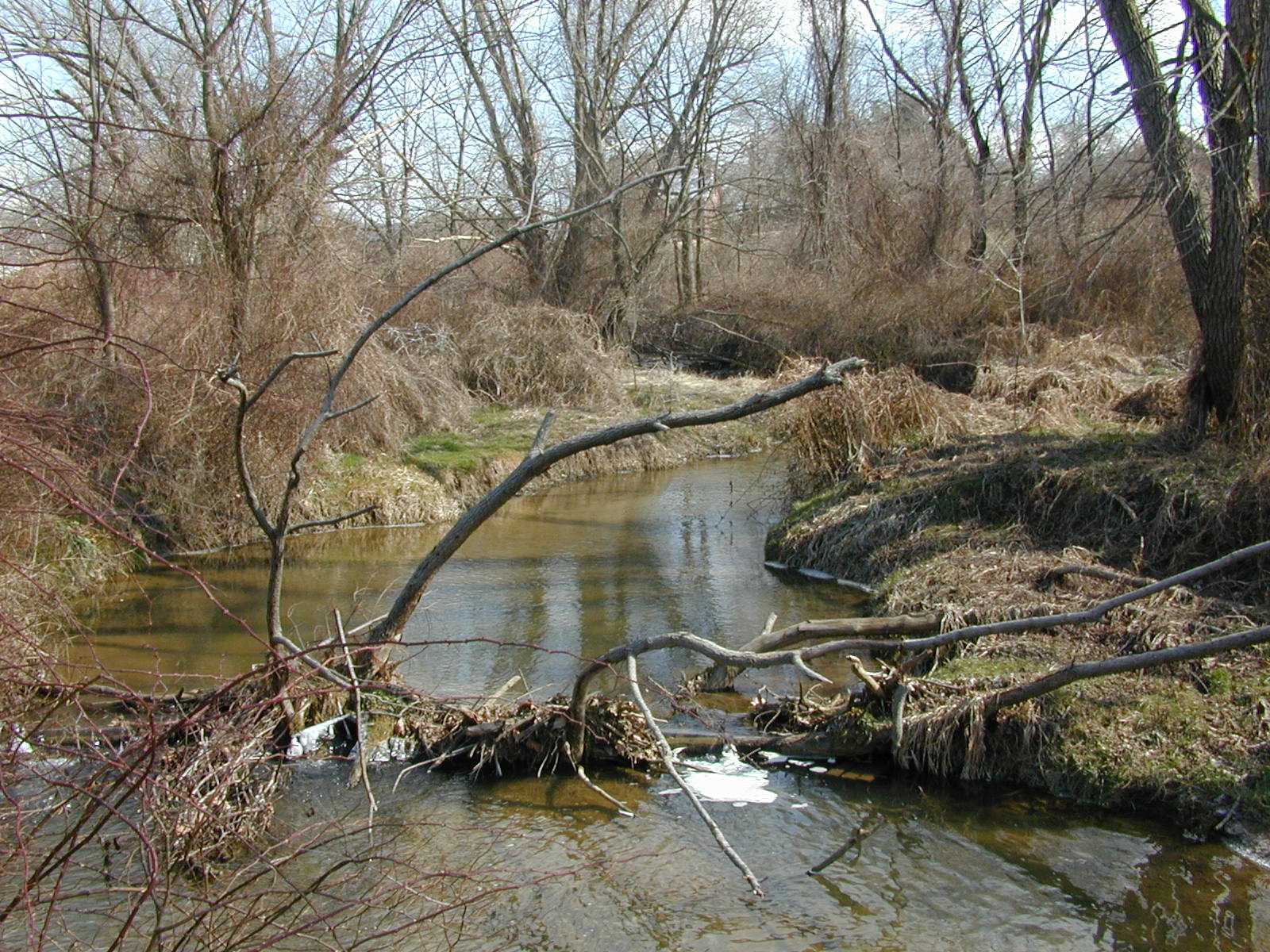

Field photo showing stream conditions at site DOUB-214-R-2002-1 (Opens in a new window) Field photo showing stream conditions at site DOUB-214-R-2002-2 (Opens in a new window)

Located on BIG PIPE CR in the Double Pipe Creek watershed, 8-digit code: 02140304.
This stream was visited in the spring on 3/5/2002 and again in the summer on 7/8/2002.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Fair - 3.7 / 5.0
Benthic IBI Poor - 2.5 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 6,011 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 2 %
Agricultural Land Use 63 %
Forested Land Use 33 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 16/20 (Optimal)
Epifaunal Substrate 14/20 (Suboptimal)
Velocity/Depth Diversity 14/20 (Suboptimal)
Pool Quality
Pool Extent = 50 meters 		13/20 (Suboptimal)
Riffle Quality
Riffle Extent = 29 meters 		16/20 (Optimal)
Shading 80 %
Embeddedness 45 %


Stream Water Quality:
Water temperature 16.2 ° C
Dissolved oxygen (DO) 8 mg/L
pH (lab) 7.67
Conductivity 220 µmho/cm
Alkalinity
(acid neutralizing capacity) 		886.2 µeq/L
Dissolved organic carbon (DOC) 1.5 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 11 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 830
Blue Ridge Sculpin 122
Fantail Darter 119
Longnose Dace 111
Potomac Sculpin 90
Rosyside Dace 59
White Sucker 57
Creek Chub 11
Bluntnose Minnow 5
Tessellated Darter 3
American Eel 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
No amphibians and reptiles noted.

Crayfish:
No crayfish noted.

Exotic Plants:
Japanese Honeysuckle
Mile-A-Minute
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Orthocladius Non-Biting Midges 21
Parametriocnemus Non-Biting Midges 19
Prostoia Spring Stonefly 16
Optioservus Riffle Beetle 14
Tvetenia Non-Biting Midges 14
Cheumatopsyche Net-Spinning Caddisfly 13
Hydropsyche Net-Spinning Caddisfly 10
Conchapelopia Non-Biting Midges 9
Sympotthastia Non-Biting Midges 8
Antocha Crane Fly 6
Serratella Mayfly 5
Chimarra Fingernet Caddisfly 3
Ephemerella Sulphur Mayfly 3
Microcylloepus Riffle Beetle 2
Microtendipes Non-Biting Midges 2
Pagastia 2
Prosimulium Black Fly 2
Simulium Black Fly 1
Macronychus Riffle Beetle 1
Polypedilum Non-Biting Midges 1
Stenonema Flatheaded Mayfly 1
Girardia Freshwater Flatworm 1
Eukiefferiella Non-Biting Midges 1
Micropsectra Non-Biting Midges 1
Ephemerellidae Spiny Crawler Mayfly 1
Amphinemura Spring Stonefly 1
Hemerodromia Tiny Fly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
