MBSS Site Summary for: DOUB-217-R-2002

Site Photos

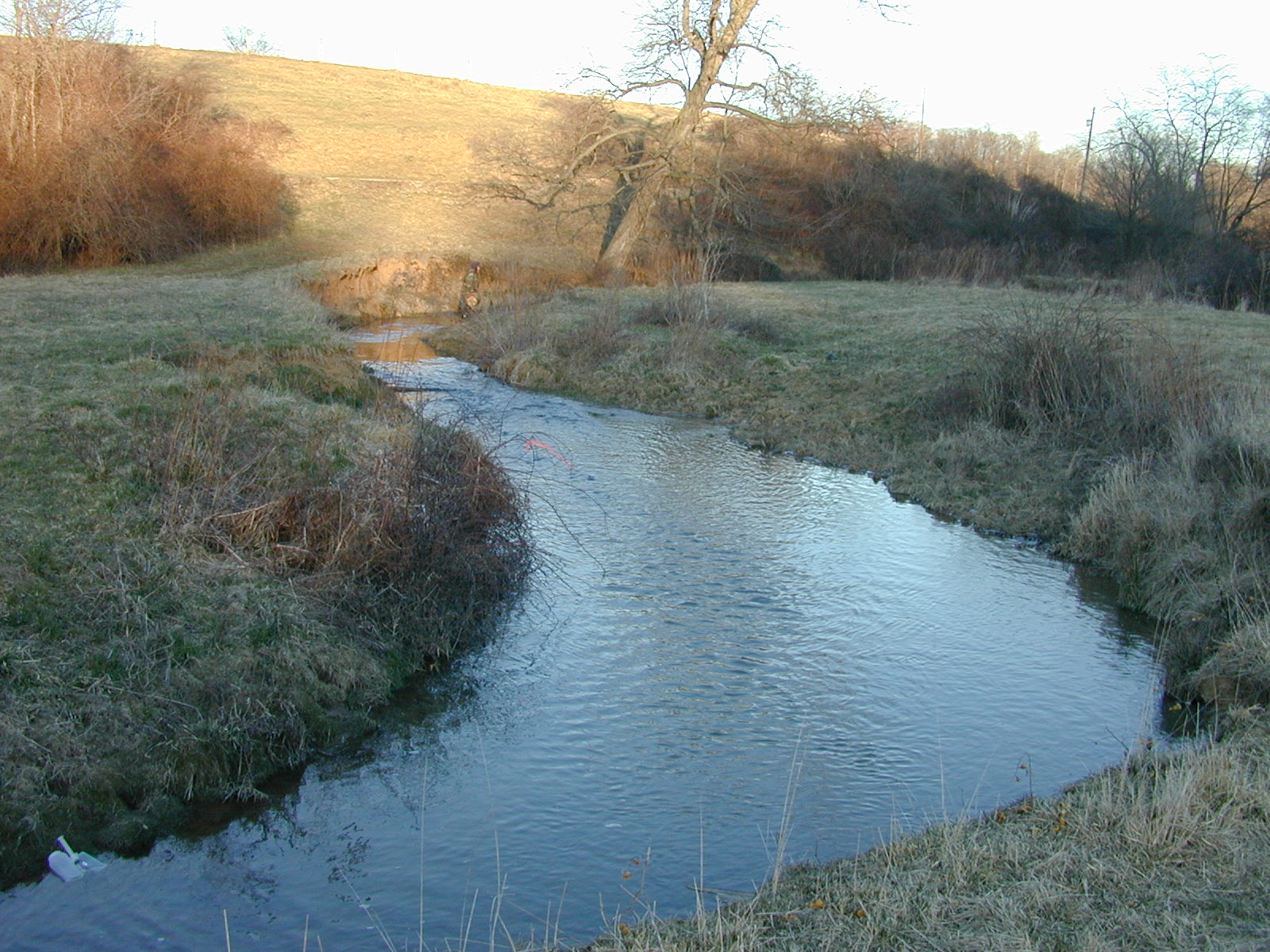

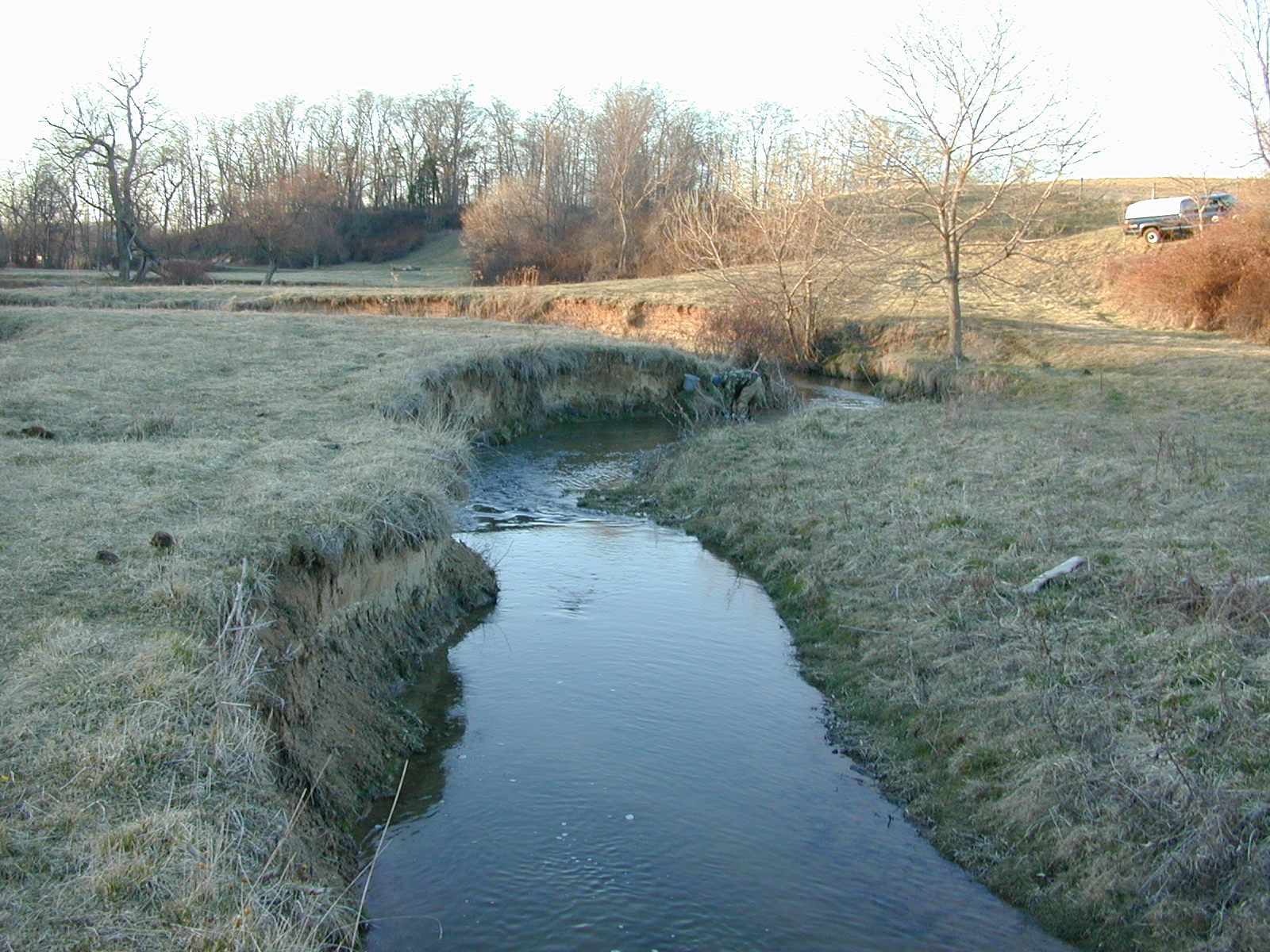

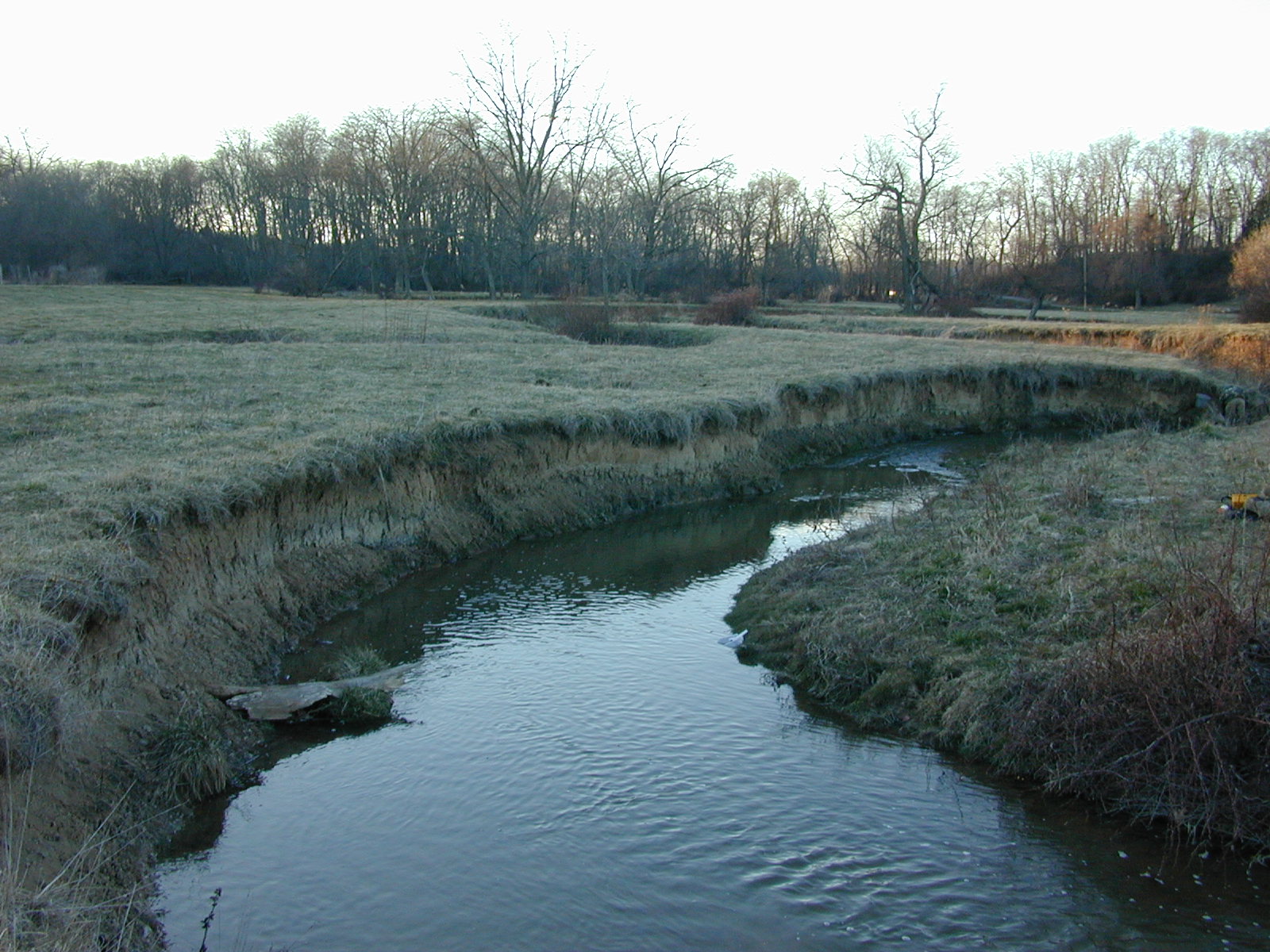

Field photo showing stream conditions at site DOUB-217-R-2002-1 (Opens in a new window) Field photo showing stream conditions at site DOUB-217-R-2002-2 (Opens in a new window) Field photo showing stream conditions at site DOUB-217-R-2002-3 (Opens in a new window)

Located on MEADOW BR in the Double Pipe Creek watershed, 8-digit code: 02140304.
This stream was visited in the spring on 3/4/2002 and again in the summer on 7/11/2002.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Fair - 3.7 / 5.0
Benthic IBI Poor - 2.8 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 6,926 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 5 %
Agricultural Land Use 78 %
Forested Land Use 16 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 13/20 (Suboptimal)
Epifaunal Substrate 12/20 (Suboptimal)
Velocity/Depth Diversity 14/20 (Suboptimal)
Pool Quality
Pool Extent = 35 meters 		11/20 (Suboptimal)
Riffle Quality
Riffle Extent = 40 meters 		15/20 (Suboptimal)
Shading 25 %
Embeddedness 40 %


Stream Water Quality:
Water temperature 25.1 ° C
Dissolved oxygen (DO) 9.1 mg/L
pH (lab) 7.92
Conductivity 320 µmho/cm
Alkalinity
(acid neutralizing capacity) 		1680 µeq/L
Dissolved organic carbon (DOC) 2.4 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 14 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Bluntnose Minnow 1680
Fantail Darter 769
Blacknose Dace 560
Longnose Dace 383
Yellow Bullhead 24
Potomac Sculpin 19
Greenside Darter 13
Rosyside Dace 11
Creek Chub 6
Tessellated Darter 6
White Sucker 6
Redbreast Sunfish 1
Satinfin Shiner 1
Spottail Shiner 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Green Frog
Northern Two-Lined Salamander

Crayfish:
No crayfish noted.

Exotic Plants:
Canada Thistle
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Optioservus Riffle Beetle 26
Microtendipes Non-Biting Midges 23
Hydropsyche Net-Spinning Caddisfly 10
Stenelmis Beetle 9
Tvetenia Non-Biting Midges 6
Parakiefferiella European Non-Biting Midge 5
Tanypodinae Non-Biting Midges 4
Orthocladiinae Midge 3
Cheumatopsyche Net-Spinning Caddisfly 3
Parametriocnemus Non-Biting Midges 3
Hyalella Amphipod 3
Naididae Aquatic Worm 3
Hydropsychidae Common Netspinner Caddisfly 2
Antocha Crane Fly 2
Cardiocladius Non-Biting Midge 2
Conchapelopia Non-Biting Midges 2
Serratella Mayfly 2
Orthocladius Non-Biting Midges 2
Thienemanniella Non-Biting Midges 2
Ephemerella Sulphur Mayfly 1
Hemerodromia Tiny Fly 1
Stempellinella Non-Biting Midges 1
Sympotthastia Non-Biting Midges 1
Nanocladius Non-Biting Midges 1
Eukiefferiella Non-Biting Midges 1
Stenonema Flatheaded Mayfly 1
Girardia Freshwater Flatworm 1
Dicranota Hairy-Eyed Cranefly 1
Scirtidae Marsh Beetle 1
Probezzia Biting Midges 1
Prosimulium Black Fly 1
Stagnicola Air Breathing Freshwater Snail 1
Spirosperma Aquatic Oligochaete Worm 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
