MBSS Site Summary for: DOUB-221-R-2002

Site Photos

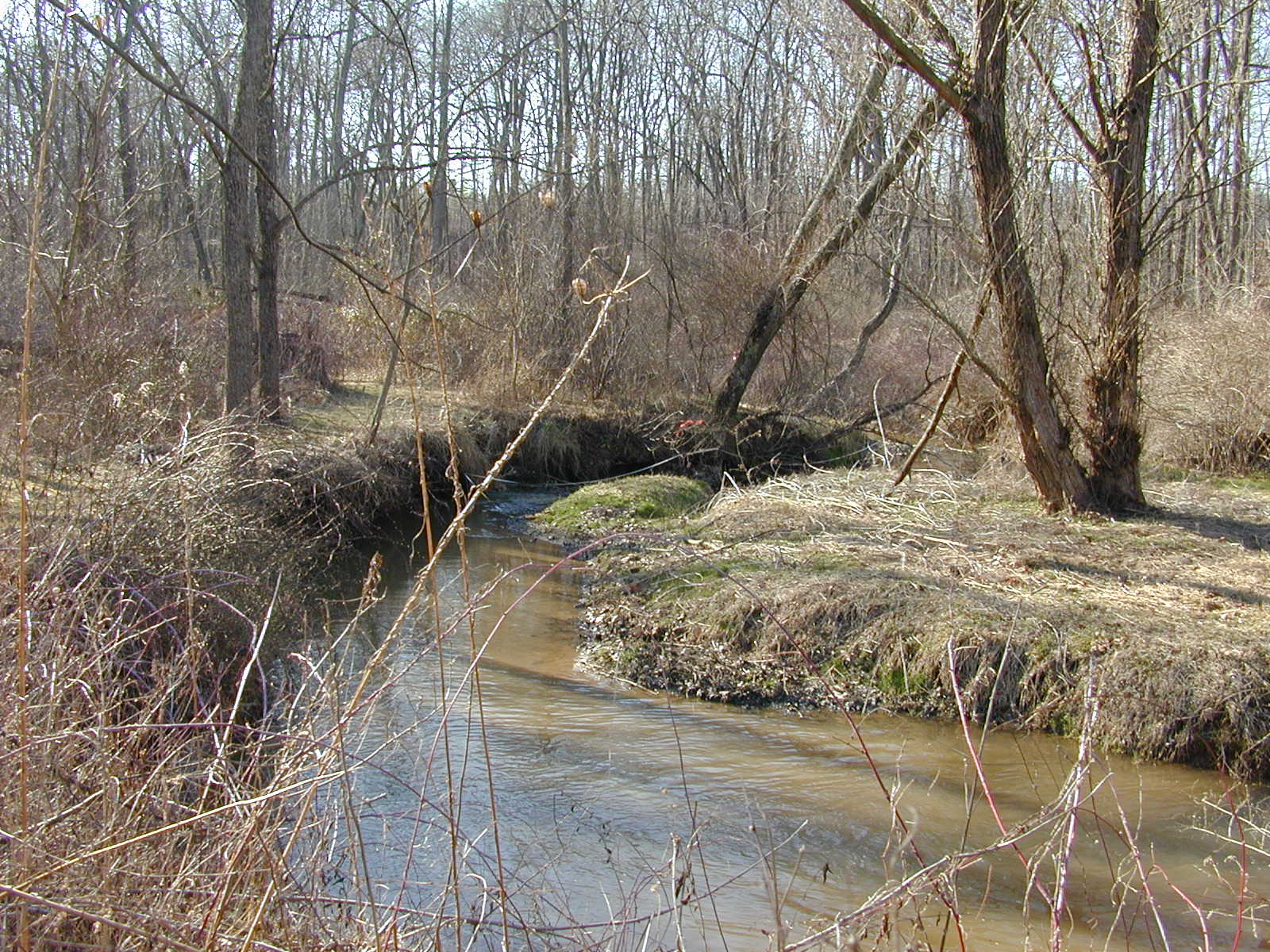

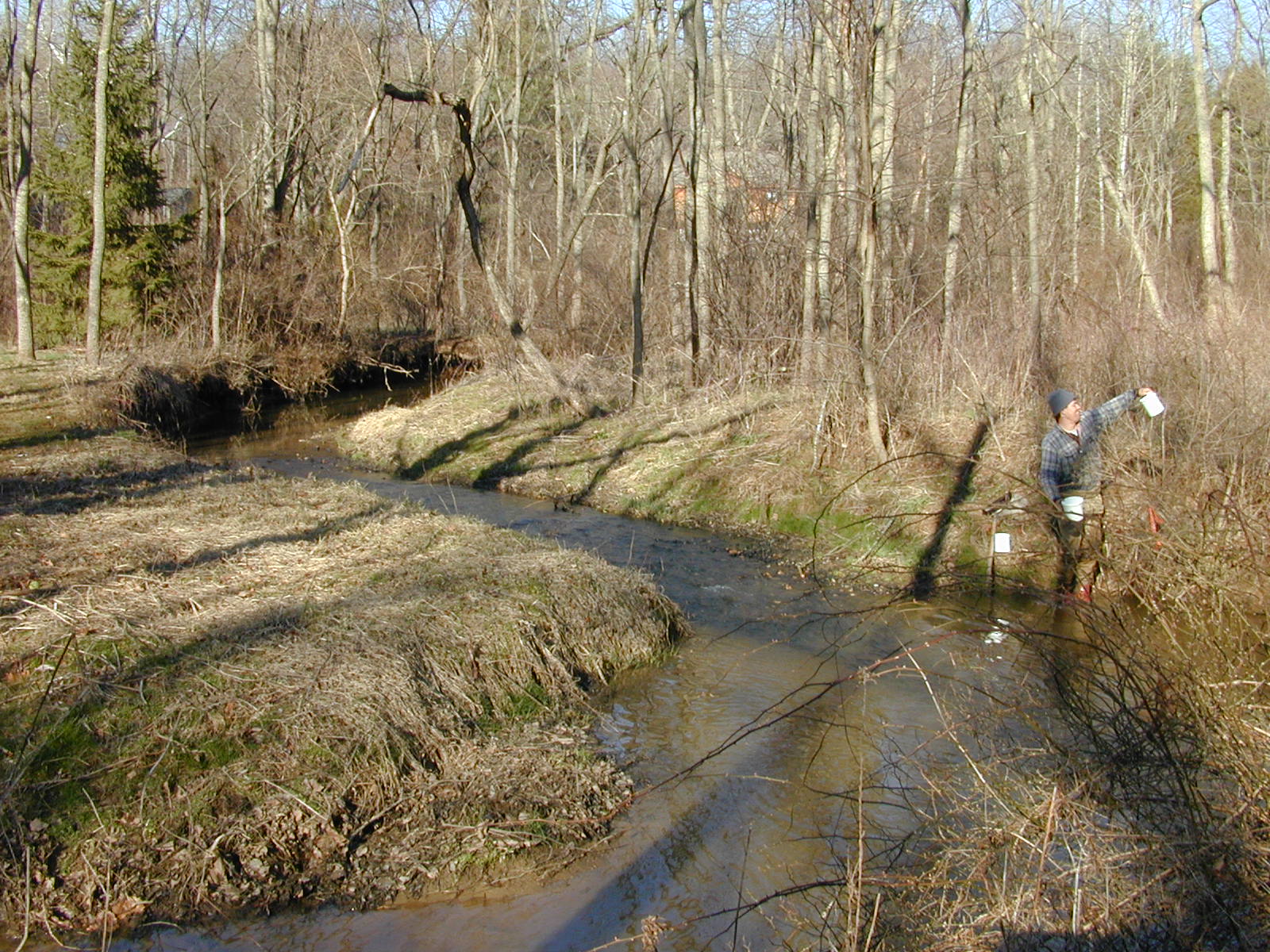

Field photo showing stream conditions at site DOUB-221-R-2002-1 (Opens in a new window) Field photo showing stream conditions at site DOUB-221-R-2002-2 (Opens in a new window)

Located on BEAR BR in the Double Pipe Creek watershed, 8-digit code: 02140304.
This stream was visited in the spring on 3/6/2002 and again in the summer on 7/11/2002.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Fair - 3.7 / 5.0
Benthic IBI Fair - 3.8 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 3,357 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 2 %
Agricultural Land Use 78 %
Forested Land Use 19 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 15/20 (Suboptimal)
Epifaunal Substrate 14/20 (Suboptimal)
Velocity/Depth Diversity 13/20 (Suboptimal)
Pool Quality
Pool Extent = 47 meters 		14/20 (Suboptimal)
Riffle Quality
Riffle Extent = 28 meters 		12/20 (Suboptimal)
Shading 95 %
Embeddedness 35 %


Stream Water Quality:
Water temperature 17.2 ° C
Dissolved oxygen (DO) 7.5 mg/L
pH (lab) 7.37
Conductivity 280 µmho/cm
Alkalinity
(acid neutralizing capacity) 		931.5 µeq/L
Dissolved organic carbon (DOC) 1.3 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 9 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 455
Rosyside Dace 56
Longnose Dace 48
Bluntnose Minnow 35
Blue Ridge Sculpin 29
White Sucker 28
Fantail Darter 16
Creek Chub 3
Bluegill 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Two-Lined Salamander

Crayfish:
No crayfish noted.

Exotic Plants:
Japanese Honeysuckle
Japanese Stiltgrass
Mile-A-Minute
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Ephemerella Sulphur Mayfly 16
Rheosmittia Non-Biting Midges 12
Serratella Mayfly 11
Optioservus Riffle Beetle 11
Tvetenia Non-Biting Midges 11
Chimarra Fingernet Caddisfly 10
Acerpenna Tiny Blue-Winged Olive Mayflies 9
Parametriocnemus Non-Biting Midges 6
Tanytarsus Non-Biting Midges 5
Girardia Freshwater Flatworm 5
Stenelmis Beetle 4
Neophylax Caddisfly 4
Microtendipes Non-Biting Midges 4
Elmidae Riffle Beetle 4
Antocha Crane Fly 3
Stenonema Flatheaded Mayfly 3
Stempellinella Non-Biting Midges 2
Cheumatopsyche Net-Spinning Caddisfly 2
Hydropsyche Net-Spinning Caddisfly 1
Nemouridae Nemourid Stonefly 1
Orthocladius Non-Biting Midges 1
Glossosoma Little Black Caddisfly 1
Hexatoma Crane Fly 1
Probezzia Biting Midges 1
Thienemanniella Non-Biting Midges 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
