MBSS Site Summary for: DOUB-225-R-2016

Site Photos

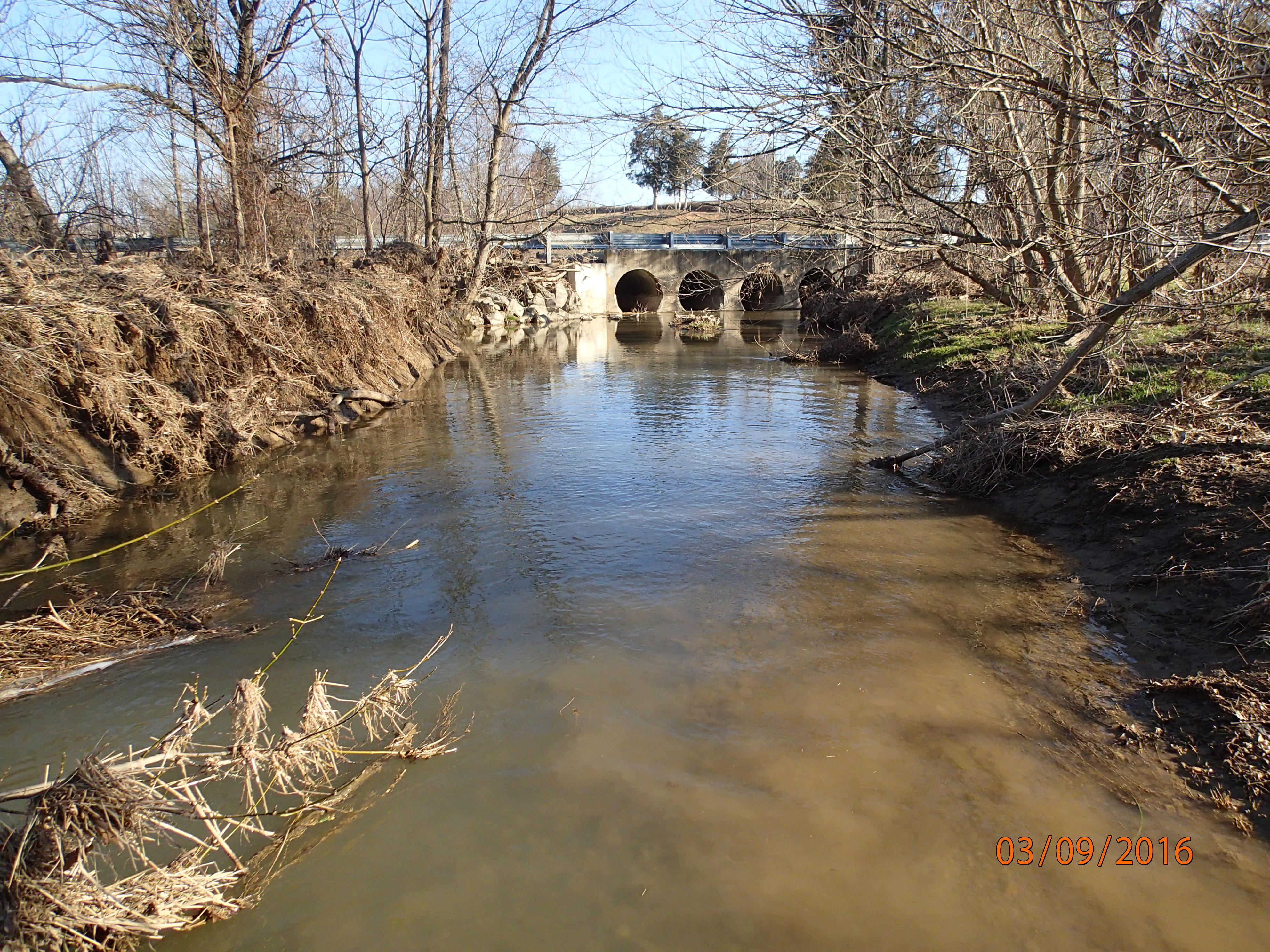

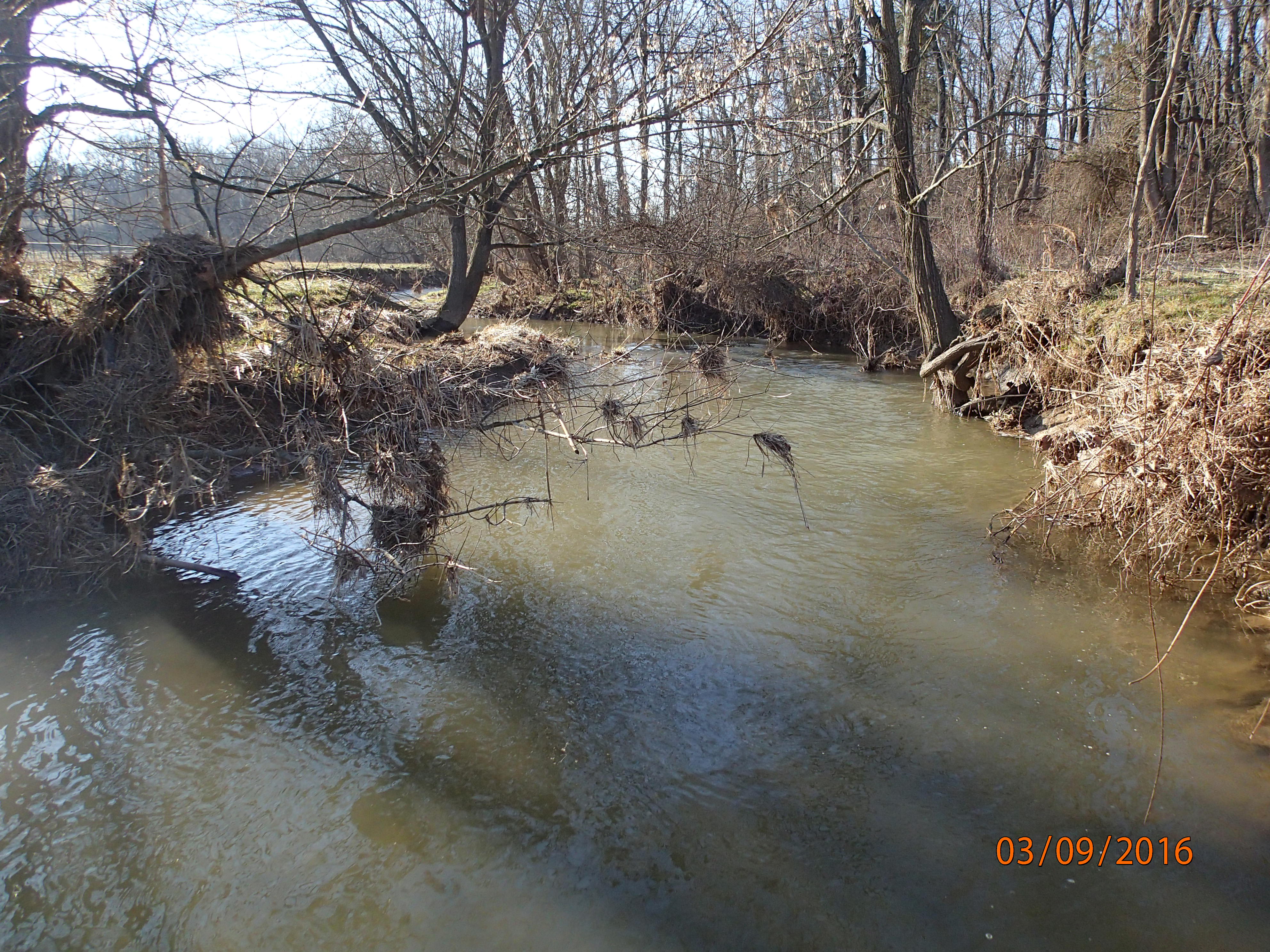

Field photo showing stream conditions at site DOUB-225-R-2016-MidpointDownstream (Opens in a new window) Field photo showing stream conditions at site DOUB-225-R-2016-MidpointUpstream (Opens in a new window)

Located on Beaver Dam Creek in the Double Pipe Creek watershed, 8-digit code: 02140304.
This stream was visited in the spring on 3/9/2016 and again in the summer on 8/8/2016.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Fair - 3.7 / 5.0
Benthic IBI Poor - 2.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 3,929 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 4.7 %
Agricultural Land Use 75.8 %
Forested Land Use 17.5 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 8/20 (Marginal)
Epifaunal Substrate 6/20 (Marginal)
Velocity/Depth Diversity 9/20 (Marginal)
Pool Quality
Pool Extent = 55 meters 		8/20 (Marginal)
Riffle Quality
Riffle Extent = 21 meters 		11/20 (Suboptimal)
Shading 25 %
Embeddedness 85 %
The embeddedness, a measure of silt on the stream bottom, was 85%. This is relatively high, and may exclude some biota.


Stream Water Quality:
pH (lab) 7.92
Alkalinity
(acid neutralizing capacity) 		2076.7 µeq/L
Dissolved organic carbon (DOC) 1.0079 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 9 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Bluntnose Minnow 239
Blacknose Dace 215
White Sucker 62
Fantail Darter 56
Creek Chub 45
Longnose Dace 30
Central Stoneroller 23
Yellow Bullhead 5
Greenside Darter 2
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Two-Lined Salamander

Crayfish:
Orconectes virilis

Exotic Plants:
Japanese Hops
Mile-A-Minute
Multiflora Rose
Wineberry


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Microtendipes Non-Biting Midges 32
Sphaerium Fingernail Clam 21
Stenelmis Beetle 16
Orthocladius Non-Biting Midges 11
Cheumatopsyche Net-Spinning Caddisfly 6
Gammarus Amphipod 6
Orthocladiinae Midge 5
Optioservus Riffle Beetle 5
Antocha Crane Fly 4
Tvetenia Non-Biting Midges 2
Bezzia Biting Midge 2
Prosimulium Black Fly 1
Diamesa Bloodworm 1
Tubificidae Aquatic Worm 1
Chimarra Fingernet Caddisfly 1
Hydrobaenus Midge 1
Hydropsyche Net-Spinning Caddisfly 1
Cricotopus Non-Biting Midges 1
Micropsectra Non-Biting Midges 1
Parametriocnemus Non-Biting Midges 1
Tanytarsus Non-Biting Midges 1
Psephenus Water Penny 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
