MBSS Site Summary for: DOUB-314-H-2010

Site Photos

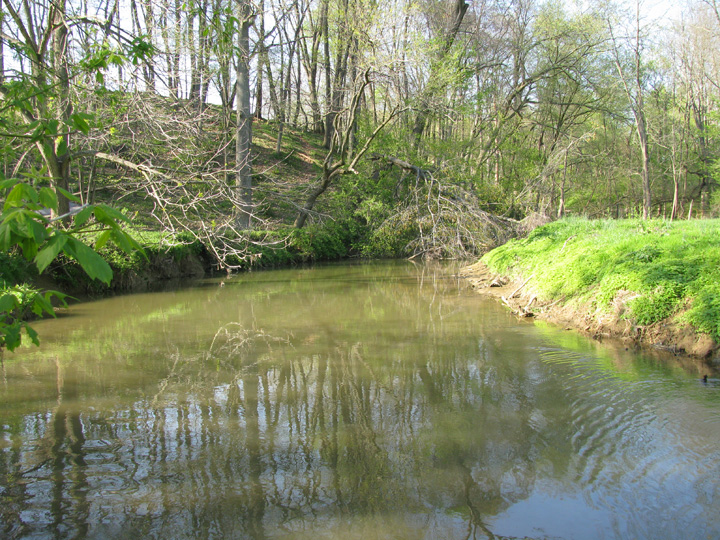

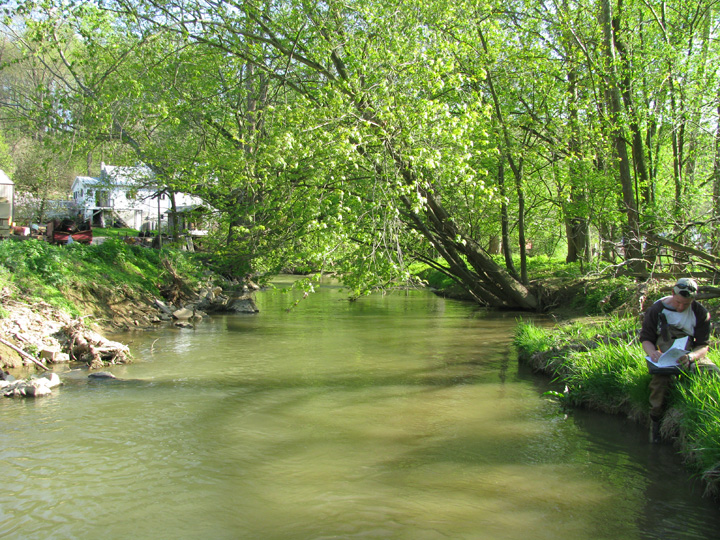

Field photo showing stream conditions at site DOUB-314-H-2010-1 (Opens in a new window) Field photo showing stream conditions at site DOUB-314-H-2010-2 (Opens in a new window)

Located on Little Pipe Creek in the Double Pipe Creek watershed, 8-digit code: 02140304.
This stream was visited in the spring on 4/14/2010 and again in the summer on 8/2/2010.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI N R
Benthic IBI Poor - 2.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 12,399 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 11.9 %
Agricultural Land Use 71.9 %
Forested Land Use 15.3 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 16/20 (Optimal)
Epifaunal Substrate 13/20 (Suboptimal)
Velocity/Depth Diversity 18/20 (Optimal)
Pool Quality
Pool Extent = 60 meters 		17/20 (Optimal)
Riffle Quality
Riffle Extent = 15 meters 		16/20 (Optimal)
Shading 40 %
Embeddedness 85 %
The embeddedness, a measure of silt on the stream bottom, was 85%. This is relatively high, and may exclude some biota.
Several measures of instream habitat were considered 'Optimal' at this location.


Stream Water Quality:
pH (lab) 8.05
Alkalinity
(acid neutralizing capacity) 		2390.3 µeq/L
Dissolved organic carbon (DOC) 1.7664 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
Fish data is unavailable or no fish observed.

Amphibians and Reptiles:
Northern Green Frog
Northern Spring Peeper

Crayfish:
Orconectes virilis

Exotic Plants:
No exotic plants noted.


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Naididae Aquatic Worm 44
Orthocladius Non-Biting Midges 20
Cricotopus Non-Biting Midges 14
Baetis Blue-Winged Olive Mayfly 11
Orthocladiinae Midge 10
Tvetenia Non-Biting Midges 10
Ceratopsyche 9
Polypedilum Non-Biting Midges 7
Crangonyx Amphipod 4
Micropsectra Non-Biting Midges 3
Thienemannimyia Group Non-Biting Midges 2
Dubiraphia Riffle Beetle 1
Hydropsyche Net-Spinning Caddisfly 1
Menetus Air Breathing Freshwater Snail 1
Caecidotea Isopod 1
Tubificidae Aquatic Worm 1
Stenelmis Beetle 1
Simulium Black Fly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
