MBSS Site Summary for: FURN-101-S-2023

Site Photos

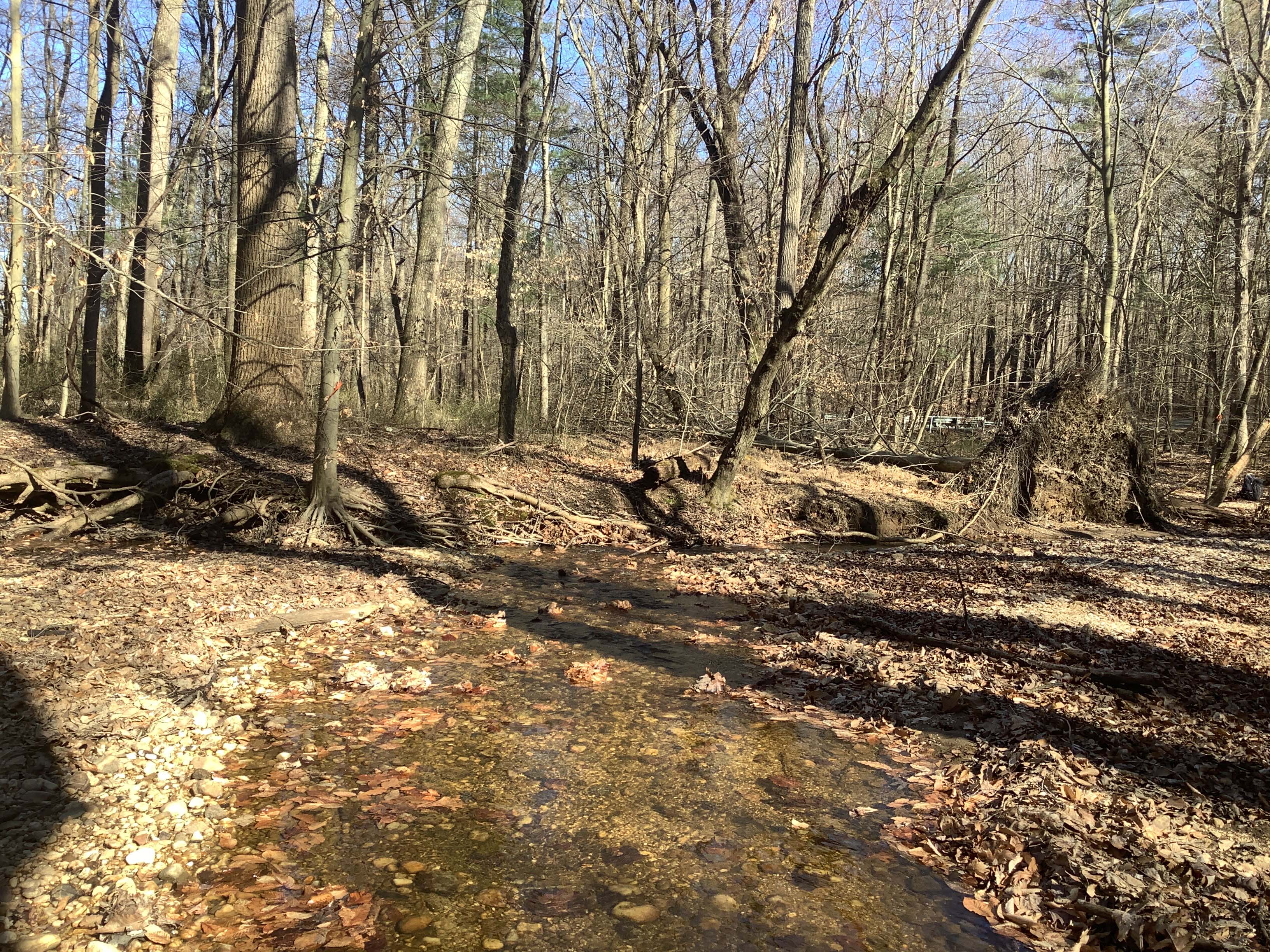

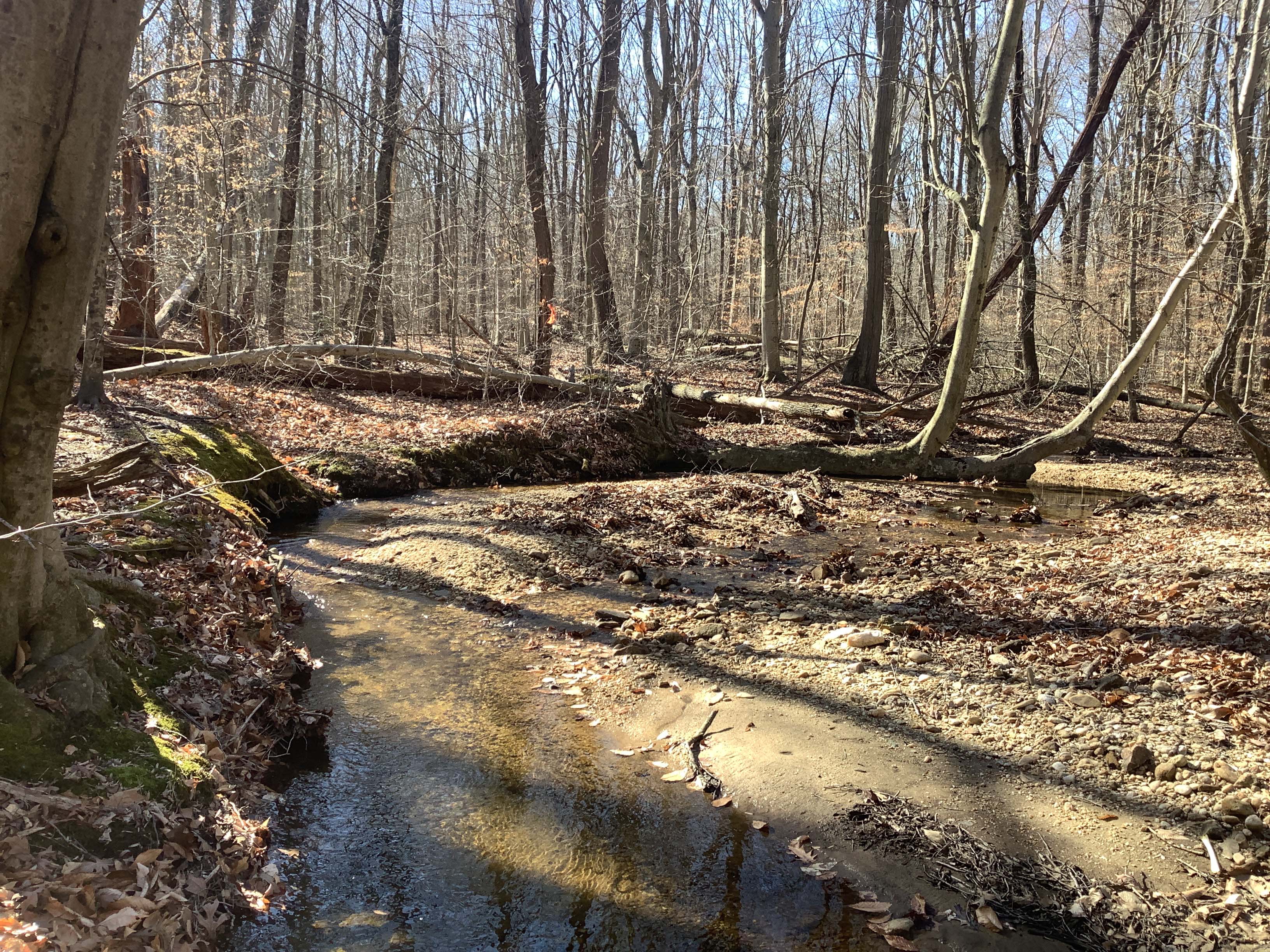

Field photo showing stream conditions at site FURN-101-S-2023_Midpoint_facing_downstream (Opens in a new window) Field photo showing stream conditions at site FURN-101-S-2023_Midpoint_facing_upstream (Opens in a new window)

Located on WINCH RUN in the Furnace Bay watershed, 8-digit code: 02130609.
This stream was visited in the spring on 3/8/2023 and again in the summer on 6/22/2023.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Fair - 3.0 / 5.0
Benthic IBI Good - 4.7 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area No data available A stream flowing through a densely forested area. An example of a forested stream.
Urban Land Use 9.3 %
Agricultural Land Use 11.8 %
Forested Land Use 53.6 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 12/20 (Suboptimal)
Epifaunal Substrate 13/20 (Suboptimal)
Velocity/Depth Diversity 12/20 (Suboptimal)
Pool Quality
Pool Extent = 45 meters 		13/20 (Suboptimal)
Riffle Quality
Riffle Extent = 30 meters 		9/20 (Marginal)
Shading 60 %
Embeddedness 35 %


Stream Water Quality:
Water temperature 15.7 ° C
Dissolved oxygen (DO) 8.16 mg/L
pH (lab) 6.98
Alkalinity
(acid neutralizing capacity) 		203.6 µeq/L
Dissolved organic carbon (DOC) 2.317 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 9 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Rosyside Dace 107
Blacknose Dace 103
Creek Chub 33
Margined Madtom 11
Blue Ridge Sculpin 8
American Eel 4
Tessellated Darter 3
Cutlip Minnow 1
White Sucker 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Green Frog
Pickerel Frog

Crayfish:
None observed

Exotic Plants:
Japanese Stiltgrass
Multiflora Rose
Wineberry


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
PROSIMULIUM Black Fly 41
EPHEMERELLA Sulphur Mayfly 36
AMPHINEMURA Spring Stonefly 9
OULIMNIUS Riffle Beetle 5
EPEORUS Mayfly 5
LEUCTRA  Rolled-Winged Stonefly 3
DICRANOTA Hairy-Eyed Cranefly 3
OPTIOSERVUS Riffle Beetle 2
ISOPERLA Stripetail Stonefly 2
NEOPHYLAX Caddisfly 2
HEXATOMA Crane Fly 2
THIENEMANNIMYIA GROUP Non-Biting Midges 2
MICROPSECTRA Non-Biting Midges 2
PARAMETRIOCNEMUS Non-Biting Midges 2
RHEOTANYTARSUS Non-Biting Midges 1
STEMPELLINELLA Non-Biting Midges 1
TANYTARSUS Non-Biting Midges 1
THIENEMANNIELLA Non-Biting Midges 1
PERLODIDAE Perlodid Stonefly 1
CORYNONEURA Non-Biting Midges 1
HABROPHLEBIODES 1
ANTOCHA Crane Fly 1
ANCHYTARSUS Beetle 1
SIMULIUM Black Fly 1
STEGOPTERNA Black Fly 1
GLOSSOSOMATIDAE Saddlecase Maker Caddisfly 1
PROSTOIA Spring Stonefly 1
POLYCENTROPUS Tube Maker Caddisfly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
