MBSS Site Summary for: JONE-109-R-2008

Site Photos

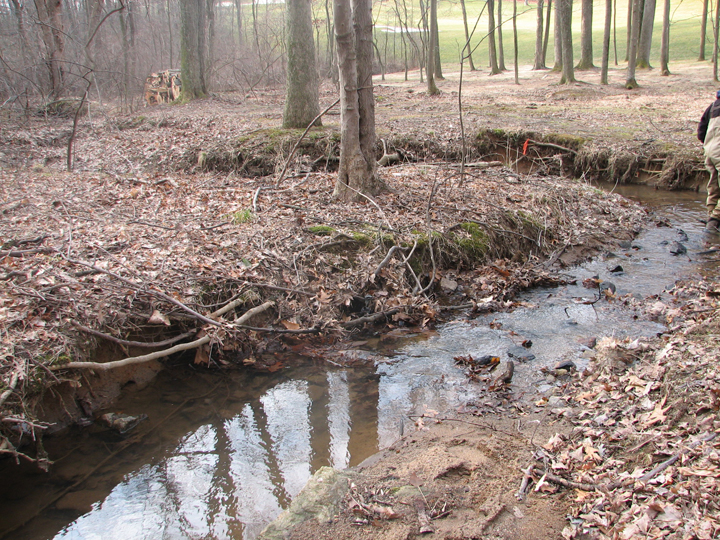

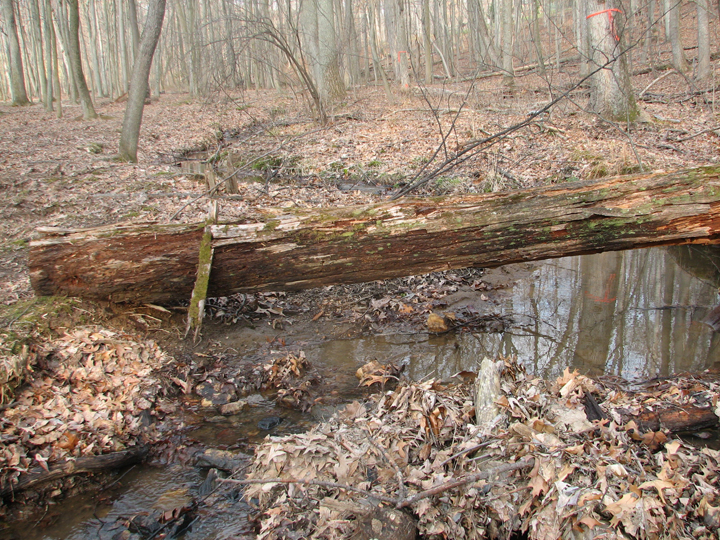

Field photo showing stream conditions at site JONE-109-R-2008-1 (Opens in a new window) Field photo showing stream conditions at site JONE-109-R-2008-2 (Opens in a new window)

Located on UT NORTH BRANCH in the Jones Falls watershed, 8-digit code: 02130904.
This stream was visited in the spring on 3/12/2008 and again in the summer on 7/8/2008.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 2.0 / 5.0
Benthic IBI Fair - 3.3 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 141 acres A stream flowing through a densely forested area. An example of a forested stream.
Urban Land Use 3.6 %
Agricultural Land Use 25.8 %
Forested Land Use 68.1 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 13/20 (Suboptimal)
Epifaunal Substrate 11/20 (Suboptimal)
Velocity/Depth Diversity 6/20 (Marginal)
Pool Quality
Pool Extent = 39 meters 		9/20 (Marginal)
Riffle Quality
Riffle Extent = 40 meters 		12/20 (Suboptimal)
Shading 85 %
Embeddedness 25 %


Stream Water Quality:
Water temperature 18.5 ° C
Dissolved oxygen (DO) 8.1 mg/L
pH (lab) 6.89
Conductivity 110 µmho/cm
Alkalinity
(acid neutralizing capacity) 		339.2 µeq/L
Dissolved organic carbon (DOC) 0.8919 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 3 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 131
Creek Chub 49
Rosyside Dace 3
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Eastern American Toad
Eastern Gartersnake
Eastern Red-Backed Salamander
Northern Dusky Salamander
Northern Green Frog
Northern Red Salamander
Northern Two-Lined Salamander
Northern Watersnake

Crayfish:
Cambarus diogenes

Exotic Plants:
Japanese Stiltgrass
Oriental Bittersweet
Wineberry


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Corynoneura Non-Biting Midges 16
Maccaffertium March Brown And Cahill Mayfly 12
Parametriocnemus Non-Biting Midges 12
Diplectrona Net-Spinning Caddisfly 9
Stilocladius Midge 7
Cheumatopsyche Net-Spinning Caddisfly 4
Eukiefferiella Non-Biting Midges 4
Simulium Black Fly 4
Baetis Blue-Winged Olive Mayfly 4
Dugesiidae Flatworm 4
Pycnopsyche Great Autumn Brown Sedge Caddisfly 3
Stegopterna Black Fly 3
Brillia Non-Biting Midges 3
Leptophlebiidae Pronggilled Mayfly 2
Limnephilidae Northern Casemaker Caddisfly 2
Perlodidae Perlodid Stonefly 1
Polypedilum Non-Biting Midges 1
Pseudorthocladius Non-Biting Midges 1
Tanypodinae Non-Biting Midges 1
Tribelos Non-Biting Midges 1
Zavrelimyia Non-Biting Midges 1
Naididae Aquatic Worm 1
Bezzia Biting Midge 1
Isotomurus Elongate-Bodied Springtail 1
Micropsectra Non-Biting Midges 1
Natarsia Non-Biting Midges 1
Hydropsyche Net-Spinning Caddisfly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
