MBSS Site Summary for: JONE-109-S-2002

Site Photos

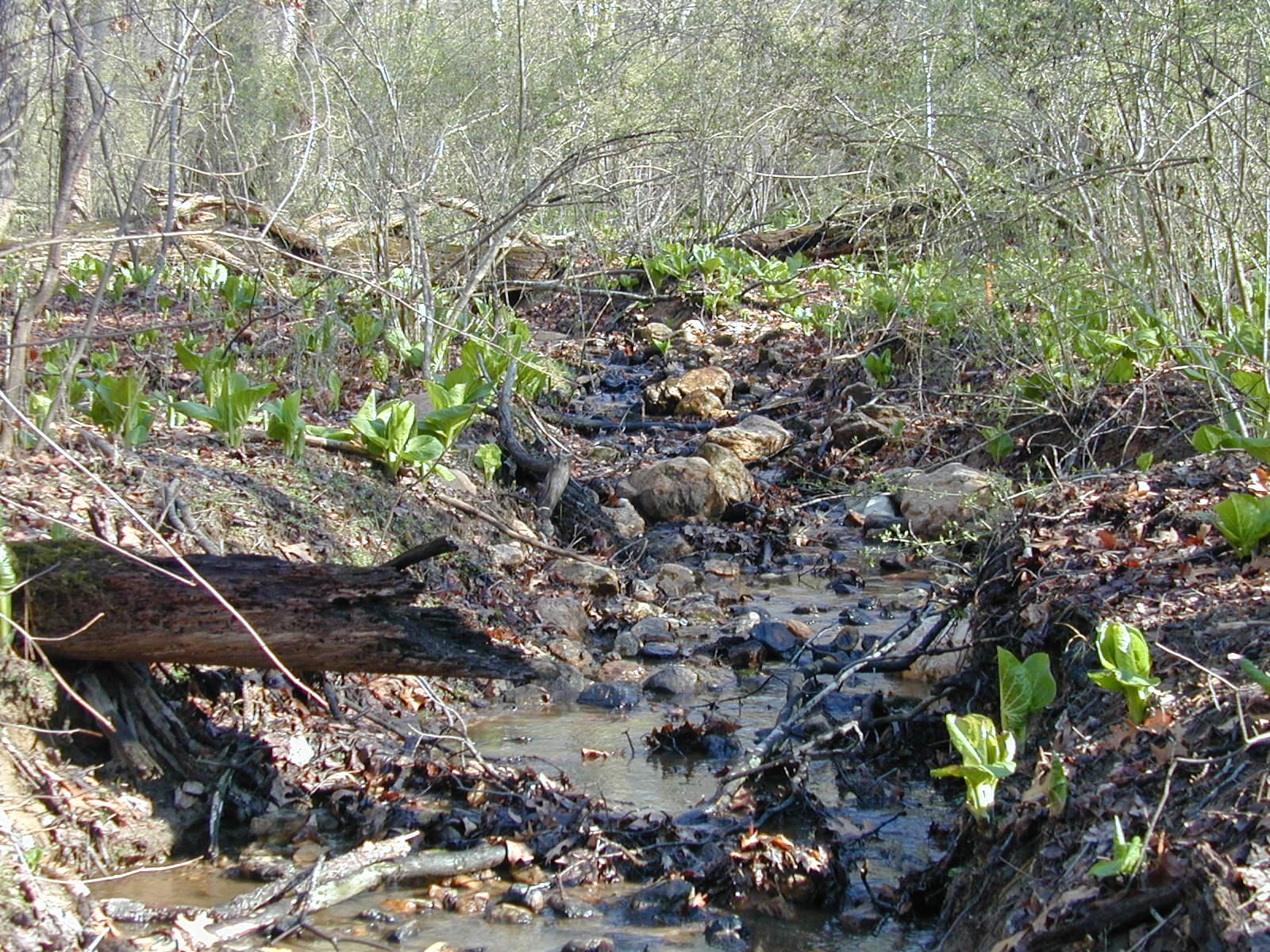

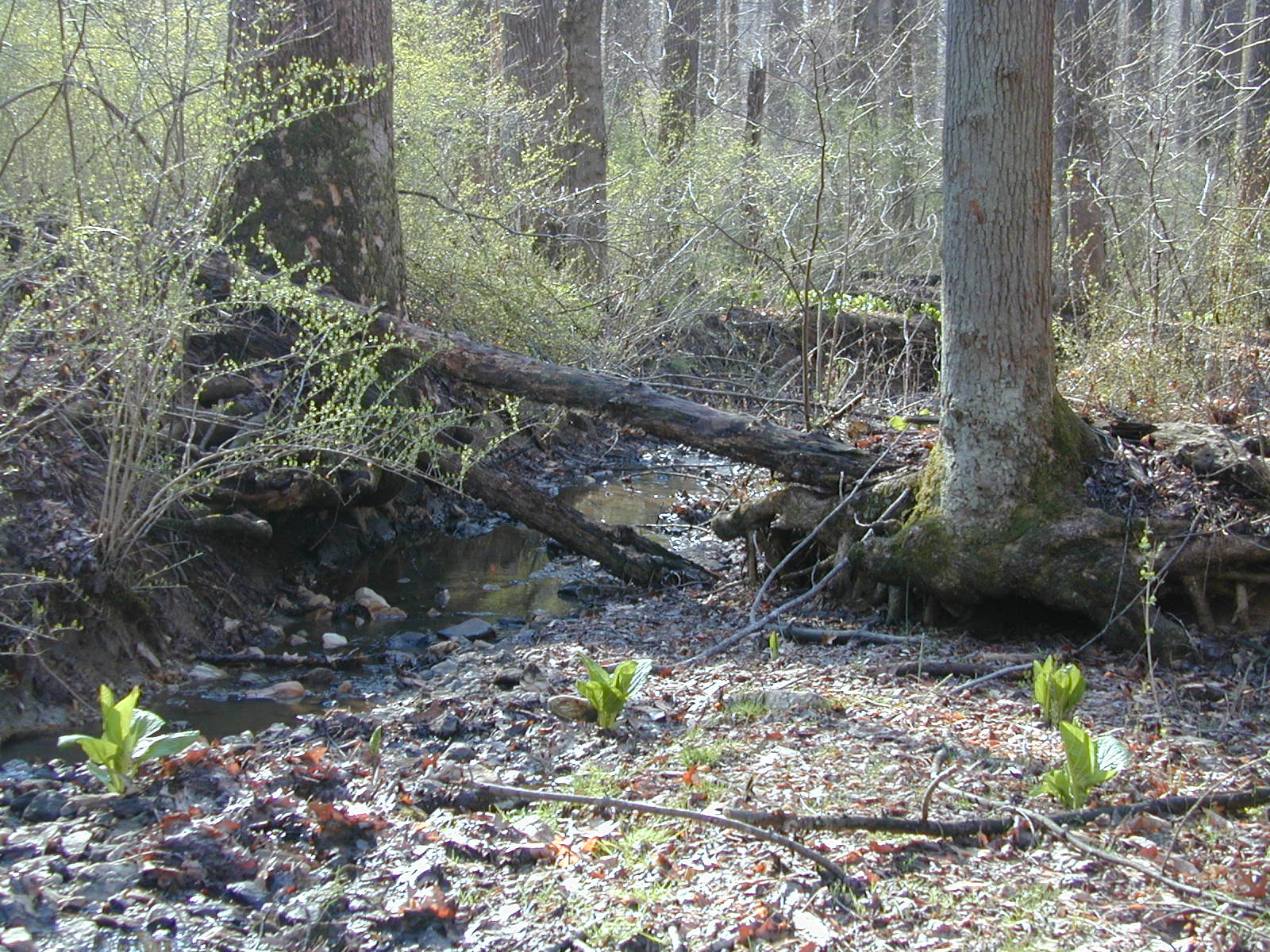

Field photo showing stream conditions at site JONE-109-S-2002-473 (Opens in a new window) Field photo showing stream conditions at site JONE-109-S-2002-474 (Opens in a new window) Field photo showing stream conditions at site JONE-109-S-2002-521 (Opens in a new window) Field photo showing stream conditions at site JONE-109-S-2002-522 (Opens in a new window)

Located on DIPPING POND RUN UT1 in the Jones Falls watershed, 8-digit code: 02130904.
This stream was visited in the spring on 4/1/2002 and again in the summer on 6/6/2002.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 1.3 / 5.0
Benthic IBI Good - 4.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 163 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 2.3 %
Agricultural Land Use 57.7 %
Forested Land Use 40.1 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 16/20 (Optimal)
Epifaunal Substrate 16/20 (Optimal)
Velocity/Depth Diversity 11/20 (Suboptimal)
Pool Quality
Pool Extent = 33 meters 		11/20 (Suboptimal)
Riffle Quality
Riffle Extent = 42 meters 		10/20 (Marginal)
Shading 95 %
Embeddedness 35 %


Stream Water Quality:
Water temperature 15.7 ° C
Dissolved oxygen (DO) 7.8 mg/L
pH (lab) 6.41
Conductivity 140 µmho/cm
Alkalinity
(acid neutralizing capacity) 		254 µeq/L
Dissolved organic carbon (DOC) 0.9 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 1 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 49
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Eastern Box Turtle
Eastern Red-Backed Salamander
Northern Dusky Salamander
Northern Green Frog
Northern Two-Lined Salamander

Crayfish:
No crayfish noted.

Exotic Plants:
Japanese Stiltgrass
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Naididae Aquatic Worm 27
Ephemerella Sulphur Mayfly 25
Amphinemura Spring Stonefly 16
Diplectrona Net-Spinning Caddisfly 10
Leuctridae Rolledwinged Stonefly 9
Perlodidae Perlodid Stonefly 8
Wormaldia Fingernet Caddisfly 8
Neophylax Caddisfly 5
Leuctra  Rolled-Winged Stonefly 4
Pseudolimnophila Crane Fly 2
Rhyacophila Free-Living Caddisfly 2
Corynoneura Non-Biting Midges 2
Parametriocnemus Non-Biting Midges 2
Baetidae Small Minnow Mayfly 2
Cordulegaster Spiketail Dragonfly 1
Peltoperla 1
Alloperla Stonefly 1
Plecoptera Stonefly 1
Tropisternus Water Scavenger Beetle 1
Trissopelopia Non-Biting Midges 1
Glossosoma Little Black Caddisfly 1
Stenonema Flatheaded Mayfly 1
Isotomurus Elongate-Bodied Springtail 1
Antocha Crane Fly 1
Chelifera Aquatic Dance Fly 1
Anchytarsus Beetle 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
