MBSS Site Summary for: JONE-109-S-2007

Site Photos

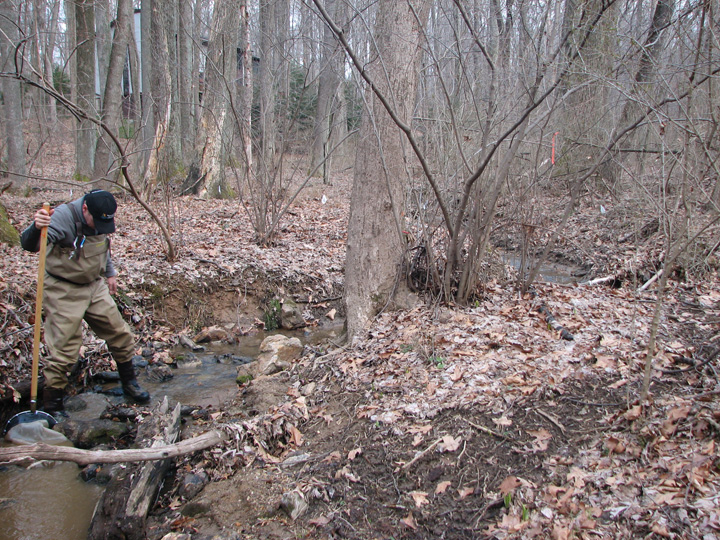

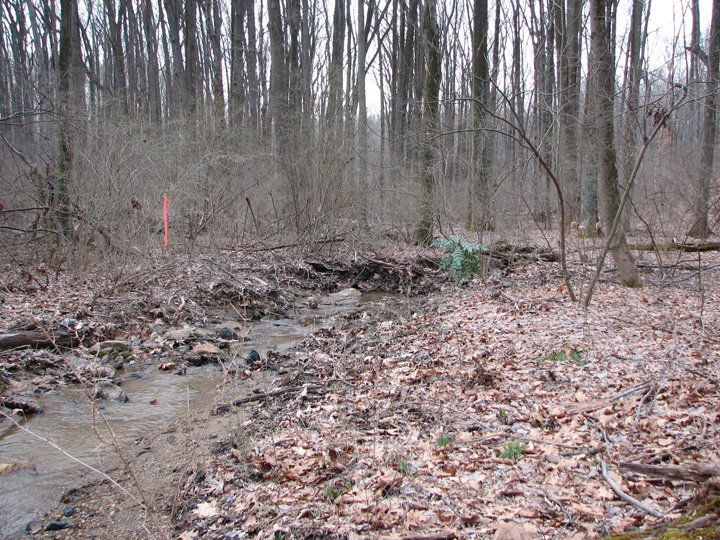

Field photo showing stream conditions at site JONE-109-S-2007-1 (Opens in a new window) Field photo showing stream conditions at site JONE-109-S-2007-2 (Opens in a new window)

Located on Dipping Pond Run UT1 in the Jones Falls watershed, 8-digit code: 02130904.
This stream was visited in the spring on 3/22/2007 and again in the summer on 6/11/2007.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 1.7 / 5.0
Benthic IBI Fair - 3.7 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 163 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 2.3 %
Agricultural Land Use 57.7 %
Forested Land Use 40.1 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 12/20 (Suboptimal)
Epifaunal Substrate 12/20 (Suboptimal)
Velocity/Depth Diversity 9/20 (Marginal)
Pool Quality
Pool Extent = 17 meters 		8/20 (Marginal)
Riffle Quality
Riffle Extent = 58 meters 		8/20 (Marginal)
Shading 90 %
Embeddedness 30 %


Stream Water Quality:
Water temperature 15.9 ° C
Dissolved oxygen (DO) 8.6 mg/L
pH (lab) 6.36
Conductivity 195 µmho/cm
Alkalinity
(acid neutralizing capacity) 		250.5 µeq/L
Dissolved organic carbon (DOC) 0.4352 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 2 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 60
Brown Trout 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Eastern Red-Backed Salamander
Northern Dusky Salamander
Northern Green Frog
Northern Two-Lined Salamander
Wood Frog

Crayfish:
Cambarus bartonii bartonii

Exotic Plants:
Garlic Mustard
Japanese Stiltgrass
Privet


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Diplectrona Net-Spinning Caddisfly 25
Amphinemura Spring Stonefly 18
Parametriocnemus Non-Biting Midges 11
Eukiefferiella Non-Biting Midges 7
Polypedilum Non-Biting Midges 5
Ephemerella Sulphur Mayfly 5
Corynoneura Non-Biting Midges 4
Tipula Crane Fly 4
Nigronia Megaloptera (Dark Fishfly) 3
Cheumatopsyche Net-Spinning Caddisfly 3
Stempellinella Non-Biting Midges 3
Tanytarsus Non-Biting Midges 2
Leuctridae Rolledwinged Stonefly 2
Cordulegaster Spiketail Dragonfly 2
Prostoia Spring Stonefly 2
Diamesa Bloodworm 2
Naididae Aquatic Worm 2
Prosimulium Black Fly 1
Simulium Black Fly 1
Stegopterna Black Fly 1
Isotomurus Elongate-Bodied Springtail 1
Heptageniidae Flathead Mayfly 1
Stenonema Flatheaded Mayfly 1
Antocha Crane Fly 1
Orthocladius Non-Biting Midges 1
Brillia Non-Biting Midges 1
Isoperla Stripetail Stonefly 1
Eccoptura Yellow Stone Stonefly 1
Tvetenia Non-Biting Midges 1
Oulimnius Riffle Beetle 1
Sympotthastia Non-Biting Midges 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
