MBSS Site Summary for: JONE-109-S-2008

Site Photos

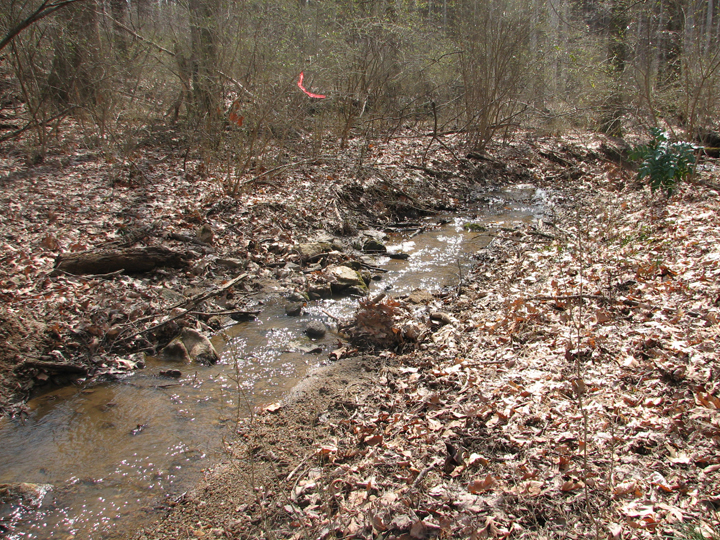

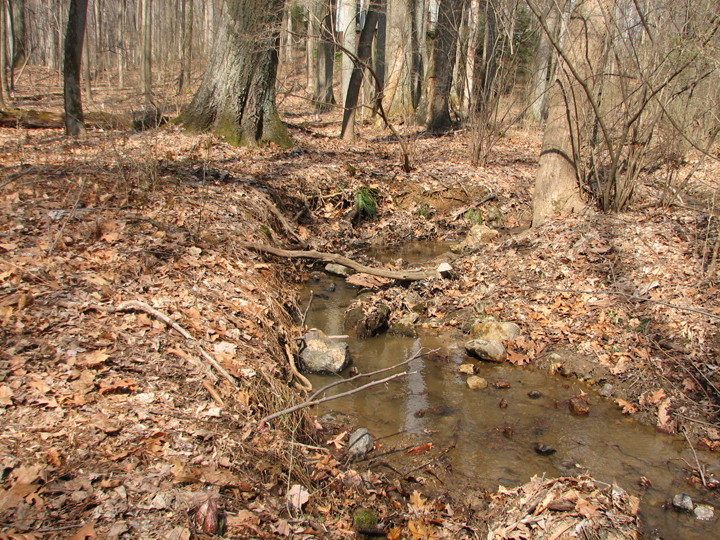

Field photo showing stream conditions at site JONE-109-S-2008-1 (Opens in a new window) Field photo showing stream conditions at site JONE-109-S-2008-2 (Opens in a new window)

Located on UT TO DIPPING POND RUN in the Jones Falls watershed, 8-digit code: 02130904.
This stream was visited in the spring on 3/12/2008 and again in the summer on 6/9/2008.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 1.3 / 5.0
Benthic IBI Fair - 3.7 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 163 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 2.4 %
Agricultural Land Use 57.8 %
Forested Land Use 39.8 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 13/20 (Suboptimal)
Epifaunal Substrate 12/20 (Suboptimal)
Velocity/Depth Diversity 7/20 (Marginal)
Pool Quality
Pool Extent = 24 meters 		6/20 (Marginal)
Riffle Quality
Riffle Extent = 54 meters 		9/20 (Marginal)
Shading 95 %
Embeddedness 40 %


Stream Water Quality:
Water temperature 17.7 ° C
Dissolved oxygen (DO) 8 mg/L
pH (lab) 6.27
Conductivity 202 µmho/cm
Alkalinity
(acid neutralizing capacity) 		223.8 µeq/L
Dissolved organic carbon (DOC) 0.5087 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 1 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 59
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
American Bullfrog
Eastern American Toad
Eastern Red-Backed Salamander
Northern Dusky Salamander
Northern Green Frog
Northern Two-Lined Salamander

Crayfish:
Cambarus bartonii bartonii
Orconectes virilis

Exotic Plants:
Garlic Mustard
Japanese Barberry
Japanese Honeysuckle
Japanese Stiltgrass
Multiflora Rose
Oriental Bittersweet
Privet


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Ephemerella Sulphur Mayfly 21
Amphinemura Spring Stonefly 15
Diplectrona Net-Spinning Caddisfly 15
Sympotthastia Non-Biting Midges 13
Parametriocnemus Non-Biting Midges 8
Leuctridae Rolledwinged Stonefly 8
Maccaffertium March Brown And Cahill Mayfly 5
Eurylophella Mayfly 3
Tanypodinae Non-Biting Midges 3
Corynoneura Non-Biting Midges 2
Pseudolimnophila Crane Fly 2
Empididae Dance Fly 2
Naididae Aquatic Worm 2
Anchytarsus Beetle 2
Prosimulium Black Fly 2
Stegopterna Black Fly 2
Tvetenia Non-Biting Midges 2
Paraphaenocladius Non-Biting Midges 1
Phaenopsectra Non-Biting Midges 1
Prostoia Spring Stonefly 1
Eccoptura Yellow Stone Stonefly 1
Neophylax Caddisfly 1
Orthocladiinae Midge 1
Cheumatopsyche Net-Spinning Caddisfly 1
Dugesiidae Flatworm 1
Orthocladius Non-Biting Midges 1
Tanytarsini Non-Biting Midges 1
Thienemannimyia Group Non-Biting Midges 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
