MBSS Site Summary for: JONE-109-S-2011

Site Photos

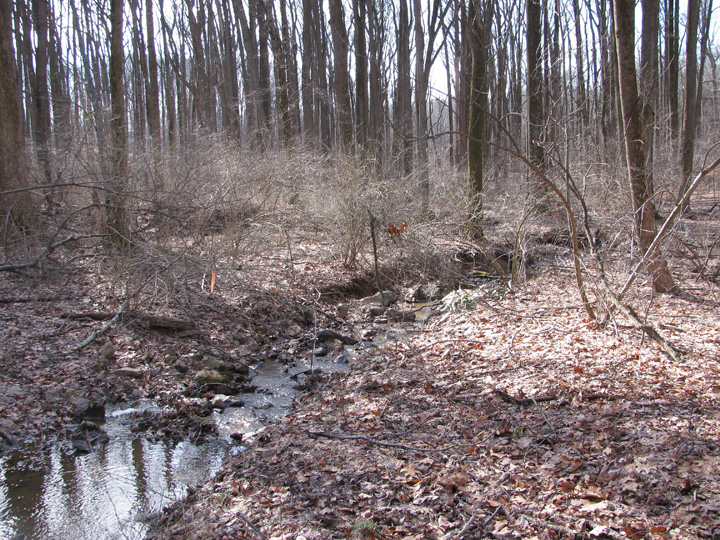

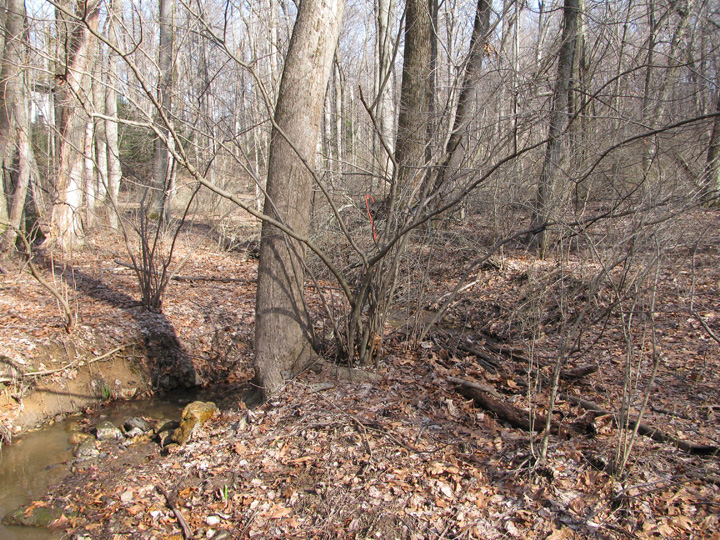

Field photo showing stream conditions at site JONE-109-S-2011-1 (Opens in a new window) Field photo showing stream conditions at site JONE-109-S-2011-2 (Opens in a new window)

Located on DIPPING POND RUN in the Jones Falls watershed, 8-digit code: 02130904.
This stream was visited in the spring on 3/8/2011 and again in the summer on 6/6/2011.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 1.7 / 5.0
Benthic IBI Good - 4.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 163 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 2.4 %
Agricultural Land Use 57.8 %
Forested Land Use 39.8 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 9/20 (Marginal)
Epifaunal Substrate 12/20 (Suboptimal)
Velocity/Depth Diversity 6/20 (Marginal)
Pool Quality
Pool Extent = 30 meters 		7/20 (Marginal)
Riffle Quality
Riffle Extent = 45 meters 		9/20 (Marginal)
Shading 85 %
Embeddedness 30 %


Stream Water Quality:
pH (lab) 6.395
Alkalinity
(acid neutralizing capacity) 		265.7 µeq/L
Dissolved organic carbon (DOC) 0.9915 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 1 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 120
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Green Frog
Northern Two-Lined Salamander

Crayfish:
Orconectes virilis

Exotic Plants:
Garlic Mustard
Japanese Barberry
Japanese Honeysuckle
Japanese Stiltgrass
Mile-A-Minute
Privet
Wineberry


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Amphinemura Spring Stonefly 33
Eukiefferiella Non-Biting Midges 19
LEUCTRIDAE Rolledwinged Stonefly 11
Diplectrona Net-Spinning Caddisfly 11
Corynoneura Non-Biting Midges 6
Parametriocnemus Non-Biting Midges 6
PERLODIDAE Perlodid Stonefly 4
Prosimulium Black Fly 4
Leuctra  Rolled-Winged Stonefly 3
Clinocera Aquatic Dance Fly 2
Chaetocladius Non-Biting Midges 2
DUGESIIDAE Flatworm 2
Maccaffertium March Brown And Cahill Mayfly 2
Oulimnius Riffle Beetle 2
Prostoia Spring Stonefly 2
Thienemanniella Non-Biting Midges 2
Orthocladius Non-Biting Midges 2
Tvetenia Non-Biting Midges 2
Thienemannimyia Group Non-Biting Midges 1
Trissopelopia Non-Biting Midges 1
Sympotthastia Non-Biting Midges 1
Tanypodinae Non-Biting Midges 1
Micropsectra Non-Biting Midges 1
TAENIOPTERYGIDAE Winter Stonefly 1
Eccoptura Yellow Stone Stonefly 1
Diphetor Mayfly 1
Rhyacophila Free-Living Caddisfly 1
Pycnopsyche Great Autumn Brown Sedge Caddisfly 1
Hydropsyche Net-Spinning Caddisfly 1
Anchytarsus Beetle 1
Ceratopogon Biting Midge 1
Antocha Crane Fly 1
Chrysops Deerfly 1
Isotomurus Elongate-Bodied Springtail 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
