MBSS Site Summary for: JONE-109-S-2012

Site Photos

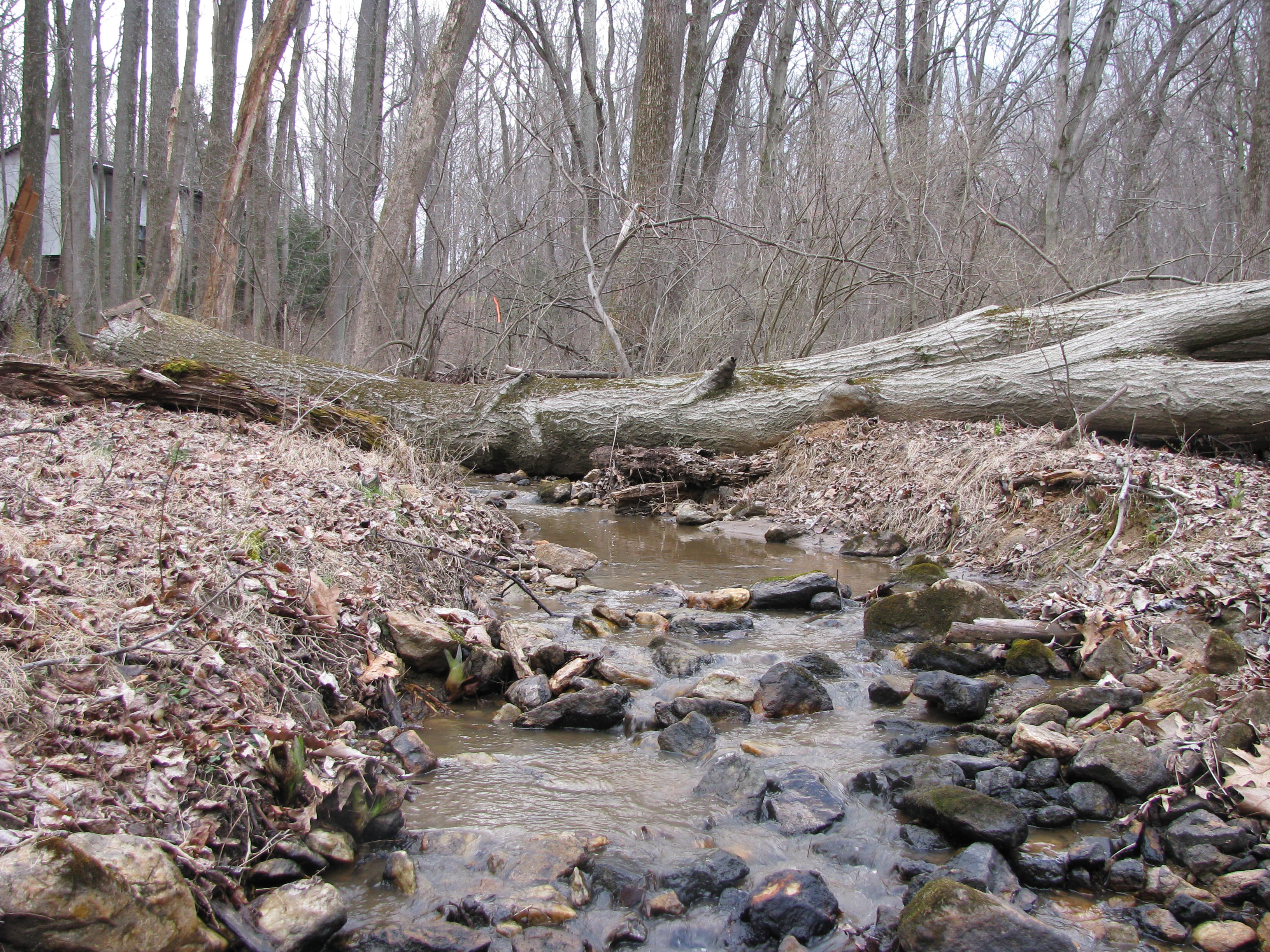

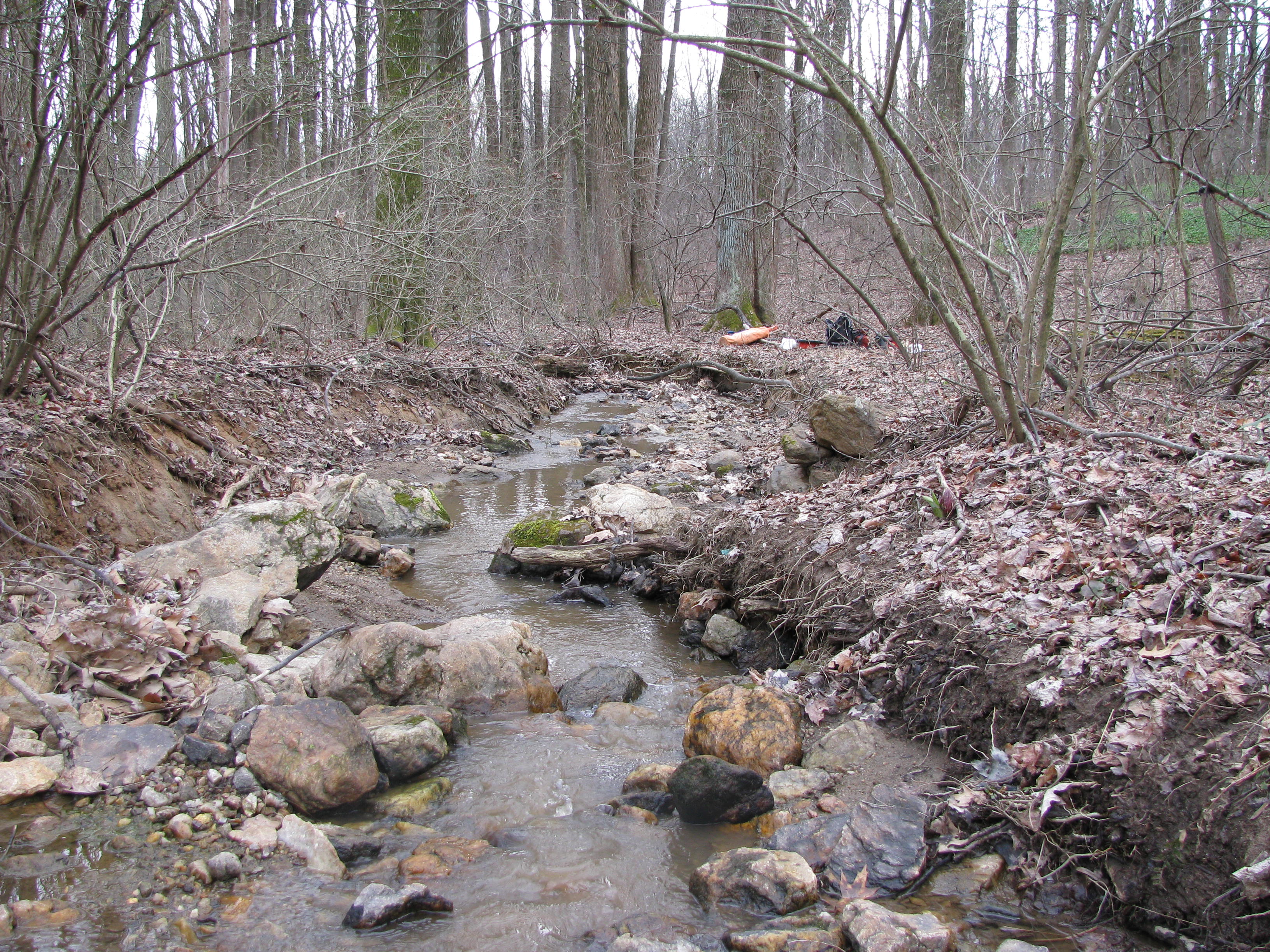

Field photo showing stream conditions at site JONE-109-S-2012-1 (Opens in a new window) Field photo showing stream conditions at site JONE-109-S-2012-2 (Opens in a new window)

Located on DIPPING POND UT in the Jones Falls watershed, 8-digit code: 02130904.
This stream was visited in the spring on 3/5/2012 and again in the summer on 6/5/2012.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 1.7 / 5.0
Benthic IBI Good - 4.7 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 163 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 2.4 %
Agricultural Land Use 57.8 %
Forested Land Use 39.8 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 12/20 (Suboptimal)
Epifaunal Substrate 15/20 (Suboptimal)
Velocity/Depth Diversity 9/20 (Marginal)
Pool Quality
Pool Extent = 39 meters 		7/20 (Marginal)
Riffle Quality
Riffle Extent = 46 meters 		8/20 (Marginal)
Shading 70 %
Embeddedness 35 %


Stream Water Quality:
pH (lab) 6.46
Alkalinity
(acid neutralizing capacity) 		261.8 µeq/L
Dissolved organic carbon (DOC) 0.2287 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 2 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 96
Brown Trout 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Eastern American Toad
Northern Two-Lined Salamander
Wood Frog

Crayfish:
Cambarus bartonii bartonii

Exotic Plants:
Garlic Mustard
Japanese Barberry
Japanese Stiltgrass
Mile-A-Minute
Multiflora Rose
Privet


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
LEUCTRIDAE Rolledwinged Stonefly 59
Diplectrona Net-Spinning Caddisfly 13
PHILOPOTAMIDAE Fingernet Caddisfly 10
Amphinemura Spring Stonefly 9
Eukiefferiella Non-Biting Midges 8
Thienemanniella Non-Biting Midges 7
Corynoneura Non-Biting Midges 6
Baetis Blue-Winged Olive Mayfly 4
Ameletus Combmouthed Minnow Mayfly 3
Simulium Black Fly 3
Cheumatopsyche Net-Spinning Caddisfly 3
Tvetenia Non-Biting Midges 2
Sympotthastia Non-Biting Midges 2
Oulimnius Riffle Beetle 2
Neophylax Caddisfly 2
Tipula Crane Fly 2
Limnophyes Non-Biting Midge 2
Brillia Non-Biting Midges 1
Hydropsyche Net-Spinning Caddisfly 1
Heterotrissocladius European Non-Biting Midge 1
Chimarra Fingernet Caddisfly 1
Maccaffertium March Brown And Cahill Mayfly 1
NEMOURIDAE Nemourid Stonefly 1
Antocha Crane Fly 1
Stegopterna Black Fly 1
Diamesa Bloodworm 1
Chelifera Aquatic Dance Fly 1
Anchytarsus Beetle 1
CRANGONYCTIDAE Scud 1
Eccoptura Yellow Stone Stonefly 1
PERLODIDAE Perlodid Stonefly 1
Optioservus Riffle Beetle 1
Parametriocnemus Non-Biting Midges 1
Polypedilum Non-Biting Midges 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
