MBSS Site Summary for: JONE-109-S-2014

Site Photos

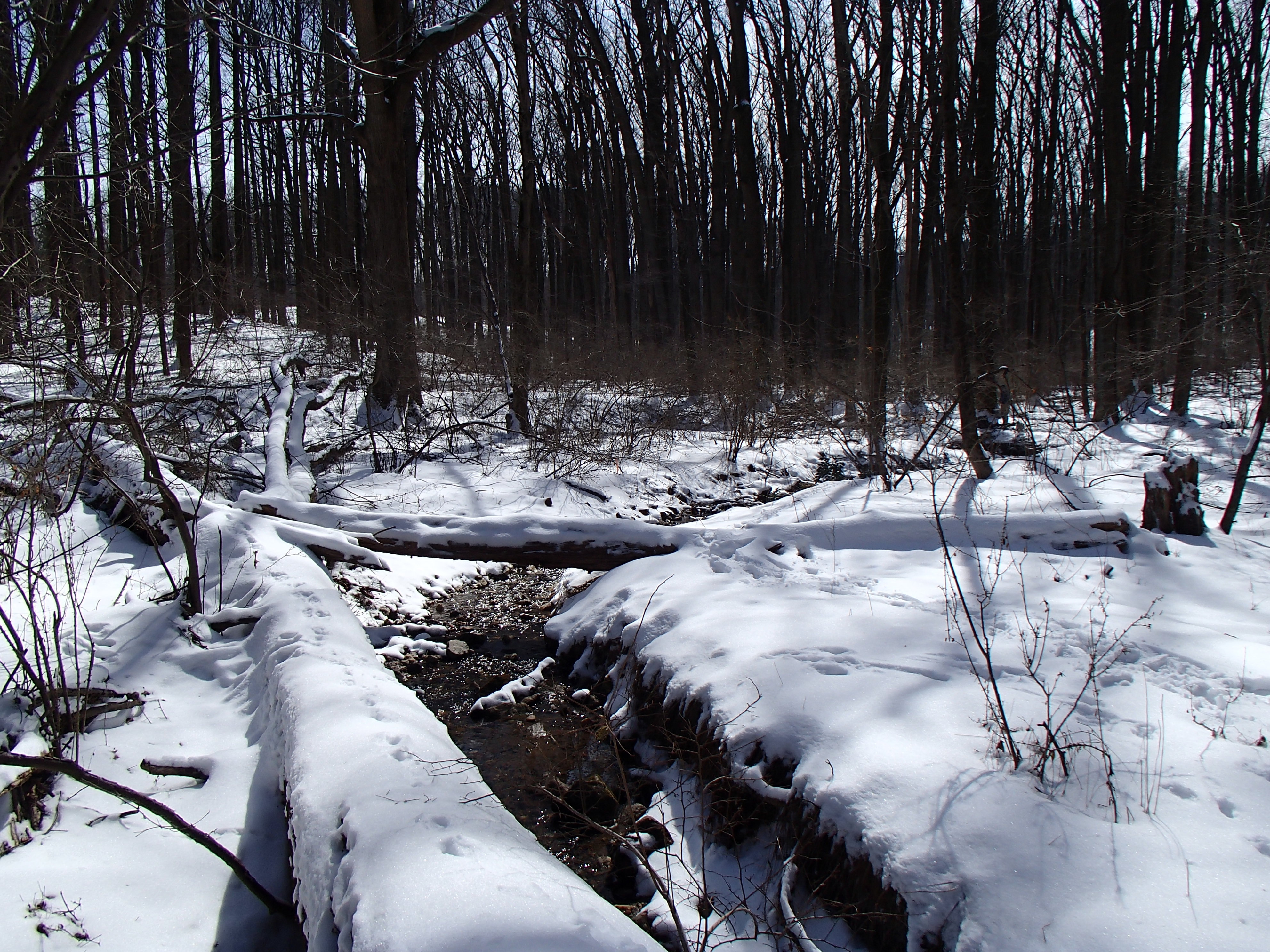

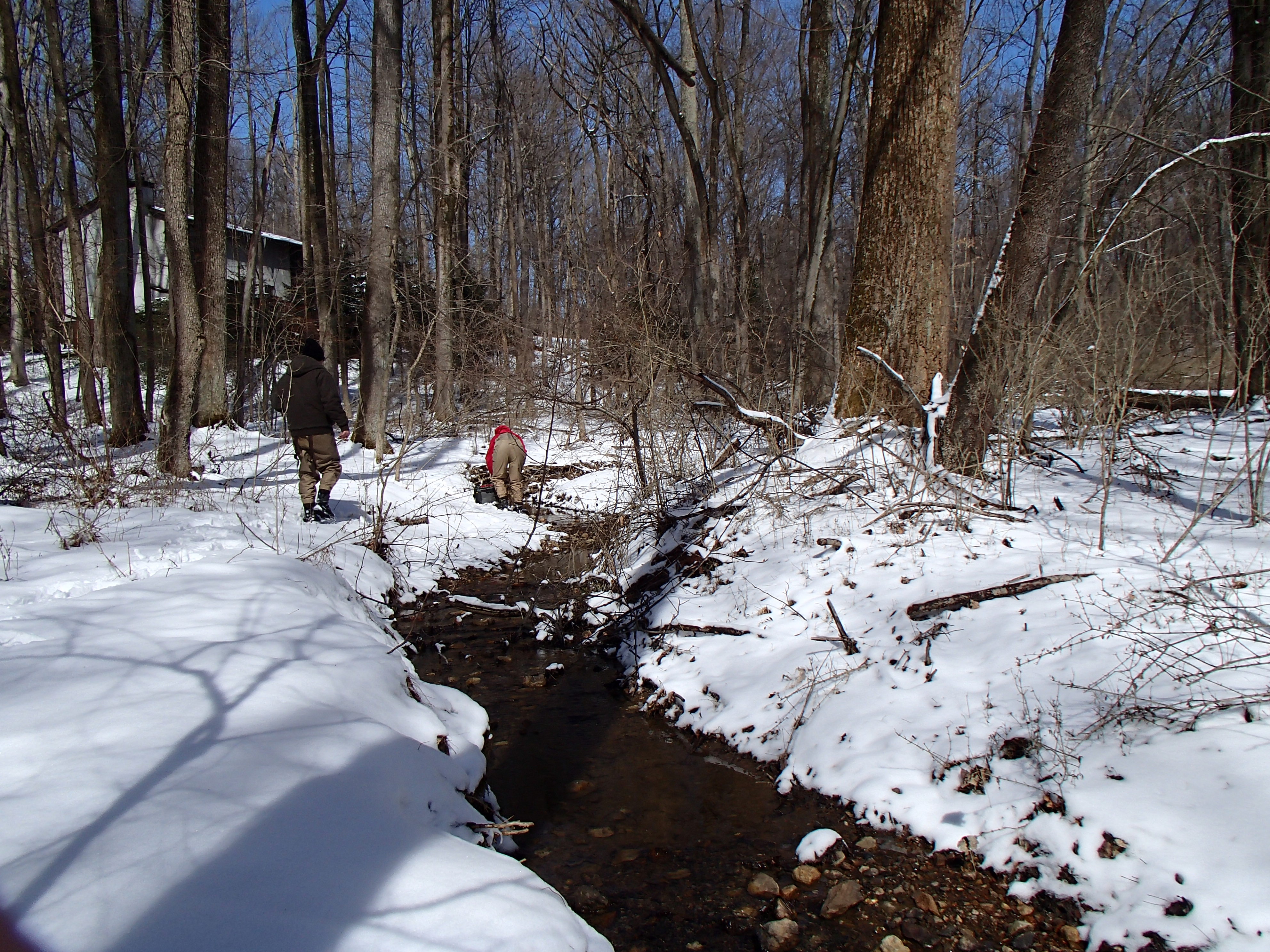

Field photo showing stream conditions at site JONE-109-S-2014-1 (Opens in a new window) Field photo showing stream conditions at site JONE-109-S-2014-2 (Opens in a new window)

Located on DIPPING POND RUN UT in the Jones Falls watershed, 8-digit code: 02130904.
This stream was visited in the spring on 3/5/2014 and again in the summer on 7/8/2014.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 1.7 / 5.0
Benthic IBI Fair - 3.7 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 273 acres A highly channelized urban stream with concrete banks. An example of a highly channelized urban stream.
Urban Land Use 37.2 %
Agricultural Land Use 0 %
Forested Land Use 62.8 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 15/20 (Suboptimal)
Epifaunal Substrate 16/20 (Optimal)
Velocity/Depth Diversity 9/20 (Marginal)
Pool Quality
Pool Extent = 35 meters 		9/20 (Marginal)
Riffle Quality
Riffle Extent = 47 meters 		10/20 (Marginal)
Shading 65 %
Embeddedness 25 %


Stream Water Quality:
pH (lab) 6.26
Alkalinity
(acid neutralizing capacity) 		258.955 µeq/L
Dissolved organic carbon (DOC) 0.5634 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 2 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 108
Brown Trout 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Wood Frog

Crayfish:
Cambarus bartonii bartonii

Exotic Plants:
Garlic Mustard
Japanese Barberry
Japanese Stiltgrass
Privet
Wavyleaf Basketgrass
Wineberry


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Neophylax Caddisfly 20
Eukiefferiella Non-Biting Midges 20
Diplectrona Net-Spinning Caddisfly 15
Amphinemura Spring Stonefly 9
Baetis Blue-Winged Olive Mayfly 7
Cheumatopsyche Net-Spinning Caddisfly 6
Prostoia Spring Stonefly 6
Leuctridae Rolledwinged Stonefly 4
Tanytarsus Non-Biting Midges 4
Dolophilodes Medium Evening Sedge Caddisfly 3
Stilocladius Midge 2
Hydropsyche Net-Spinning Caddisfly 2
Antocha Crane Fly 2
Tipula Crane Fly 2
Tvetenia Non-Biting Midges 2
Polypedilum Non-Biting Midges 2
Tanytarsini Non-Biting Midges 1
Perlodidae Perlodid Stonefly 1
Pisidiidae Pill Clam 1
Thienemannimyia Group Non-Biting Midges 1
Cordulegaster Spiketail Dragonfly 1
Calopteryx Damselfly 1
Chimarra Fingernet Caddisfly 1
Glossosoma Little Black Caddisfly 1
Maccaffertium March Brown And Cahill Mayfly 1
Molanna 1
Clinocera Aquatic Dance Fly 1
Naididae Aquatic Worm 1
Simuliidae Black Fly 1
Paracladopelma Non-Biting Midge 1
Corynoneura Non-Biting Midges 1
Perlidae Common Stonefly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
