MBSS Site Summary for: JONE-109-S-2015

Site Photos

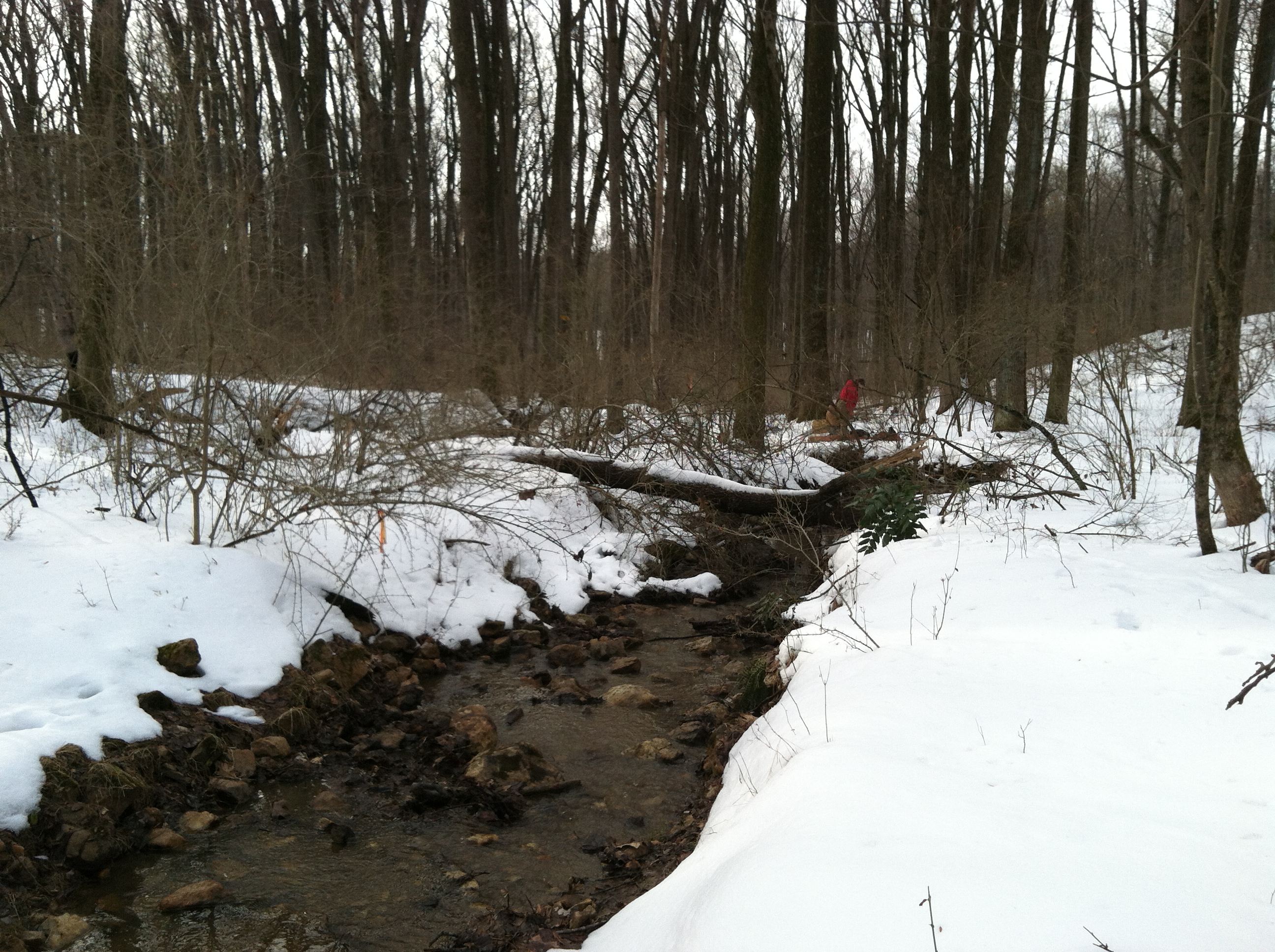

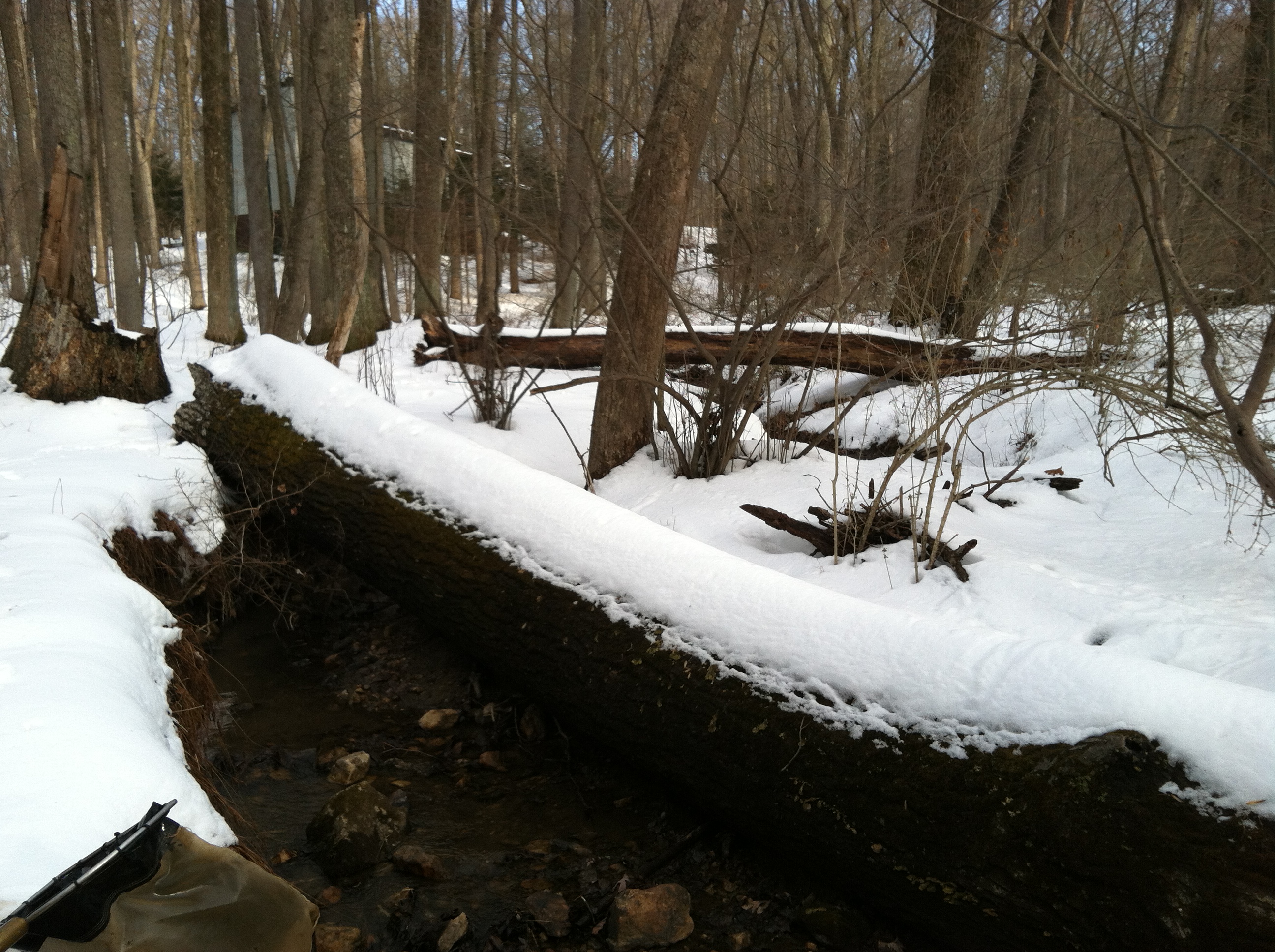

Field photo showing stream conditions at site JONE-109-S-2015-1 (Opens in a new window) Field photo showing stream conditions at site JONE-109-S-2015-2 (Opens in a new window)

Located on DIPPING POND RUN UT in the Jones Falls watershed, 8-digit code: 02130904.
This stream was visited in the spring on 3/9/2015 and again in the summer on 6/19/2015.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 1.7 / 5.0
Benthic IBI Fair - 3.7 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 273 acres A highly channelized urban stream with concrete banks. An example of a highly channelized urban stream.
Urban Land Use 37.2 %
Agricultural Land Use 0 %
Forested Land Use 62.8 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 16/20 (Optimal)
Epifaunal Substrate 17/20 (Optimal)
Velocity/Depth Diversity 9/20 (Marginal)
Pool Quality
Pool Extent = 19 meters 		9/20 (Marginal)
Riffle Quality
Riffle Extent = 56 meters 		15/20 (Suboptimal)
Shading 65 %
Embeddedness 25 %


Stream Water Quality:
pH (lab) 6.35
Alkalinity
(acid neutralizing capacity) 		323.2 µeq/L
Dissolved organic carbon (DOC) 0.8908 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 2 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 85
Brown Trout 7
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Eastern American Toad
Northern Green Frog
Northern Two-Lined Salamander

Crayfish:
Cambarus bartonii bartonii

Exotic Plants:
Japanese Barberry
Japanese Stiltgrass
Wavyleaf Basketgrass


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Tvetenia Non-Biting Midges 22
Leuctridae Rolledwinged Stonefly 22
Amphinemura Spring Stonefly 19
Naididae Aquatic Worm 14
Eukiefferiella Non-Biting Midges 7
Parametriocnemus Non-Biting Midges 4
Diplectrona Net-Spinning Caddisfly 4
Brillia Non-Biting Midges 3
Chaetocladius Non-Biting Midges 3
Cheumatopsyche Net-Spinning Caddisfly 3
Baetis Blue-Winged Olive Mayfly 3
Neophylax Caddisfly 2
Glossosoma Little Black Caddisfly 2
Hydropsyche Net-Spinning Caddisfly 2
Micropsectra Non-Biting Midges 2
Rheotanytarsus Non-Biting Midges 2
Tanytarsus Non-Biting Midges 2
Ephemerella Sulphur Mayfly 2
Collembola Springtail 1
Ephydridae Shore Fly 1
Thienemannimyia Group Non-Biting Midges 1
Zavrelimyia Non-Biting Midges 1
Paraphaenocladius Non-Biting Midges 1
Polypedilum Non-Biting Midges 1
Nemouridae Nemourid Stonefly 1
Clinocera Aquatic Dance Fly 1
Perlidae Common Stonefly 1
Antocha Crane Fly 1
Chimarra Fingernet Caddisfly 1
Dugesiidae Flatworm 1
Anchytarsus Beetle 1
Ceratopogon Biting Midge 1
Simulium Black Fly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
