MBSS Site Summary for: JONE-109-S-2017

Site Photos

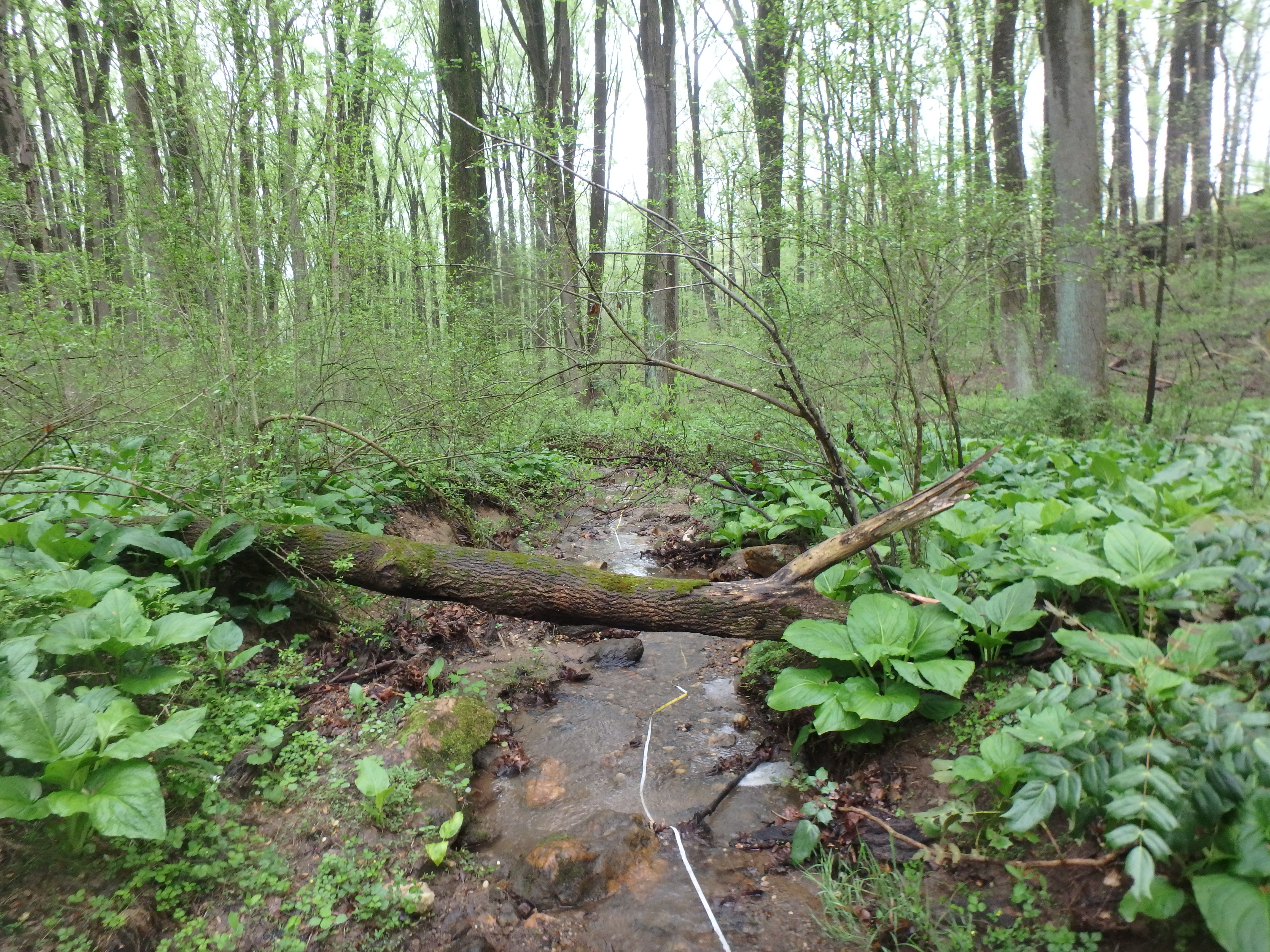

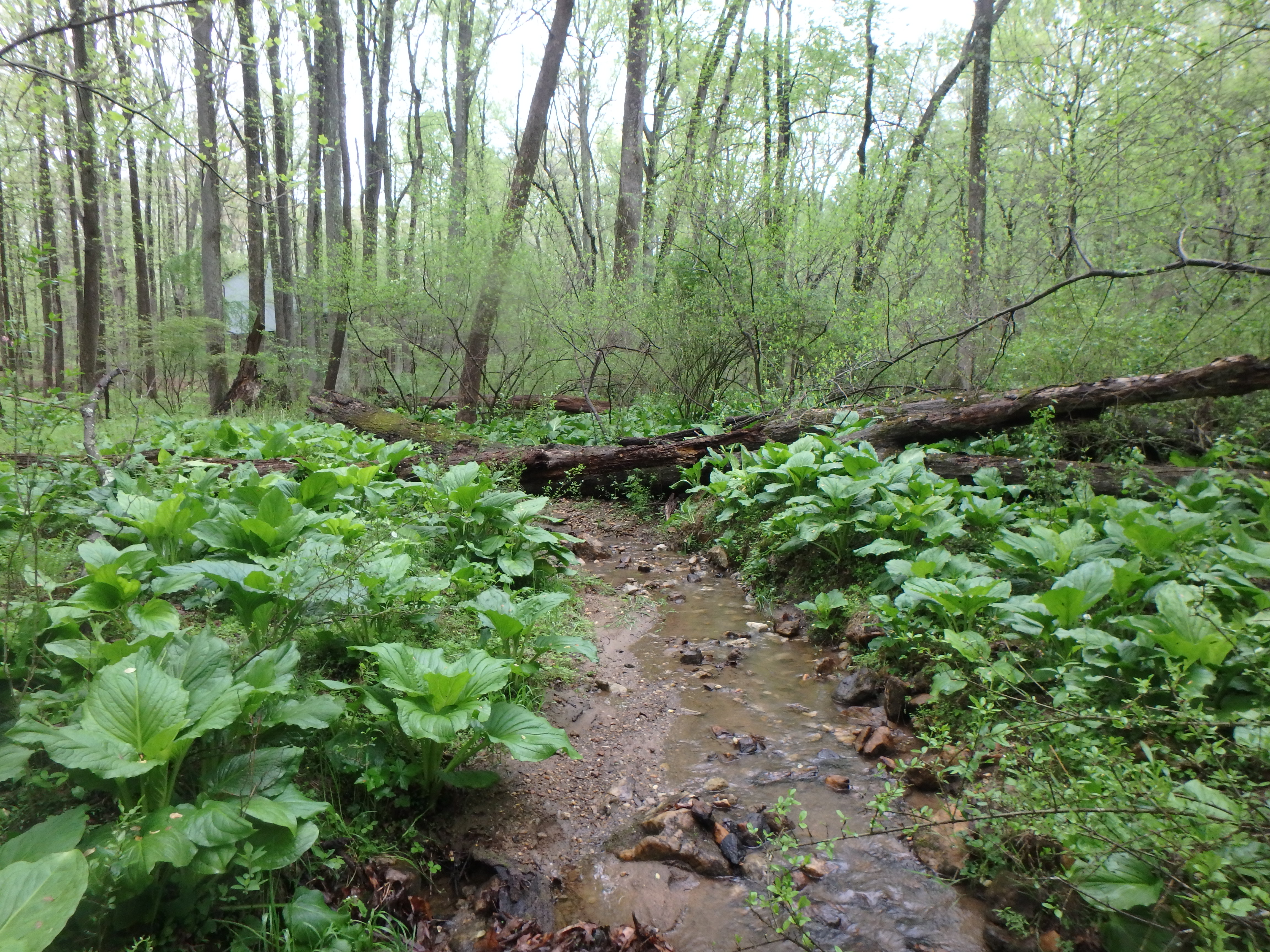

Field photo showing stream conditions at site JONE-109-S-2017-MidpointLookingDownstream (Opens in a new window) Field photo showing stream conditions at site JONE-109-S-2017-MidpointLookingUpstream (Opens in a new window)

Located on UT Dipping Pond Run in the Jones Falls watershed, 8-digit code: 02130904.
This stream was visited in the spring on 4/26/2017 and again in the summer on 7/31/2017.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 1.3 / 5.0
Benthic IBI Good - 4.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 273 acres A highly channelized urban stream with concrete banks. An example of a highly channelized urban stream.
Urban Land Use 37.2 %
Agricultural Land Use 0 %
Forested Land Use 62.8 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 17/20 (Optimal)
Epifaunal Substrate 17/20 (Optimal)
Velocity/Depth Diversity 5/20 (Poor)
Pool Quality
Pool Extent = 30 meters 		4/20 (Poor)
Riffle Quality
Riffle Extent = 45 meters 		10/20 (Marginal)
Shading 90 %
Embeddedness 60 %
The embeddedness, a measure of silt on the stream bottom, was 60%. This is relatively high, and may exclude some biota.


Stream Water Quality:
pH (lab) 6.34
Alkalinity
(acid neutralizing capacity) 		287.8 µeq/L
Dissolved organic carbon (DOC) 0.9963 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 1 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 108
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Red Salamander
Northern Spring Peeper
Northern Two-Lined Salamander
Pickerel Frog

Crayfish:
Cambarus bartonii bartonii
Orconectes virilis

Exotic Plants:
Garlic Mustard
Japanese Barberry
Japanese Honeysuckle
Japanese Stiltgrass
Multiflora Rose
Privet
Wavyleaf Basketgrass
Wineberry


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
AMPHINEMURA Spring Stonefly 37
LEUCTRA  Rolled-Winged Stonefly 20
DOLOPHILODES Medium Evening Sedge Caddisfly 20
DIPLECTRONA Net-Spinning Caddisfly 17
OULIMNIUS Riffle Beetle 6
LEPIDOSTOMA Little Brown Sedge Caddisfly 3
BAETIS Blue-Winged Olive Mayfly 2
NEOPHYLAX Caddisfly 2
TIPULA Crane Fly 2
CHIRONOMINI Non-Biting Midge 2
POLYPEDILUM Non-Biting Midges 2
THIENEMANNIMYIA GROUP Non-Biting Midges 1
IRONOQUIA Northern Caddisfly 1
CHAETOCLADIUS Non-Biting Midges 1
HYDROPSYCHE Net-Spinning Caddisfly 1
CHEUMATOPSYCHE Net-Spinning Caddisfly 1
ISOTOMURUS Elongate-Bodied Springtail 1
RHYACOPHILA Free-Living Caddisfly 1
LIMNEPHILUS 1
TUBIFICIDAE Aquatic Worm 1
BAETIDAE Small Minnow Mayfly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
