MBSS Site Summary for: JONE-109-S-2023

Site Photos

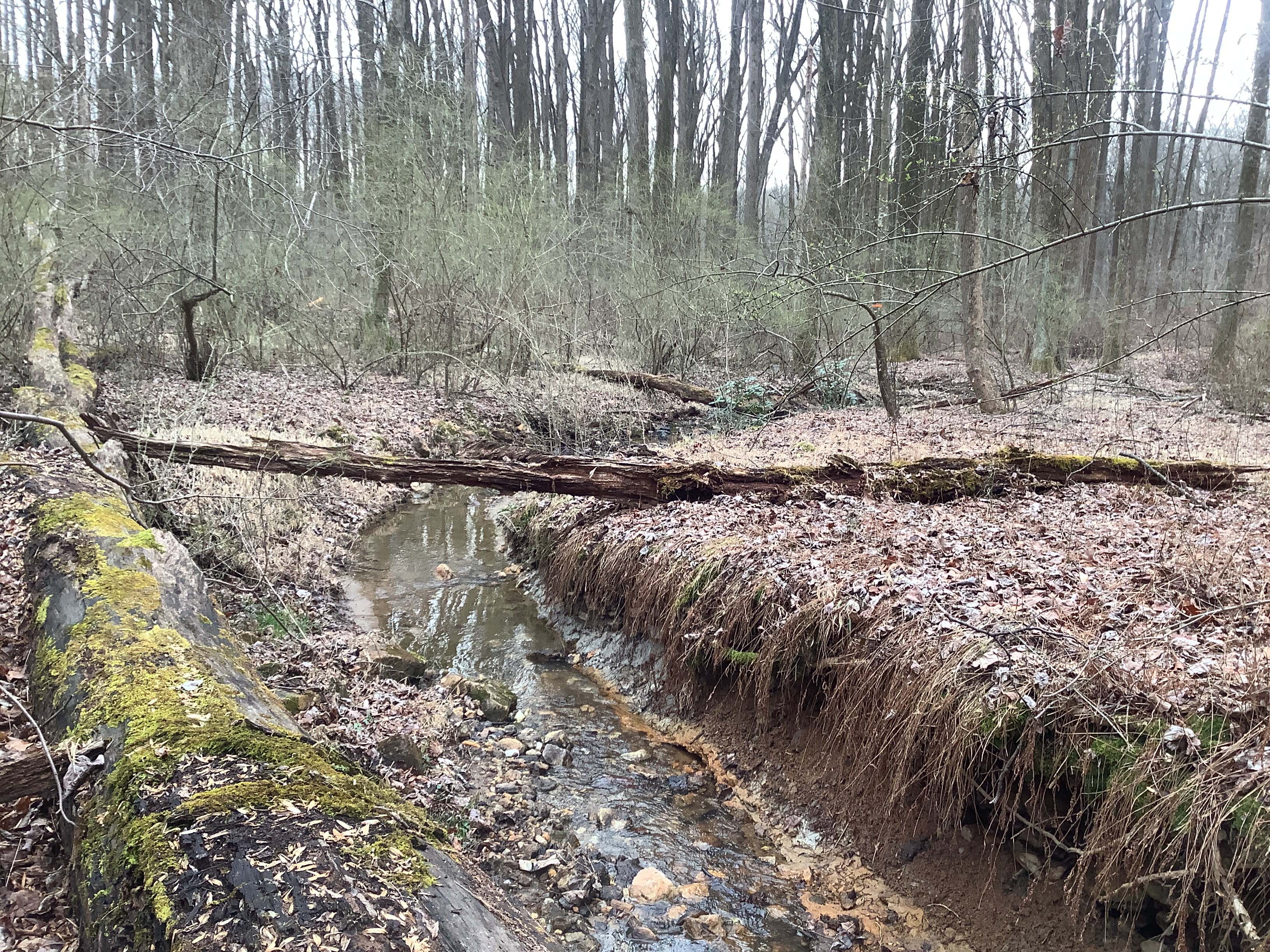

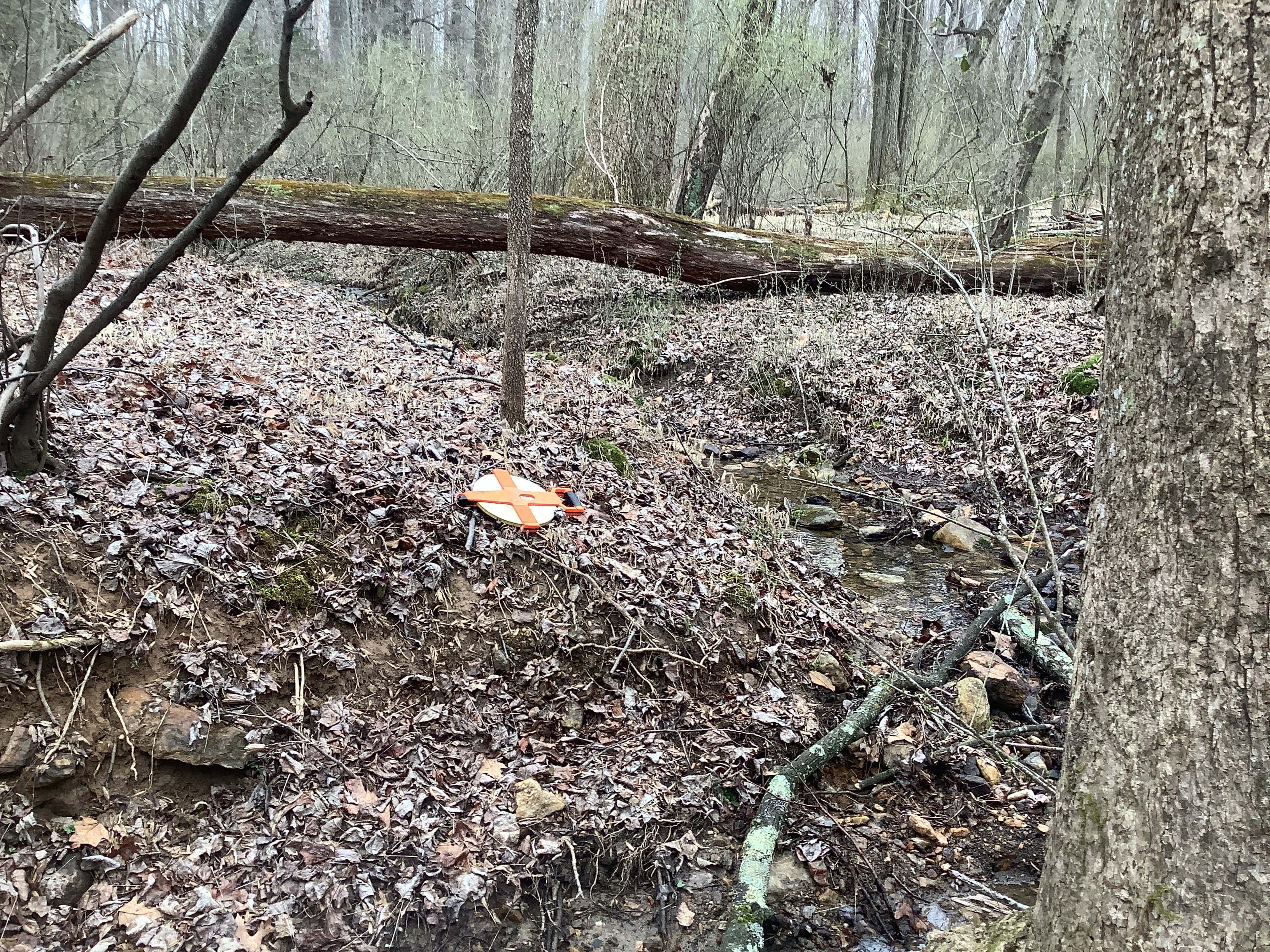

Field photo showing stream conditions at site JONE-109-S-2023_Midpoint_facing_downstream (Opens in a new window) Field photo showing stream conditions at site JONE-109-S-2023_Midpoint_facing_upstream (Opens in a new window)

Located on UT DIPPING POND RUN in the Jones Falls watershed, 8-digit code: 02130904.
This stream was visited in the spring on 3/2/2023 and again in the summer on 6/28/2023.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 1.7 / 5.0
Benthic IBI Good - 4.3 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)

Catchment area No data available A highly channelized urban stream with concrete banks. An example of a highly channelized urban stream.
Urban Land Use 42.6 %
Agricultural Land Use 0.5 %
Forested Land Use 56.9 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat

Instream Habitat 14/20 (Suboptimal)
Epifaunal Substrate 15/20 (Suboptimal)
Velocity/Depth Diversity 5/20 (Poor)
Pool Quality
Pool Extent = 60 meters
9/20 (Marginal)
Riffle Quality
Riffle Extent = 15 meters
9/20 (Marginal)
Shading 70 %
Embeddedness 30 %


Stream Water Quality:

Water temperature 16.3 ° C
Dissolved oxygen (DO) 8.02 mg/L
pH (lab) 6.24
Alkalinity
(acid neutralizing capacity)
239.6 µeq/L
Dissolved organic carbon (DOC) 0.502 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health.
Close-up of a mayfly indicator species.

Fish Survey Results:

The following 2 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 73
Brown Trout 7
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:

Eastern Red-Backed Salamander
Northern Green Frog
Northern Two-Lined Salamander

Crayfish:

Faxonius virilis

Exotic Plants:

Garlic Mustard
Japanese Barberry
Japanese Stiltgrass
Privet
Wavyleaf Basketgrass
Wineberry


Benthic Macroinvertebrates:

Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
DIPLECTRONA Net-Spinning Caddisfly 19
AMPHINEMURA Spring Stonefly 11
ACERPENNA Tiny Blue-Winged Olive Mayflies 10
PARAMETRIOCNEMUS Non-Biting Midges 8
EUKIEFFERIELLA Non-Biting Midges 8
LEUCTRA  Rolled-Winged Stonefly 8
CHEUMATOPSYCHE Net-Spinning Caddisfly 6
MICROPSECTRA Non-Biting Midges 5
OULIMNIUS Riffle Beetle 5
THIENEMANNIMYIA GROUP Non-Biting Midges 4
TRISSOPELOPIA Non-Biting Midges 4
CHAETOCLADIUS Non-Biting Midges 4
LEPIDOSTOMA Little Brown Sedge Caddisfly 3
ANCHYTARSUS Beetle 3
STENONEMA Flatheaded Mayfly 2
BAETIS Blue-Winged Olive Mayfly 2
BEZZIA/PALPOMYIA/PROBEZZIA 2
HYDROPSYCHE Net-Spinning Caddisfly 2
POLYPEDILUM Non-Biting Midges 2
RHEOTANYTARSUS Non-Biting Midges 2
PROSTOIA Spring Stonefly 2
ISOTOMIDAE Springtail 2
TVETENIA Non-Biting Midges 1
ZAVRELIMYIA Non-Biting Midges 1
LEPTOPHLEBIIDAE Pronggilled Mayfly 1
OPTIOSERVUS Riffle Beetle 1
ECTOPRIA Water Penny Beetle 1
NEOPHYLAX Caddisfly 1
PSEUDOLIMNOPHILA Crane Fly 1
TIPULA Crane Fly 1
RHYACOPHILA Free-Living Caddisfly 1
ACRONEURIA Golden Stoneflies 1
STENELMIS Beetle 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
