MBSS Site Summary for: JONE-110-R-2002

Site Photos

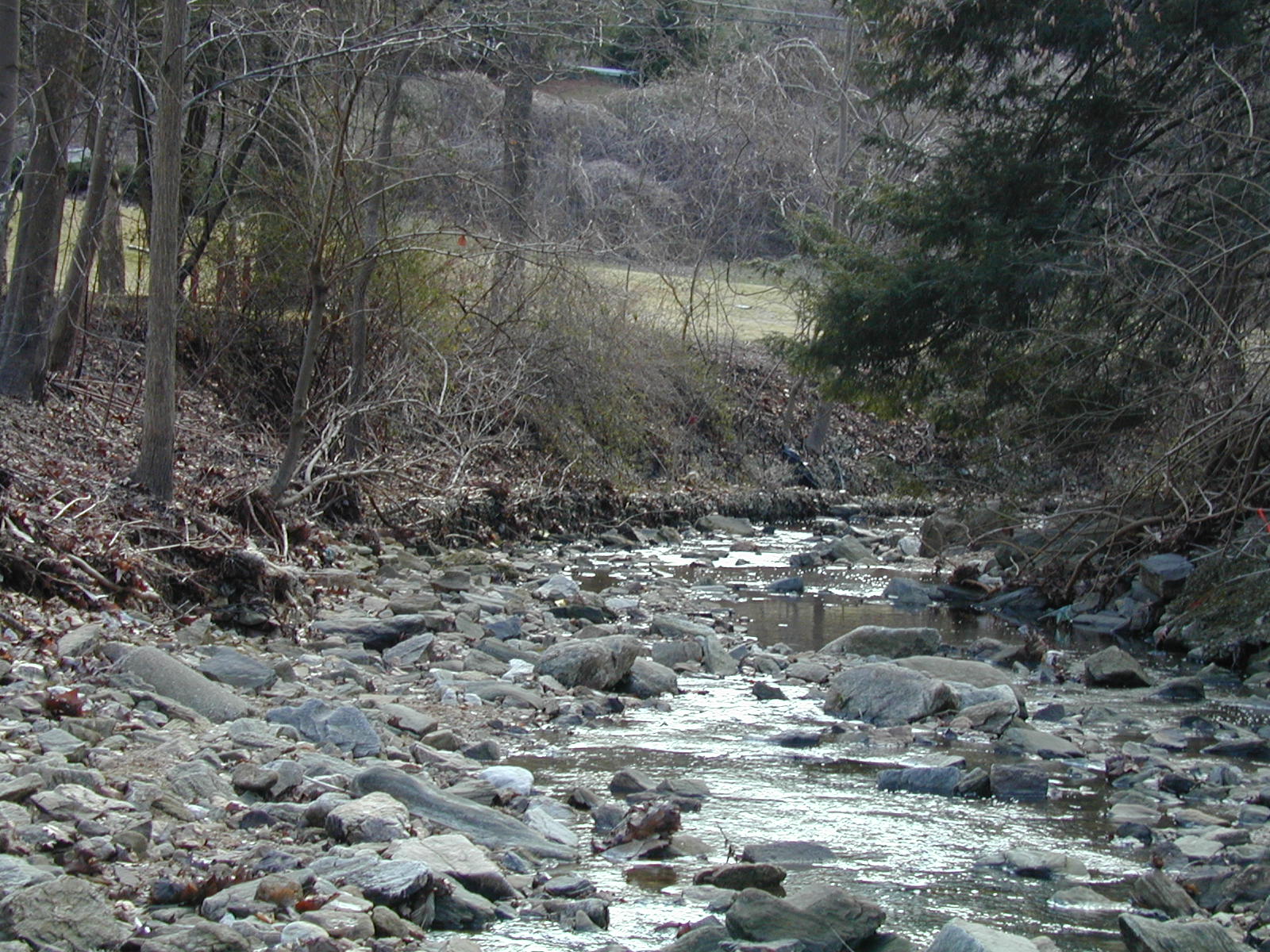

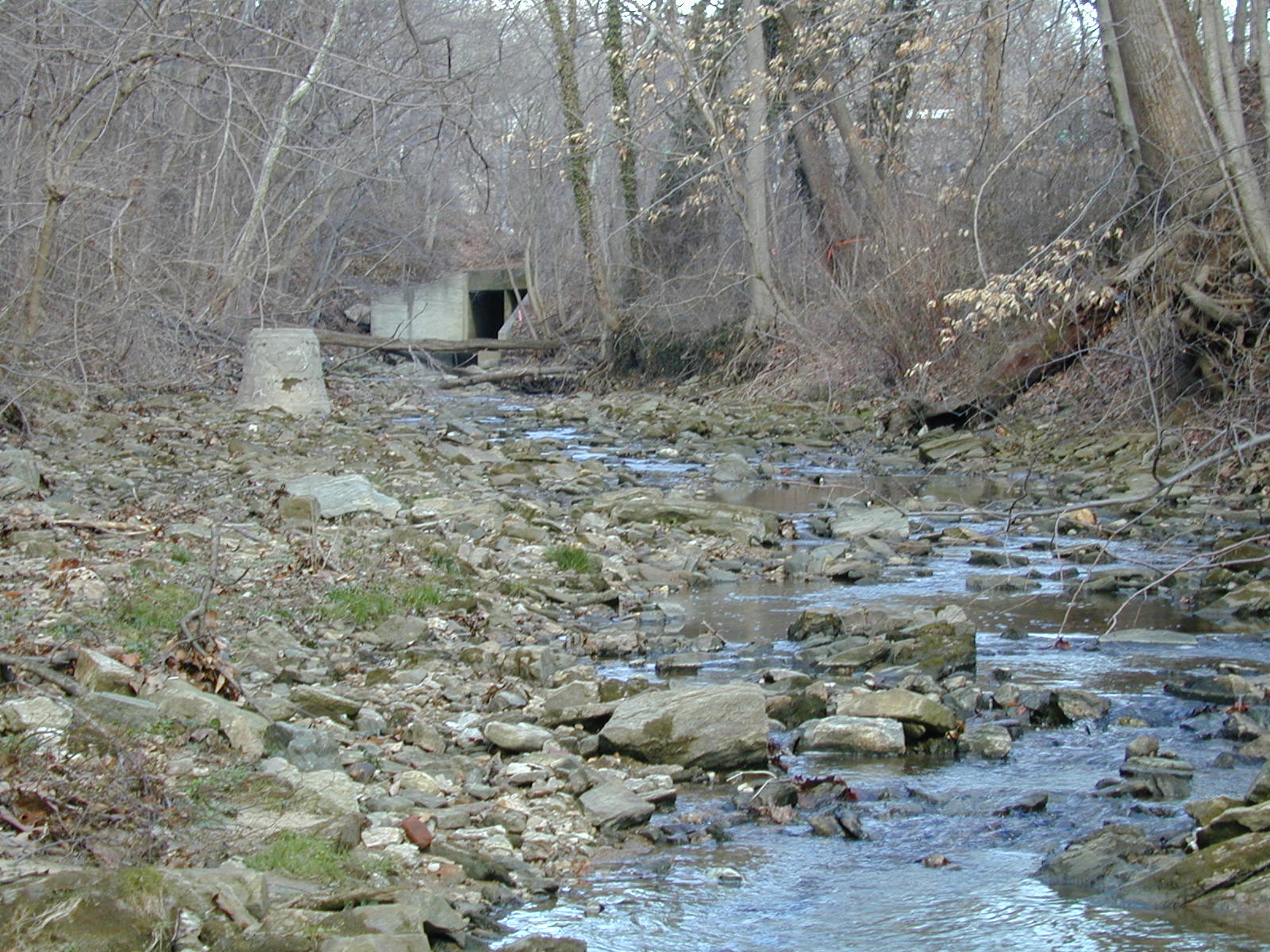

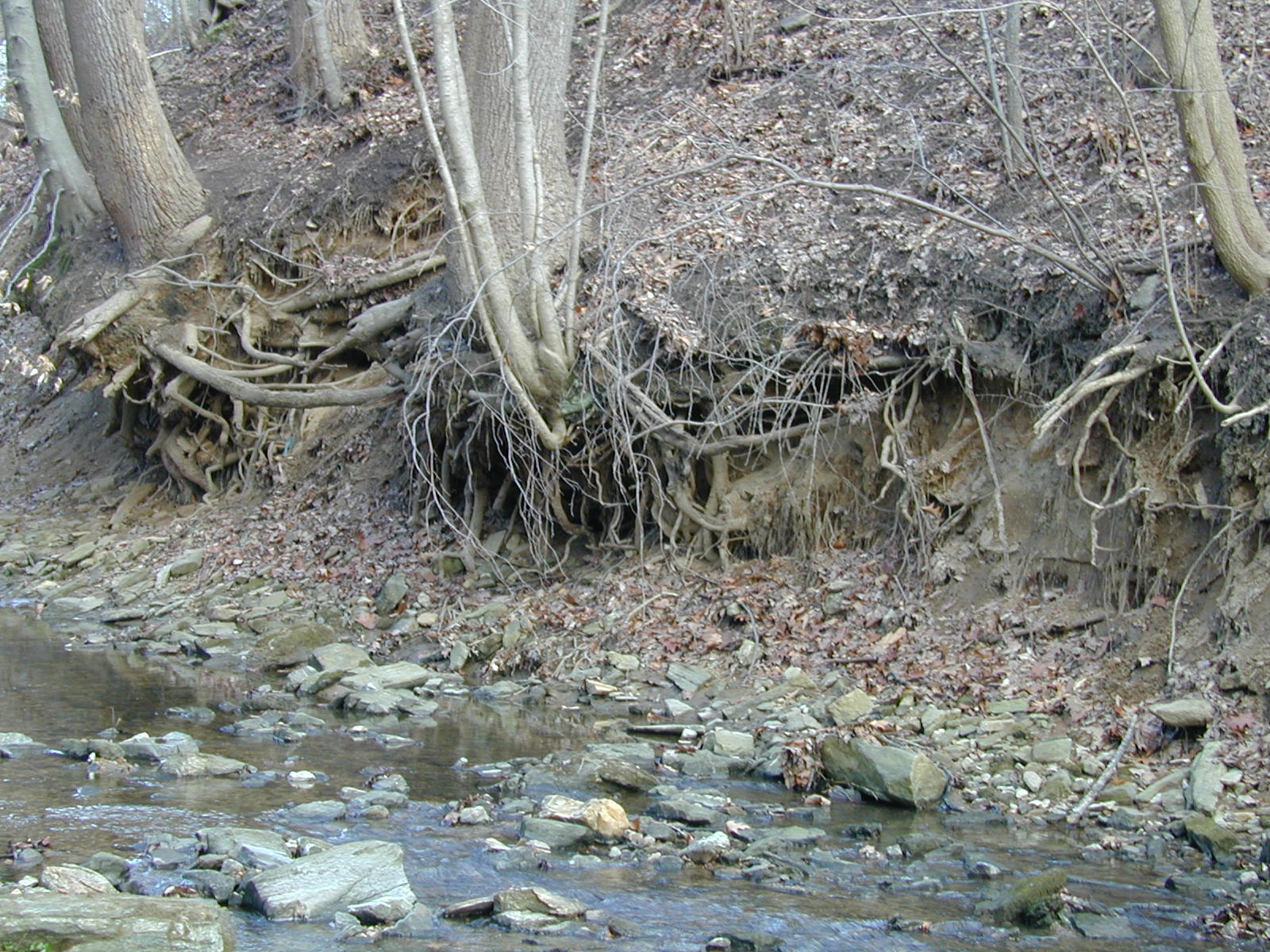

Field photo showing stream conditions at site JONE-110-R-2002-341 (Opens in a new window) Field photo showing stream conditions at site JONE-110-R-2002-342 (Opens in a new window) Field photo showing stream conditions at site JONE-110-R-2002-343 (Opens in a new window)

Located on TOWSON RUN in the Jones Falls watershed, 8-digit code: 02130904.
This stream was visited in the spring on 3/4/2002 and again in the summer on 6/18/2002.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 1.7 / 5.0
Benthic IBI Poor - 2.3 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 1,010 acres A highly channelized urban stream with concrete banks. An example of a highly channelized urban stream.
Urban Land Use 82 %
Agricultural Land Use 3 %
Forested Land Use 13 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 13/20 (Suboptimal)
Epifaunal Substrate 13/20 (Suboptimal)
Velocity/Depth Diversity 8/20 (Marginal)
Pool Quality
Pool Extent = 42 meters 		8/20 (Marginal)
Riffle Quality
Riffle Extent = 33 meters 		14/20 (Suboptimal)
Shading 90 %
Embeddedness 20 %


Stream Water Quality:
Water temperature 20.4 ° C
Dissolved oxygen (DO) 8.2 mg/L
pH (lab) 7.72
Conductivity 800 µmho/cm
Alkalinity
(acid neutralizing capacity) 		1612 µeq/L
Dissolved organic carbon (DOC) 2.1 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 3 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Creek Chub 10
White Sucker 5
Longnose Dace 4
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Two-Lined Salamander

Crayfish:
No crayfish noted.

Exotic Plants:
Japanese Honeysuckle
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Hydropsyche Net-Spinning Caddisfly 31
Cricotopus Non-Biting Midges 30
Simulium Black Fly 18
Cardiocladius Non-Biting Midge 12
Conchapelopia Non-Biting Midges 5
Orthocladiinae Midge 5
Orthocladius Non-Biting Midges 5
Cheumatopsyche Net-Spinning Caddisfly 2
Crangonyx Amphipod 2
Enchytraeidae Aquatic Worm 2
Antocha Crane Fly 1
Tipula Crane Fly 1
Phaenopsectra Non-Biting Midges 1
Sympotthastia Non-Biting Midges 1
Tvetenia Non-Biting Midges 1
Lumbriculidae Worm 1
Eukiefferiella Non-Biting Midges 1
Sublettea 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
