MBSS Site Summary for: JONE-204-R-2002

Site Photos

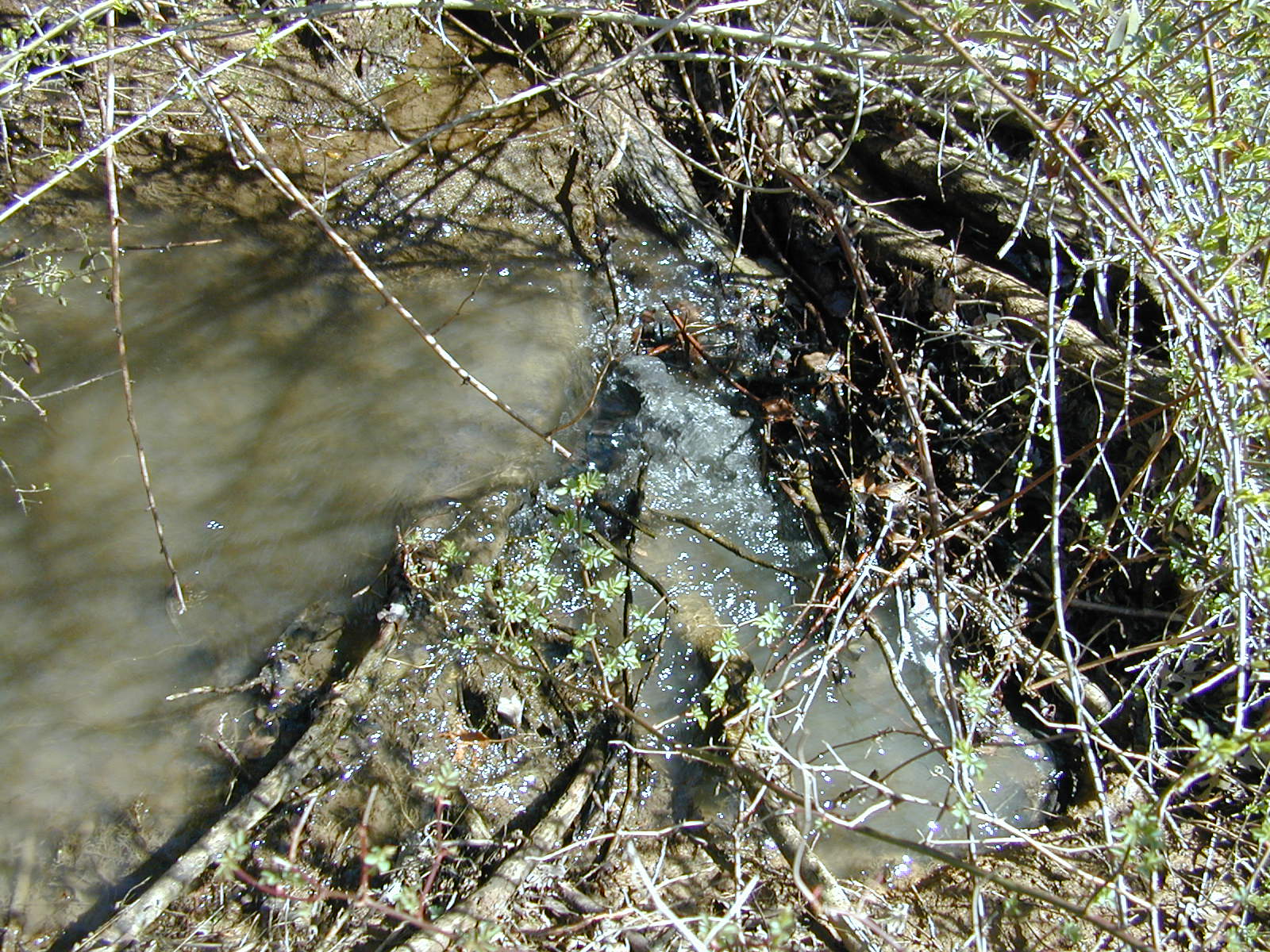

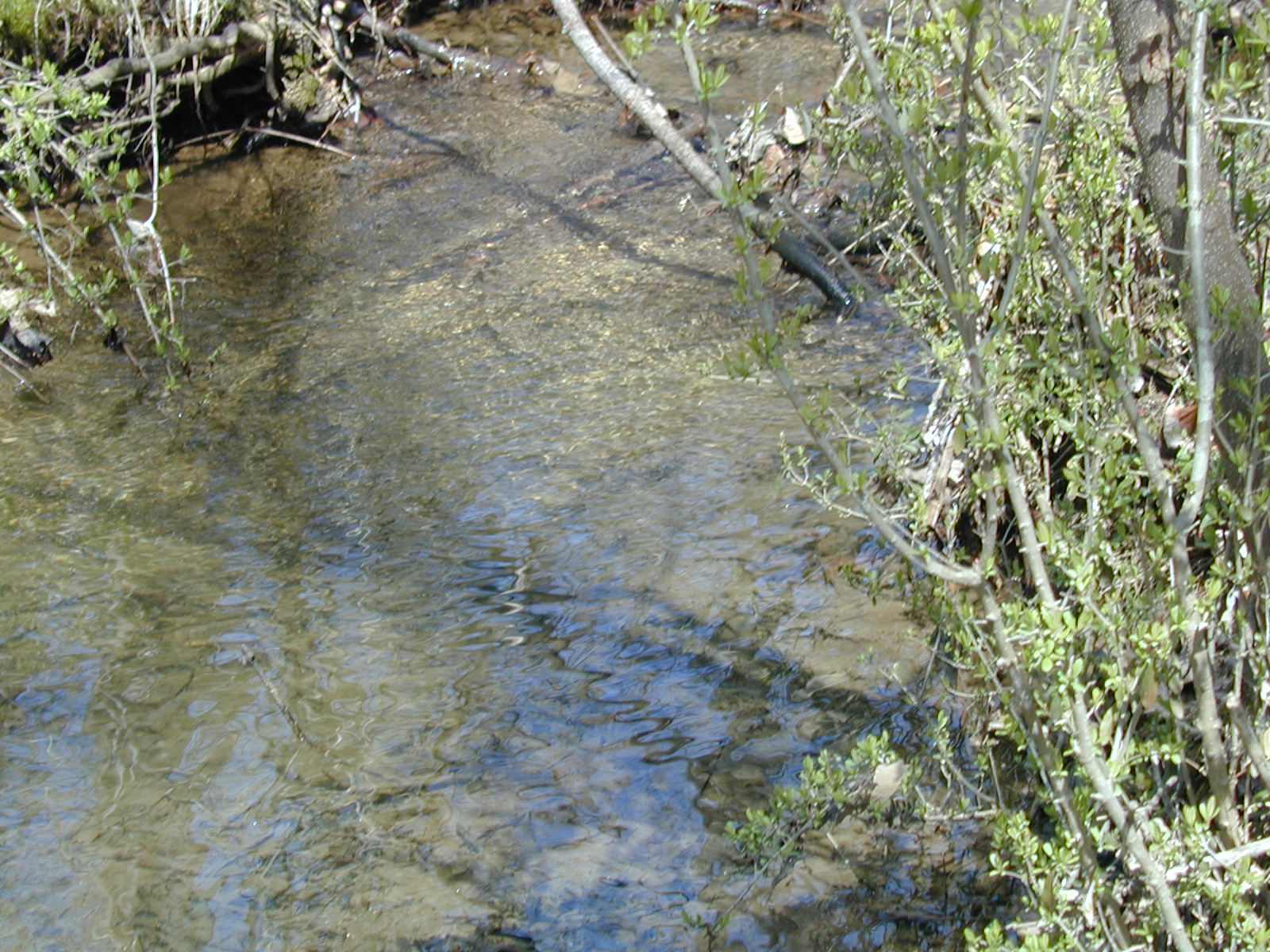

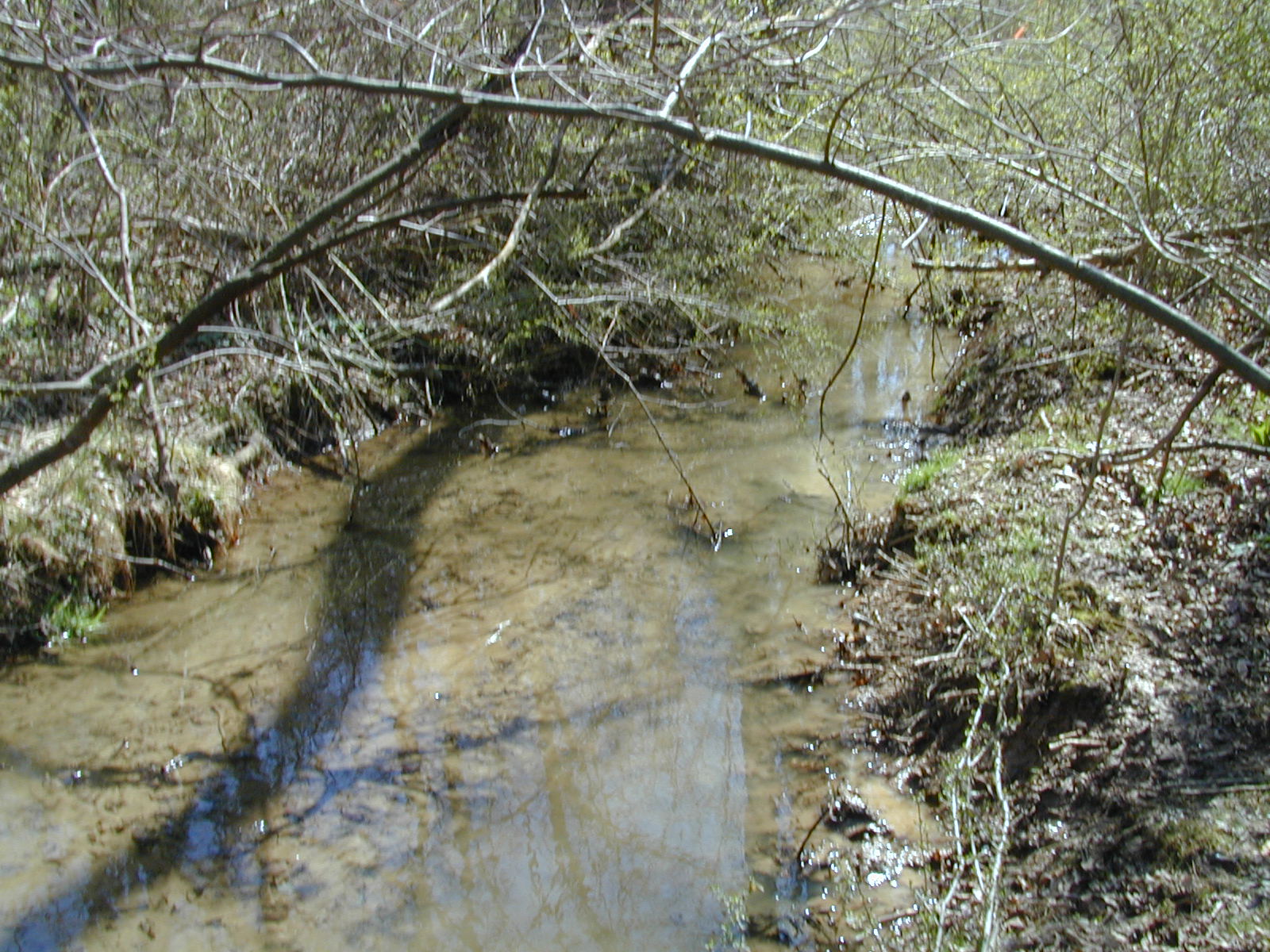

Field photo showing stream conditions at site JONE-204-R-2002-475 (Opens in a new window) Field photo showing stream conditions at site JONE-204-R-2002-476 (Opens in a new window) Field photo showing stream conditions at site JONE-204-R-2002-477 (Opens in a new window)

Located on NORTH BR UT 1 in the Jones Falls watershed, 8-digit code: 02130904.
This stream was visited in the spring on 4/1/2002 and again in the summer on 7/8/2002.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Fair - 3.3 / 5.0
Benthic IBI Fair - 3.3 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 820 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 7 %
Agricultural Land Use 46 %
Forested Land Use 45 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 10/20 (Marginal)
Epifaunal Substrate 12/20 (Suboptimal)
Velocity/Depth Diversity 7/20 (Marginal)
Pool Quality
Pool Extent = 49 meters 		7/20 (Marginal)
Riffle Quality
Riffle Extent = 26 meters 		6/20 (Marginal)
Shading 95 %
Embeddedness 35 %


Stream Water Quality:
Water temperature 18.3 ° C
Dissolved oxygen (DO) 9.3 mg/L
pH (lab) 7.8
Conductivity 240 µmho/cm
Alkalinity
(acid neutralizing capacity) 		693.8 µeq/L
Dissolved organic carbon (DOC) 1.1 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 6 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 161
Creek Chub 80
Rosyside Dace 13
Longnose Dace 11
Brown Trout 3
Tessellated Darter 2
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Green Frog
Northern Two-Lined Salamander

Crayfish:
No crayfish noted.

Exotic Plants:
Japanese Honeysuckle
Japanese Stiltgrass
Mile-A-Minute
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Oulimnius Riffle Beetle 23
Naididae Aquatic Worm 15
Ephemerella Sulphur Mayfly 14
Cheumatopsyche Net-Spinning Caddisfly 10
Paratanytarsus Non-Biting Midges 9
Elmidae Riffle Beetle 8
Optioservus Riffle Beetle 7
Orthocladius Non-Biting Midges 6
Antocha Crane Fly 3
Stenelmis Beetle 2
Hydropsychidae Common Netspinner Caddisfly 2
Parametriocnemus Non-Biting Midges 2
Stenonema Flatheaded Mayfly 2
Girardia Freshwater Flatworm 2
Polypedilum Non-Biting Midges 2
Stempellinella Non-Biting Midges 1
Lumbriculidae Worm 1
Diplectrona Net-Spinning Caddisfly 1
Chironomini Non-Biting Midge 1
Paracladopelma Non-Biting Midge 1
Cryptochironomus Non-Biting Midges 1
Tipula Crane Fly 1
Heptageniidae Flathead Mayfly 1
Anchytarsus Beetle 1
Physa Air-Breathing Freshwater Snail 1
Chelifera Aquatic Dance Fly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
