MBSS Site Summary for: JONE-204-R-2016

Site Photos

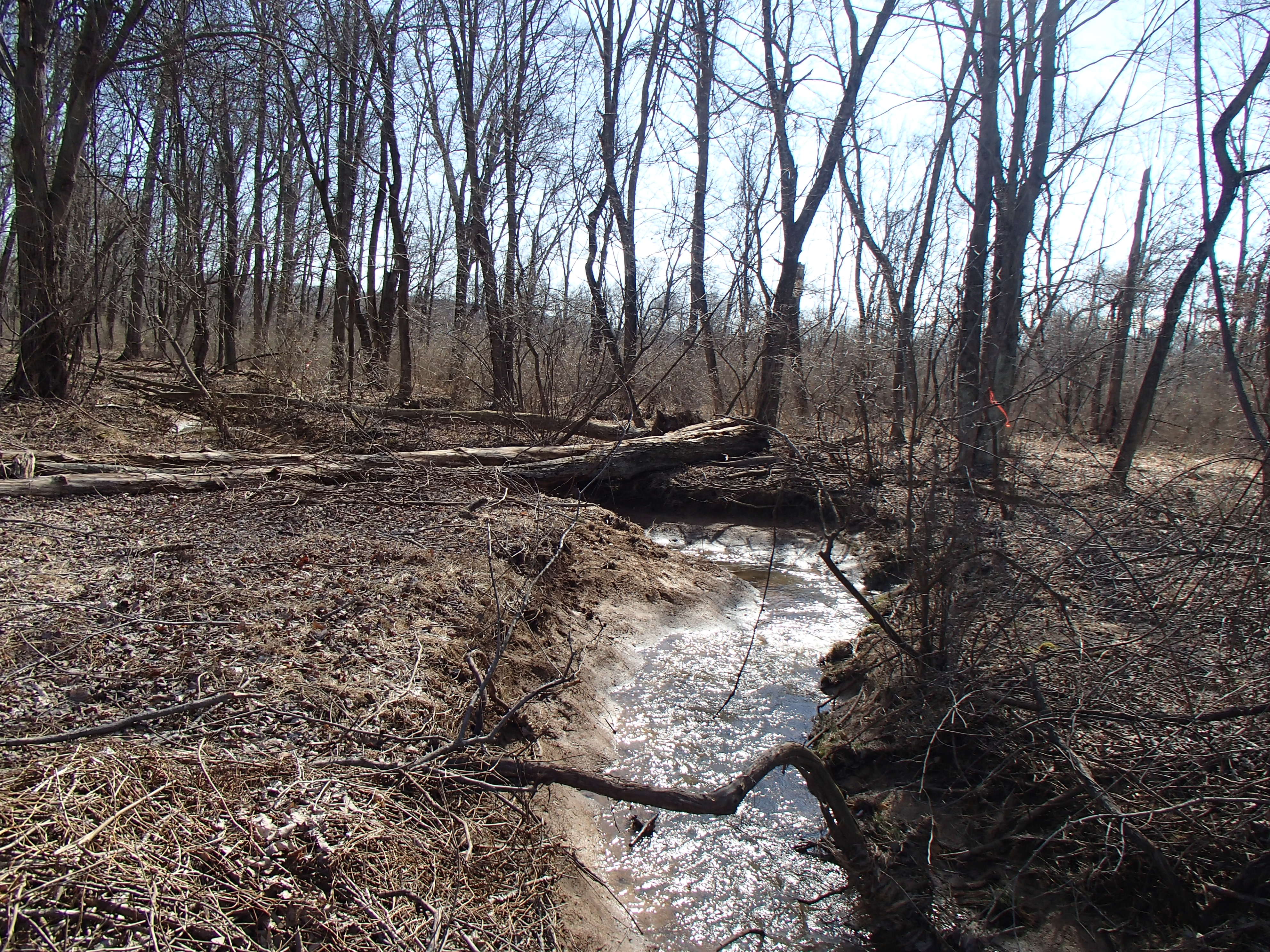

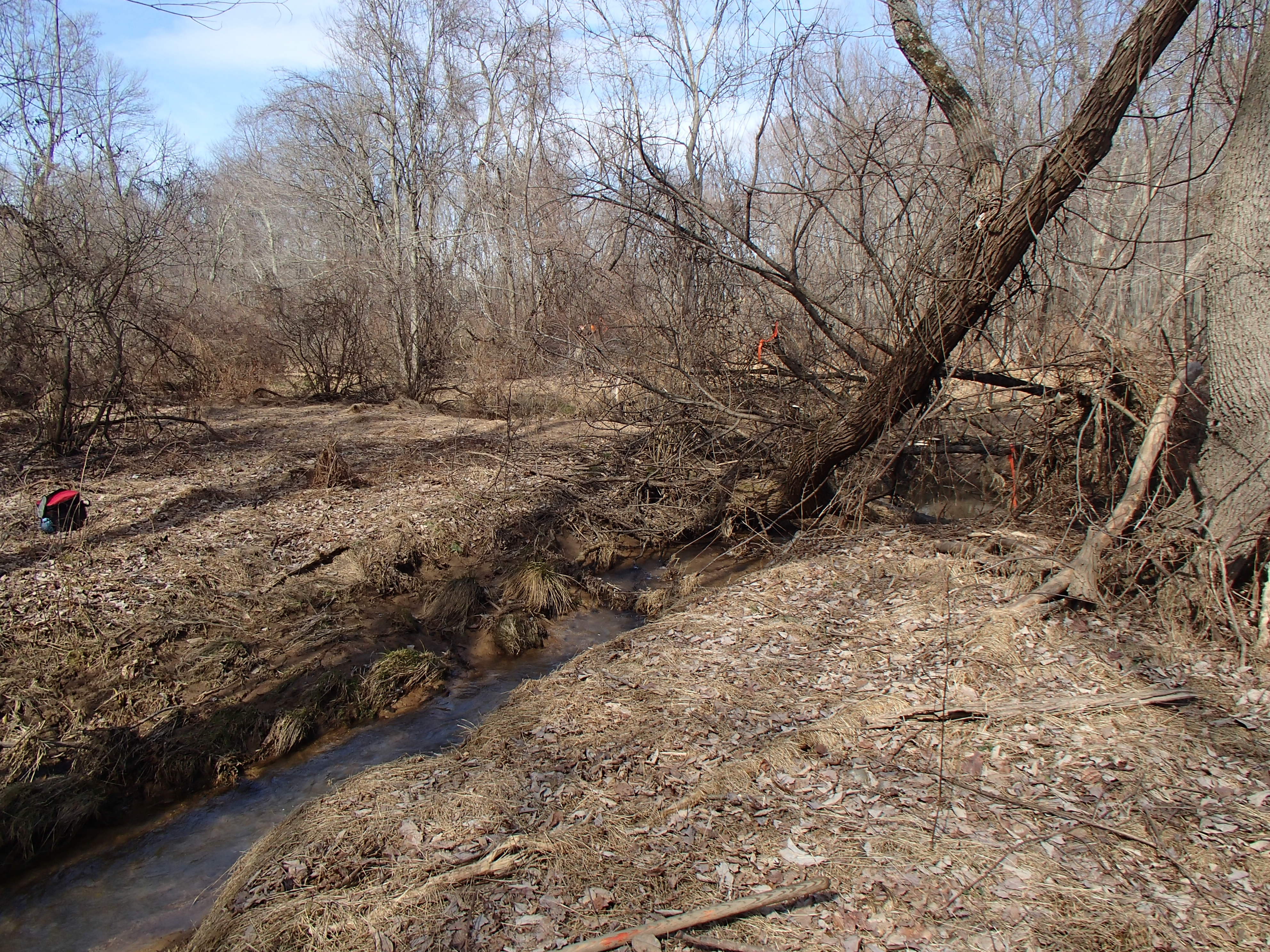

Field photo showing stream conditions at site JONE-204-R-2016_Midpoint downstream (Opens in a new window) Field photo showing stream conditions at site JONE-204-R-2016_Midpoint upstream (Opens in a new window)

Located on North Branch Jones Falls UT in the Jones Falls watershed, 8-digit code: 02130904.
This stream was visited in the spring on 3/1/2016 and again in the summer on 6/6/2016.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 2.0 / 5.0
Benthic IBI Fair - 3.7 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 821 acres A highly channelized urban stream with concrete banks. An example of a highly channelized urban stream.
Urban Land Use 42.9 %
Agricultural Land Use 5.5 %
Forested Land Use 48.8 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 6/20 (Marginal)
Epifaunal Substrate 5/20 (Poor)
Velocity/Depth Diversity 11/20 (Suboptimal)
Pool Quality
Pool Extent = 28 meters 		11/20 (Suboptimal)
Riffle Quality
Riffle Extent = 48 meters 		12/20 (Suboptimal)
Shading 75 %
Embeddedness 100 %
The embeddedness, a measure of silt on the stream bottom, was 100%. This is very high, and may adversely affect biotic communities.


Stream Water Quality:
pH (lab) 7.49
Alkalinity
(acid neutralizing capacity) 		660.7 µeq/L
Dissolved organic carbon (DOC) 0.7079 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 5 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 63
Creek Chub 27
Rosyside Dace 7
Brown Trout 4
Longnose Dace 3
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Two-Lined Salamander

Crayfish:
No crayfish noted.

Exotic Plants:
Autumn Olive
Garlic Mustard
Japanese Barberry
Japanese Honeysuckle
Japanese Stiltgrass
Mile-A-Minute
Multiflora Rose
Oriental Bittersweet
Privet
Shrub Honeysuckle
Wineberry


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Cheumatopsyche Net-Spinning Caddisfly 20
Orthocladius Non-Biting Midges 16
Chimarra Fingernet Caddisfly 10
Hydropsyche Net-Spinning Caddisfly 9
Rheotanytarsus Non-Biting Midges 9
Antocha Crane Fly 7
Maccaffertium March Brown And Cahill Mayfly 5
Triaenodes Long-Horned Caddisfly 4
Baetis Blue-Winged Olive Mayfly 4
Orthocladiinae Midge 3
Sympotthastia Non-Biting Midges 3
Oulimnius Riffle Beetle 3
Boyeria Spotted Darner Dragonfly 2
Acerpenna Tiny Blue-Winged Olive Mayflies 2
Paratanytarsus Non-Biting Midges 2
Thienemannimyia Group Non-Biting Midges 2
Limnephilidae Northern Casemaker Caddisfly 2
Stegopterna Black Fly 2
Pycnopsyche Great Autumn Brown Sedge Caddisfly 2
Calopteryx Damselfly 1
Neophylax Caddisfly 1
Gomphidae Clubtail Dragonfly 1
Physa Air-Breathing Freshwater Snail 1
Prosimulium Black Fly 1
Chaetocladius Non-Biting Midges 1
Parametriocnemus Non-Biting Midges 1
Optioservus Riffle Beetle 1
Polypedilum Non-Biting Midges 1
Tanypodinae Non-Biting Midges 1
Tanytarsini Non-Biting Midges 1
Psephenus Water Penny 1
Hydrobius Water Scavenger Beetle 1
Ephemerella Sulphur Mayfly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
