MBSS Site Summary for: JONE-213-R-2002

Site Photos

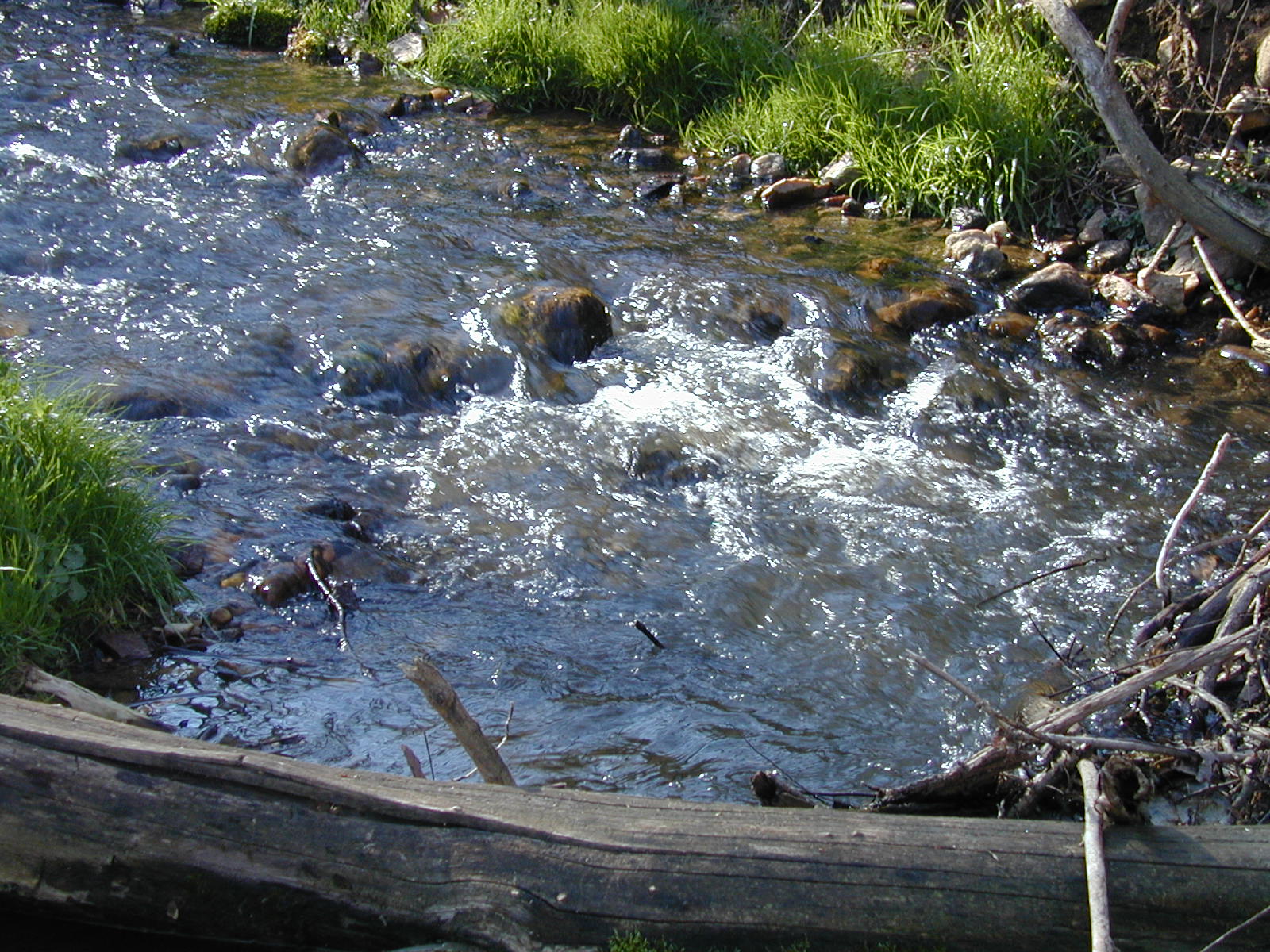

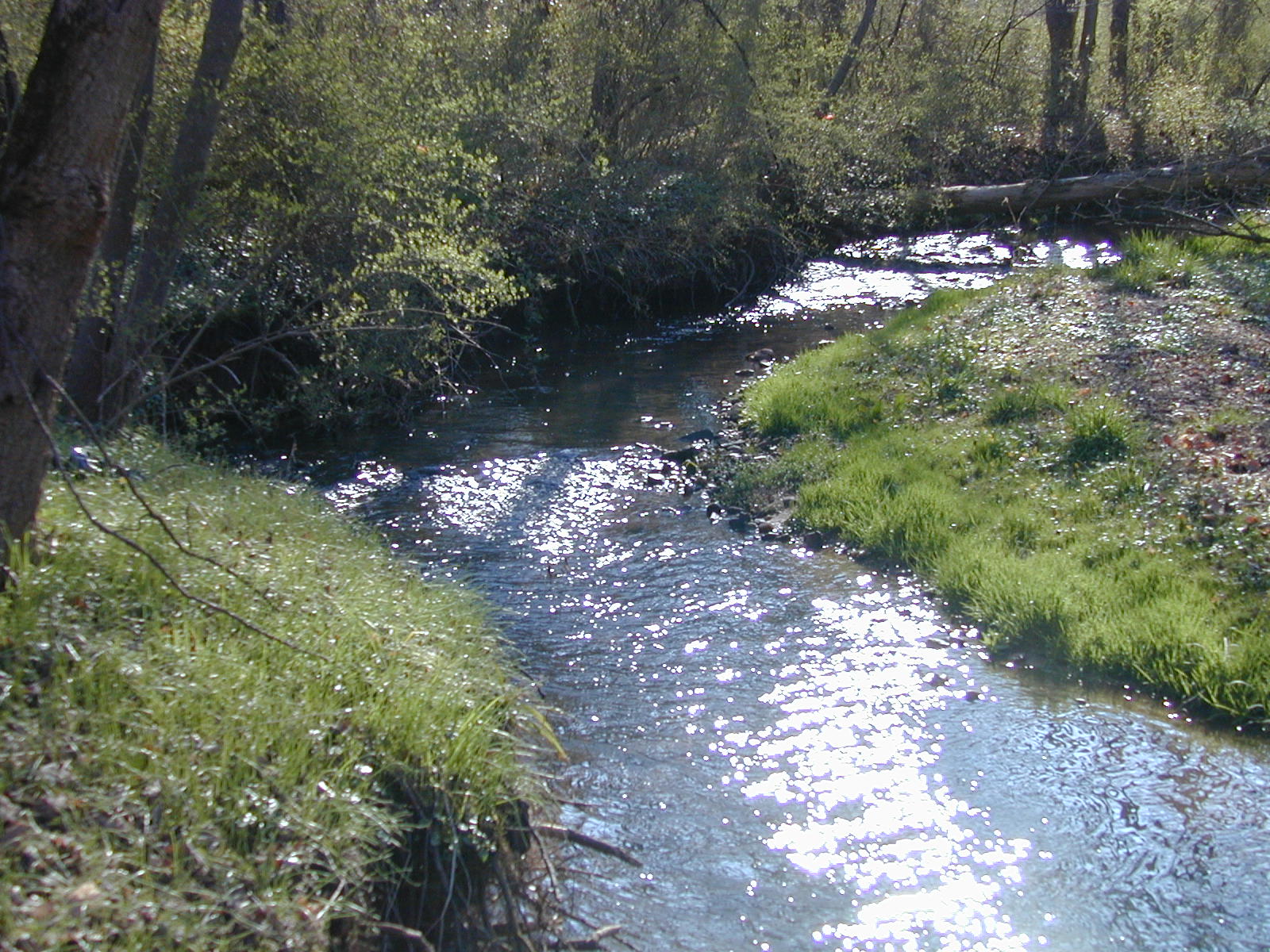

Field photo showing stream conditions at site JONE-213-R-2002-482 (Opens in a new window) Field photo showing stream conditions at site JONE-213-R-2002-483 (Opens in a new window) Field photo showing stream conditions at site JONE-213-R-2002-548 (Opens in a new window) Field photo showing stream conditions at site JONE-213-R-2002-549 (Opens in a new window)

Located on JONES FALLS in the Jones Falls watershed, 8-digit code: 02130904.
This stream was visited in the spring on 4/1/2002 and again in the summer on 6/19/2002.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Fair - 3.3 / 5.0
Benthic IBI Good - 4.3 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 1,731 acres A stream flowing through a densely forested area. An example of a forested stream.
Urban Land Use 14 %
Agricultural Land Use 37 %
Forested Land Use 48 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 17/20 (Optimal)
Epifaunal Substrate 18/20 (Optimal)
Velocity/Depth Diversity 13/20 (Suboptimal)
Pool Quality
Pool Extent = 44 meters 		13/20 (Suboptimal)
Riffle Quality
Riffle Extent = 31 meters 		16/20 (Optimal)
Shading 90 %
Embeddedness 35 %
Several measures of instream habitat were considered 'Optimal' at this location.


Stream Water Quality:
Water temperature 14.3 ° C
Dissolved oxygen (DO) 8.8 mg/L
pH (lab) 7.83
Conductivity 350 µmho/cm
Alkalinity
(acid neutralizing capacity) 		2300 µeq/L
Dissolved organic carbon (DOC) 1.5 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 4 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 70
Brown Trout 60
Longnose Dace 38
White Sucker 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Long-Tailed Salamander
Northern Green Frog
Northern Two-Lined Salamander
Pickerel Frog

Crayfish:
No crayfish noted.

Exotic Plants:
Dwarf Boxwood
Japanese Honeysuckle
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Ephemerella Sulphur Mayfly 65
Oulimnius Riffle Beetle 18
Dolophilodes Medium Evening Sedge Caddisfly 9
Lirceus Isopod 4
Orthocladius Non-Biting Midges 4
Baetis Blue-Winged Olive Mayfly 3
Stenonema Flatheaded Mayfly 2
Parametriocnemus Non-Biting Midges 2
Leuctridae Rolledwinged Stonefly 2
Girardia Freshwater Flatworm 2
Crangonyctidae Scud 1
Psephenus Water Penny 1
Optioservus Riffle Beetle 1
Epeorus Mayfly 1
Cheumatopsyche Net-Spinning Caddisfly 1
Conchapelopia Non-Biting Midges 1
Eukiefferiella Non-Biting Midges 1
Rhyacophila Free-Living Caddisfly 1
Clinocera Aquatic Dance Fly 1
Anchytarsus Beetle 1
Stenelmis Beetle 1
Hydropsychidae Common Netspinner Caddisfly 1
Antocha Crane Fly 1
Tipula Crane Fly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
