MBSS Site Summary for: JONE-220-R-2023

Site Photos

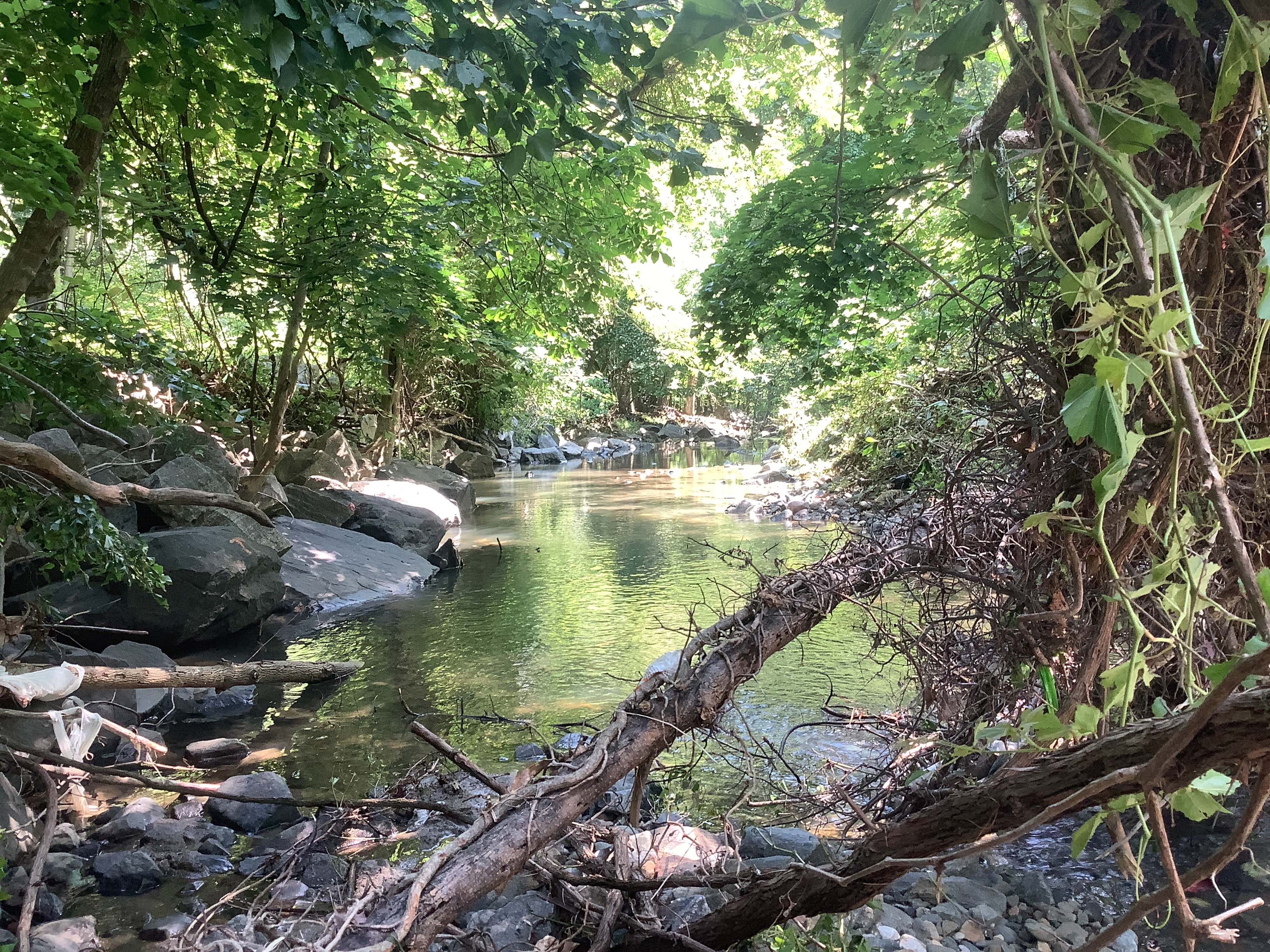

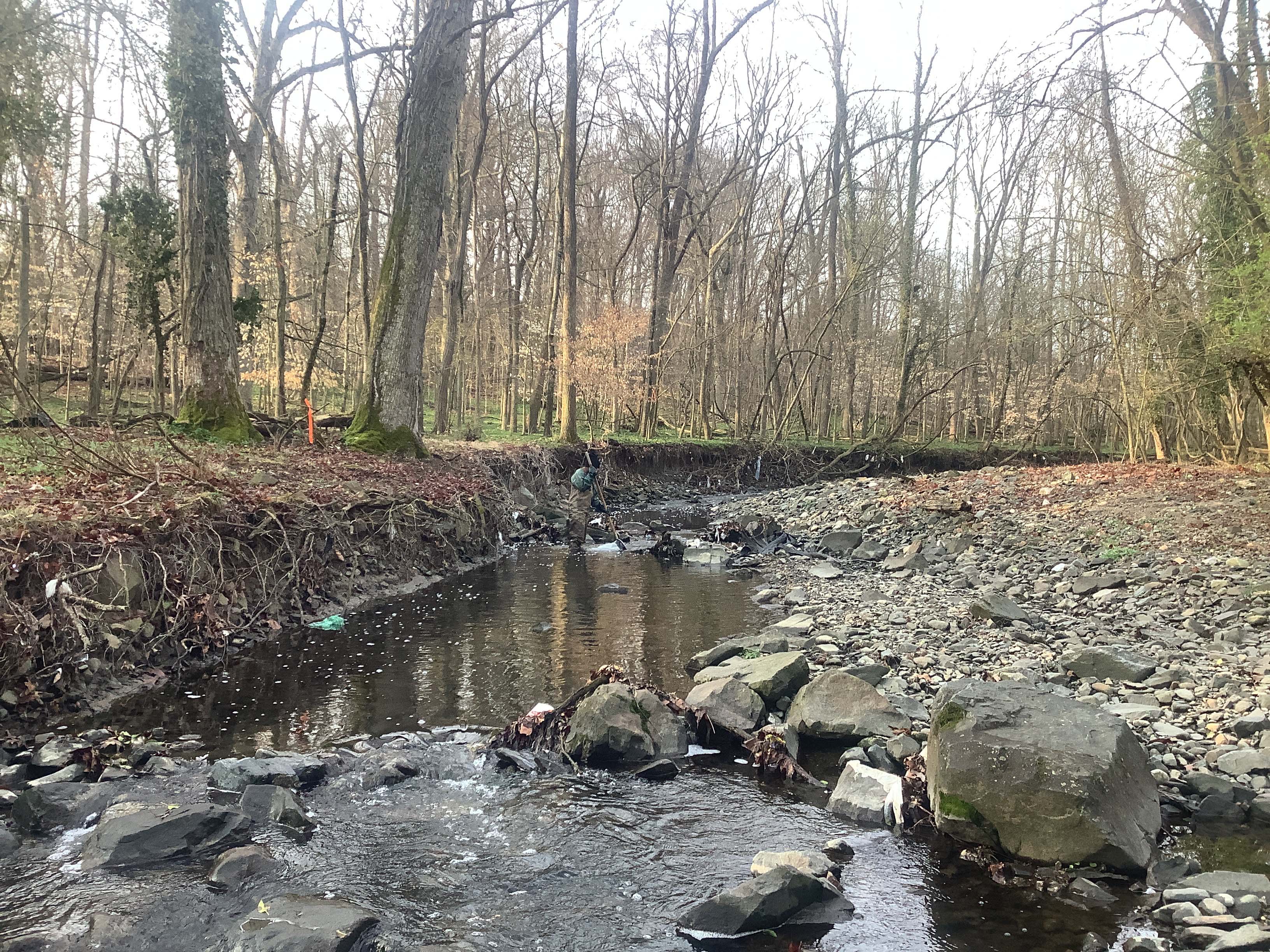

Field photo showing stream conditions at site JONE-220-R-2023_Midpoint_facing_downstream (Opens in a new window) Field photo showing stream conditions at site JONE-220-R-2023_Midpoint_facing_upstream (Opens in a new window)

Located on WESTERN RUN in the Jones Falls watershed, 8-digit code: 02130904.
This stream was visited in the spring on 3/28/2023 and again in the summer on 7/12/2023.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 1.0 / 5.0
Benthic IBI Poor - 1.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area No data available A highly channelized urban stream with concrete banks. An example of a highly channelized urban stream.
Urban Land Use 93.5 %
Agricultural Land Use 0.4 %
Forested Land Use 6 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 12/20 (Suboptimal)
Epifaunal Substrate 13/20 (Suboptimal)
Velocity/Depth Diversity 13/20 (Suboptimal)
Pool Quality
Pool Extent = 35 meters 		12/20 (Suboptimal)
Riffle Quality
Riffle Extent = 40 meters 		14/20 (Suboptimal)
Shading 35 %
Embeddedness 40 %


Stream Water Quality:
Water temperature 21.1 ° C
Dissolved oxygen (DO) 8.22 mg/L
pH (lab) 7.67
Alkalinity
(acid neutralizing capacity) 		2356 µeq/L
Dissolved organic carbon (DOC) 1.858 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 1 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Green Sunfish 25
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Green Frog

Crayfish:
Faxonius virilis

Exotic Plants:
Burning Bush
English Ivy
Japanese Barberry
Lesser Celandine (Fig Buttercup)
Mimosa
Multiflora Rose
Norway Maple
Oriental Bittersweet
Porcelainberry
Privet
Wineberry
Wintercreeper


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
DIAMESA Bloodworm 54
ORTHOCLADIUS Non-Biting Midges 35
GIRARDIA Freshwater Flatworm 6
CAECIDOTEA Isopod 6
CHIMARRA Fingernet Caddisfly 5
CRANGONYX Amphipod 5
SIMULIUM Black Fly 3
CRICOTOPUS Non-Biting Midges 2
HYDROPSYCHE Net-Spinning Caddisfly 1
THIENEMANNIMYIA GROUP Non-Biting Midges 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
