MBSS Site Summary for: JONE-315-S-2002

Site Photos

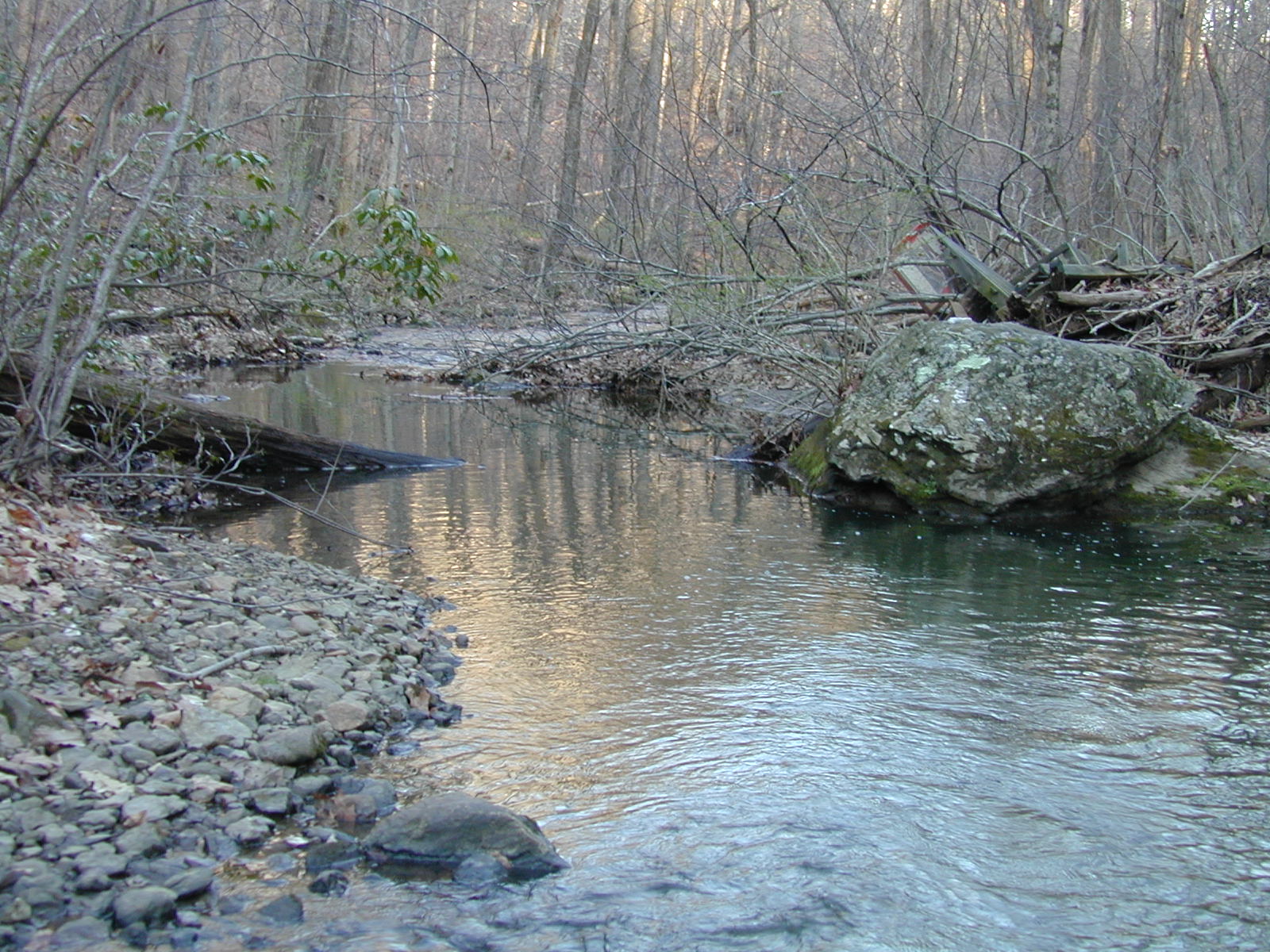

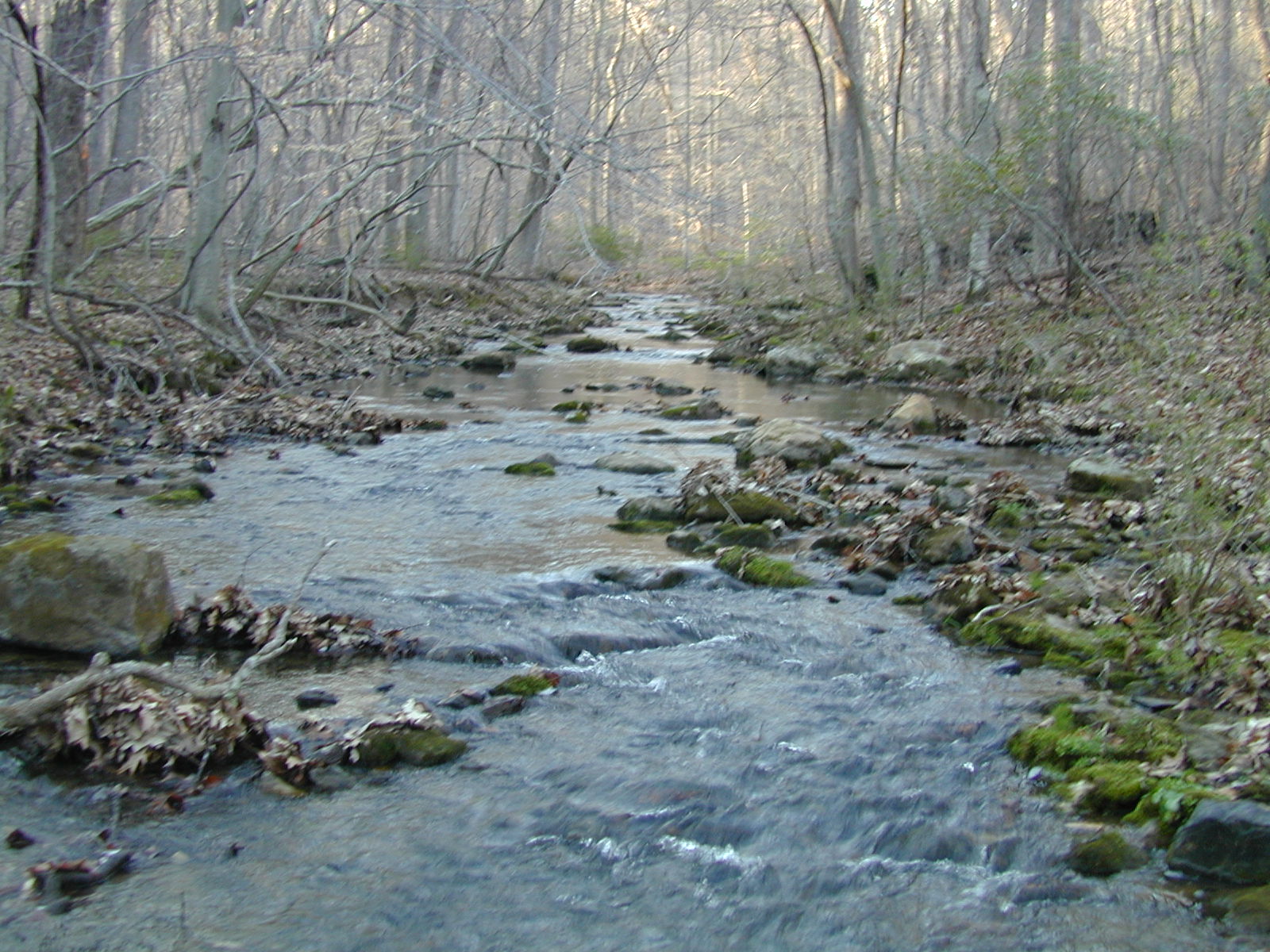

Field photo showing stream conditions at site JONE-315-S-2002-486 (Opens in a new window) Field photo showing stream conditions at site JONE-315-S-2002-487 (Opens in a new window)

Located on NORTH BR JONES FALLS in the Jones Falls watershed, 8-digit code: 02130904.
This stream was visited in the spring on 4/1/2002 and again in the summer on 7/11/2002.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 4.3 / 5.0
Benthic IBI Good - 4.7 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 3,820 acres A stream flowing through a densely forested area. An example of a forested stream.
Urban Land Use 4.5 %
Agricultural Land Use 39.4 %
Forested Land Use 54.5 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 19/20 (Optimal)
Epifaunal Substrate 19/20 (Optimal)
Velocity/Depth Diversity 15/20 (Suboptimal)
Pool Quality
Pool Extent = 35 meters 		19/20 (Optimal)
Riffle Quality
Riffle Extent = 55 meters 		17/20 (Optimal)
Shading 96 %
Embeddedness 16 %
Several measures of instream habitat were considered 'Optimal' at this location.


Stream Water Quality:
Water temperature 18.4 ° C
Dissolved oxygen (DO) 8.7 mg/L
pH (lab) 8.05
Conductivity 260 µmho/cm
Alkalinity
(acid neutralizing capacity) 		1477 µeq/L
Dissolved organic carbon (DOC) 1.8 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 12 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Brown Trout 81
Longnose Dace 62
Blacknose Dace 35
White Sucker 33
Creek Chub 9
Rosyside Dace 9
Tessellated Darter 7
Cutlip Minnow 6
Bluegill 4
Largemouth Bass 4
Green Sunfish 2
Rock Bass 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Dusky Salamander
Northern Green Frog
Northern Two-Lined Salamander
Pickerel Frog

Crayfish:
No crayfish noted.

Exotic Plants:
Japanese Stiltgrass
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Ephemerella Sulphur Mayfly 53
Prosimulium Black Fly 31
Cheumatopsyche Net-Spinning Caddisfly 6
Nigronia Megaloptera (Dark Fishfly) 4
Hydropsyche Net-Spinning Caddisfly 3
Drunella Blue-Winged Olive Mayfly 3
Stenonema Flatheaded Mayfly 3
Rhyacophila Free-Living Caddisfly 2
Diplectrona Net-Spinning Caddisfly 2
Simulium Black Fly 1
Epeorus Mayfly 1
Dolophilodes Medium Evening Sedge Caddisfly 1
Eukiefferiella Non-Biting Midges 1
Parametriocnemus Non-Biting Midges 1
Perlodidae Perlodid Stonefly 1
Optioservus Riffle Beetle 1
Oulimnius Riffle Beetle 1
Baetidae Small Minnow Mayfly 1
Psychomyia Trumpet-Net Caddisfly 1
Psephenus Water Penny 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
