MBSS Site Summary for: JONE-315-S-2003

Site Photos

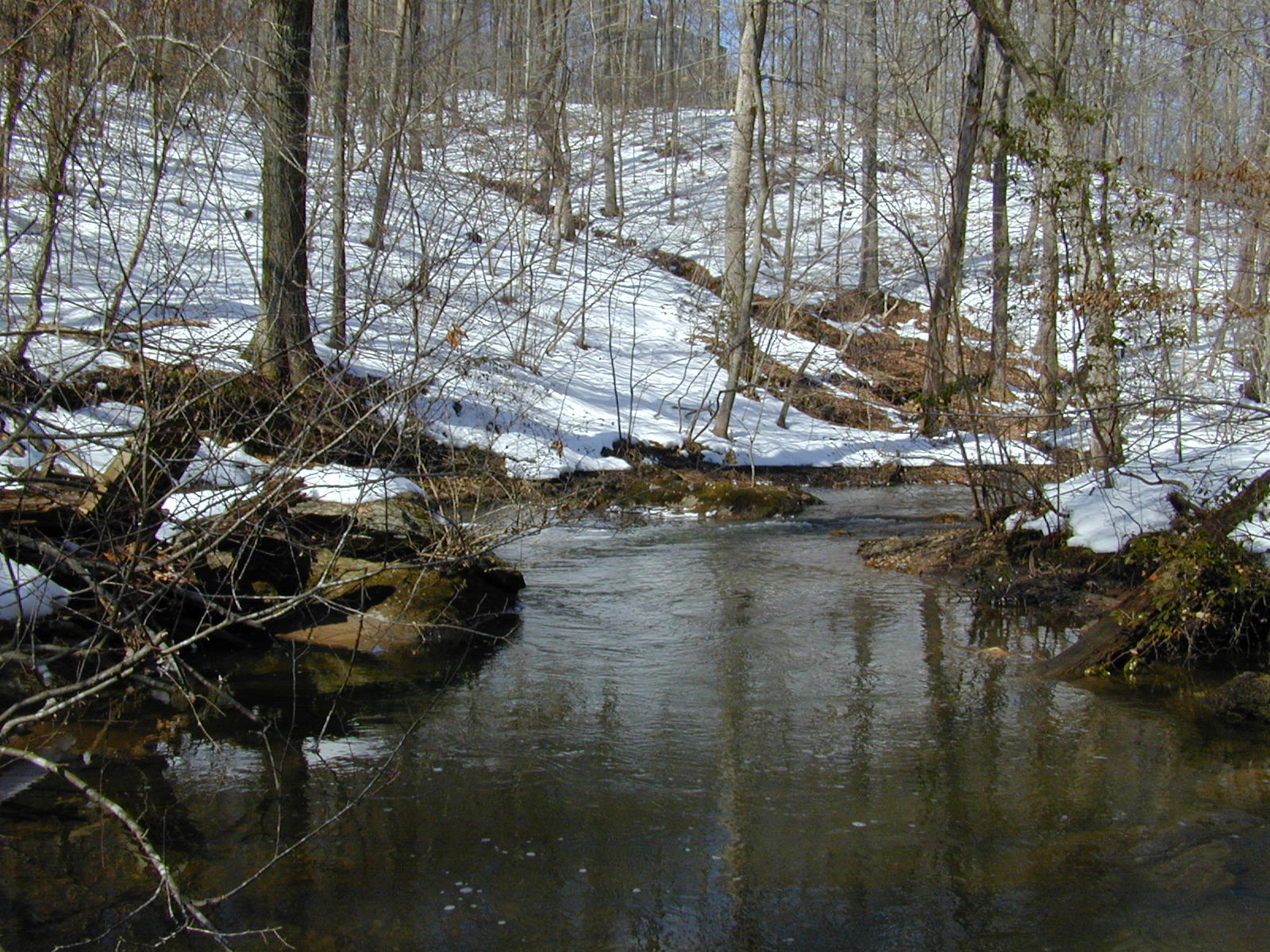

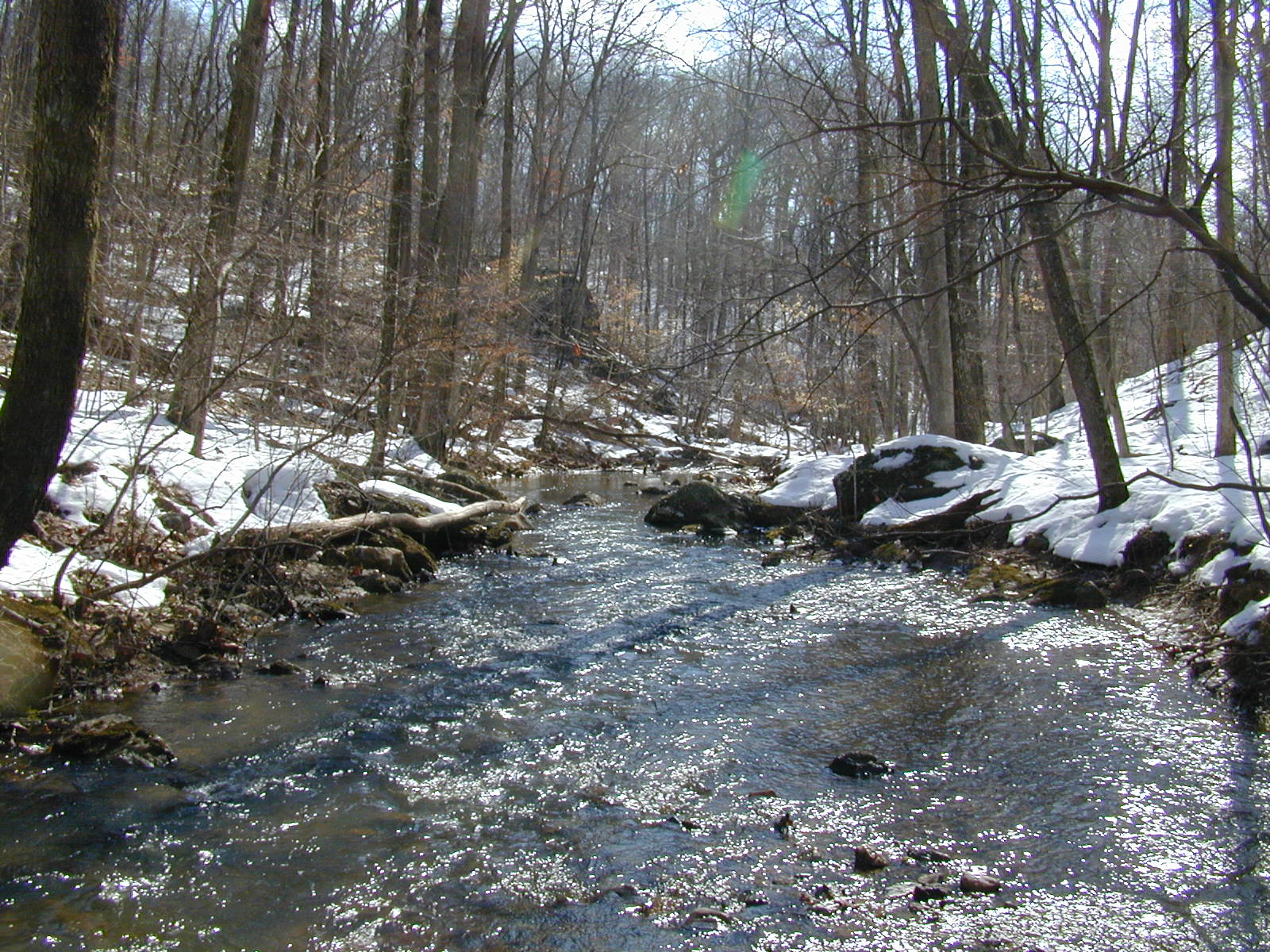

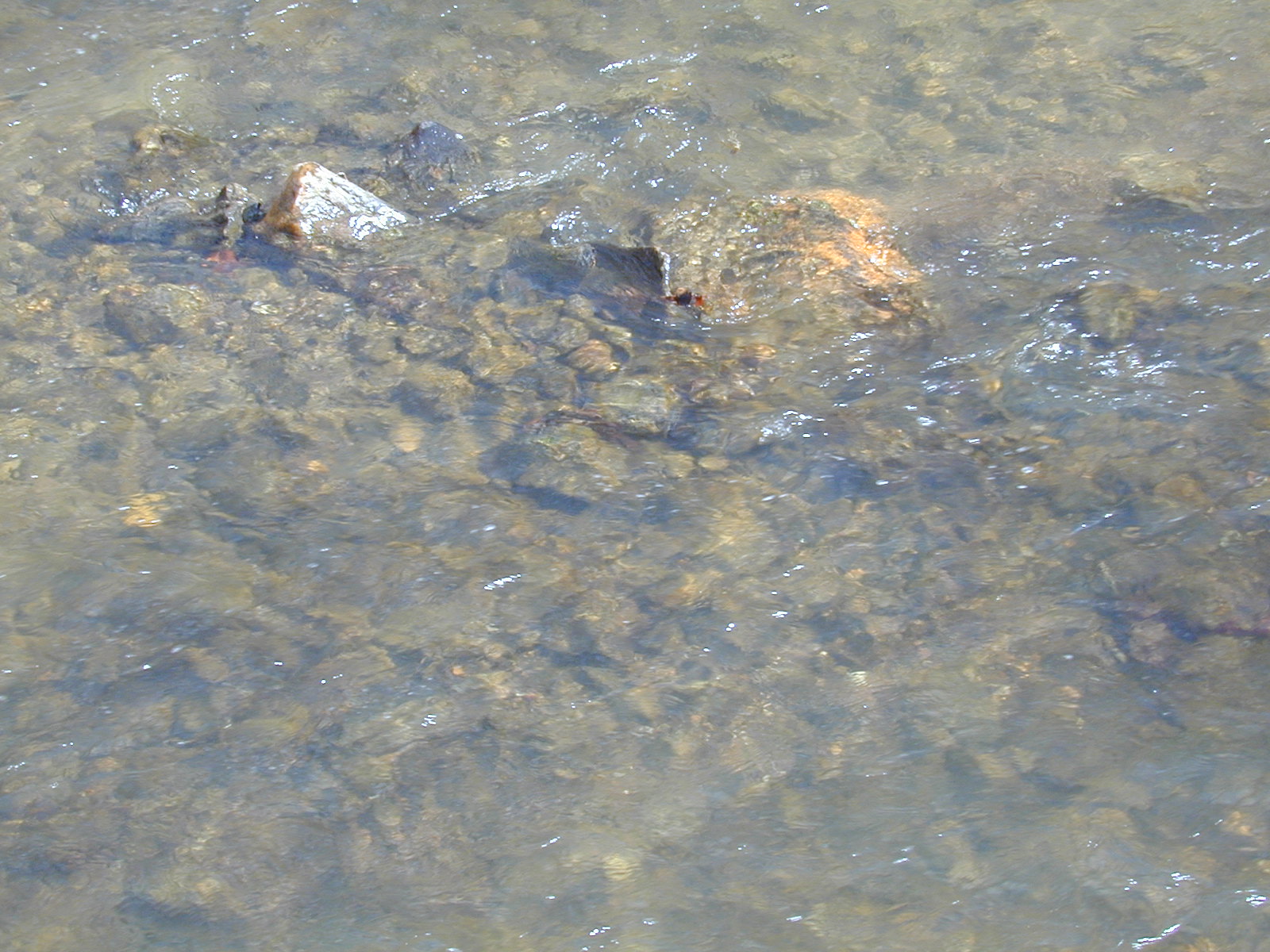

Field photo showing stream conditions at site JONE-315-S-2003-1 (Opens in a new window) Field photo showing stream conditions at site JONE-315-S-2003-2 (Opens in a new window) Field photo showing stream conditions at site JONE-315-S-2003-3 (Opens in a new window) Field photo showing stream conditions at site JONE-315-S-2003-854 (Opens in a new window) Field photo showing stream conditions at site JONE-315-S-2003-855 (Opens in a new window) Field photo showing stream conditions at site JONE-315-S-2003-856 (Opens in a new window) Field photo showing stream conditions at site JONE-315-S-2003-857 (Opens in a new window) Field photo showing stream conditions at site JONE-315-S-2003-858 (Opens in a new window) Field photo showing stream conditions at site JONE-315-S-2003-859 (Opens in a new window)

Located on NORTH BR JONES FALLS in the Jones Falls watershed, 8-digit code: 02130904.
This stream was visited in the spring on 3/10/2003 and again in the summer on 6/12/2003.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Fair - 3.3 / 5.0
Benthic IBI Good - 4.7 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 3,820 acres A stream flowing through a densely forested area. An example of a forested stream.
Urban Land Use 4.5 %
Agricultural Land Use 39.4 %
Forested Land Use 54.5 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 19/20 (Optimal)
Epifaunal Substrate 18/20 (Optimal)
Velocity/Depth Diversity 17/20 (Optimal)
Pool Quality
Pool Extent = 37 meters 		17/20 (Optimal)
Riffle Quality
Riffle Extent = 48 meters 		17/20 (Optimal)
Shading 98 %
Embeddedness 20 %
Several measures of instream habitat were considered 'Optimal' at this location.


Stream Water Quality:
Water temperature 15.8 ° C
Dissolved oxygen (DO) 8.8 mg/L
pH (lab) 7.5
Conductivity 222 µmho/cm
Alkalinity
(acid neutralizing capacity) 		781.3 µeq/L
Dissolved organic carbon (DOC) 2.2 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 10 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 39
Longnose Dace 34
Brown Trout 24
White Sucker 23
Creek Chub 13
Tessellated Darter 13
Cutlip Minnow 11
Rosyside Dace 10
Green Sunfish 8
Bluegill 6
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Eastern Red-Backed Salamander
Northern Dusky Salamander
Northern Two-Lined Salamander
Wood Frog

Crayfish:
No crayfish noted.

Exotic Plants:
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Prosimulium Black Fly 71
Orthocladius Non-Biting Midges 11
Ephemerella Sulphur Mayfly 8
Sympotthastia Non-Biting Midges 6
Diplectrona Net-Spinning Caddisfly 2
Corynoneura Non-Biting Midges 2
Prostoia Spring Stonefly 2
Pseudorthocladius Non-Biting Midges 1
Naididae Aquatic Worm 1
Hydropsyche Net-Spinning Caddisfly 1
Optioservus Riffle Beetle 1
Promoresia Riffle Beetle 1
Isonychia Slate Drake Mayfly 1
Allocapnia Small Winter Stonefly 1
Lanthus Clubtail Dragonfly 1
Strophopteryx Early Brown Stonefly 1
Heptageniidae Flathead Mayfly 1
Stenonema Flatheaded Mayfly 1
Serratella Mayfly 1
Dolophilodes Medium Evening Sedge Caddisfly 1
Nigronia Megaloptera (Dark Fishfly) 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
