MBSS Site Summary for: JONE-315-S-2004

Site Photos

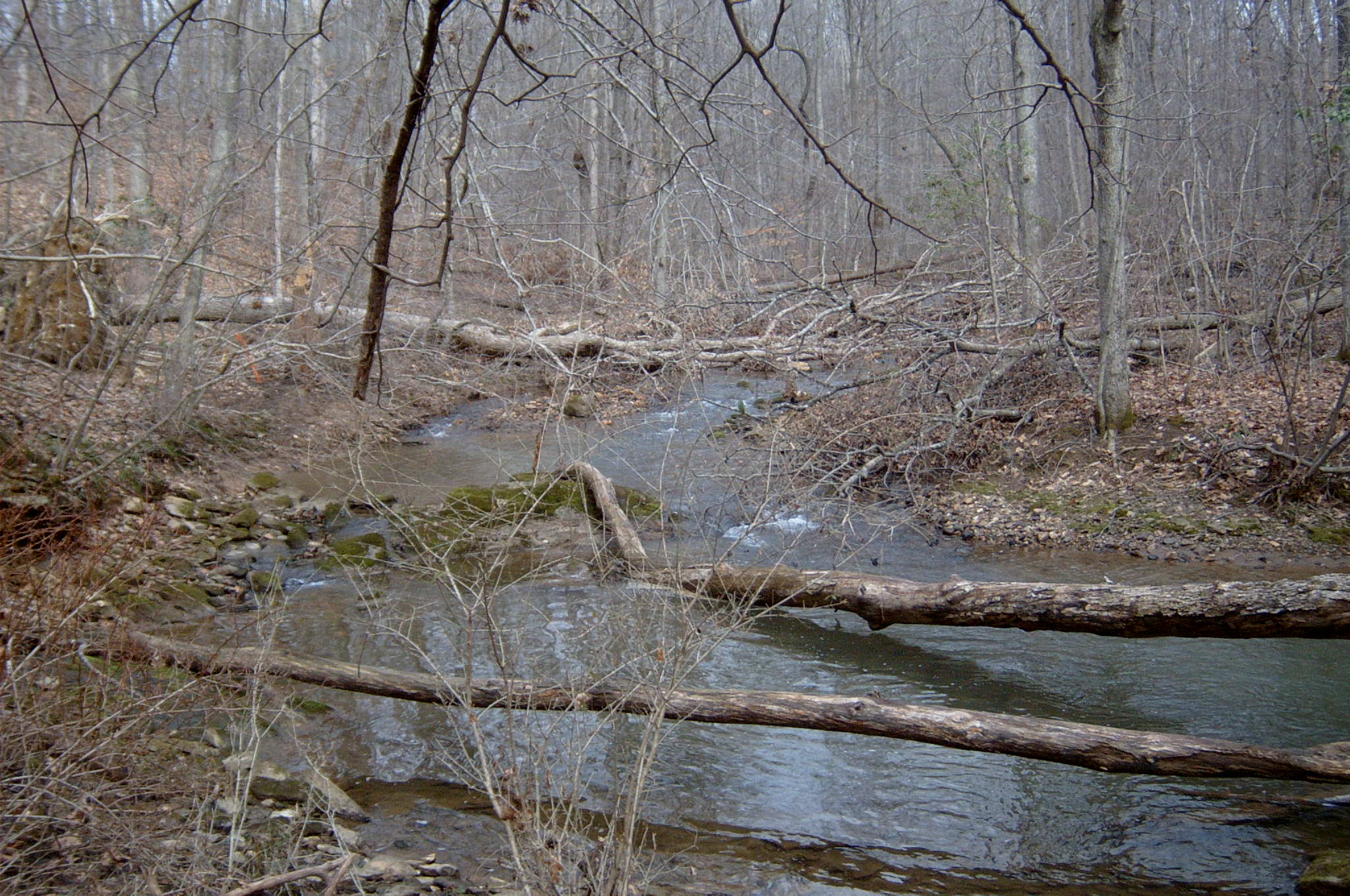

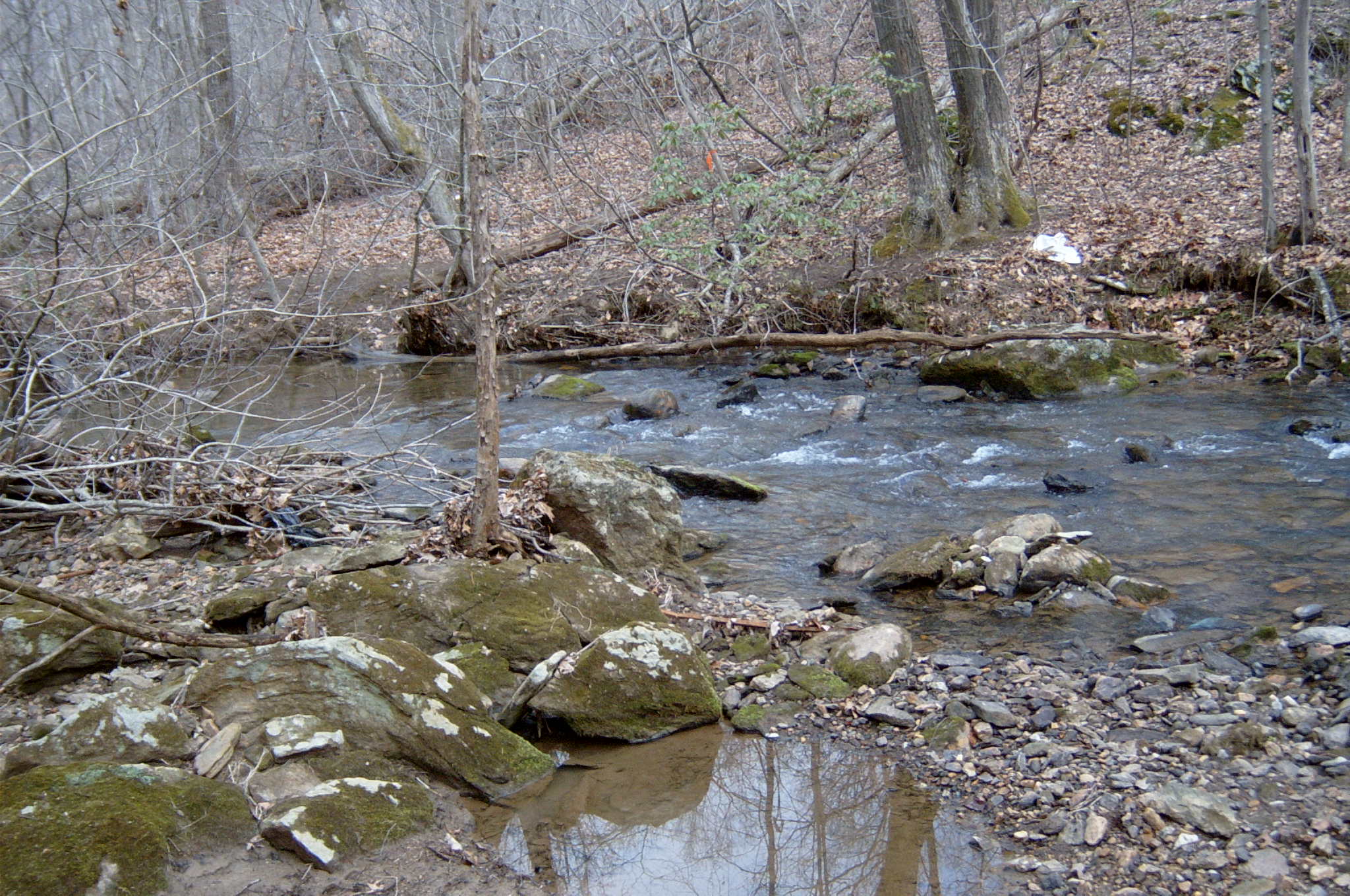

Field photo showing stream conditions at site JONE-315-S-2004-130 (Opens in a new window) Field photo showing stream conditions at site JONE-315-S-2004-131 (Opens in a new window)

Located on NORTH BR JONES FALLS in the Jones Falls watershed, 8-digit code: 02130904.
This stream was visited in the spring on 3/18/2004 and again in the summer on 8/3/2004.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Fair - 3.7 / 5.0
Benthic IBI Good - 4.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 3,820 acres A stream flowing through a densely forested area. An example of a forested stream.
Urban Land Use 4.5 %
Agricultural Land Use 39.4 %
Forested Land Use 54.5 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 18/20 (Optimal)
Epifaunal Substrate 16/20 (Optimal)
Velocity/Depth Diversity 16/20 (Optimal)
Pool Quality
Pool Extent = 35 meters 		17/20 (Optimal)
Riffle Quality
Riffle Extent = 43 meters 		17/20 (Optimal)
Shading 80 %
Embeddedness 15 %
Several measures of instream habitat were considered 'Optimal' at this location.


Stream Water Quality:
Water temperature 20.5 ° C
Dissolved oxygen (DO) 7.8 mg/L
pH (lab) 7.59
Conductivity 231 µmho/cm
Alkalinity
(acid neutralizing capacity) 		948.6 µeq/L
Dissolved organic carbon (DOC) 1 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 11 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Green Sunfish 108
Blacknose Dace 101
Longnose Dace 81
Brown Trout 57
White Sucker 39
Creek Chub 32
Cutlip Minnow 27
Tessellated Darter 12
Bluegill 4
Rosyside Dace 4
Largemouth Bass 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
American Bullfrog
Eastern American Toad
Eastern Box Turtle
Northern Dusky Salamander
Northern Green Frog
Northern Two-Lined Salamander
Pickerel Frog
Wood Frog

Crayfish:
No crayfish noted.

Exotic Plants:
Japanese Stiltgrass
Mile-A-Minute
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Baetis Blue-Winged Olive Mayfly 25
Ephemerella Sulphur Mayfly 19
Prosimulium Black Fly 12
Rhyacophila Free-Living Caddisfly 7
Strophopteryx Early Brown Stonefly 6
Tvetenia Non-Biting Midges 5
Prostoia Spring Stonefly 5
Tipula Crane Fly 4
Chimarra Fingernet Caddisfly 4
Hydropsyche Net-Spinning Caddisfly 4
Parametriocnemus Non-Biting Midges 3
Cheumatopsyche Net-Spinning Caddisfly 3
Dicranota Hairy-Eyed Cranefly 3
Stegopterna Black Fly 2
Diplectrona Net-Spinning Caddisfly 2
Rheosmittia Non-Biting Midges 2
Thienemannimyia group Non-Biting Midges 2
Orthocladius Non-Biting Midges 2
Neophylax Caddisfly 1
Dolophilodes Medium Evening Sedge Caddisfly 1
Nigronia Megaloptera (Dark Fishfly) 1
Lumbriculidae Worm 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
