MBSS Site Summary for: JONE-315-S-2007

Site Photos

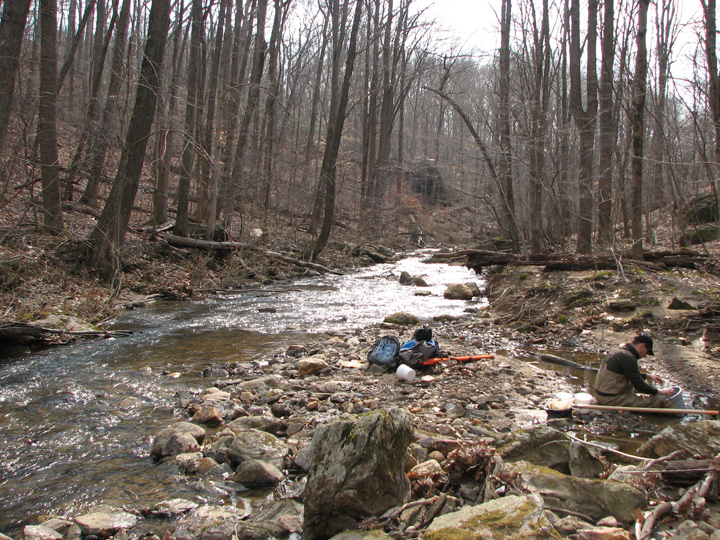

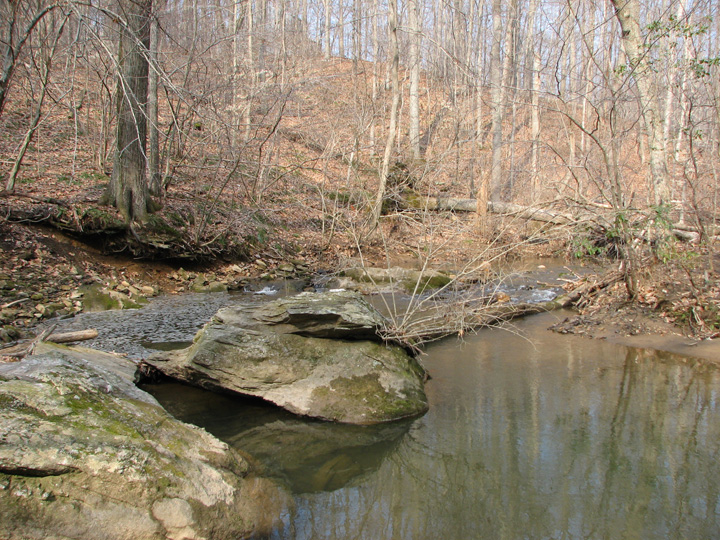

Field photo showing stream conditions at site JONE-315-S-2007-1 (Opens in a new window) Field photo showing stream conditions at site JONE-315-S-2007-2 (Opens in a new window)

Located on North Branch Jones Falls in the Jones Falls watershed, 8-digit code: 02130904.
This stream was visited in the spring on 3/22/2007 and again in the summer on 7/25/2007.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 4.0 / 5.0
Benthic IBI Fair - 3.3 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 3,820 acres A stream flowing through a densely forested area. An example of a forested stream.
Urban Land Use 4.5 %
Agricultural Land Use 39.4 %
Forested Land Use 54.5 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 17/20 (Optimal)
Epifaunal Substrate 16/20 (Optimal)
Velocity/Depth Diversity 14/20 (Suboptimal)
Pool Quality
Pool Extent = 52 meters 		16/20 (Optimal)
Riffle Quality
Riffle Extent = 23 meters 		13/20 (Suboptimal)
Shading 85 %
Embeddedness 20 %
Several measures of instream habitat were considered 'Optimal' at this location.


Stream Water Quality:
Water temperature 17.6 ° C
Dissolved oxygen (DO) 9 mg/L
pH (lab) 7.74
Conductivity 272 µmho/cm
Alkalinity
(acid neutralizing capacity) 		1164.7 µeq/L
Dissolved organic carbon (DOC) 1.0777 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 12 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Brown Trout 86
Blacknose Dace 69
Green Sunfish 58
Longnose Dace 57
White Sucker 50
Creek Chub 12
Cutlip Minnow 10
Bluegill 8
Tessellated Darter 7
Pumpkinseed 5
Largemouth Bass 3
Rosyside Dace 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Eastern Box Turtle
Long-Tailed Salamander
Northern Dusky Salamander
Northern Green Frog
Northern Two-Lined Salamander

Crayfish:
Cambarus bartonii bartonii
Orconectes virilis

Exotic Plants:
Japanese Barberry
Japanese Stiltgrass
Mile-A-Minute
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Orthocladius Non-Biting Midges 17
Hydropsyche Net-Spinning Caddisfly 15
Prosimulium Black Fly 9
Chimarra Fingernet Caddisfly 9
Parametriocnemus Non-Biting Midges 7
Clinocera Aquatic Dance Fly 6
Ephemerella Sulphur Mayfly 5
Diamesa Bloodworm 4
Tipula Crane Fly 4
Cheumatopsyche Net-Spinning Caddisfly 4
Oulimnius Riffle Beetle 3
Psephenus Water Penny 2
Polypedilum Non-Biting Midges 2
Sympotthastia Non-Biting Midges 2
Dicranota Hairy-Eyed Cranefly 2
Leucrocuta Mayfly 1
Dolophilodes Medium Evening Sedge Caddisfly 1
Nigronia Megaloptera (Dark Fishfly) 1
Lype Net Tube Caddisfly 1
Stenelmis Beetle 1
Stegopterna Black Fly 1
Thienemannimyia group Non-Biting Midges 1
Tvetenia Non-Biting Midges 1
Perlidae Common Stonefly 1
Antocha Crane Fly 1
Amphinemura Spring Stonefly 1
Brillia Non-Biting Midges 1
Micropsectra Non-Biting Midges 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
