MBSS Site Summary for: JONE-315-S-2013

Site Photos

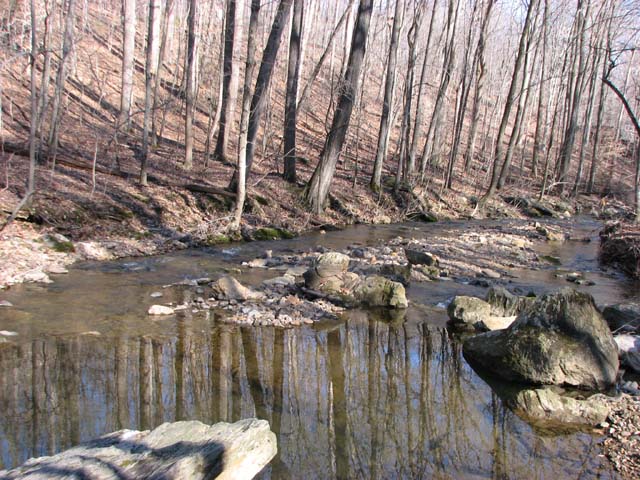

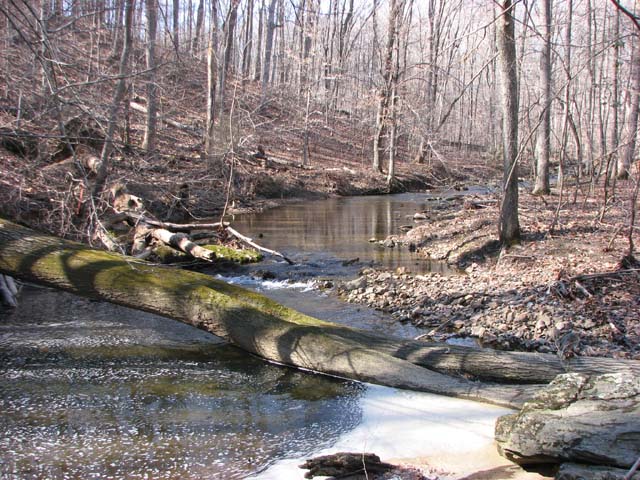

Field photo showing stream conditions at site JONE-315-S-2013-1 (Opens in a new window) Field photo showing stream conditions at site JONE-315-S-2013-2 (Opens in a new window)

Located on NORTH BRANCH OF JONES FALLS in the Jones Falls watershed, 8-digit code: 02130904.
This stream was visited in the spring on 3/4/2013 and again in the summer on 9/11/2013.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Fair - 3.3 / 5.0
Benthic IBI Fair - 3.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 3,805 acres A stream flowing through a densely forested area. An example of a forested stream.
Urban Land Use 4.5 %
Agricultural Land Use 39.5 %
Forested Land Use 54.4 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 14/20 (Suboptimal)
Epifaunal Substrate 13/20 (Suboptimal)
Velocity/Depth Diversity 12/20 (Suboptimal)
Pool Quality
Pool Extent = 70 meters 		13/20 (Suboptimal)
Riffle Quality
Riffle Extent = 24 meters 		14/20 (Suboptimal)
Shading 70 %
Embeddedness 20 %


Stream Water Quality:
pH (lab) 8
Alkalinity
(acid neutralizing capacity) 		1244.2 µeq/L
Dissolved organic carbon (DOC) 0.33 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 10 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 96
White Sucker 72
Longnose Dace 65
Creek Chub 52
Brown Trout 40
Tessellated Darter 29
Bluegill 27
Green Sunfish 23
Cutlip Minnow 10
Largemouth Bass 6
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
American Bullfrog
Gray Treefrog
Northern Green Frog

Crayfish:
Orconectes virilis

Exotic Plants:
Japanese Barberry
Japanese Stiltgrass
Privet


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Cheumatopsyche Net-Spinning Caddisfly 16
Hydropsyche Net-Spinning Caddisfly 15
Orthocladius Non-Biting Midges 13
Baetis Blue-Winged Olive Mayfly 11
Clinocera Aquatic Dance Fly 10
Prostoia Spring Stonefly 10
Prosimulium Black Fly 8
Tvetenia Non-Biting Midges 5
Parametriocnemus Non-Biting Midges 4
Chimarra Fingernet Caddisfly 3
Antocha Crane Fly 2
Diamesa Bloodworm 2
LUMBRICULIDAE Worm 1
Optioservus Riffle Beetle 1
DIAMESINAE Non-Biting Midges 1
Eukiefferiella Non-Biting Midges 1
Tipula Crane Fly 1
Neophylax Caddisfly 1
Simulium Black Fly 1
NAIDIDAE Aquatic Worm 1
Rhyacophila Free-Living Caddisfly 1
Maccaffertium March Brown And Cahill Mayfly 1
Diplectrona Net-Spinning Caddisfly 1
Phaenopsectra Non-Biting Midges 1
Potthastia Non-Biting Midges 1
Rheotanytarsus Non-Biting Midges 1
Sympotthastia Non-Biting Midges 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
