MBSS Site Summary for: JONE-315-S-2023

Site Photos

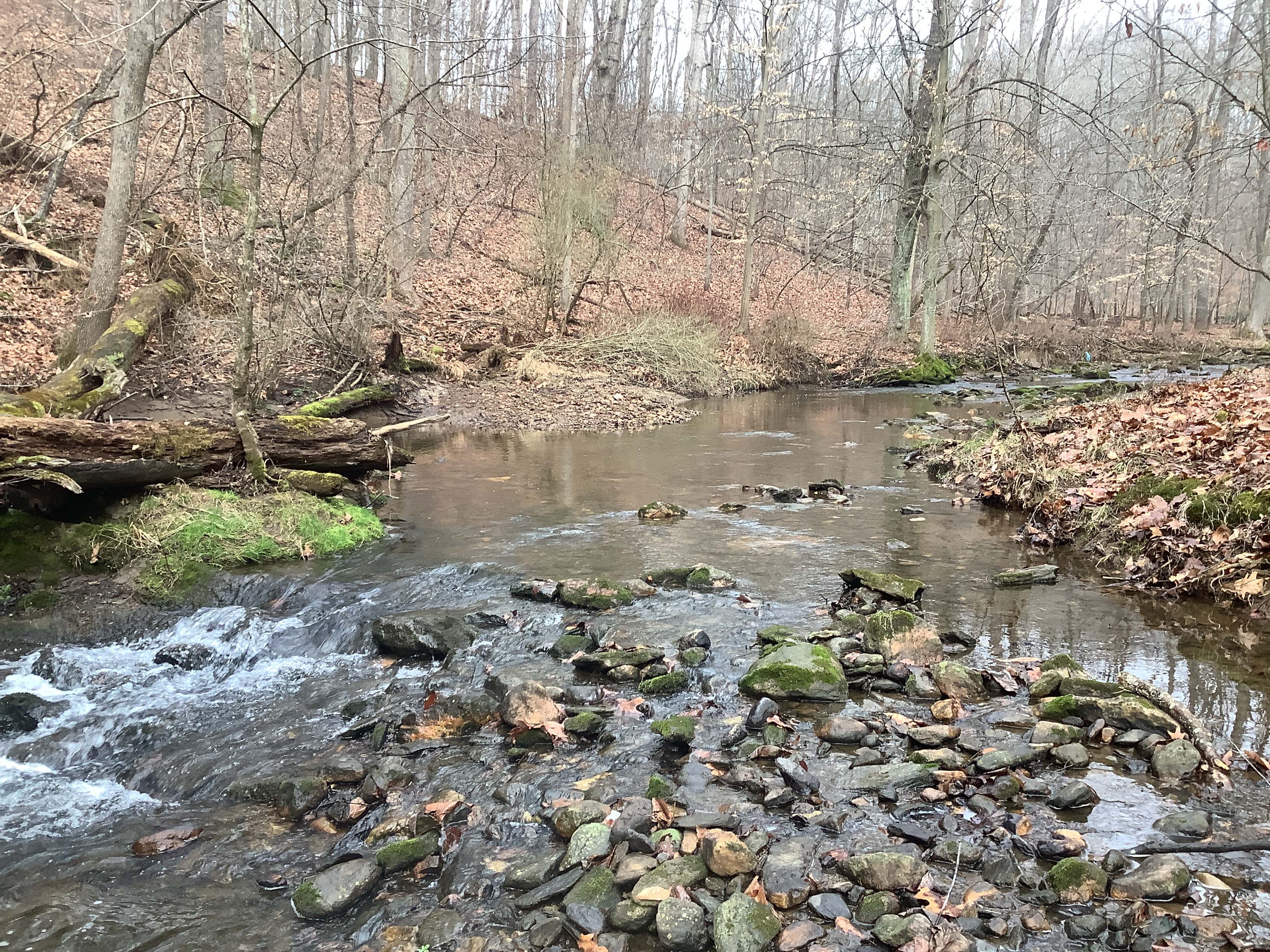

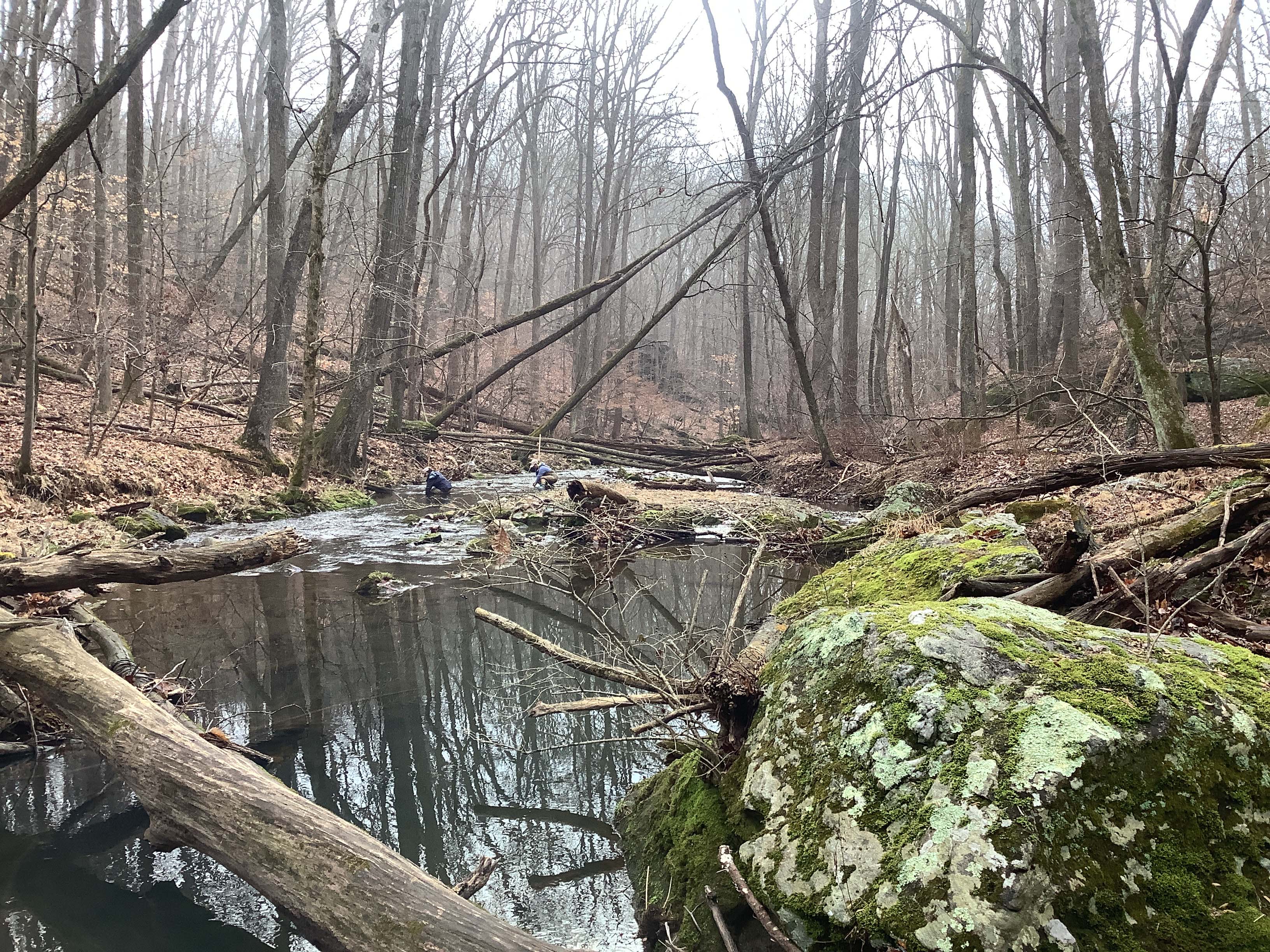

Field photo showing stream conditions at site JONE-315-S-2023_Midpoint_facing_downstream (Opens in a new window) Field photo showing stream conditions at site JONE-315-S-2023_Midpoint_facing_upstream (Opens in a new window)

Located on JONES FALLS in the Jones Falls watershed, 8-digit code: 02130904.
This stream was visited in the spring on 3/2/2023 and again in the summer on 6/21/2023.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Fair - 3.3 / 5.0
Benthic IBI Good - 4.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area No data available A highly channelized urban stream with concrete banks. An example of a highly channelized urban stream.
Urban Land Use 28.8 %
Agricultural Land Use 17.9 %
Forested Land Use 52.5 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 18/20 (Optimal)
Epifaunal Substrate 18/20 (Optimal)
Velocity/Depth Diversity 15/20 (Suboptimal)
Pool Quality
Pool Extent = 45 meters 		15/20 (Suboptimal)
Riffle Quality
Riffle Extent = 30 meters 		17/20 (Optimal)
Shading 60 %
Embeddedness 45 %
Several measures of instream habitat were considered 'Optimal' at this location.


Stream Water Quality:
Water temperature 16.8 ° C
Dissolved oxygen (DO) 8.07 mg/L
pH (lab) 7.78
Alkalinity
(acid neutralizing capacity) 		1503 µeq/L
Dissolved organic carbon (DOC) 1.166 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 10 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 90
Cutlip Minnow 65
Brown Trout 48
Longnose Dace 47
White Sucker 32
Creek Chub 29
Tessellated Darter 20
Green Sunfish 9
Largemouth Bass 2
Rosyside Dace 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Two-Lined Salamander

Crayfish:
Faxonius virilis

Exotic Plants:
Japanese Barberry
Japanese Stiltgrass
Privet
Wineberry


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
ORTHOCLADIUS Non-Biting Midges 28
CHIMARRA Fingernet Caddisfly 25
EPHEMERELLA Sulphur Mayfly 18
TVETENIA Non-Biting Midges 12
CHEUMATOPSYCHE Net-Spinning Caddisfly 6
MICROPSECTRA Non-Biting Midges 6
STENONEMA Flatheaded Mayfly 6
OULIMNIUS Riffle Beetle 5
EUKIEFFERIELLA Non-Biting Midges 4
NAIDIDAE Aquatic Worm 4
SIMULIUM Black Fly 4
SYMPOTTHASTIA Non-Biting Midges 4
PARAMETRIOCNEMUS Non-Biting Midges 4
HYDROPSYCHE Net-Spinning Caddisfly 3
NEOPHYLAX Caddisfly 3
ANTOCHA Crane Fly 3
ISONYCHIA Slate Drake Mayfly 3
LEUCROCUTA Mayfly 2
DOLOPHILODES Medium Evening Sedge Caddisfly 2
THIENEMANNIELLA Non-Biting Midges 2
OPTIOSERVUS Riffle Beetle 2
THIENEMANNIMYIA GROUP Non-Biting Midges 1
PARATANYTARSUS Non-Biting Midges 1
POLYPEDILUM Non-Biting Midges 1
RHEOTANYTARSUS Non-Biting Midges 1
BRILLIA Non-Biting Midges 1
CORYNONEURA Non-Biting Midges 1
CRICOTOPUS Non-Biting Midges 1
MICROTENDIPES Non-Biting Midges 1
DIPLECTRONA Net-Spinning Caddisfly 1
PHILOPOTAMIDAE Fingernet Caddisfly 1
RHYACOPHILA Free-Living Caddisfly 1
PROSTOMA Freshwater Nemertean (Ribbon Worm) 1
ACRONEURIA Golden Stoneflies 1
PYCNOPSYCHE Great Autumn Brown Sedge Caddisfly 1
GLOSSOSOMA Little Black Caddisfly 1
EMPIDIDAE Dance Fly 1
DIAMESA Bloodworm 1
STENELMIS Beetle 1
PROSIMULIUM Black Fly 1
TRICHOCLINOCERA 1
CRANGONYX Amphipod 1
AMPHINEMURA Spring Stonefly 1
ACENTRELLA Tiny Blue-Winged Olive Mayflies 1
PSEPHENUS Water Penny 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
